SMART · SMART Board QX (V2) Pro series

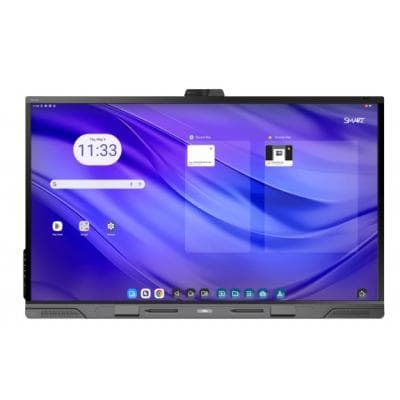

SMART QX275-V2-P-5A 75-inch 4K interactive display
SMART Platinum Partner
We work closely with SMART Technologies to secure competitive pricing for your project.
Buying multiple displays? Ask us for a tailored deal.
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
A 75-inch 4K interactive display for meeting rooms and boardrooms, with SMART's iQ Android system built in, HyPr Touch tracking up to 50 touch points, a 4K ePTZ camera in the box, an eight-microphone array and an integrated soundbar with two 20W speakers and a 15W subwoofer.
TopAV buying advice
Is the SMART QX275-V2-P-5A right for your meeting room?
For a meeting room that needs the camera, microphones and whiteboard in one unit.
Shortlist the QX Pro for a mid-size meeting room or boardroom that runs hybrid calls and wants the camera and audio built into the display rather than bolted around it. The panel arrives with a 4K ePTZ camera, an eight-microphone array and an integrated soundbar, so a room can be finished with a mount and a cable rather than a separate video bar. At 75 inches it suits a table of roughly eight to twelve; the series also runs to 65 and 86 inches, so measure the furthest seat rather than the room's capacity.
Reasons to shortlist it
- HyPr Touch with Advanced IR tracks up to 50 touch points with Pen ID, pressure-sensitive ink and palm rejection, at 1 mm accuracy, a touch response under 4 ms and a frame rate of 300 Hz or better, so writing keeps up with the hand rather than lagging behind it.
- SMART lists a 4K, 8.28MP ePTZ camera with 10x digital zoom and a 120-degree field of view in the box, alongside an integrated soundbar of two 20W speakers with a 15W subwoofer and a linear eight-microphone array with echo cancellation and a visual mute indicator.
- Front and rear USB-C ports each carry video, touch and 65W of charge, with a 15W top port for a peripheral, four HDMI 2.1 inputs and a rear OPS slot rated for a 100W SMART PCM module, so a guest laptop and a room PC can both stay connected.
- SMART Meeting Pro ships with a room licence and ten personal licences, alongside SMART Product Drivers, SMART Ink, SMART Remote Management and SMART Control, and an on-screen dashboard reports room temperature, humidity, volatile organic compounds and PM2.5.
- We are a SMART Platinum partner, so warranty claims and replacements go through us rather than a queue.
Check before you choose
- 75 inches suits a mid-size meeting room. Check the furthest seat and the smallest text people need to read before ordering: a small huddle room may be better on the 65-inch model and a boardroom on the 86-inch, and this panel weighs 56kg so the wall or stand has to be rated for it.
- Budget separately for the mount, installation and any Windows OPS module. The box holds the display, two styluses, two bar erasers, the camera with its mounting and cable accessories, a remote with batteries, the antennas, a power cable, a 5m USB A to B cable and a 1.8m 100W USB-C cable.
- Confirm with IT how the display will be managed before rollout: the installed Android version, account and app policy, and whether your network needs 802.1X credentials. The built-in environmental sensors are informational only and are not life safety rated, so do not plan to use them for compliance monitoring.
See the 75" on your wall, to scale
On a phone, point your camera at the wall and see the 75" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 75" is the right size for the room? The screen size calculator shows how far a 75" display carries for presentations, touch work and video.
What to plan before installing the QX275-V2-P-5A
01
Size & sightlines
Measure the longest viewing distance and the smallest text people need to read from the far end of the table. Allow room either side of the display so someone can stand and write without blocking the camera.
02
Mount & connections
Check wall construction, mounting height, a mains socket and a data point. The panel weighs 56kg, so confirm the wall or floor stand is rated for it, and plan where a guest laptop will sit relative to the front USB-C port. SMART lists a 800 x 400 mm (M8) VESA pattern.
03
Software & installation
Decide whether meetings run on the built-in iQ system, a room PC in the OPS slot or a guest laptop, and confirm SMART Meeting Pro licensing, account sign-in and conferencing software with your IT team. Tell us if you need mounting, cabling or an OPS PC module.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the QX275-V2-P-5A needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
SMART QX275-V2-P-5A vs QX286-V2-P-5A: 75-inch or 86-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | QX275-V2-P-5A | QX286-V2-P-5A |
|---|---|---|
| Screen Size | 75 in | 86 in |
| Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Touch Points | 50 points | 50 points |
| Brightness | 490 cd/m² | 490 cd/m² |
| USB-C Power Delivery | 65 W (front port) | 65 W (front port) |
| Speakers | Integrated soundbar, 2 x 20W with 15W subwoofer | Integrated soundbar, 2 x 20W with 15W subwoofer |
Specifications checked on 13 September 2026: SMART Board QX Pro series (opens in a new tab) and SMART QX (V2) Pro series specifications (PDF) (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 75-inch display to scaleSMART QX275-V2-P-5A specifications and documents
SMART specifications (opens in a new tab)Choose a section to view its specifications.
Display (16)
- Touchscreen
- Yes
- Accuracy touch
- 1 mm
- Viewing angle, vertical
- 178°
- Viewing angle, horizontal
- 178°
- Display resolution
- 3840 x 2160 pixels
- Maximum refresh rate
- 60 Hz
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A Touch ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C Touch ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B Touch ports quantity
- 4
- Screen Size
- 75 in
- Resolution
- 3840 x 2160 (4K UHD)
- Brightness
- 490 cd/m²
- Touch Points
- 50 points
- Touch Technology
- HyPr Touch with Advanced IR
- Aspect Ratio
- 16:9
- Backlight Life
- 50,000 hours
Connectivity (21)
- Bluetooth
- Yes
- Bluetooth version
- 5.2
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- USB 2.0 ports quantity
- 2
- USB connector type
- USB Type-A, USB Type-B, USB Type-C
- Ethernet LAN (RJ-45) ports
- 1
- Microphone connectivity
- 3.5 mm
- Headphone connectivity
- 3.5 mm
- RS-232 ports
- 1
- USB Type-C ports quantity
- 1
- HDMI version
- 2.1
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mobile operating systems supported
- Android, iOS
- USB-C Power Delivery
- 65 W (front port)
- USB-C Ports
- 4 (1 front input 65W, 1 rear input 65W, 1 top 15W, 1 rear output 4.5W)
- HDMI Inputs
- 4 (1 front, 3 rear), HDMI 2.1 4K 60Hz
- Top Wi-Fi standard
- Wi-Fi 6e (802.11ax)
Audio (5)
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- Speakers
- Integrated soundbar, 2 x 20W with 15W subwoofer
- Microphone
- Integrated linear eight-microphone array with visual mute indicator and onboard acoustic echo cancellation
- Speaker power
- 2 x 20W with 15W subwoofer
Power & Physical (15)
- Product colour
- Black
- Power consumption (standby)
- 0.5 W
- Width
- 1746 mm
- Depth
- 109 mm
- Height
- 1078 mm
- Package width
- 1895 mm
- Package depth
- 1293 mm
- Package height
- 180 mm
- Package weight
- 67 kg
- Mounting brackets included
- Yes
- Size Band
- 65 - 79"
- Power Consumption
- 105 W (typical)
- VESA Mount
- 800 x 400 mm (M8)
- Weight
- 56 kg
- Shipping Weight
- 67 kg
Certifications & Warranty (2)
- Compliance certificates
- UKCA, Low Voltage Directive (LVD), Federal Communications Commission (FCC), REACH, RoHS, CB, WEEE, CE
- Warranty
- 5 years SMART Assure (UK & Ireland)
General (22)
- Response time
- 8 ms
- Built-in projector
- No
- Interface
- USB / Bluetooth
- HDCP
- Yes
- HDCP version
- 1.4
- Wall mountable
- Yes
- Mac compatibility
- Yes
- Operating temperature (T-T)
- 5 - 35 °C
- Operating relative humidity (H-H)
- 5 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- Remote control included
- Yes
- Quantity per pack
- 1 pc(s)
- Cables included
- AC, USB
- Operating System
- iQ embedded Android 15 (supports automatic update to Android 17)
- RAM
- 8 GB DDR4
- Storage
- 64 GB (expandable to 576 GB via microSD)
- OPS Slot
- Yes, 1 rear (SMART PCM modules, 100W)
- Glass
- Optically bonded, anti-glare, anti-fingerprint, heat-tempered
- NFC Reader
- Integrated RFID NFC reader/writer (ISO 14443A/B, ISO 15693, NFC Tag 1-4)
- Sensors
- Proximity, ambient light, infrared, room temperature, humidity, VOC, PM2.5 (environmental sensors are informational, not life safety rated)
- Manufacturer part number
- QX275-V2-P-5A
- GTIN
- 628012404267
Specifications are SMART's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
SMART QX275-V2-P-5A questions answered
Who is the SMART Board QX275-V2 Pro best suited to?
Consider it for a mid-size meeting room or boardroom that runs hybrid calls and wants the camera, microphones and audio built into the display. It is the 75-inch size in the QX Pro series, so check the view from the far end of the table; the series also runs to 65 and 86 inches.
Does the QX Pro include a camera?
Yes. SMART's specification sheet lists a SMART Ultra HD Camera with its mounting and cable accessories among the included items, and the display's video specification is 4K, 8.28MP, ePTZ with 10x digital zoom and a 120-degree field of view. That is usually enough to avoid buying a separate video bar for the room.
Does it need a computer to work?
No. The iQ system is built into the display, with a digital whiteboard, web browser and screen sharing, so a meeting can start without anyone connecting a laptop. A laptop connects over USB-C or HDMI when you want to present from your own files, and a SMART PCM module can be fitted in the rear OPS slot for a permanent room PC.
Can I connect a laptop with a single USB-C cable?
Yes. The front USB-C port carries video, touch data and up to 65W of power delivery, and there is a second 65W USB-C port at the rear for a fixed machine. Your laptop and cable must support DisplayPort over USB-C, and a laptop needing more than 65W will still want its own charger.
How many people can write on it at once?
SMART lists up to 50 touch points, depending on the operating system in use, with pen, finger and eraser told apart at the same time. Two styluses with multi-colour select and two bar erasers are supplied, so several people can annotate together across the panel.
What audio and microphone hardware is built in?
An integrated soundbar with two 20W speakers and a 15W subwoofer, plus a linear eight-microphone array with onboard acoustic echo cancellation and a visual mute status indicator, with a microphone mute button on the frame. A large boardroom with a long table may still want ceiling microphones.
What do the environmental sensors do?
They feed an on-screen dashboard showing room temperature, humidity, volatile organic compounds and PM2.5, alongside proximity, ambient light and infrared sensing used by the display itself. SMART states these are not life safety rated sensors and provide general information only, so they are a comfort indicator rather than a compliance instrument.
How bright is the screen and what glass does it use?
SMART lists 490 cd/m2 for the QX Pro, behind optically bonded, anti-glare, anti-fingerprint, heat-tempered glass, with a 178-degree viewing angle. That is bright enough for a meeting room with windows, though direct sunlight on the panel is still worth designing out.
What power does it draw?
SMART lists 105W typical for the 75-inch size and under 0.5W in standby, on a 100V to 240V supply. The 65-inch and 86-inch models in the series draw different amounts, so use the figure for the size you are actually buying when you plan circuits.
Can TopAV quote for installation and delivery to a live office?
Yes. Request a project quote for mounting, cabling and installation, which is quoted separately from the display. Tell us the wall construction, the floor the room is on and any access restrictions, since a 56kg panel usually needs two people and a booked delivery slot.
