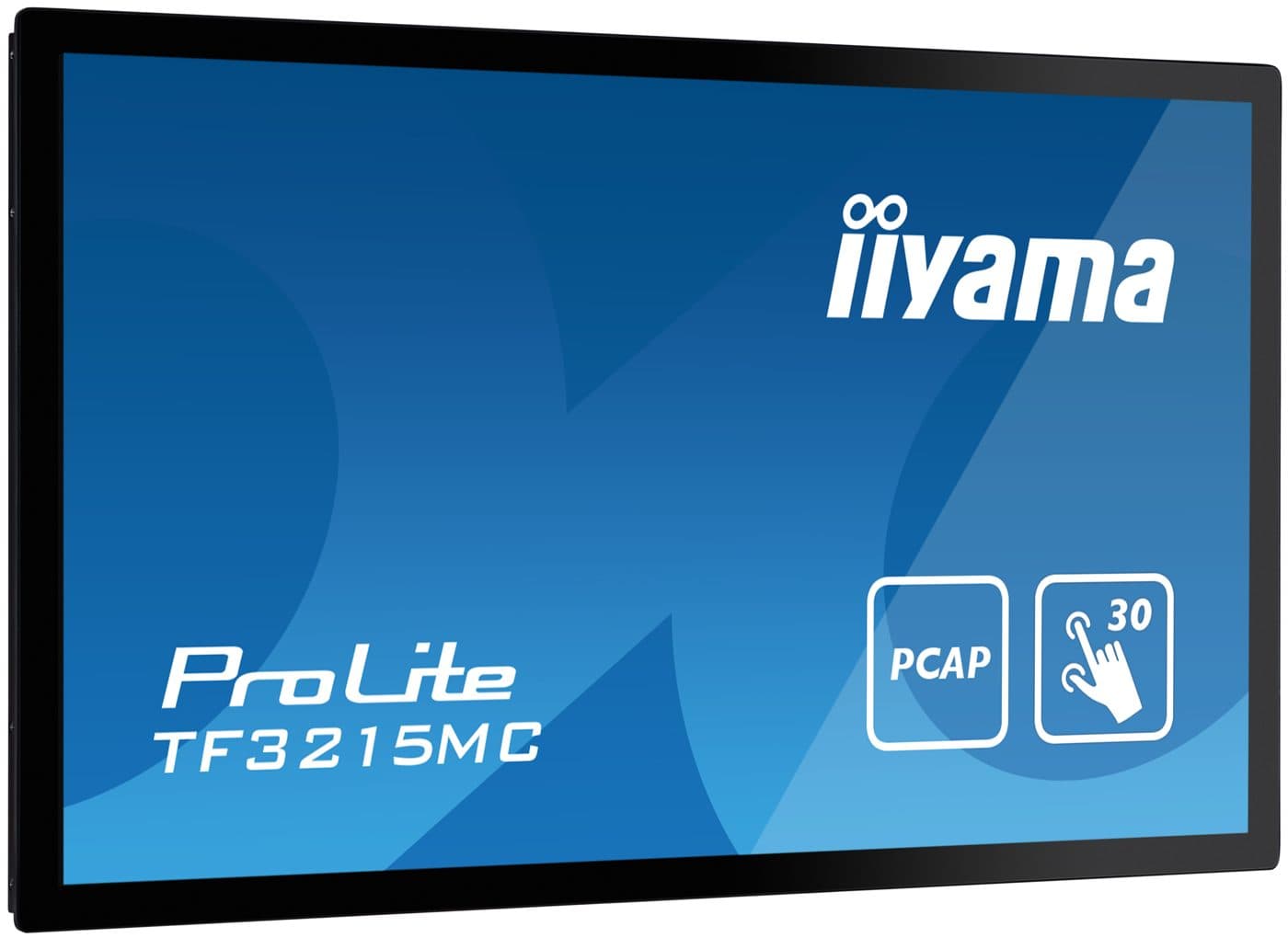

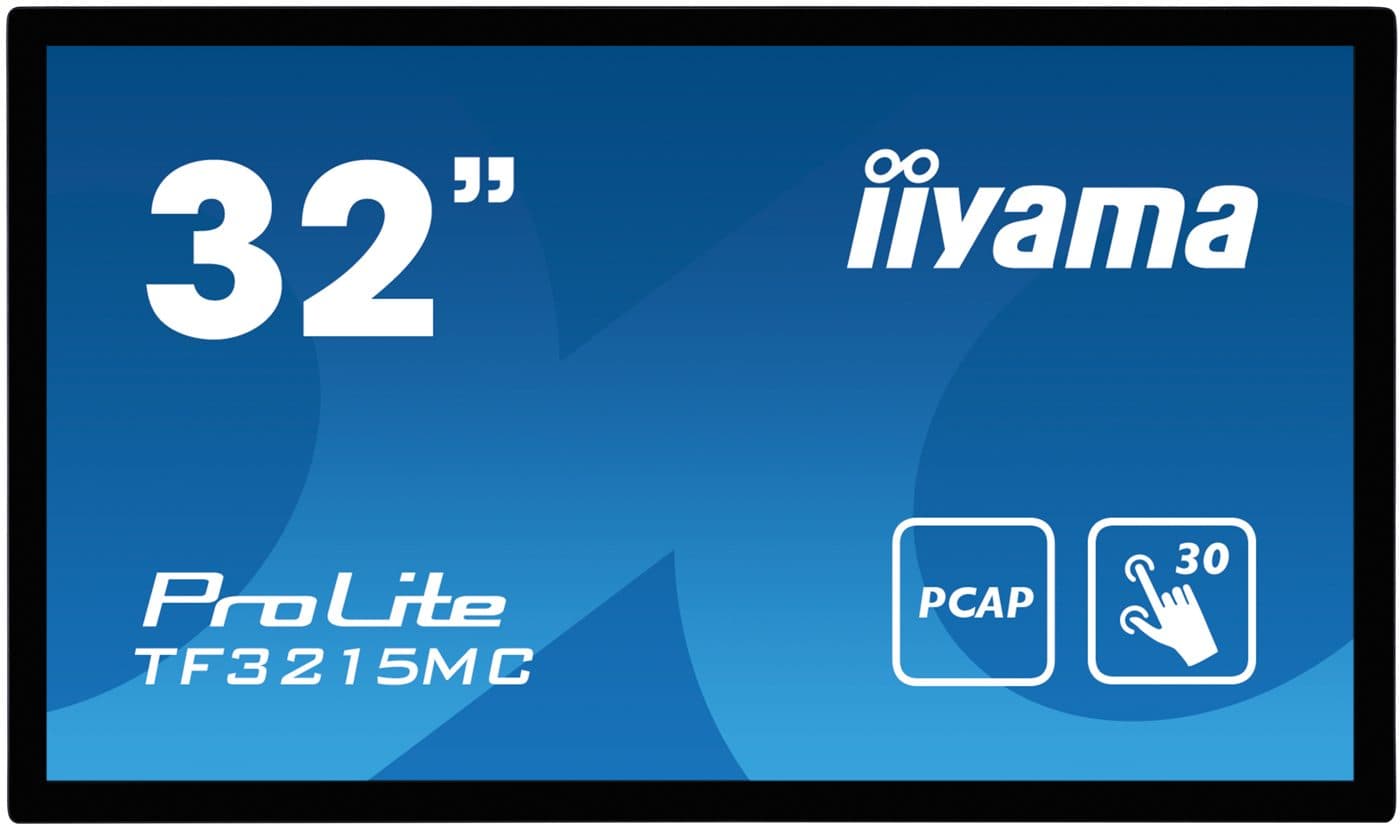

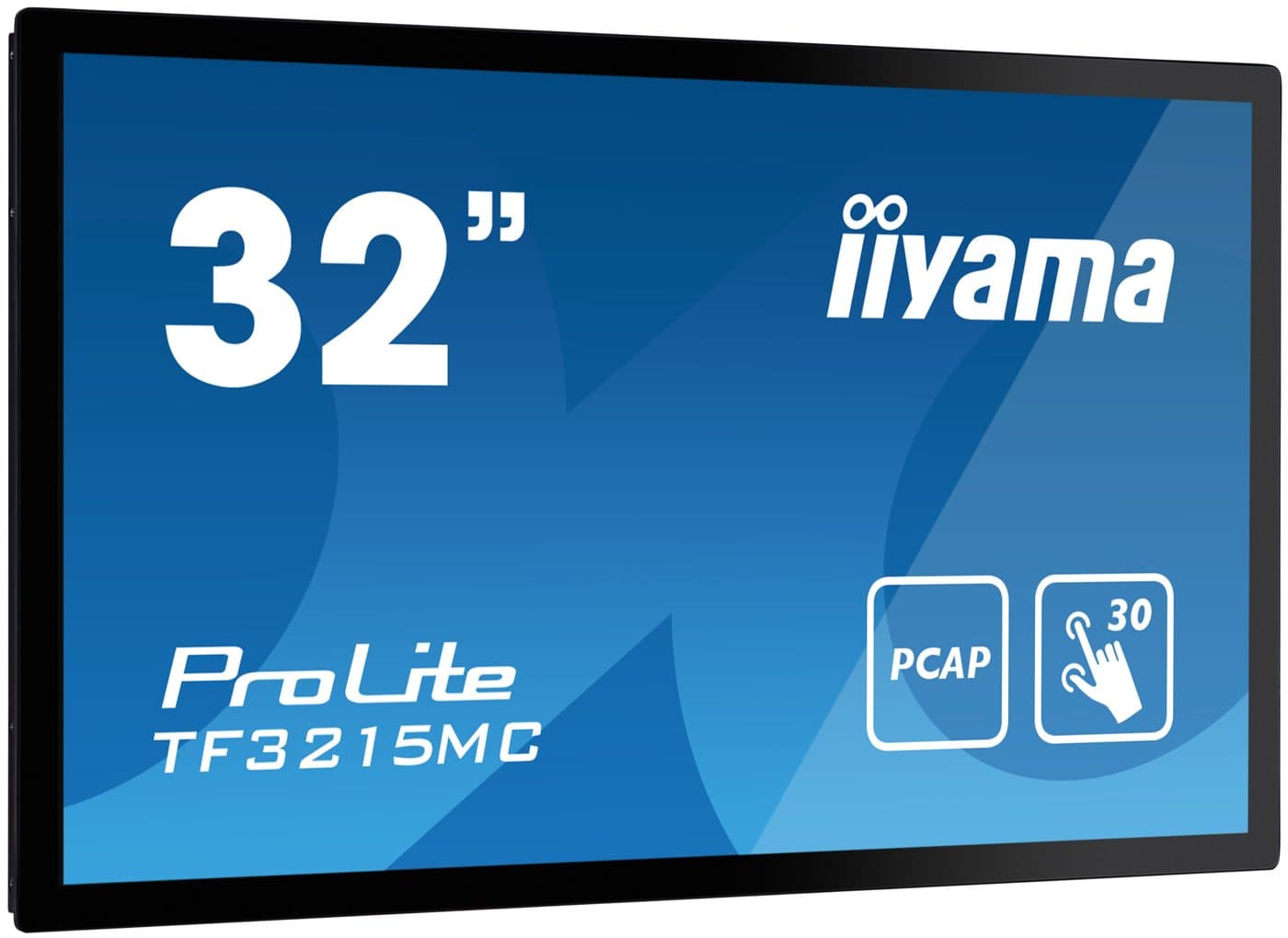

iiyama TF3215MC-B2 31.5" Open Frame Touch Monitor

Name: iiyama TF3215MC-B2 31.5" Open Frame Touch Monitor
Brand: iiyama
SKU: TF3215MC-B2
Price: 845.76 GBP
Availability: LimitedAvailability

Return within 14 days

3-year manufacturer warranty

Installation services available

£845.76inc. VAT

£704.80 ex. VAT

Low stock (5 left), order soon

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £281.92 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignOpen Frame

Diagonal31.5", 80cm

PanelVA

Native resolution1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio16:9

Panel brightness500 cd/m²

Brightness460 cd/m² with touch

Light transmittance92%

All 70 specifications

Talk to an Expert

Description

ProLite TF3215MC-B2 Open Frame PCAP 30-point touch monitor with equipped with a foam seal finish for seamless integration The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications. 10"

Also in this range:15" model 15.6" model 21.5" model 23.8" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (11)

Panel: VA
Native resolution: 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio: 16:9
Panel brightness: 500 cd/m²
Brightness: 460 cd/m² with touch
Static contrast: 3000:1 with touch
Touch technology: projective capacitive
Touch points: 30 (HID, only with supported OS)
Touch accuracy: +- 2mm
Touch method: finger, glove (latex), capacitive stylus
Touch interface: USB

Connectivity (5)

Colour support: 16.7mln 8bit
Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Analog signal input: VGA x1
Digital signal input: HDMI x1DisplayPort x1
OSD languages: EN, DE, FR, ES, IT, CN, JP

Power & Physical (5)

VESA mounting: 200 x 200mm
Product dimensions W x H x D: 743 x 437 x 61mm
Box dimensions W x H x D: 890 x 630 x 155mm
Weight (without box): 10kg
Weight (with box): 13.3kg

General (49)

Design: Open Frame
Diagonal: 31.5", 80cm
Light transmittance: 92%
Response time (GTG): 8ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync: 30 - 68kHz
Viewable area W x H: 698.4 x 392.8mm, 27.5 x 15.5"
Pixel pitch: 0.3637mm
Bezel colour and finish: black
Reommended usage: retail
Through-Glass: 6mm
HDCP: yes
Extra: Touch Through-Glass
Kiosk mode: yes
Max. non-stop operating time: 24/7
Glass thickness: 3mm
Glass hardness: 7H
60950 Ball drop test: yes
Impact testing: IK-7
Water and dust protection: IP65 (front)
Housing (bezel): metal
Water tight seal: yes
OSD key lock: yes
Control buttons: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls: Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play: DDC2B
Orientation: landscape, portrait
Fanless design: yes
Cable management system: yes
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C
MTBF: 50000 hours
Cables: power, USB, HDMI
Guides: quick start guide, safety guide
Cable cover: yes
Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 32W typical, 1.5W stand by, 0.3W off mode
Regulations: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369): F
REACH SVHC: above 0.1%: Lead
EAN code: 4948570123667
User manual: TF3215MC-B2_AG-usermanual-e.pdf
Technical specification: ProLite TF3215MC-B2 - gb_en.pdf
Drawing: TF3215MC_drawing.pdf
EU Energy Label: TF3215MC-B2 EU Energy Label (1790690).pdf
UK Energy Label: TF3215MC-B2 UK Energy Label (1790690).pdf
Driver instruction EETI_02_2021: Driver instruction EETI_02_2021.pdf
CE & TUV: TF3215MC-1 CE DoC.pdf
