ViewSonic XF2430 24-inch Open Frame 10-Point Touch Monitor

Name: ViewSonic XF2430 24-inch Open Frame 10-Point Touch Monitor
Brand: ViewSonic
SKU: XF2430
Price: 695.21 GBP
Availability: OutOfStock

Return within 14 days

Manufacturer warranty

Installation services available

£695.21inc. VAT

£579.34 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £231.74 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Manufacturer warranty

Installation services available

Key specifications

Screen Size24"

Aspect Ratio16:9

Active Area531.36 (H) x 298.89 (V)

Resolution1920 x 1080

Pixel Pitch (mm)0.28 (H) x 0.28 (V)

Brightness210 cd/m²

Contrast Ratio1000:1

Viewing AnglesH:178° V:178°

All 15 specifications

Talk to an Expert

Description

The ViewSonic XF2430 is a 24-inch open-frame touch monitor — a bare chassis meant to be built into a kiosk, a counter, a ticket machine or a piece of production equipment rather than sat on a desk. There is no stand and no decorative bezel; the mounting flanges and the VESA pattern are the whole fixing story.

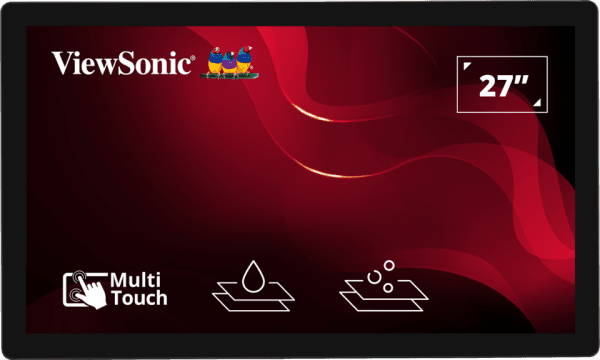

Also in this range:21.5" model 27" model 43" model 50" model Full specifications Compare alternatives

The panel runs at 1920 x 1080 with 210 cd/m² brightness and a 1000:1 contrast ratio, behind 3 mm of cover glass with a Hard coating (7H) coating. Touch is PCAP 10 points projected capacitive, which behaves the way a phone screen does — light touches register, and gloved or wet fingers are far less of a problem than with resistive panels.

The front face is sealed to IP65 so it can be wiped down or splashed without concern, and ViewSonic rates the monitor for 24/7 continuous operation with a 30,000 hrs backlight life. HDMI, DisplayPort and VGA inputs cover whatever the host system offers, touch returns over USB Type-B, and the unit mounts on 75 x 75 mm & 100 x 100 mm VESA patterns. A wide -10 to 80°C temperature option and a light sensor are available for harsher installations.

Key features

IP65 sealed front

The front face is dustproof and water-resistant to IP65, so it can be wiped down or splashed in a public-facing installation.

10-point PCAP touch

Projected capacitive touch reads 10 points and behaves like a phone screen — light contact registers, and gloves or moisture are far less of an obstacle than with resistive panels.

Rated for 24/7 operation

Built for continuous duty in kiosks and self-service terminals, with a 30,000 hrs backlight life.

Open frame, VESA mountable

A bare chassis with no stand or decorative bezel, fixed through 75 x 75 mm & 100 x 100 mm VESA patterns or its own mounting flanges.

Technical specifications

Screen Size24"

Aspect Ratio16:9

Active Area531.36 (H) x 298.89 (V)

Resolution1920 x 1080

Pixel Pitch (mm)0.28 (H) x 0.28 (V)

Brightness210 cd/m²

Contrast Ratio1000:1

Viewing AnglesH:178° V:178°

Response Time14 ms

Display Colors16.7 M

Backlight Life30,000 hrs

Color GamutNTSC 72%

Surface TreatmentHard coating (7H)

Cover Glass Thickness3 mm

Touch ScreenPCAP 10 points
