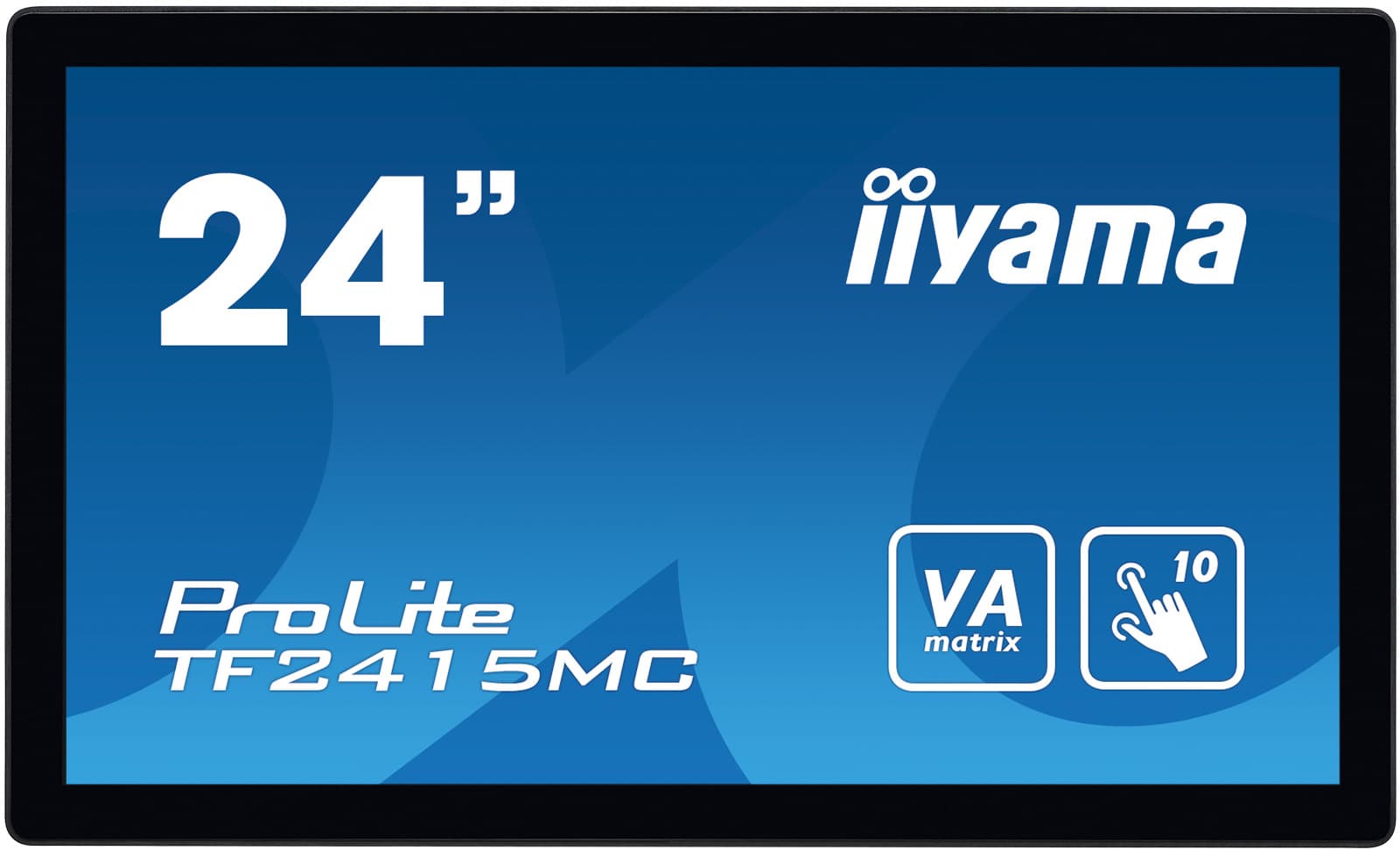

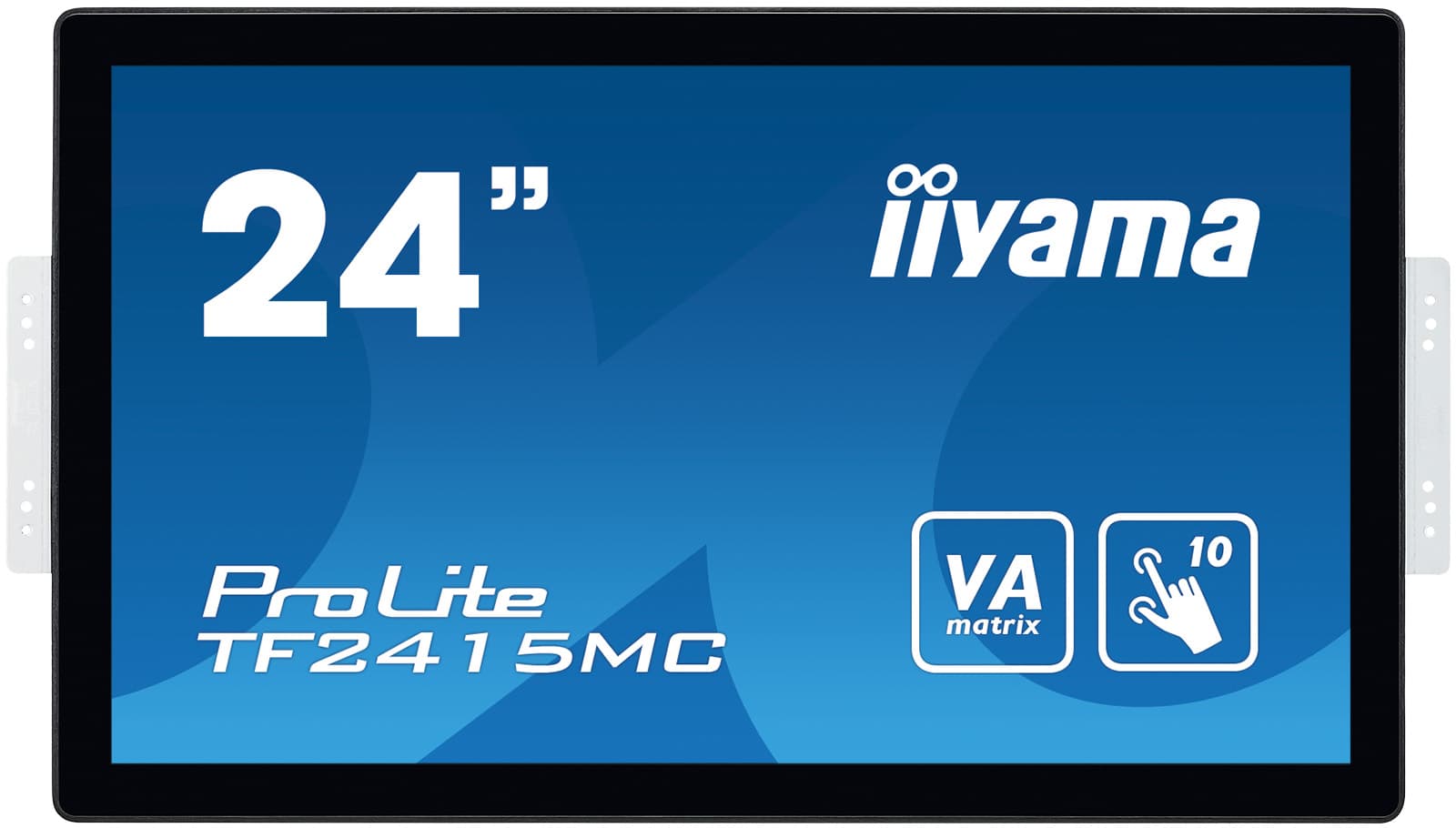

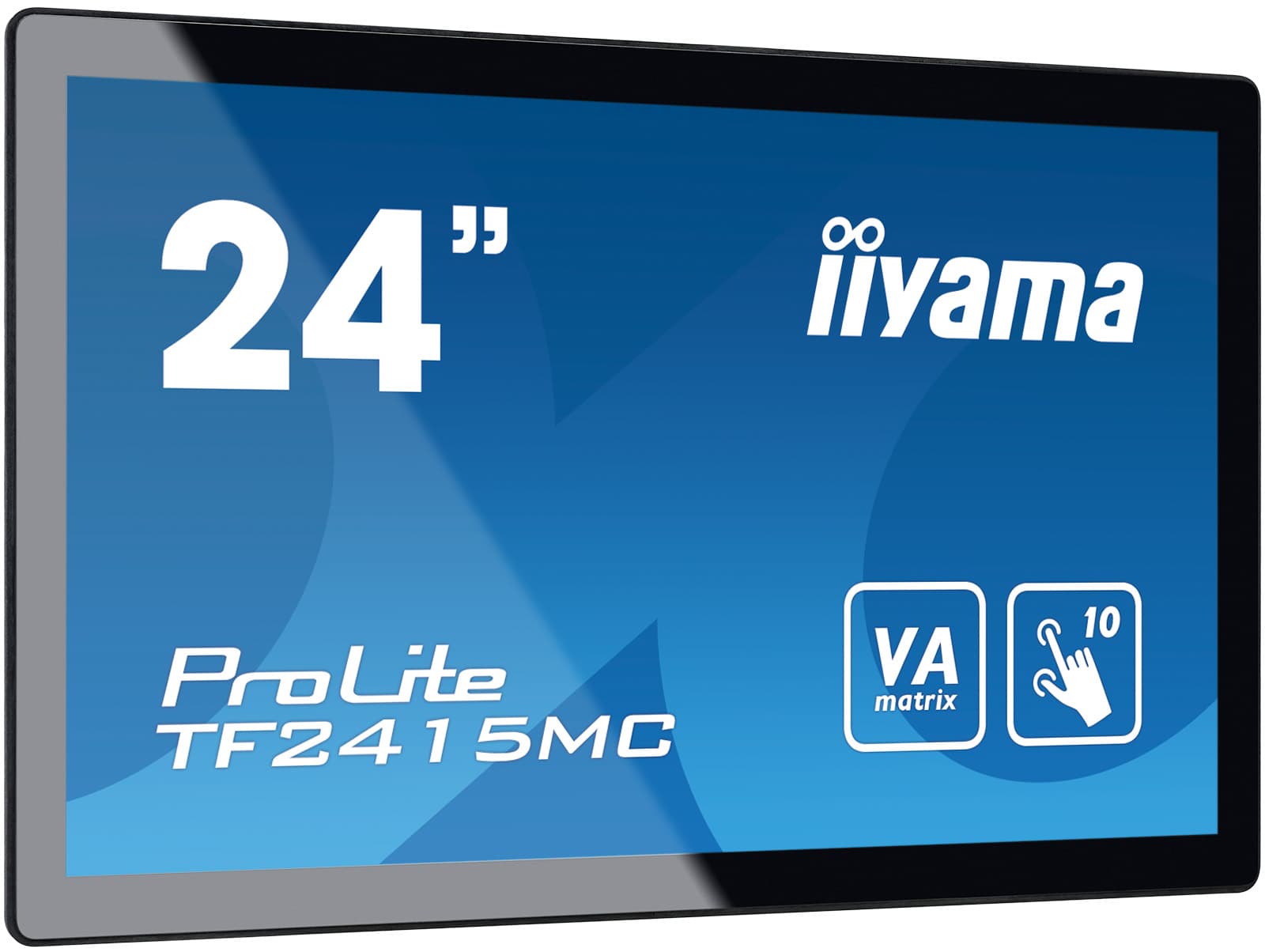

iiyama TF2415MC-B2 23.8" Open Frame Touch Monitor

Name: iiyama TF2415MC-B2 23.8" Open Frame Touch Monitor
Brand: iiyama
SKU: TF2415MC-B2
Price: 537.65 GBP
Availability: LimitedAvailability

Return within 14 days

3-year manufacturer warranty

Installation services available

£537.65inc. VAT

£448.04 ex. VAT

Low stock (5 left), order soon

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £179.22 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignEdge to edge glass

Diagonal23.8", 60.5cm

PanelVA LED

Native resolution1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio16:9

Panel brightness350 cd/m²

Brightness315 cd/m² with touch

Light transmittance90%

All 59 specifications

Talk to an Expert

Description

ProLite TF2415MC-B2 Open Frame PCAP 10 point touch screen equipped with touch through glass function The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive

Also in this range:15" model 15.6" model 21.5" model 31.5" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (10)

Panel: VA LED
Native resolution: 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio: 16:9
Panel brightness: 350 cd/m²
Brightness: 315 cd/m² with touch
Static contrast: 3000:1
Touch technology: projective capacitive
Touch points: 10 (HID, only with supported OS)
Touch method: stylus, finger, glove (latex)
Touch interface: USB

Connectivity (6)

Analog signal input: VGA x1
Digital signal input: HDMI x1DisplayPort x1
Monitor control input: RJ45 (LAN) x1
Audio output: Mini jack x1
RJ45 (LAN): x1
OSD languages: EN, DE, FR, ES, IT, CN, JP

Power & Physical (3)

VESA mounting: 100 x 100mm
Product dimensions W x H x D: 575 x 347 x 42.5mm
Weight (without box): 5.8kg

General (40)

Design: Edge to edge glass
Diagonal: 23.8", 60.5cm
Light transmittance: 90%
Response time (BTB): 16ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync: 31.4 - 82kHz
Viewable area W x H: 527.04 x 296.46mm, 20.7 x 11.7"
Pixel pitch: 0.2745mm
Bezel colour and finish: black
Through-Glass: 6mm
Extra: anti-fingerprint coating, touch through-glass
Glass hardness: 7H
60950 Ball drop test: yes
Water and dust protection: IP65 (front)
Water tight seal: yes
OSD key lock: yes
Control buttons: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls: picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play: DDC2B
Orientation: landscape, portrait, face-up
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C
Cables: power, USB, HDMI, DP
Guides: quick start guide, safety guide
Other: AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Power supply unit: external
Power supply: DC 12 V
Power usage: 24.4W typical, 1.06W stand by, 0.32W off mode
Regulations: CB, CE, RoHS support, ErP, WEEE, CU, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369): E
REACH SVHC: above 0.1%: Lead
EAN code: 4948570116775
Related products: OMK2-1
User manual: TF10_15_22_2415MC-B2_A_B_1215MC-B1A_1615MC-B1-usermanual-e-revK.pdf
Technical specification: ProLite TF2415MC-B2 - gb_en.pdf
Drawing: TF2415MC-B2 drawing.pdf
EU Energy Label: TF2415MC-B2 B EU Energy Label (1260611).pdf
UA Energy Label: TF2415MC-2 Ukraine Energy Label pdf data.pdf
UK Energy Label: TF2415MC-B2 B UK Energy Label (1260611).pdf
CE & TUV: TF2415MC-2A CE_TUV.pdf
