Home / 10 - 19" Touch Screens / iiyama TF1615MC-B1 15.6" Open Frame Touch Monitor

iiyama

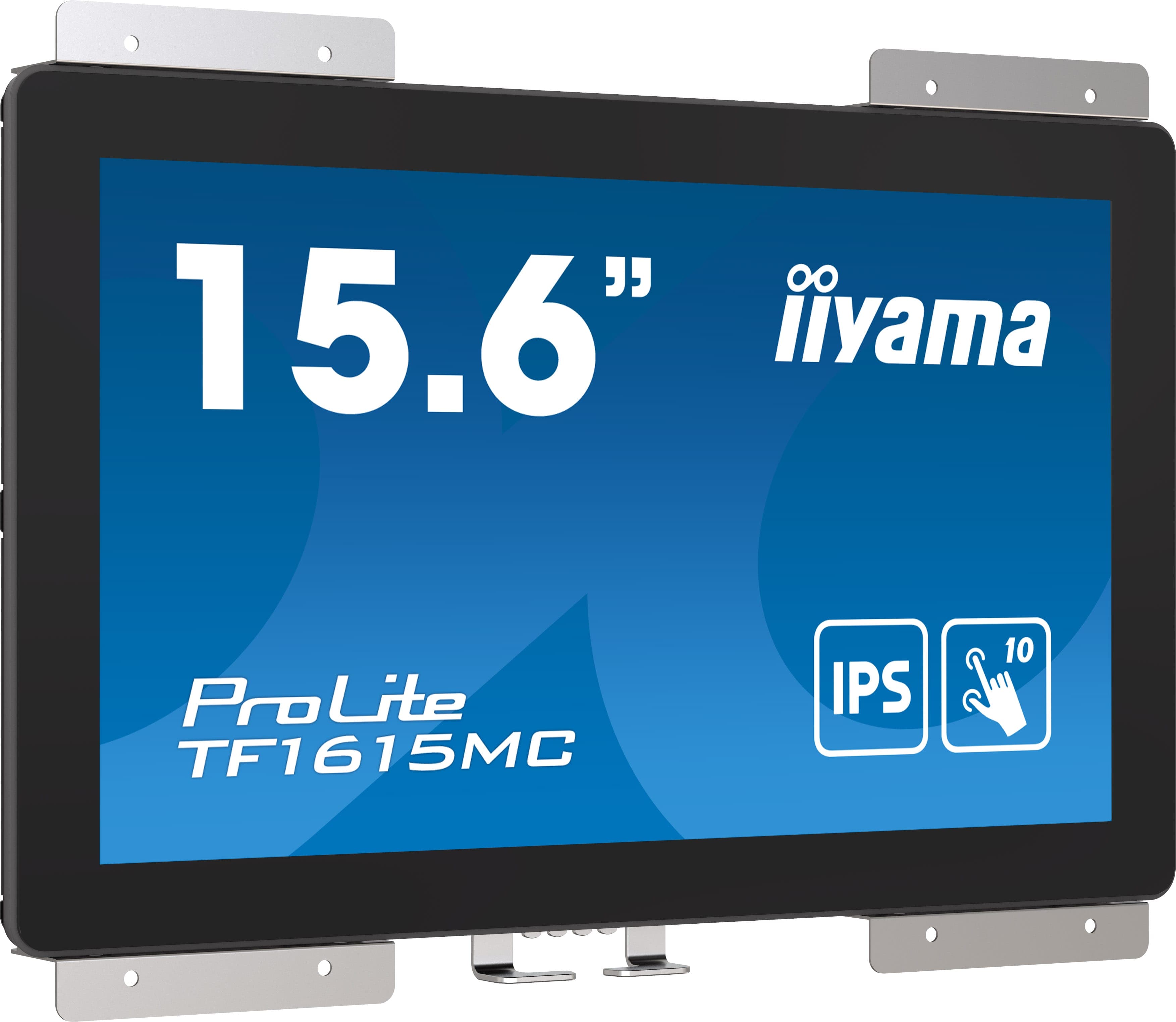

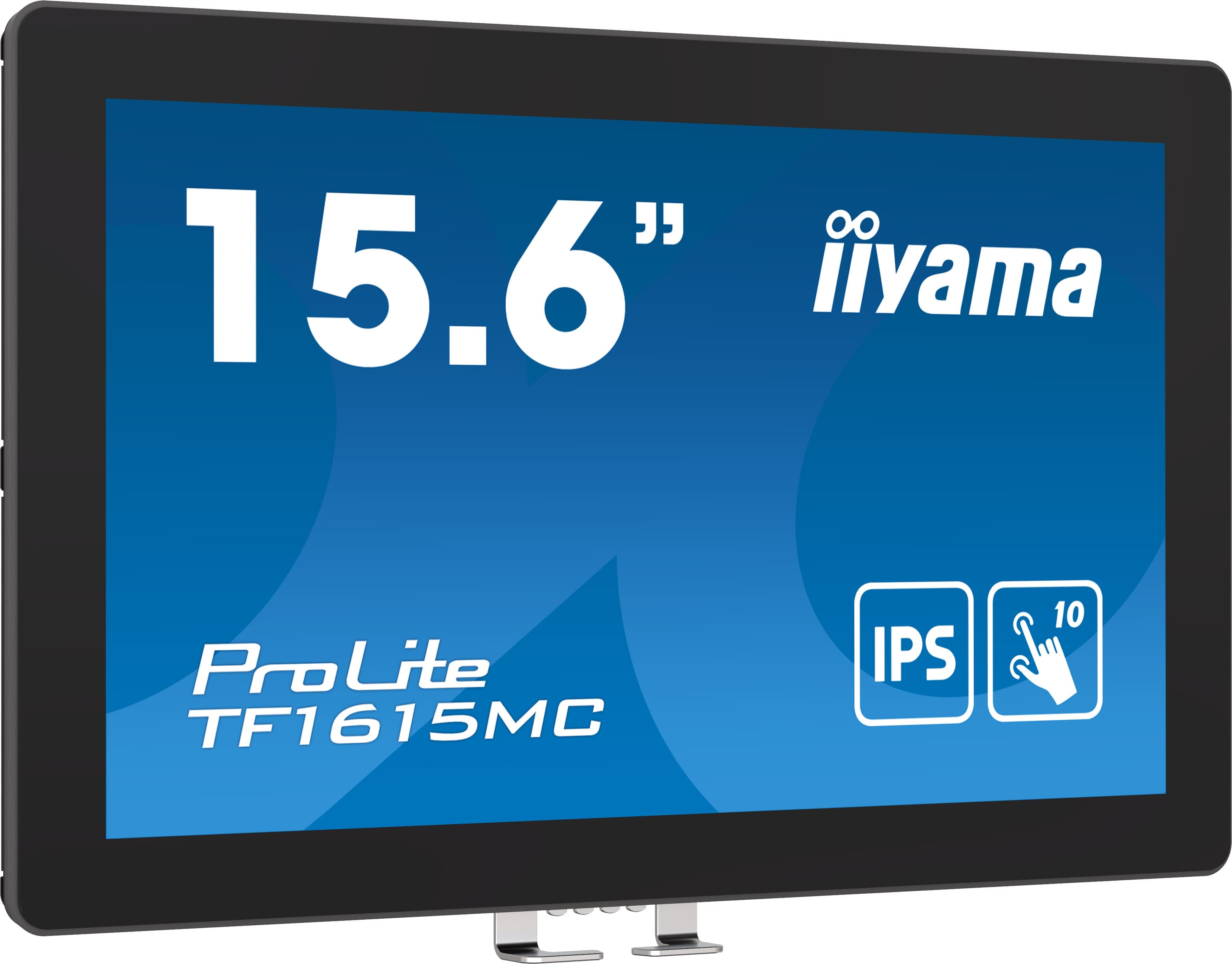

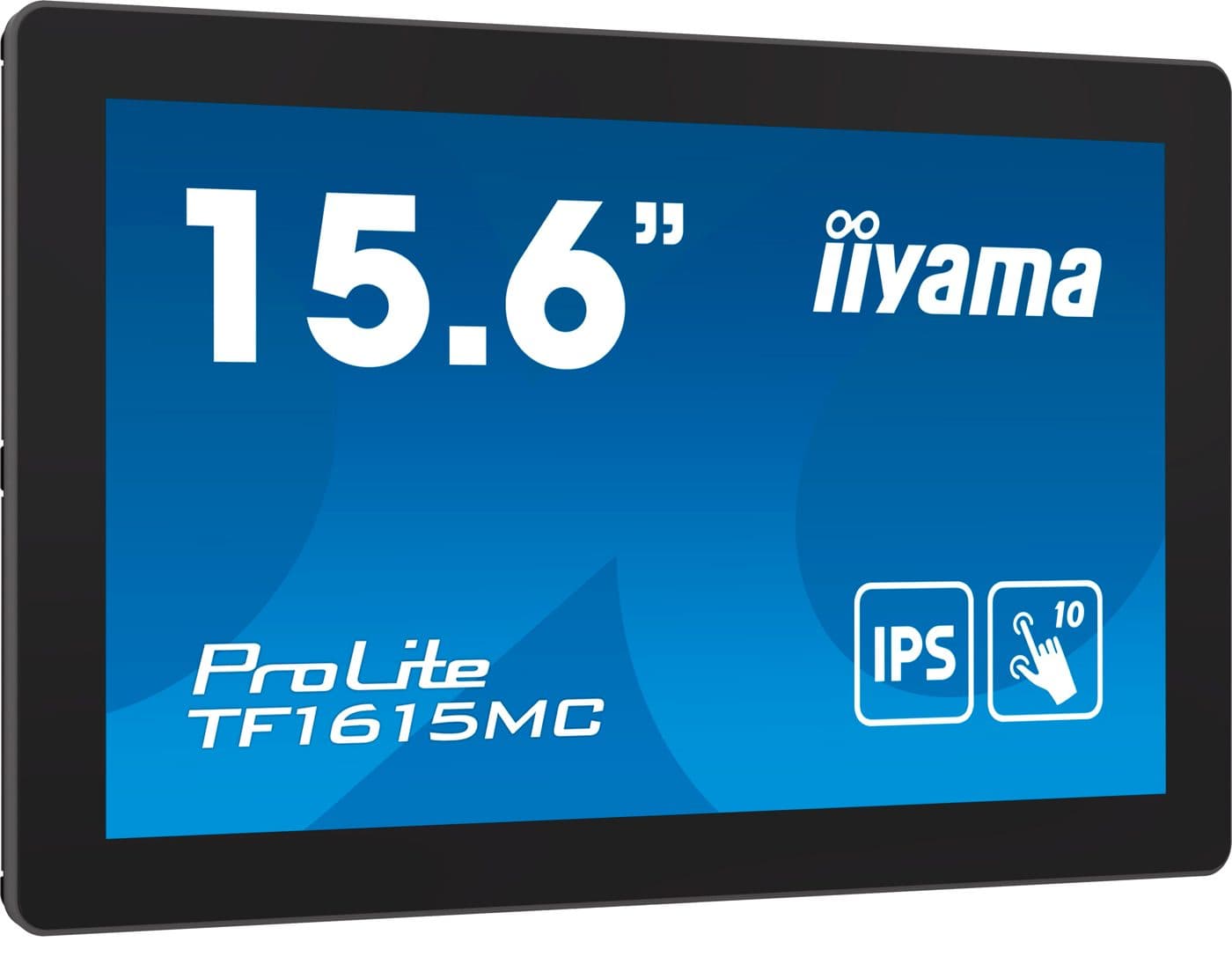

iiyama TF1615MC-B1 15.6" Open Frame Touch Monitor

Name: iiyama TF1615MC-B1 15.6" Open Frame Touch Monitor
Brand: iiyama
SKU: TF1615MC-B1
Price: 346.67 GBP
Availability: OutOfStock

Return within 14 days

3-year manufacturer warranty

Installation services available

£346.67inc. VAT

£288.89 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £115.56 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignOpen Frame

Diagonal15.6", 39.5cm

PanelIPS

Native resolution1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio16:9

Panel brightness450 cd/m²

Brightness405 cd/m² with touch

Light transmittance90%

All 62 specifications

Talk to an Expert

Description

ProLite TF1615MC-B1 Open Frame PCAP 10 point touch screen equipped with touch through glass function The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets (OMK5-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and int

Also in this range:10.1" model 12.1" model 15" model 21.5" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (11)

Panel: IPS
Native resolution: 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio: 16:9
Panel brightness: 450 cd/m²
Brightness: 405 cd/m² with touch
Static contrast: 1000:1
Touch technology: projective capacitive
Touch points: 10 (HID, only with supported OS)
Touch method: stylus, finger, glove (latex)
Touch interface: USB
Touch panel thickness: 3.3mm

Connectivity (6)

Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Analog signal input: VGA x1
Digital signal input: HDMI x1DisplayPort x1
Monitor control input: RJ45 (LAN) x1
Audio output: Mini jack x1
OSD languages: EN, DE, FR, ES, IT, CN, JP

Power & Physical (5)

VESA mounting: 100 x 100mm
Product dimensions W x H x D: 398.5 x 246 x 42mm
Box dimensions W x H x D: 470 x 145 x 343mm
Weight (without box): 2.5kg
Weight (with box): 4.3kg

General (40)

Design: Open Frame
Diagonal: 15.6", 39.5cm
Light transmittance: 90%
Response time (BTB): 25ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync: 31.5 - 67.5kHz
Viewable area W x H: 345.2 x 194.6mm
Pixel pitch: 0.17925mm
Bezel colour and finish: black
Through-Glass: 6mm
HDCP: yes
Extra: anti-fingerprint coating, touch through-glass, foam seal
Glass hardness: 7H
60950 Ball drop test: yes
Water and dust protection: IP65 (front)
OSD key lock: yes
Control buttons: menu,scroll up/ brightness, scroll down/ contrast, select, power
User controls: picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play: DDC2B
Orientation: landscape, portrait, face-up
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C
MTBF: 50000 hours
Cables: power, USB, HDMI, DP
Guides: quick start guide, safety guide
Other: AC adapter, external control pad
Power supply unit: external
Power supply: DC 12 V
Power usage: 18W typical, 1.5W stand by, 0.3W off mode
Regulations: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369): E
REACH SVHC: above 0.1%: Lead
EAN code: 4948570121793
Related products: ProLite TF1015MC-B2, ProLite TF2215MC-B2, ProLite TF2415MC-B2, ProLite TF1515MC-B2, ProLite TF1215MC-B1, OMK5-1
User manual: TF10_15_22_2415MC-B2_A_B_1215MC-B1A_1615MC-B1-usermanual-e-revK.pdf
Technical specification: ProLite TF1615MC-B1 - gb_en.pdf
Drawing: TF1615MC_with_bracket_drawing.pdf
EU Energy Label: TF1615MC-B1 EU Energy Label (1355204).pdf
UK Energy Label: TF1615MC-B1 UK Energy Label (1355204).pdf
CE: TF1615MC-1 CE DoC.pdf
