Home / 10 - 19" Touch Screens / iiyama TW1625LASC-B3PNR 15.6" Touch Panel PC
Est. delivery 27 Aug - 31 Aug
Return within 14 days
3 Year Warranty
Installation services available
iiyama

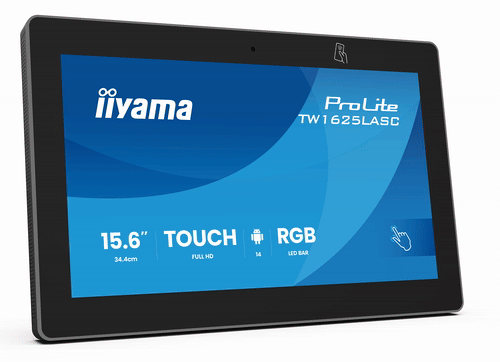

iiyama TW1625LASC-B3PNR 15.6" Touch Panel PC

SKU TW1625LASC-B3PNR
£316.80inc. VAT
£264.00 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
Guidesquick start guide, safety guide
DesignEdge to edge glass
Diagonal15.6", 34.4cm
PanelIPS Panel Technology, LED
Native resolution1920 x 1080 (1 megapixel HD)
Aspect ratio16:9
Panel brightness450 cd/m²
Brightness390 cd/m² with touch

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TW1625LASC-B3PNR 15.6" Touch Panel PC × 1£316.80
Total£316.80
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite TW1625LASC-B3PNR 15.6” PCAP 10pt touchscreen PC with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.The integrated NFC/RFID reader enables contactless interaction with compatible tags or

Technical specifications

Guidesquick start guide, safety guide
DesignEdge to edge glass
Diagonal15.6", 34.4cm
PanelIPS Panel Technology, LED
Native resolution1920 x 1080 (1 megapixel HD)
Aspect ratio16:9
Panel brightness450 cd/m²
Brightness390 cd/m² with touch
Light transmittance86%
Static contrast1000:1 with touch
Response time (GTG)20ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln 8bit
Viewable area W x H344.16 x 193.5mm, 13.5 x 7.6"
Pixel pitch0.1792mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Audio outputMini jack x1Speakers 2 x 2W
USB portsx3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1 x USB-C (DC5V, 900mA))
RJ45 (LAN)x1 (PoE - IEEE802.3at/30W)
Microphonex1
Integrated softwareAndroid 14
CPURockchip RK3576 Octo-core A53*4 + A72*4 up to 2.2GHz
Storage32GB eMMC
Memory4GB DDR4
WiFiIEEE802.11ax/ac/a/b/g/n
Bluetooth5.3
HardwareNFC (NXP PN7160), RFID (125kHZ,ISO/IEC 11784/11785,EM4100, TK4100/GK4100)
ExtraAuto-rotation, webcam (5 megapixel), SD card slot, anti-fingerprint coating, anti-glare coating, PoE, NFC/RFID reader, RGB Led lightbar, wall mount
Kiosk modeyes
Max. non-stop operating time24/7
Glass thickness2.05mm
Glass hardness6H
Control buttonsPower switch
ApplicationsApplications: lock application, manage restart time, manage power on/off time, calculator, calendar, camera, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, led light bar, play audio files, Play store, system peferences, sound recorder, play video
Orientationlandscape, portrait, face-up
VESA mounting75 x 75mm
Cable management systemyes
OtherAC adapter, interchangeable plugs (EU/UK), cable cover/wall mount
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage11W typical, 0.5W stand by, 0.5W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D397 x 256 x 28.5mm
Box dimensions W x H x D495 x 305 x 75mm
Weight (without box)2kg
Weight (with box)3kg
EAN code4948570125692
User manualTW10_1625LASC-B3PNR-usermanual-e_rev i.pdf
Technical specificationProLite TW1625LASC-B3PNR - gb_en.pdf
DrawingTW1625LASC-B3PNR drawing.pdf
InstructionsTW series API Setup instructions_20251001.zip
RGB Led bar controlTW1025LASC-B1PNR LED control.zip

See the 15.6" on your wall, to scale

On a phone, point your camera at the wall and see the 15.6" there at its real size. On a computer, upload a photo of the wall — or scan the QR code to take one with your phone and it will appear here — and drag the display around it to scale.

Documents

iiyama TW1625LASC-B3PNR datasheet
