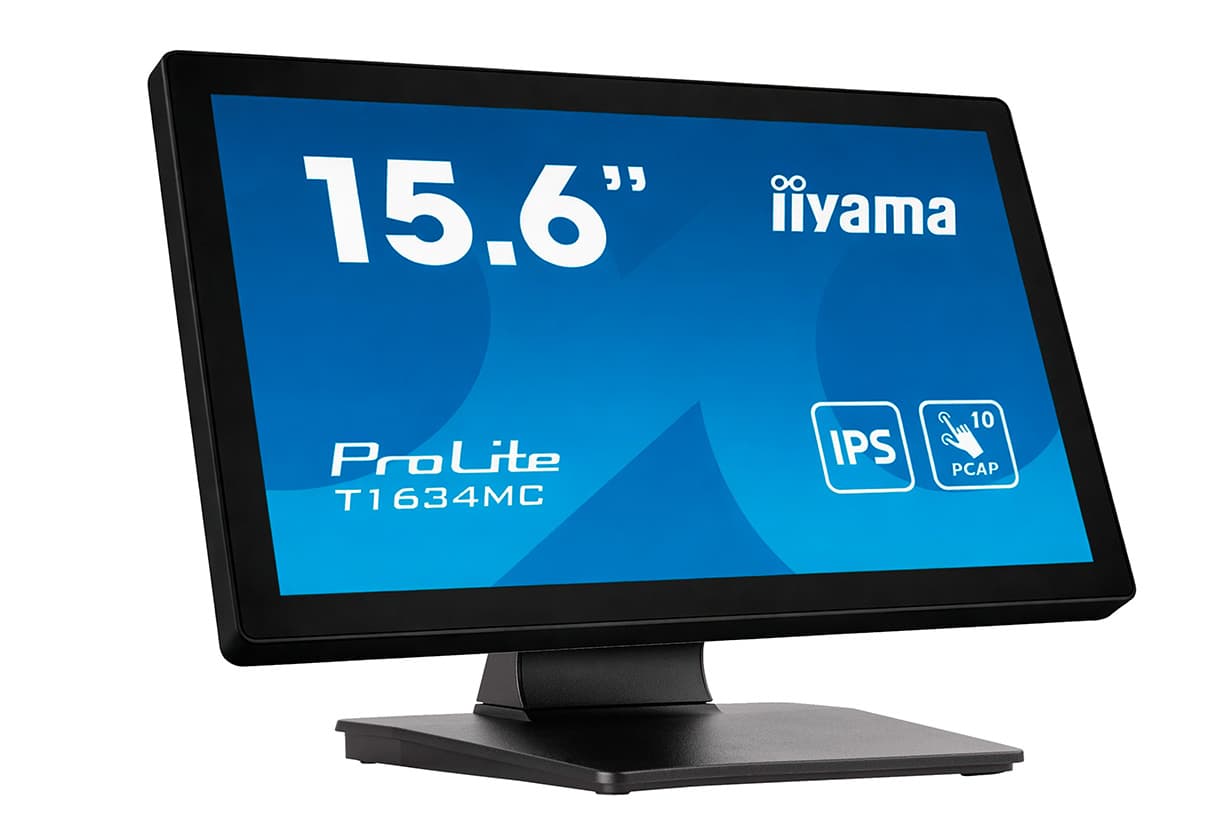

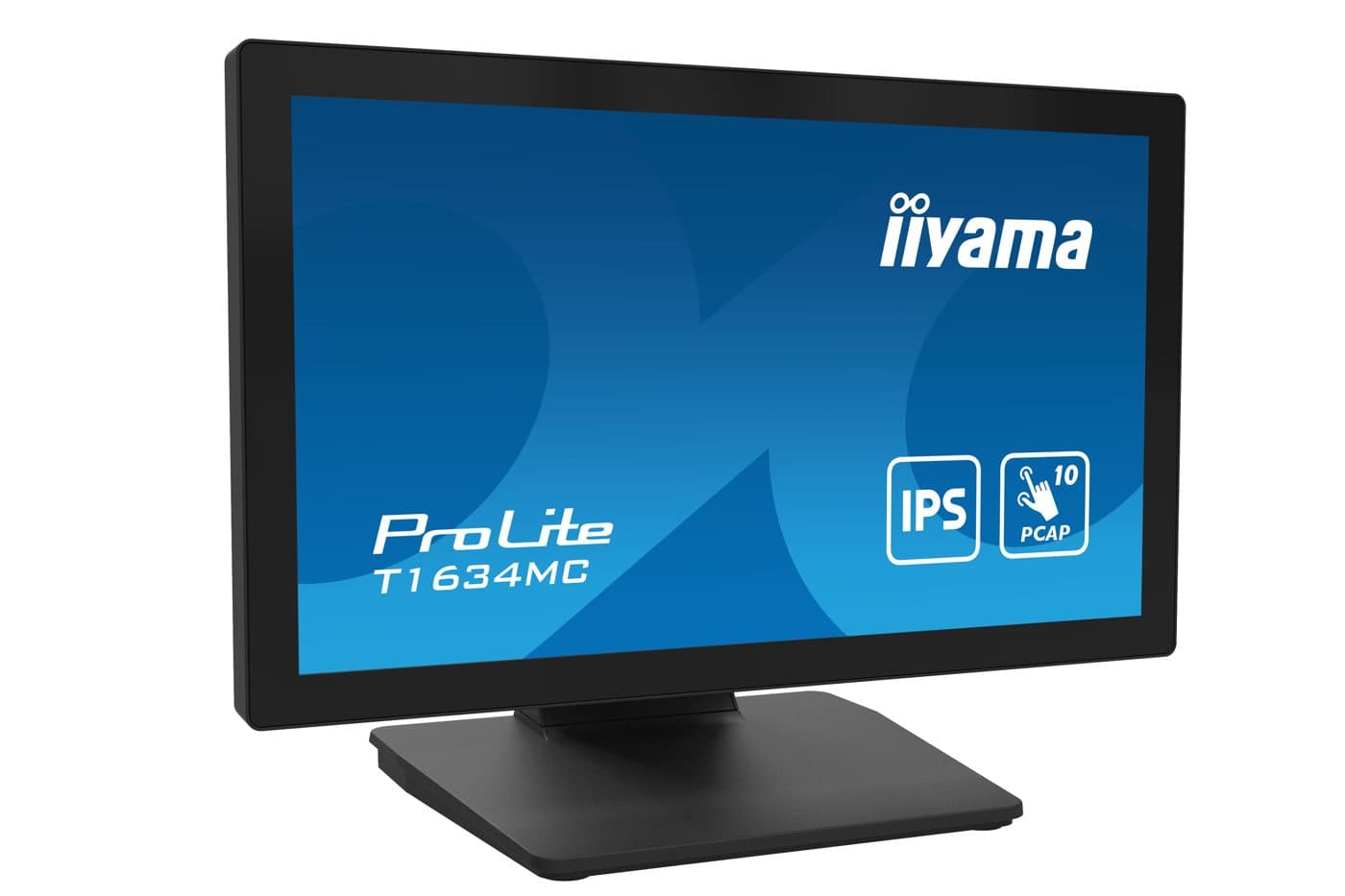

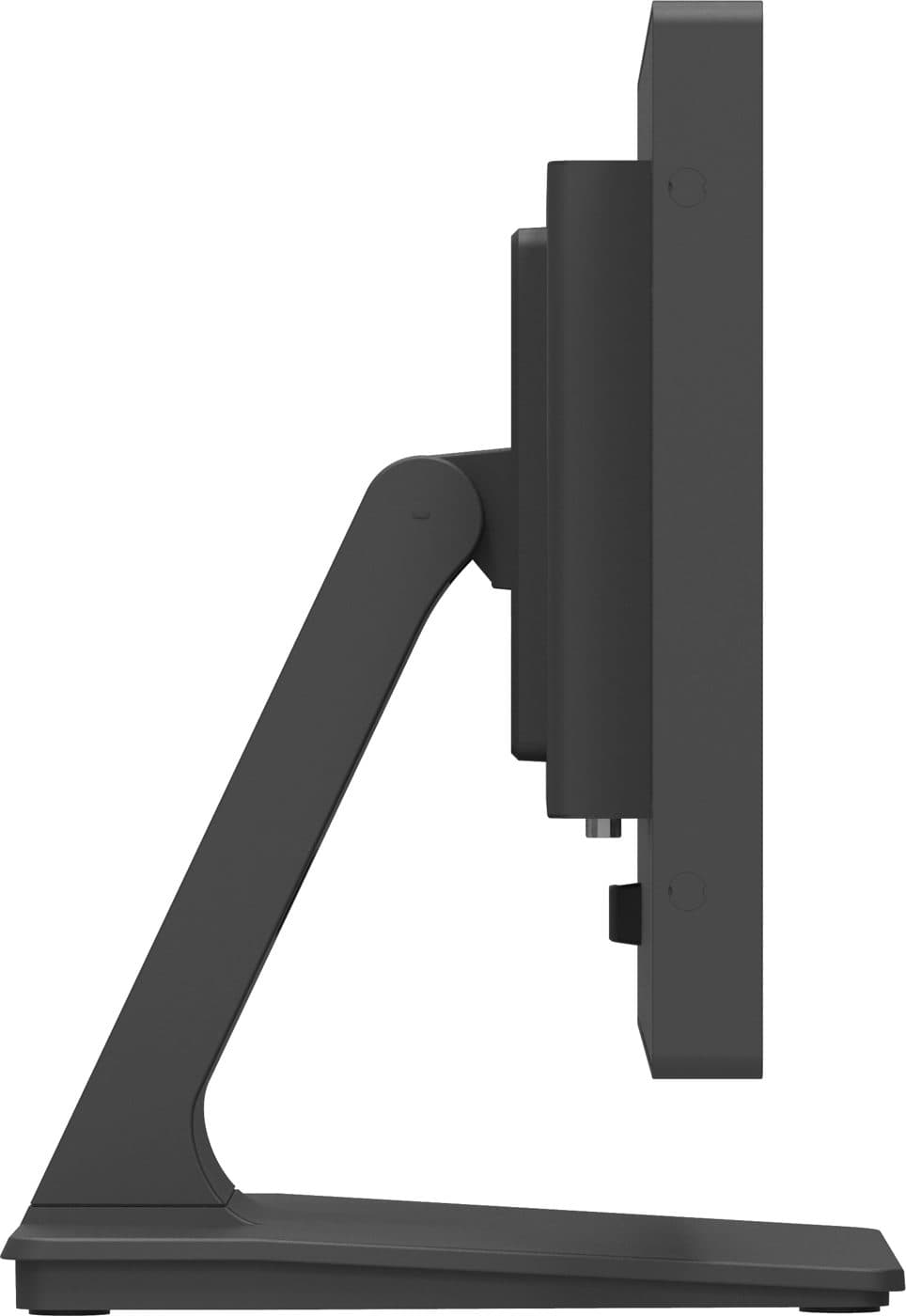

iiyama T1634MC-B1S 15.6" Touch Monitor

SKU T1634MC-B1S
£359.70inc. VAT
£299.75 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignEdge to edge glass
Diagonal15.6", 39.5cm
PanelIPS Panel Technology LED
Native resolution1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio16:9
Panel brightness450 cd/m²
Brightness405 cd/m² with touch
Light transmittance90%

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama T1634MC-B1S 15.6" Touch Monitor × 1£359.70
Total£359.70
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite T1634MC-B1S 15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and

Technical specifications

DesignEdge to edge glass
Diagonal15.6", 39.5cm
PanelIPS Panel Technology LED
Native resolution1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio16:9
Panel brightness450 cd/m²
Brightness405 cd/m² with touch
Light transmittance90%
Static contrast700:1 with touch
Response time (GTG)25ms
Viewing zonehorizontal/vertical: horizontalvertical 178°/%2°,
Colour support16.2mln (6bit + Hi-FRC)
Horizontal Sync30 - 84kHz
Viewable area W x H344.2 x 193.6mm
Pixel pitch0.179mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass6mm
Palm rejectionyes
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Monitor control inputExternal control pad TOUCHV01
HDCPyes
ExtraAnti-fingerprint coating, touch through-glass
Glass thickness2.4mm
Glass hardness7H
Water and dust protectionIP65 (front)
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controlspicture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&PlayDDC2B
Orientationlandscape, face-up
Tilt angle90° up; 5° down
VESA mounting100 x 100mm
Cablespower, USB, HDMI, DP
Guidesquick start guide, safety guide
OtherAC adapter
Power supply unitexternal
Power supplyDC 12 V
Power usage18W typical, 1.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)F
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D381 x 285.5 x 200mm
Box dimensions W x H x D445 x 355 x 150mm
Weight (without box)3.4kg
Weight (with box)5.18kg
EAN code4948570122110
User manualT1634MC-B1S-usermanual-e-revB.pdf
Technical specificationProLite T1634MC-B1S - gb_en.pdf
DrawingT1634MC-B1S drawing.pdf
EU Energy LabelT1634MC-B1S EU Energy Label (1530736).pdf
UK Energy LabelT1634MC-B1S UK Energy Label (1530736).pdf
