Home / 10 - 19" Touch Screens / iiyama TW1025LASC-B3PNR 10.1" Touch Panel PC
iiyama

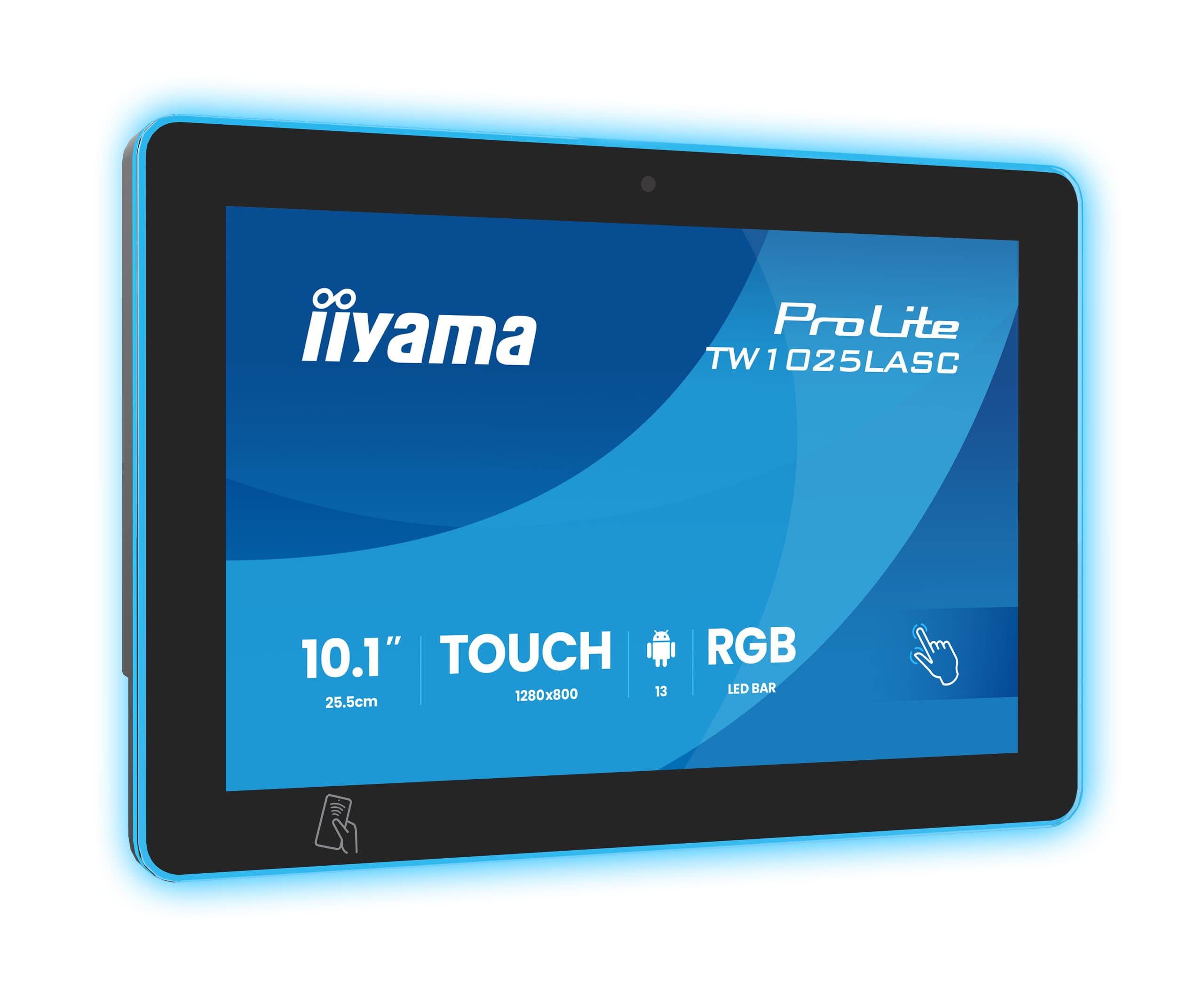

iiyama TW1025LASC-B3PNR 10.1" Touch Panel PC

£245.41inc. VAT
£204.51 ex. VAT
Low stock (5 left), order soon
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £81.81 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3-year manufacturer warranty
Installation services available
Key specifications
DesignEdge to edge glass
Diagonal10.1", 25.5cm
PanelIPS Panel Technology, LED
Native resolution1280 x 800 (1 megapixel HD)
Aspect ratio16:10
Panel brightness450 cd/m²
Brightness390 cd/m² with touch
Light transmittance86%
All 59 specifications
Talk to an Expert

Description

ProLite TW1025LASC-B3PNR 10.1” PCAP 10pt touch screen with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen The ProLite TW1025LASC-B3PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 16 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touc

Also in this range:15.6" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (10)
Panel
IPS Panel Technology, LED
Native resolution
1280 x 800 (1 megapixel HD)
Aspect ratio
16:10
Panel brightness
450 cd/m²
Brightness
390 cd/m² with touch
Static contrast
1000:1 with touch
Touch technology
projective capacitive
Touch points
10 (HID, only with supported OS)
Touch method
finger, glove (latex), capacitive stylus
Touch interface
USB
Connectivity (6)
Colour support
16.7mln 8bit
Audio output
Mini jack x1Speakers 2 x 2W
USB ports
x3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1 x Mini with OTG (DC5V, 500mA))
RJ45 (LAN)
x1 (PoE - IEEE802.3af/15.4W)
WiFi
IEEE802.11b/g/n/a/ac
Bluetooth
5.2
Audio (1)
Microphone
x1
Power & Physical (5)
VESA mounting
75 x 75mm
Product dimensions W x H x D
259.5 x 178.5 x 28mm
Box dimensions W x H x D
363 x 225 x 65mm
Weight (without box)
1.1kg
Weight (without stand)
1.6kg
General (37)
Design
Edge to edge glass
Diagonal
10.1", 25.5cm
Light transmittance
86%
Response time (GTG)
25ms
Viewing zone
horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Viewable area W x H
216.6 x 135.4mm, 8.5 x 5.3"
Pixel pitch
0.1692mm
Bezel colour and finish
black, matte
Integrated software
Android 16
SOC
Rockchip RK3568 Quad-core A55*4
GPU
ARM G52 2EE
Storage
32GB eMMC
Memory
4GB DDR4
Hardware
NFC (NXP PN7160), RFID (125kHZ, 9600kbit/s)
Extra
auto-rotation, webcam (5 megapixel), SD card slot, anti-fingerprint coating, anti-glare coating, PoE, NFC/RFID reader, RGB Led lightbar, cable cover & wall mount in one
Max. non-stop operating time
24/7
Glass thickness
1.85mm
Glass hardness
6H
Control buttons
Power switch
Applications
Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, camera, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², led light bar, play audio files, Play store, system peferences, sound recorder, play video
Orientation
landscape, portrait, face-up
Cable management system
yes
Guides
quick start guide, safety guide
Other
AC adapter, interchangeable plugs (EU/UK), cable cover/wall mount
Cable cover
yes
Power supply unit
external
Power supply
DC 12 V
Power usage
10W typical, 0.5W stand by, 0.3W off mode
Regulations
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC
above 0.1%: Lead
EAN code
4948570127146
User manual
TW10_1625LASC-B3PNR-usermanual-e_rev i.pdf
Technical specification
ProLite TW1025LASC-B3PNR - gb_en.pdf
Drawing
TW1025LASC-B3PNR drawing.pdf
Instructions
TW series API Setup instructions_20251001.zip
RGB Led bar control
TW1025LASC-B1PNR LED control.zip
CE
TW1025 CE DoC.pdf
