Home / 10 - 19" Touch Screens / iiyama TF1015MC-B3 10.1" Open Frame Touch Monitor

iiyama

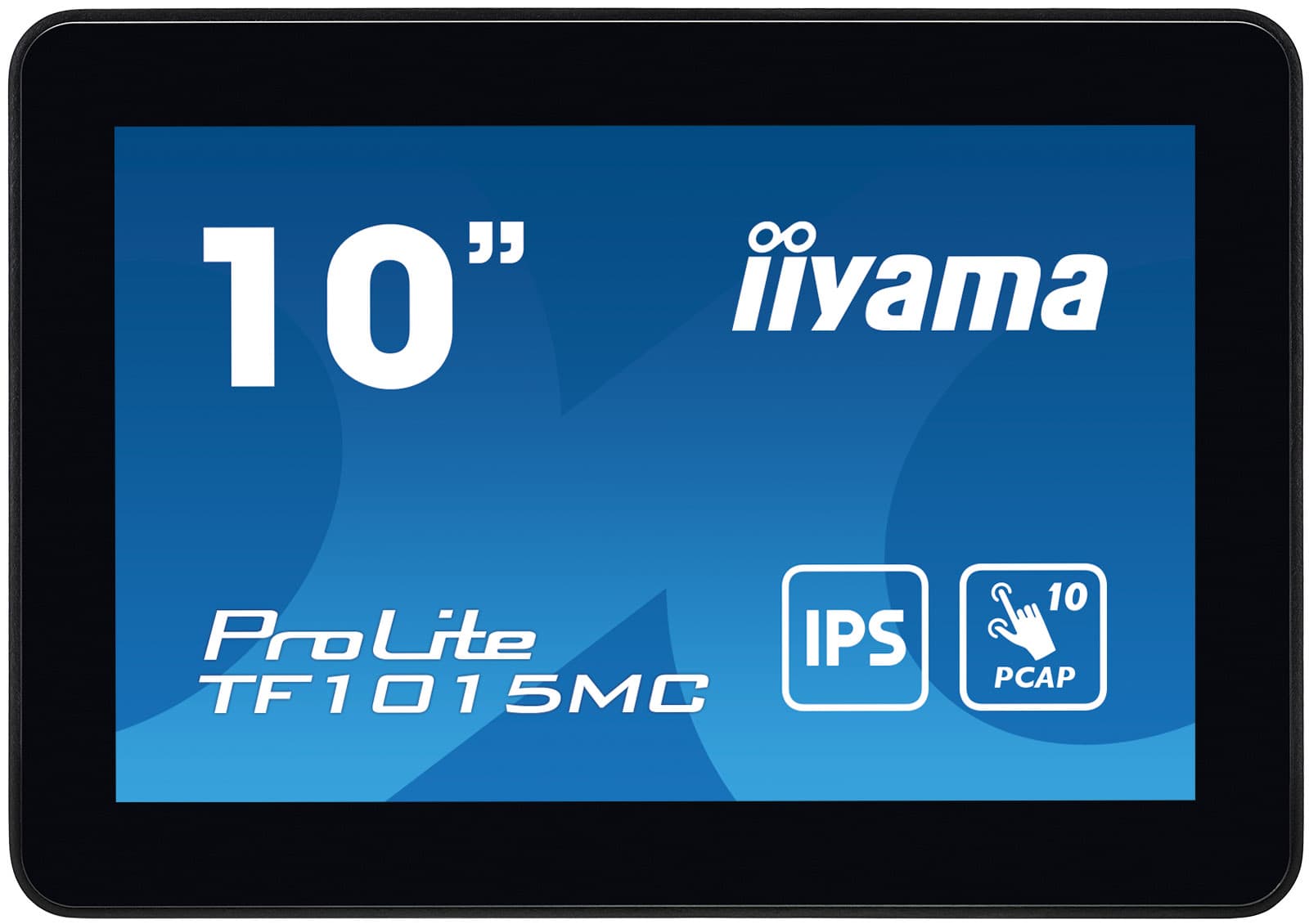

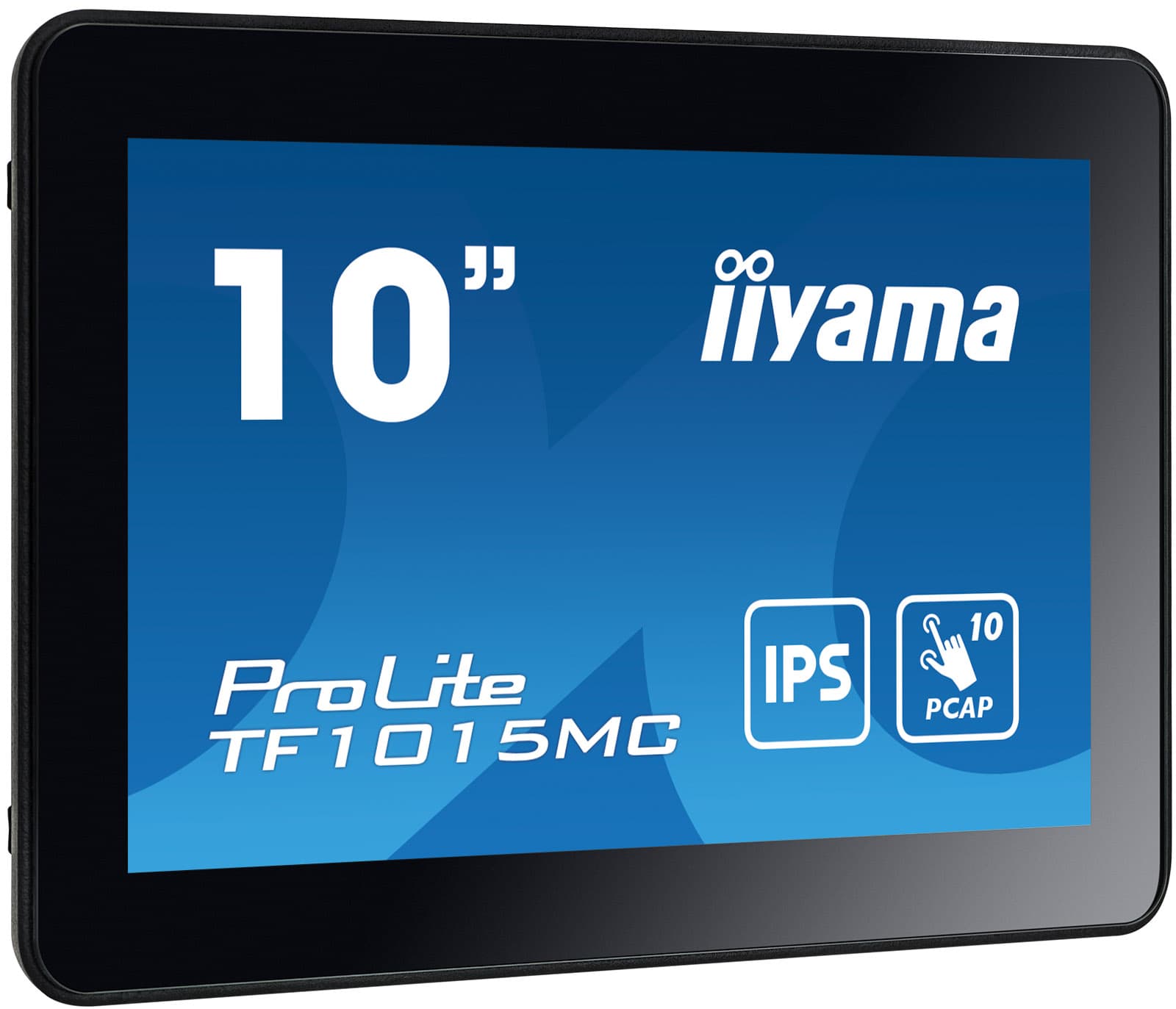

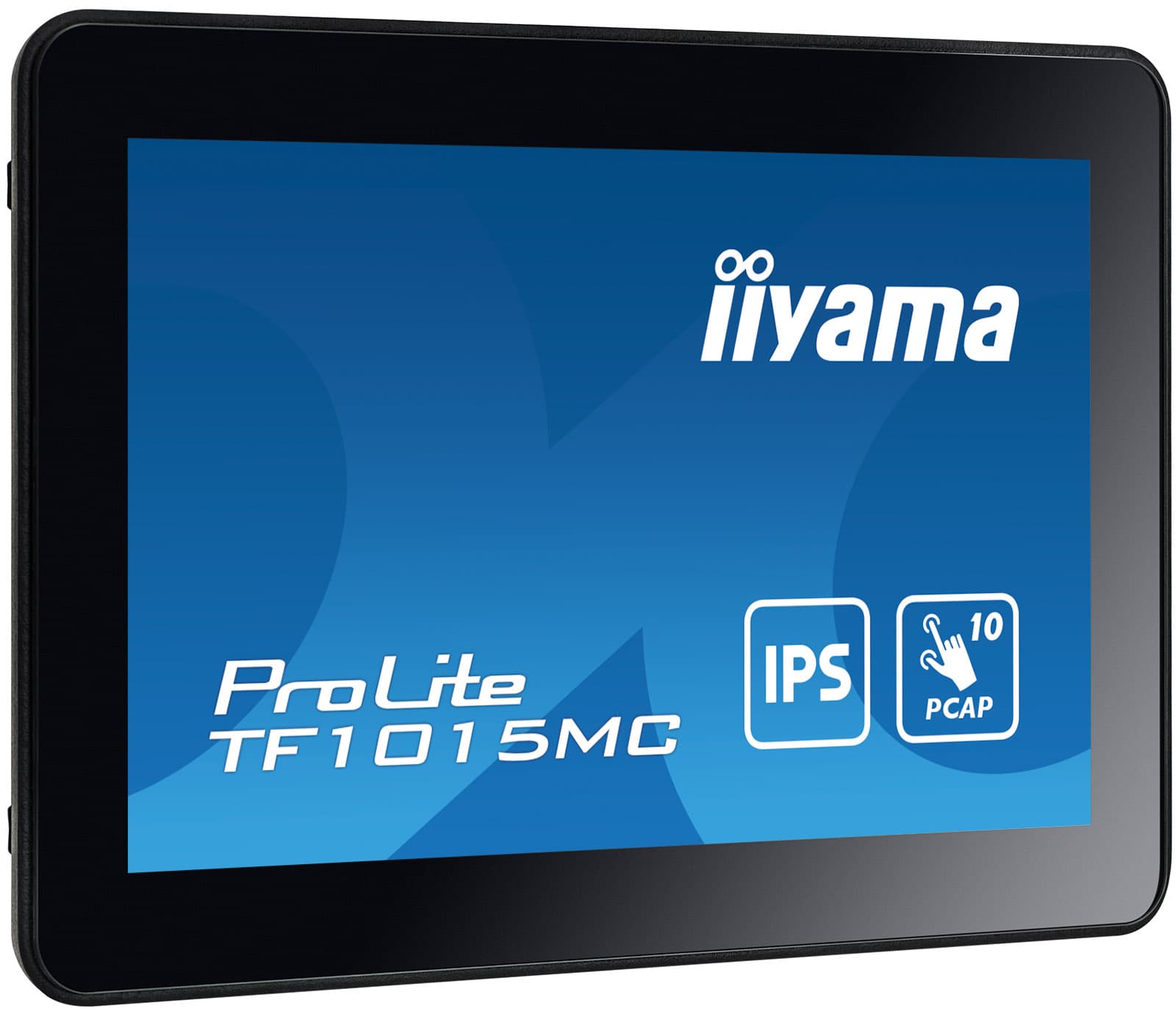

iiyama TF1015MC-B3 10.1" Open Frame Touch Monitor

Name: iiyama TF1015MC-B3 10.1" Open Frame Touch Monitor
Brand: iiyama
SKU: TF1015MC-B3
Price: 288.10 GBP
Availability: LimitedAvailability

Return within 14 days

3-year manufacturer warranty

Installation services available

£288.10inc. VAT

£240.08 ex. VAT

Low stock (5 left), order soon

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £96.04 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignOpen Frame

Diagonal10.1", 25.7cm

PanelIPS

Native resolution1280 x 800 (1 megapixel)

Aspect ratio16:10

Panel brightness500 cd/m²

Brightness425 cd/m² with touch

Light transmittance85%

All 69 specifications

Talk to an Expert

Description

ProLite TF1015MC-B3 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional

Also in this range:12.1" model 15" model 15.6" model 21.5" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (10)

Panel: IPS
Native resolution: 1280 x 800 (1 megapixel)
Aspect ratio: 16:10
Panel brightness: 500 cd/m²
Brightness: 425 cd/m² with touch
Static contrast: 800:1
Touch technology: projective capacitive
Touch points: 10 (HID, only with supported OS)
Touch method: stylus, finger, glove (latex)
Touch interface: USB

Connectivity (8)

Colour support: 16.7mln
Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Analog signal input: VGA x1
Digital signal input: HDMI x1DisplayPort x1
Monitor control input: RJ45 (LAN) x1
Audio output: Mini jack x1
USB ports: x1
OSD languages: EN, DE, FR, ES, IT, CN, JP

Power & Physical (5)

VESA mounting: 100 x 100mm
Product dimensions W x H x D: 260.5 x 183.5 x 39.5mm
Box dimensions W x H x D: 310 x 160 x 370mm
Weight (without box): 1.4kg
Weight (without stand): 2.7kg

General (46)

Design: Open Frame
Diagonal: 10.1", 25.7cm
Light transmittance: 85%
Response time (BTB): 29ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync: 30 - 49.7kHz
Viewable area W x H: 216.96 x 135.6mm, 8.5 x 5.3"
Pixel pitch: 0.1695mm
Bezel colour and finish: black
Through-Glass: 6mm
Palm rejection: yes
HDCP: yes
Extra: anti-fingerprint coating, touch through-glass
Glass thickness: 3.3mm
Glass hardness: 7H
60950 Ball drop test: yes
Water and dust protection: IP65 (front)
Water tight seal: yes
OSD key lock: yes
Control buttons: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls: picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play: DDC2B
Orientation: landscape, portrait, face-up
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - 60°C
MTBF: 50000 hours
Cables: power, USB, HDMI, DP
Guides: quick start guide, safety guide
Other: AC adapter, external control pad
Cable cover: yes
Remote control: yes
Power supply unit: external
Power supply: DC 12 V
Power usage: 6W typical, 1.5W stand by, 0.3W off mode
Regulations: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369): C
REACH SVHC: above 0.1%: Lead
EAN code: 4948570124107
Mounts / Stands / Brackets: OMK2-1
Related products: OMK2-1
User manual: TF10_15_22_2415MC-B2B_1215MC-B1_1615MC-B1_1515-B2C_1015-B3-usermanual-e-revC.pdf
Technical specification: ProLite TF1015MC-B3 - gb_en.pdf
Drawing: TF1015MC_with_bracket_drawing.pdf
EU Energy Label: TF1015MC-B3 EU Energy Label (1834678).pdf
UK Energy Label: TF1015MC-B3 UK Energy Label (1834678).pdf
CE & TUV: TF1015MC-2 CE_TUV.pdf
