Home / 20 - 31" Touch Screens / iiyama TF2215MC-B2 21.5" Open Frame Touch Monitor
Est. delivery 27 Aug - 31 Aug
Return within 14 days
3 Year Warranty
Installation services available
iiyama

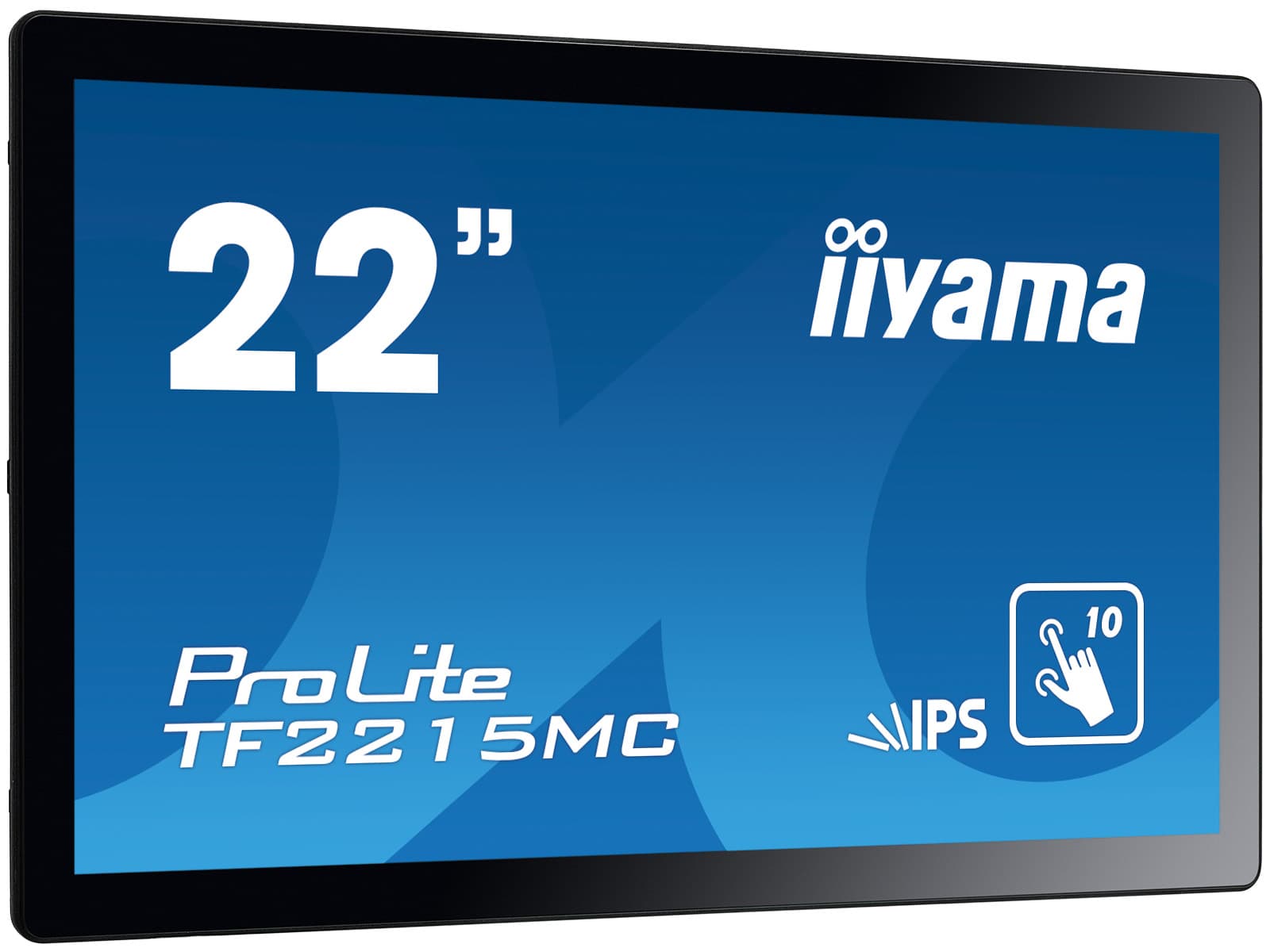

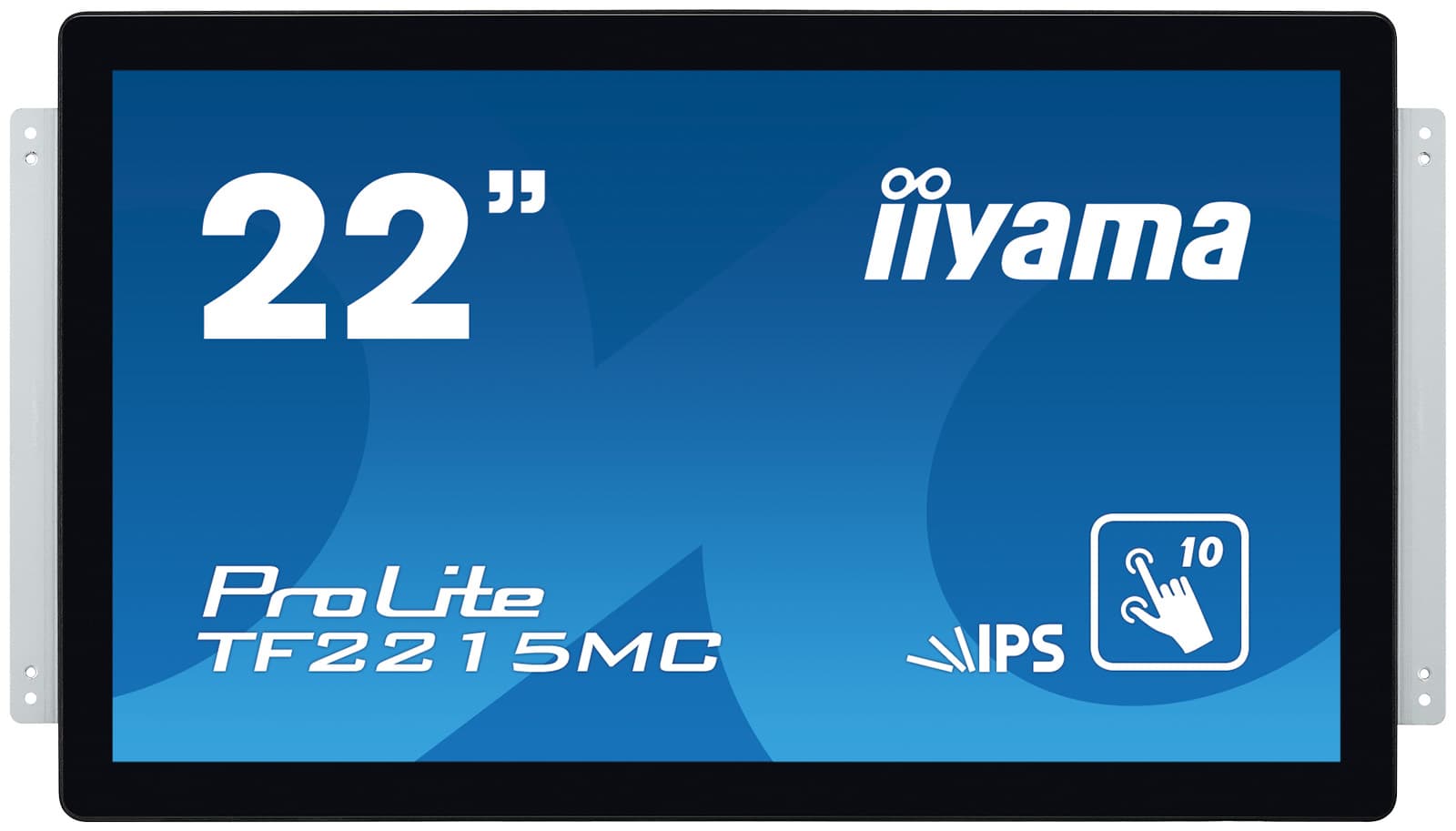

iiyama TF2215MC-B2 21.5" Open Frame Touch Monitor

SKU TF2215MC-B2
£402.20inc. VAT
£335.17 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignOpen Frame
Diagonal21.5", 54.6cm
PanelIPS LED
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness350 cd/m²
Brightness315 cd/m² with touch
Light transmittance90%

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TF2215MC-B2 21.5" Open Frame Touch Monitor × 1£402.20
Total£402.20
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite TF2215MC-B2 10pt touch Open Frame monitor with IPS panel and touch through glass function The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive mu

Technical specifications

DesignOpen Frame
Diagonal21.5", 54.6cm
PanelIPS LED
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness350 cd/m²
Brightness315 cd/m² with touch
Light transmittance90%
Static contrast1000:1
Response time (BTB)14ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync31.4 - 82kHz
Viewable area W x H476.064 x 267.786mm, 18.7 x 10.5"
Pixel pitch0.24795mm
Bezel colour and finishblack
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Through-Glass6mm
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Audio outputMini jack x1
RJ45 (LAN)x1
Extraanti-fingerprint coating, touch through-glass
Glass hardness7H
60950 Ball drop testyes
Water and dust protectionIP65 (front)
Water tight sealyes
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controlspicture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - 60°C
Cablespower, USB, HDMI, DP
Guidesquick start guide, safety guide
OtherAC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Power supply unitexternal
Power supplyDC 12 V
Power usage20.8W typical, 1.05W stand by, 0.32W off mode
RegulationsCB, CE, RoHS support, ErP, WEEE, CU, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)E
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D520 x 315 x 42.5mm
Weight (without box)4.4kg
EAN code4948570116768
Related productsOMK3-1
User manualTF10_15_22_2415MC-B2_A_B_1215MC-B1A_1615MC-B1-usermanual-e-revK.pdf
Technical specificationProLite TF2215MC-B2 - gb_en.pdf
DrawingTF2215MC-B2 drawing.pdf
EU Energy LabelTF2215MC-B2 B EU Energy Label (1255900).pdf
UA Energy LabelTF2215MC-2 Ukraine Energy Label pdf data.pdf
UK Energy LabelTF2215MC-B2 B UK Energy Label (1255900).pdf
CE & TUVTF2215MC-2A CE_TUV.pdf
