iiyama

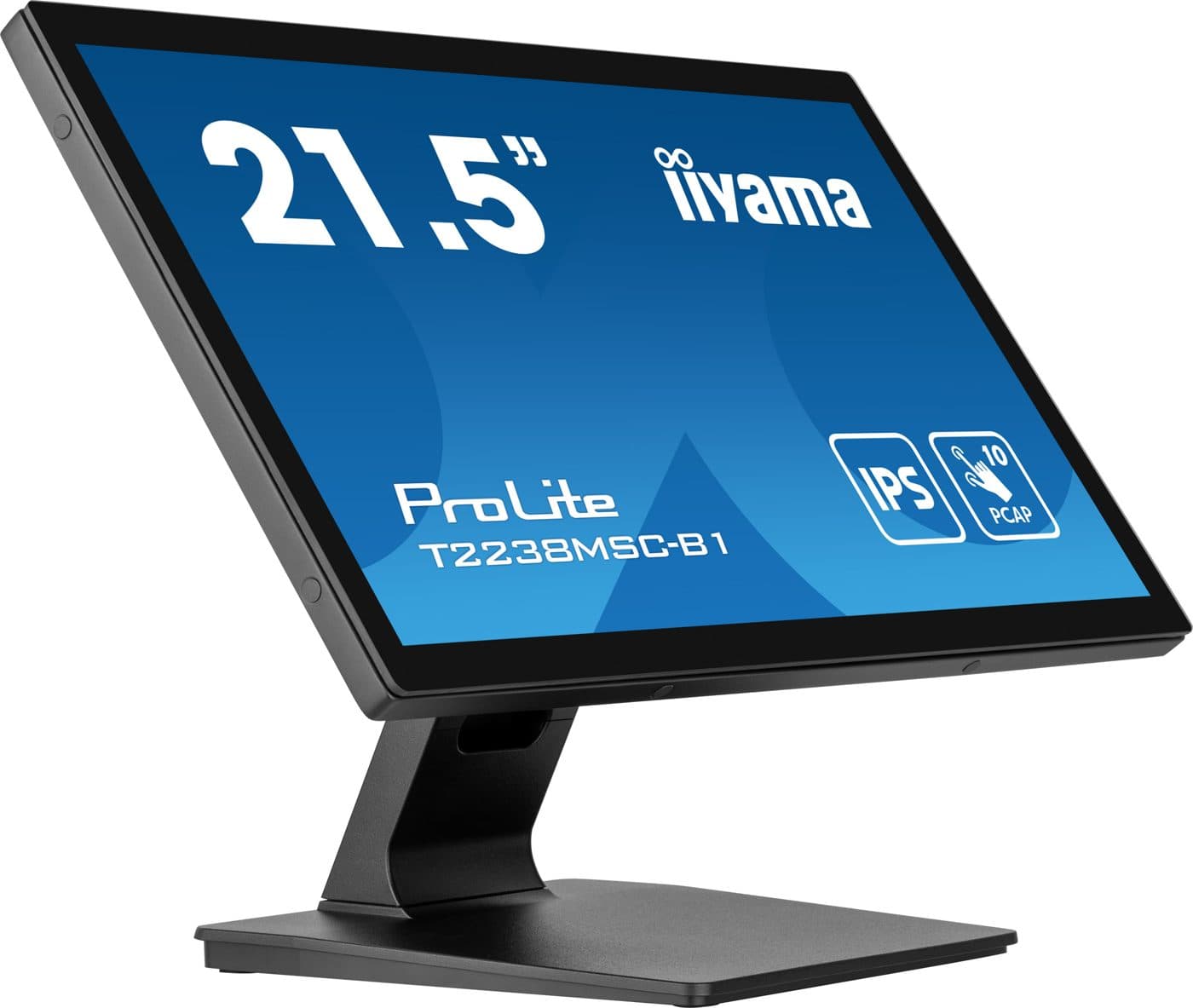

iiyama T2238MSC-B1 21.5" Touch Monitor
Similar size22"
Full HD525 cd/m²21.5"
£412.66inc. VAT
Low stock
UK stockiiyama

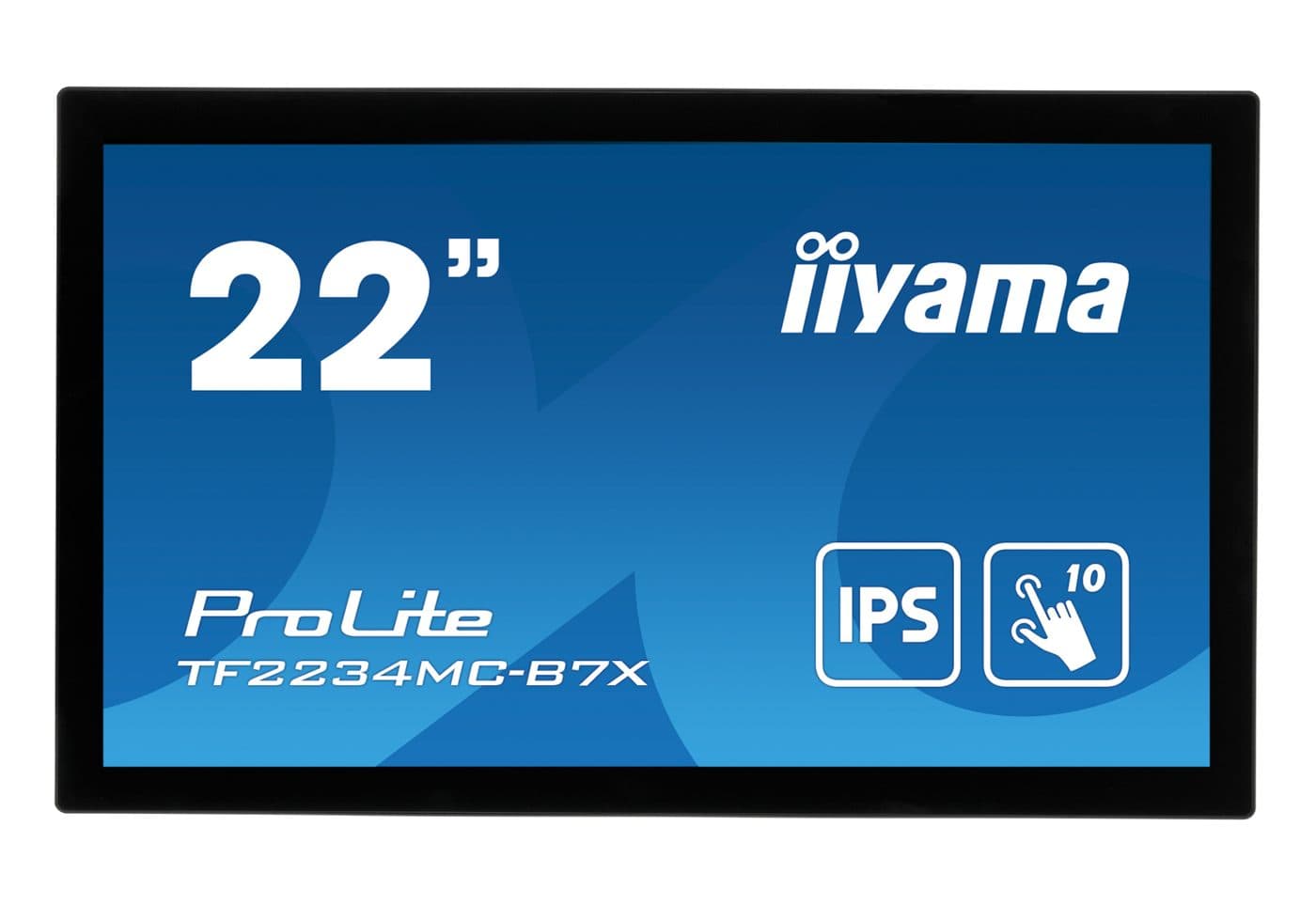

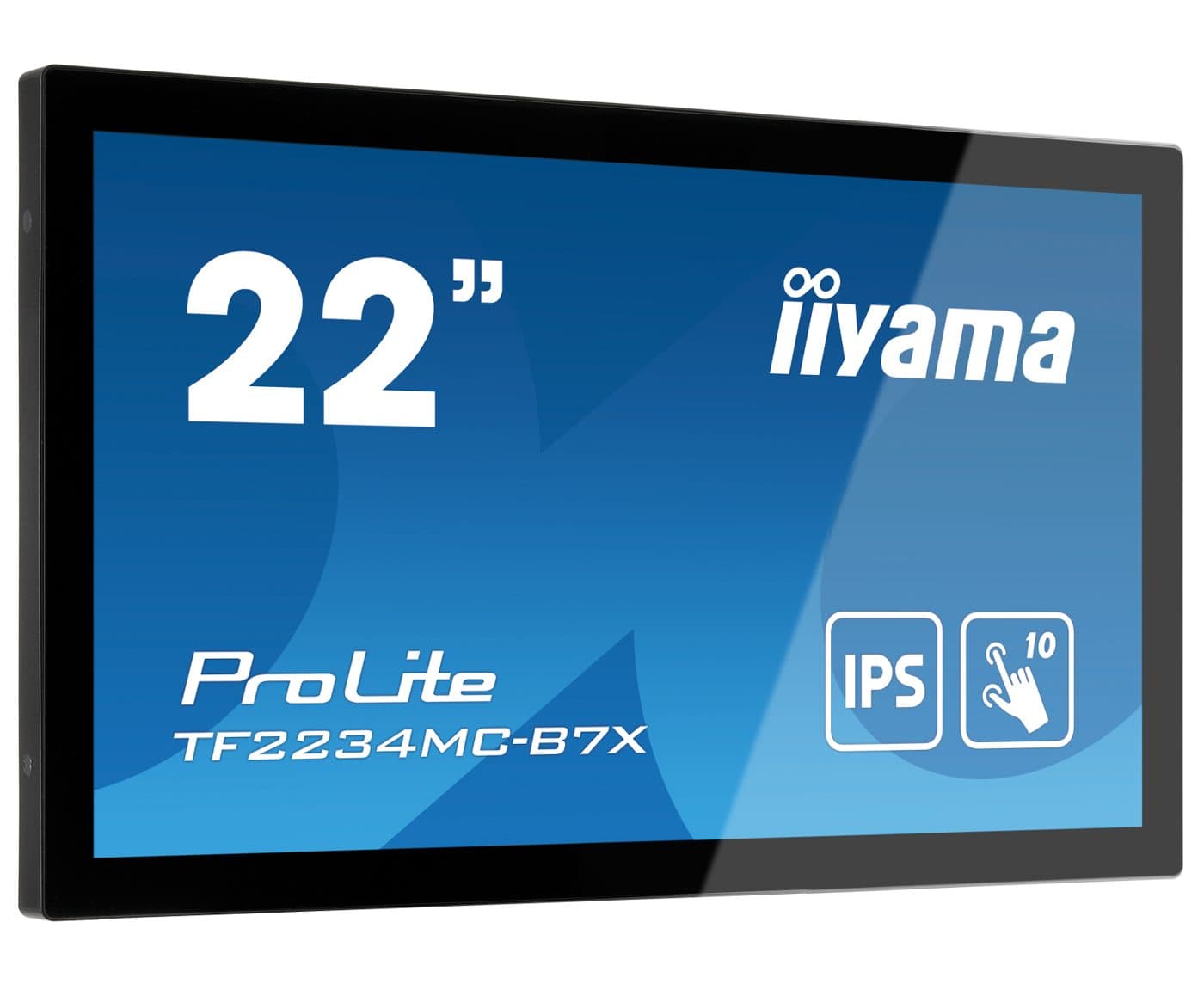

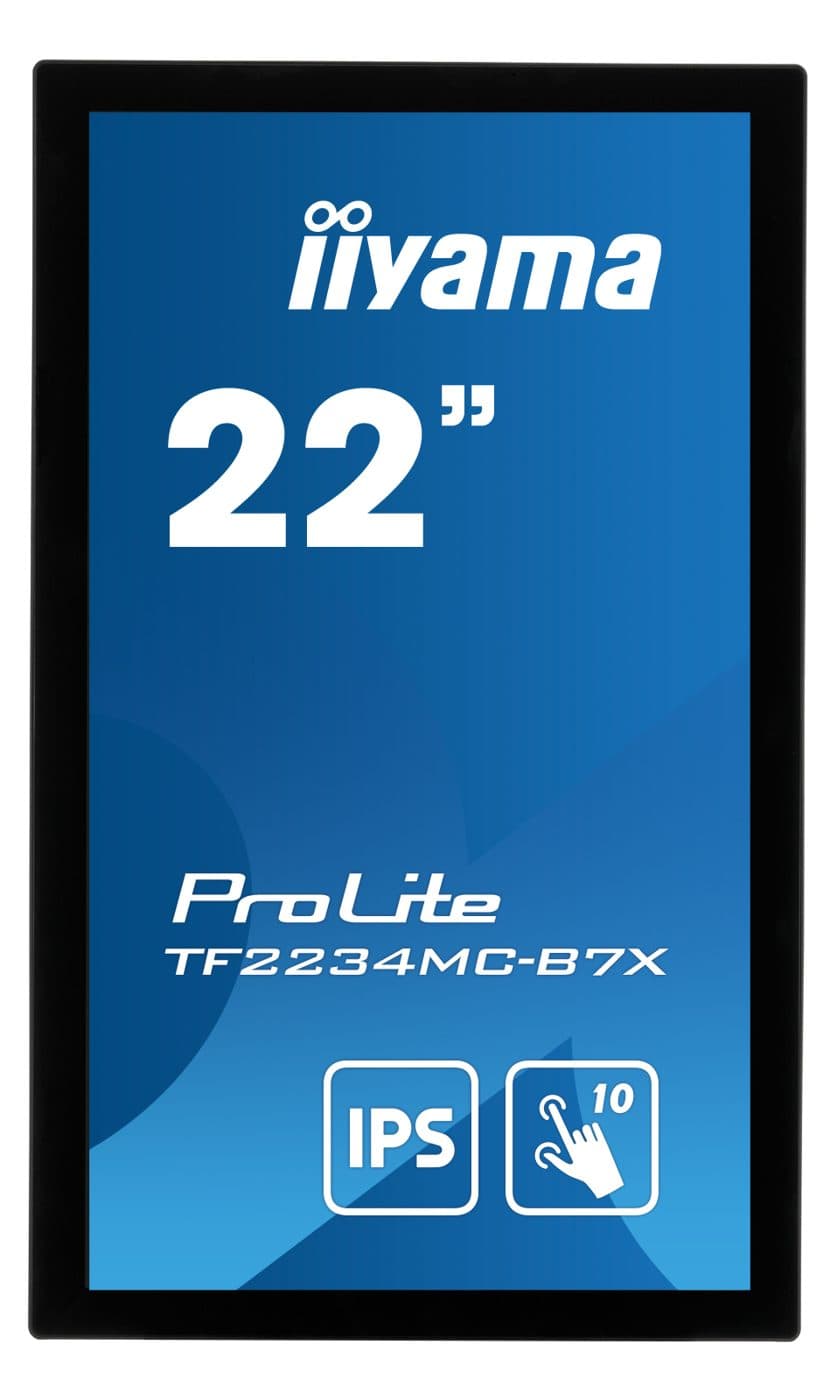

iiyama TF2234MC-B7X 21.5" Open Frame Touch Monitor
£405.96inc. VAT
£338.30 ex. VAT
Low stock (5 left), order soon
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £135.32 with PayPal Pay in 3.
Independently reviewed on TrustpilotSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
DesignOpen Frame
Diagonal21.5", 54.6cm
PanelIPS LED
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness350 cd/m²
Brightness305 cd/m² with touch
Light transmittance87%
Description
ProLite TF2234MC-B7X 22" 10pt touch Open Frame monitor with IPS panel and touch through glass function The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets (OMK1-1). 15.6" 1920 x 1080 15" 1024 x 768 17" 1280 x 1024 19" 1280 x 1024 21.5" 19
Technical specifications
Choose a section to view its specifications.
Display (10)
- Panel
- IPS LED
- Native resolution
- 1920 x 1080 (2.1 megapixel Full HD)
- Aspect ratio
- 16:9
- Panel brightness
- 350 cd/m²
- Brightness
- 305 cd/m² with touch
- Static contrast
- 1 000:1 with touch
- Touch technology
- projective capacitive
- Touch points
- 10 (HID, only with supported OS)
- Touch method
- stylus, finger, glove (latex)
- Touch interface
- USB
Connectivity (5)
- Colour support
- 16.7mln
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Analog signal input
- VGA x1
- Digital signal input
- HDMI x1DisplayPort x1
- OSD languages
- EN, DE, FR, ES, IT, RU, JP, CZ, PL
Power & Physical (6)
- VESA mounting
- 100 x 100mm
- Product dimensions W x H x D
- 517.5 x 313.5 x 46mm
- Box dimensions W x H x D
- 610 x 405 x 160mm
- Pallet dimensions W x H x D
- 1090 x 1090 x 1927mm
- Weight (without box)
- 4.4kg
- Weight (with box)
- 6.8kg
General (40)
- Design
- Open Frame
- Diagonal
- 21.5", 54.6cm
- Light transmittance
- 87%
- Response time (GTG)
- 8ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Horizontal Sync
- 30 - 84kHz
- Viewable area W x H
- 476.0 x 267.7mm, 18.7 x 10.5"
- Pixel pitch
- 0.247mm
- Bezel colour and finish
- black, matte
- Through-Glass
- 6mm
- Palm rejection
- yes
- HDCP
- yes
- Extra
- anti-fingerprint coating, touch through-glass
- Glass thickness
- 1.5mm
- Glass hardness
- 7H
- Water and dust protection
- IP65 (front)
- Control buttons
- Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
- User controls
- picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
- Plug&Play
- DDC2B
- Orientation
- landscape, portrait, face-up
- Cables
- power, USB, HDMI, DP
- Guides
- quick start guide, safety guide
- Other
- AC adapter
- Cable cover
- yes
- Power supply unit
- external
- Power supply
- DC 12 V
- Power usage
- 18W typical, 1.5W stand by, 0.3W off mode
- Regulations
- CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
- Energy efficiency class (Regulation (EU) 2017/1369)
- F
- REACH SVHC
- above 0.1%: Lead
- Pallet volume
- 48pcs
- EAN code
- 4948570118366
- Mounts / Stands / Brackets
- OMK1-1
- Related products
- RC TOUCHV01, OMK1-1
- User manual
- TF2234MC-B7XA_B7AGBA-usermanual-e-revG.pdf
- Technical specification
- ProLite TF2234MC-B7X - gb_en.pdf
- EU Energy Label
- TF2234MC-B7X EU Energy Label pdf data(388725).pdf
- UK Energy Label
- TF2234MC-B7X UK Energy Label pdf data(388725).pdf
- Drawing
- TF2234MC_drawing.pdf
- CE
- TF2234MC-7XA CE DoC.pdf
See the 21.5" on your wall, to scale
On a phone, point your camera at the wall and see the 21.5" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 21.5" is the right size for the room? The screen size calculator shows how far a 21.5" display carries for presentations, touch work and video.
Loading the wall preview…
Complete your setup
Optional extras that fit this product. Tick anything you need and it joins the same basket — or add this product on its own from the buy box above.
Choose a Mount
Video Conferencing
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Your Configuration
iiyama TF2234MC-B7X 21.5" Open Frame Touch Monitor × 1£405.96
Total£405.96
inc. VAT
1
Documents
Delivery & returns
Estimated delivery 11 Oct - 15 Oct. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is in UK stock and ships to you from within the UK, so the order never crosses a customs border on its way to you.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
iiyama

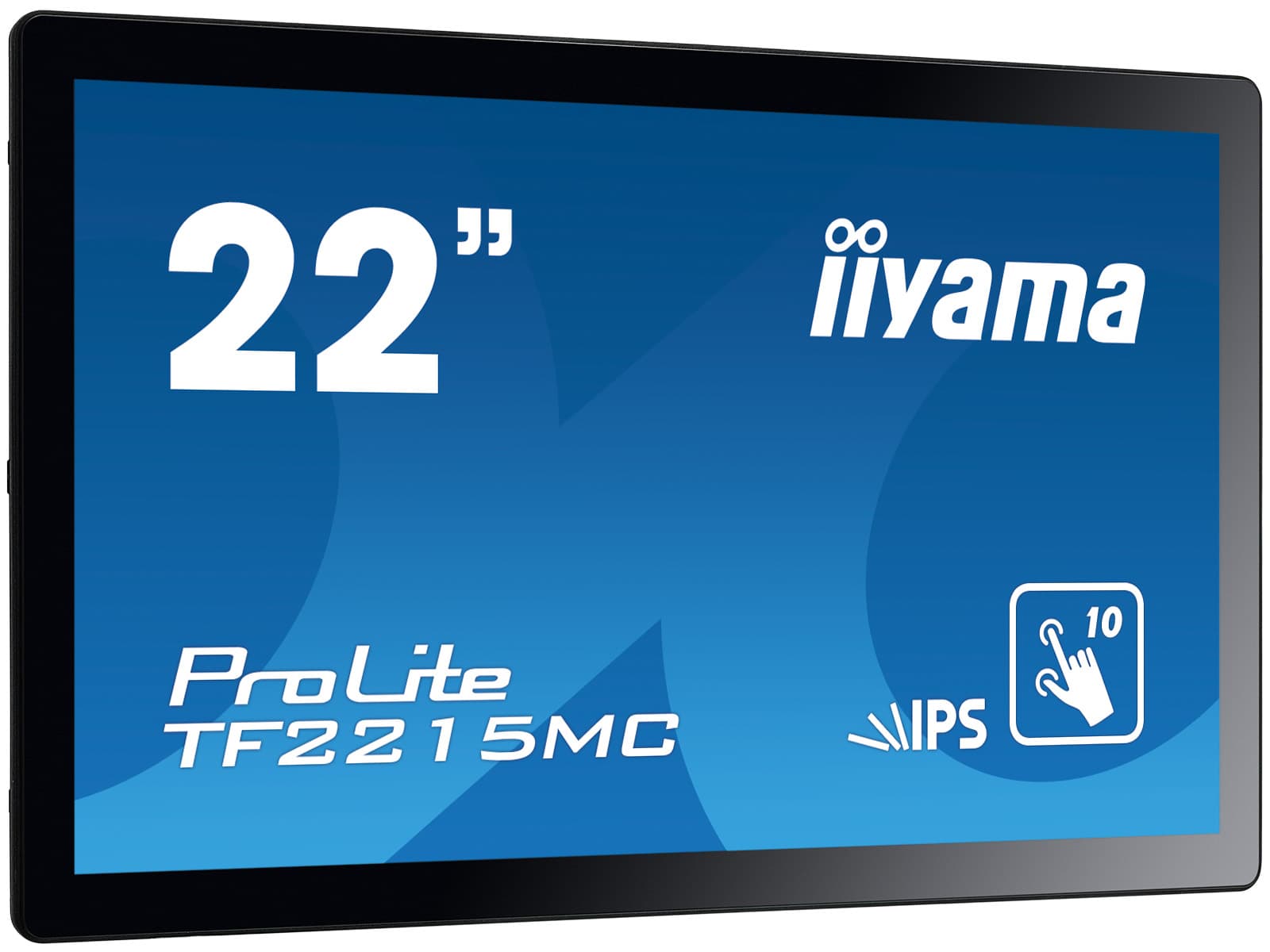

iiyama TF2215MC-B2 21.5" Touch Monitor
Similar size22"
Full HD315 cd/m²21.5"
£415.39inc. VAT
Low stock
UK stockiiyama

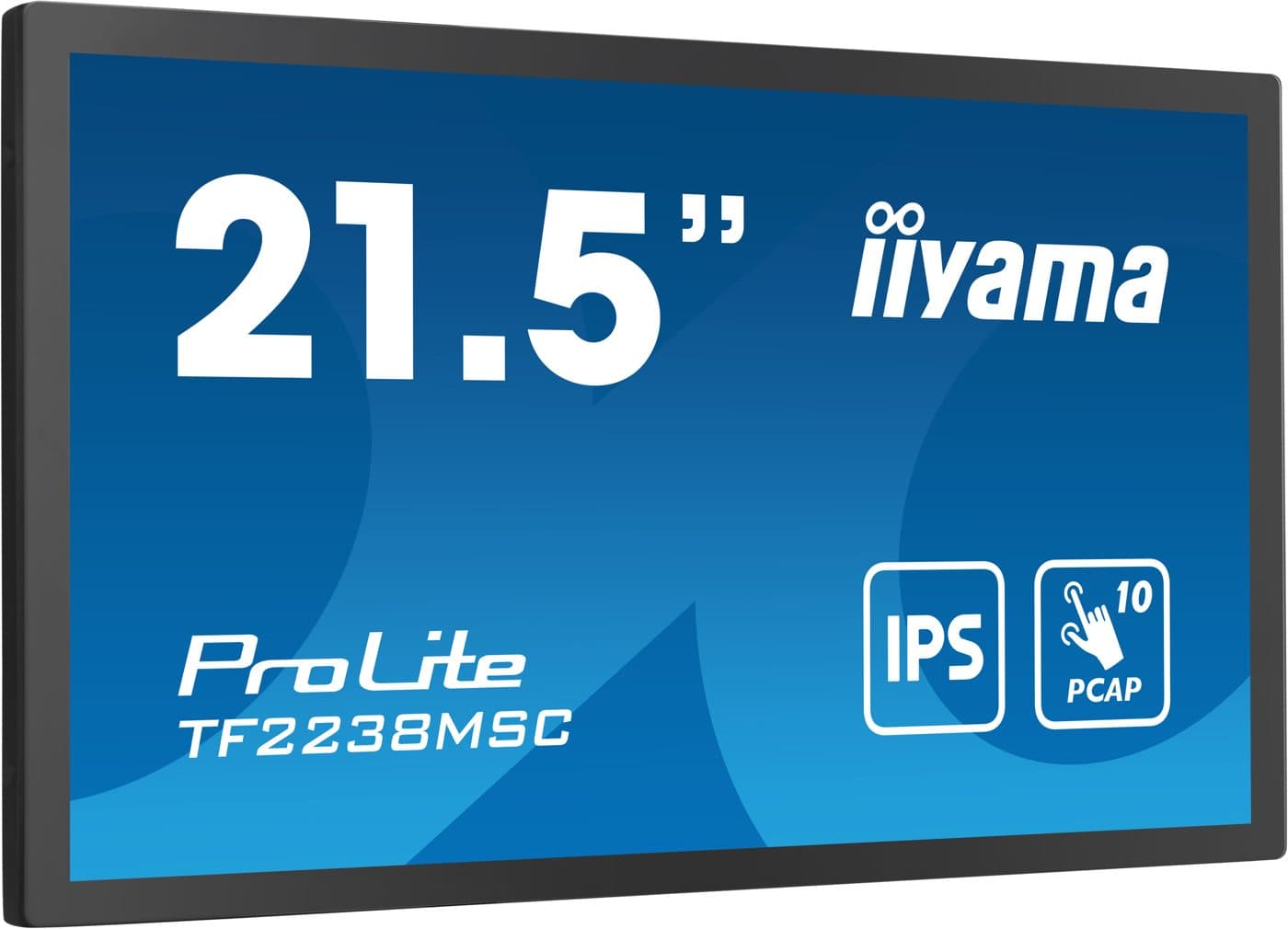

iiyama TF2238MSC-B1 21.5" Touch Monitor
Similar size22"
Full HD525 cd/m²21.5"
£360.43inc. VAT
Out of stock
iiyama

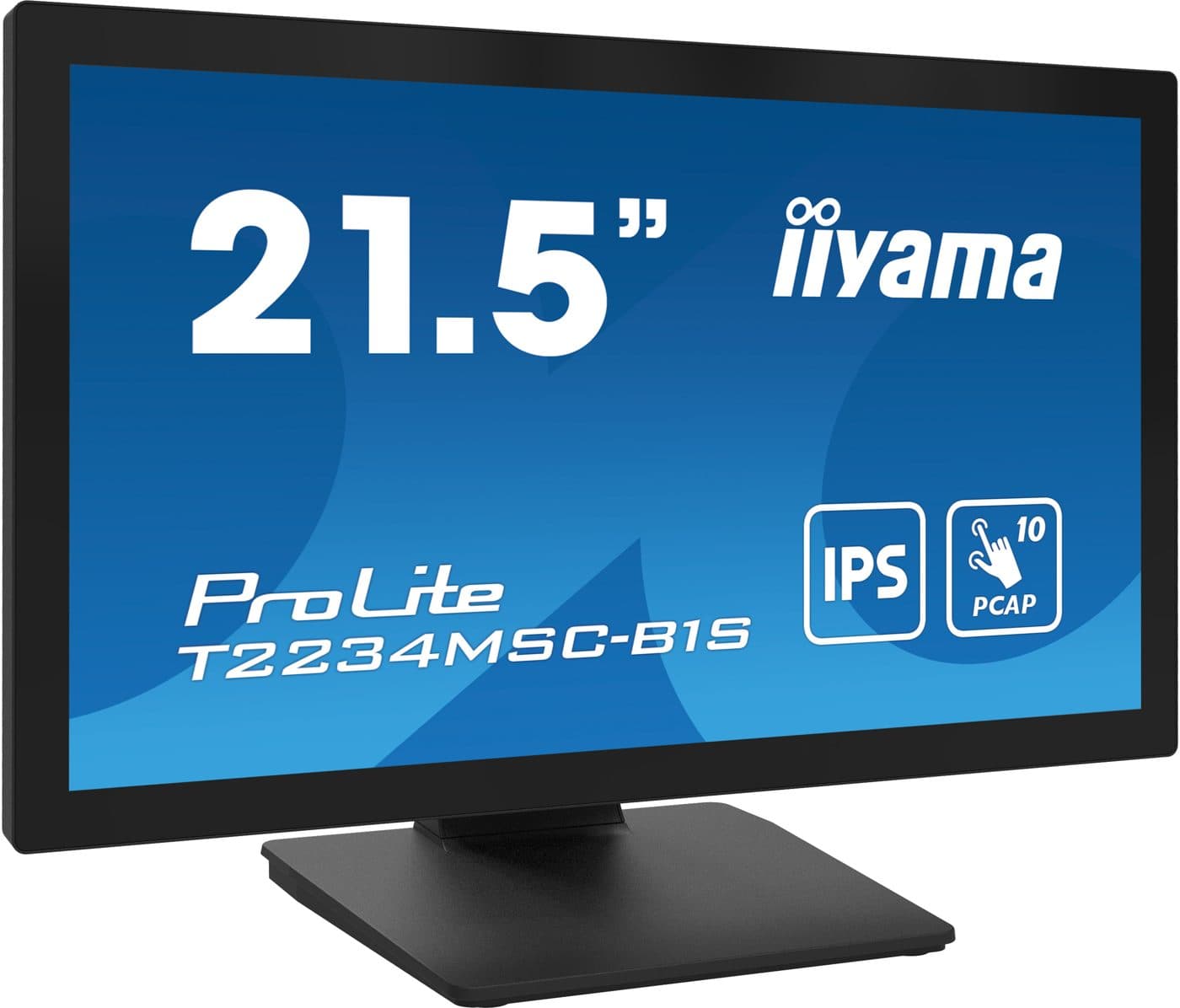

iiyama T2234MSC-B1S 21.5" Touch Monitor
