Home / 20 - 31" Touch Screens / iiyama TW2223AS-B3P 21.5" Touch Panel PC

iiyama

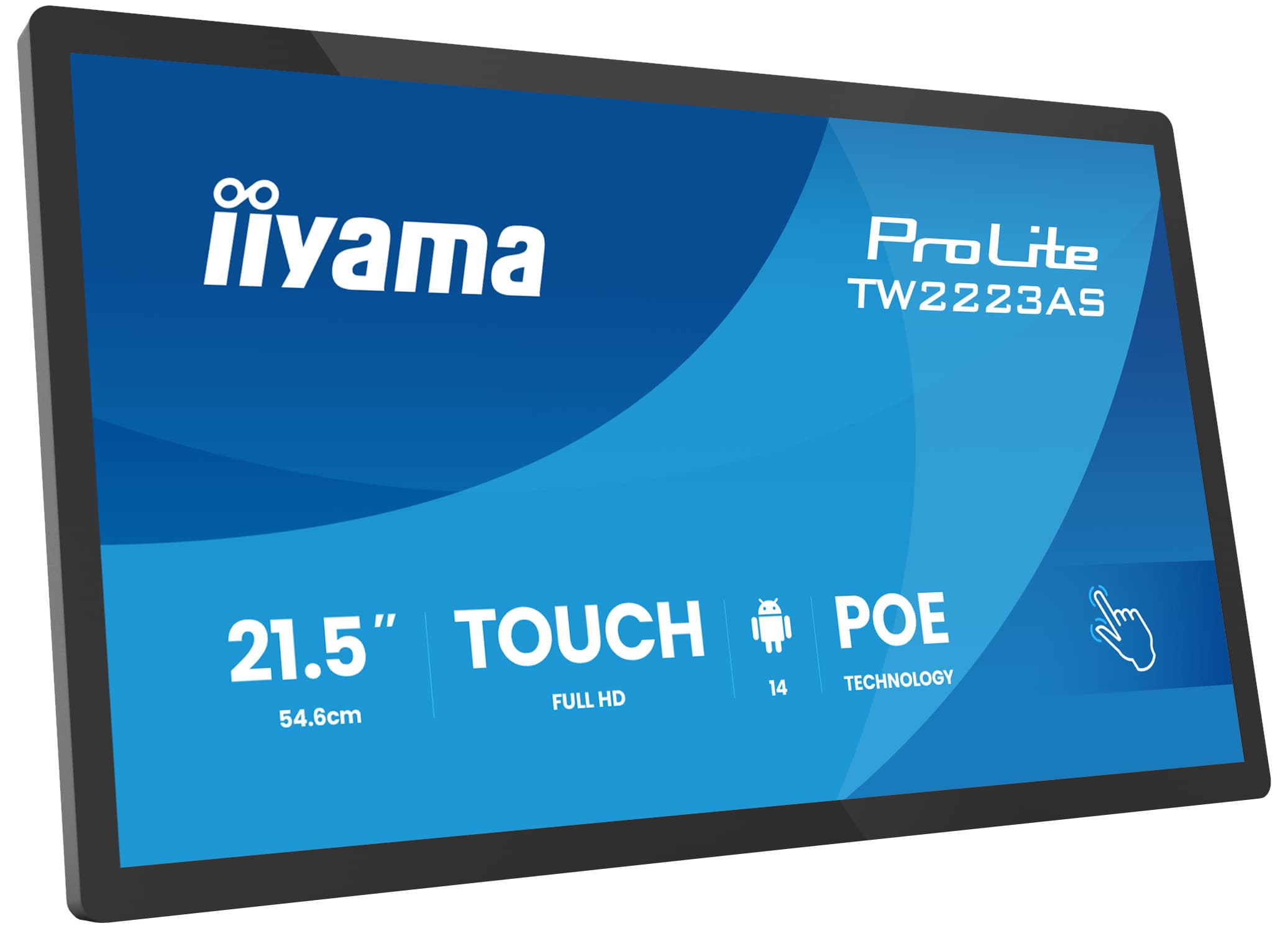

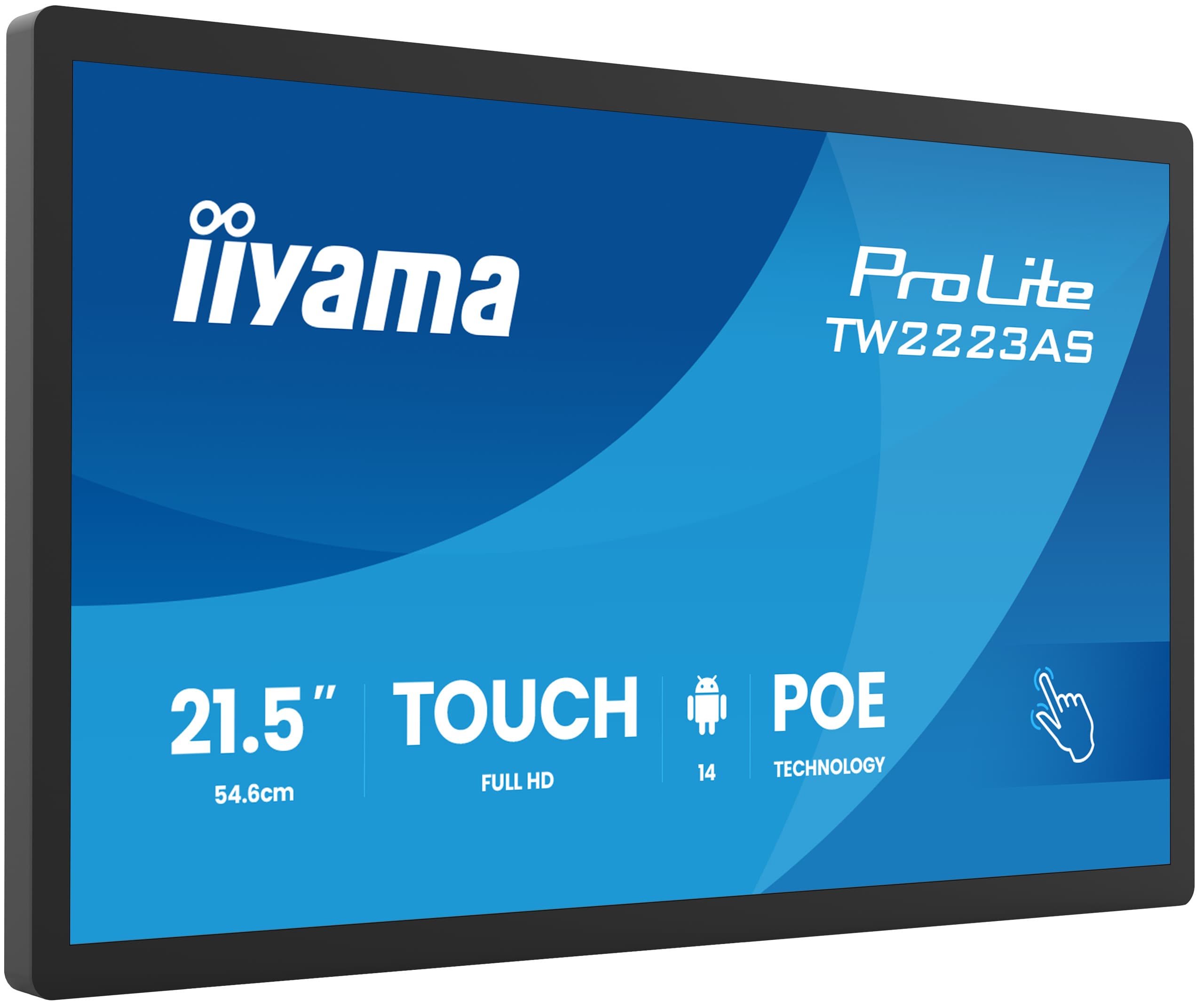

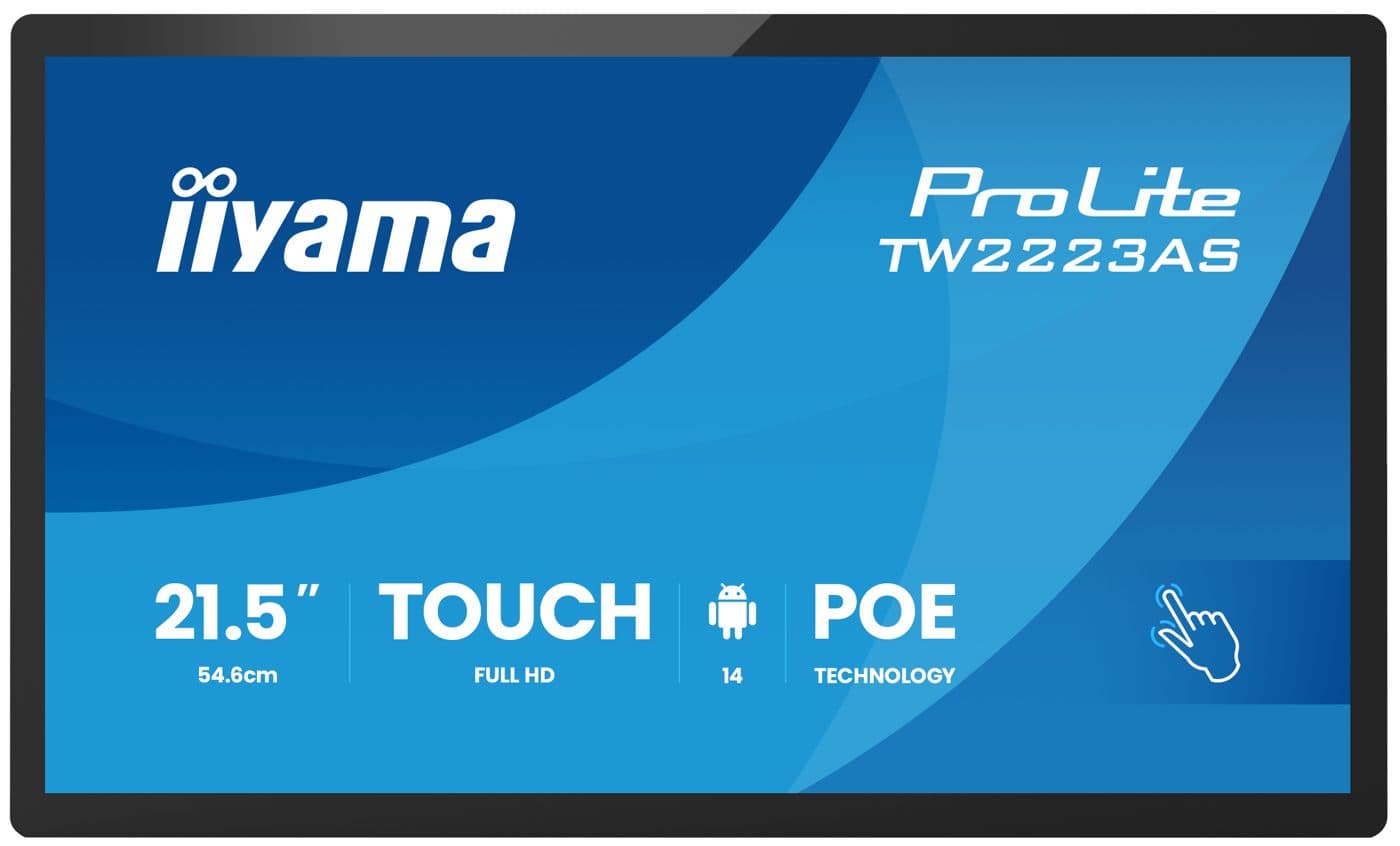

iiyama TW2223AS-B3P 21.5" Touch Panel PC

Name: iiyama TW2223AS-B3P 21.5" Touch Panel PC
Brand: iiyama
SKU: TW2223AS-B3P
Price: 330.85 GBP
Availability: OutOfStock

Return within 14 days

3-year manufacturer warranty

Installation services available

£330.85inc. VAT

£275.71 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £110.29 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignThin bezel

Diagonal21.5", 54.6cm

PanelIPS

Native resolution1920 x 1080 (2 megapixel HD)

Aspect ratio16:9

Panel brightness500 cd/m²

Brightness450 cd/m² with touch

Light transmittance86%

All 68 specifications

Talk to an Expert

Description

ProLite TW2223AS-B3P 21.5” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, anti glare coating, PoE Technology and iiSignage² The ProLite TW2223AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or

Also in this range:15.6" model 23.8" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (11)

Panel: IPS
Native resolution: 1920 x 1080 (2 megapixel HD)
Aspect ratio: 16:9
Panel brightness: 500 cd/m²
Brightness: 450 cd/m² with touch
Static contrast: 1500:1 with touch
Touch technology: projective capacitive
Touch points: 10 (HID, only supported by integrated OS, external OS only support single touch)
Touch accuracy: +- 2mm
Touch method: finger, glove (latex), capacitive stylus
Touch interface: USB

Connectivity (9)

Colour support: 16.7mln 8bit
Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Digital signal input: HDMI x1 (1920x1080 @60Hz)
Digital signal output: USB-C x1 (1x v. 3.2 (Gen 1, video output and touch board function – mirror screen))
Audio output: Mini jack x1Speakers 2 x 2W
USB ports: x3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 2x 2.0 (DC5V, 500mA))
RJ45 (LAN): x1 (PoE - IEEE802.3bt/60W (1000M))
WiFi: IEEE802.11ax/ac/a//b/g/n
Bluetooth: 5.3

Audio (1)

Microphone: x1

Power & Physical (5)

VESA mounting: 100 x 100mm
Product dimensions W x H x D: 504.5 x 302 x 32mm
Box dimensions W x H x D: 580 x 126 x 375mm
Weight (without box): 3.64kg
Weight (with box): 6kg

General (42)

Design: Thin bezel
Diagonal: 21.5", 54.6cm
Light transmittance: 86%
Response time (GTG): 14ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync: 31 - 83kHz
Viewable area W x H: 476.1 x 267.8mm, 18.7 x 10.5"
Pixel pitch: 0.248mm
Bezel colour and finish: black, matte
HDCP: yes
Integrated software: Android 14 with GMS
SOC: Octa-core RK3576 (4x A53 + 4x A72)
GPU: ARM G52 MC3
Storage: 32GB eMMC
Memory: 4GB LPDDR4
Extra: Auto-rotation, SD card slot, anti-glare coating, PoE, iiSignage²
Max. non-stop operating time: 24/7
Anti image retention: yes
Glass thickness: 2.9mm
Glass hardness: 6H
OSD key lock: yes
Control buttons: Power switch, volume/ button +, volume/ button -
Applications: Applications: lock application, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video
Flicker free: yes
Orientation: landscape, portrait, face-up
Cable management system: yes
MTBF: 50000 hours (excluding backlight)
Cables: power (1.8m)
Guides: quick start guide, safety guide
Other: AC adapter, interchangeable plugs (EU/UK)
Cable cover: yes
Power supply unit: external
Power supply: DC 12 V
Power usage: 15.4W typical, 0.5W stand by, 0.3W off mode
Regulations: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC: above 0.1%: Lead
EAN code: 4948570127160
User manual: TW1023ASC_16_2223AS-B3P-usermanual-e_revH.pdf
Technical specification: ProLite TW2223AS-B3P - gb_en.pdf
Drawing: TW2223AS-B3P_Drawing.pdf
Instructions: TW series API Setup instructions_20251001.zip
CE: TW2223A-B3P CE DoC.pdf
