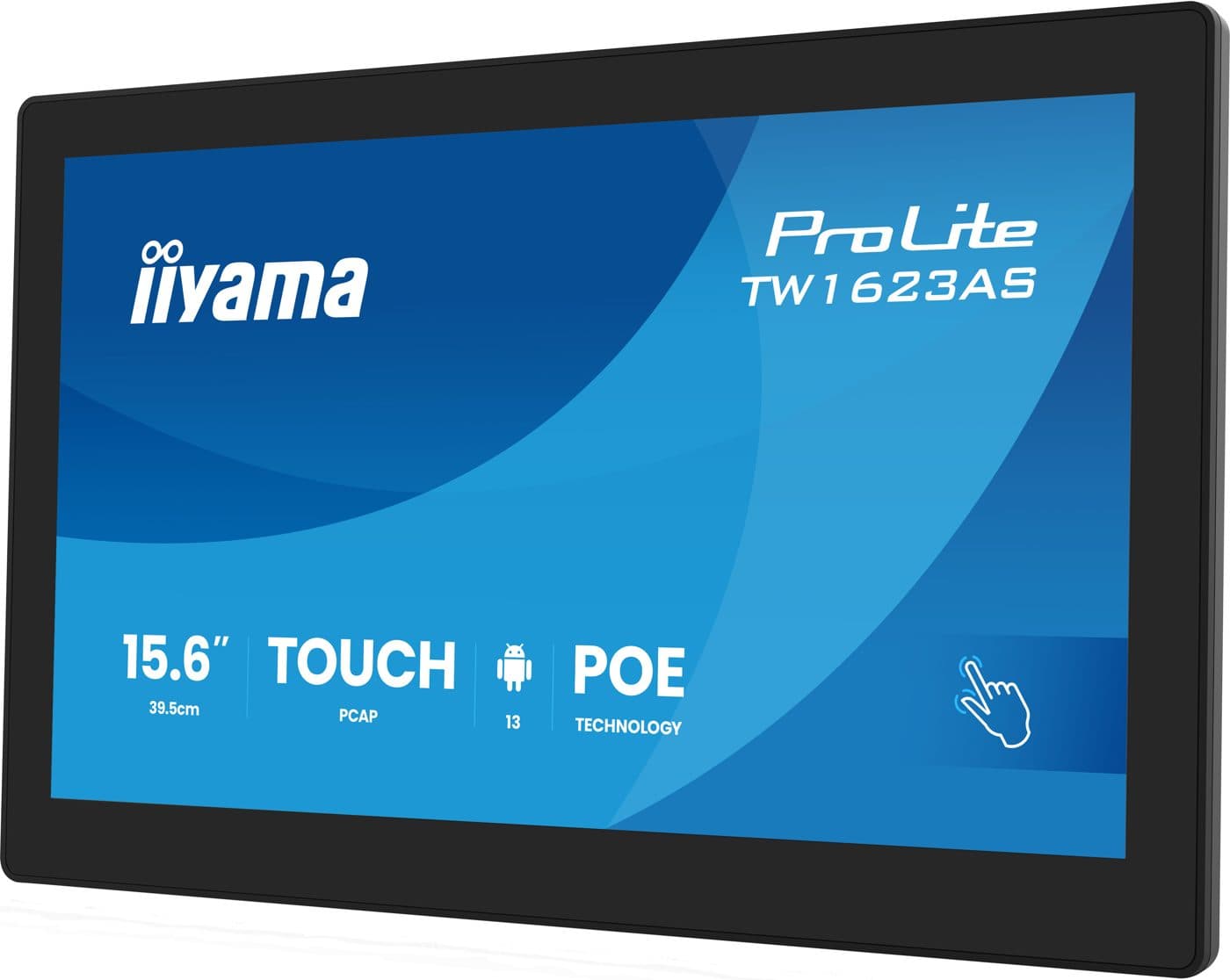

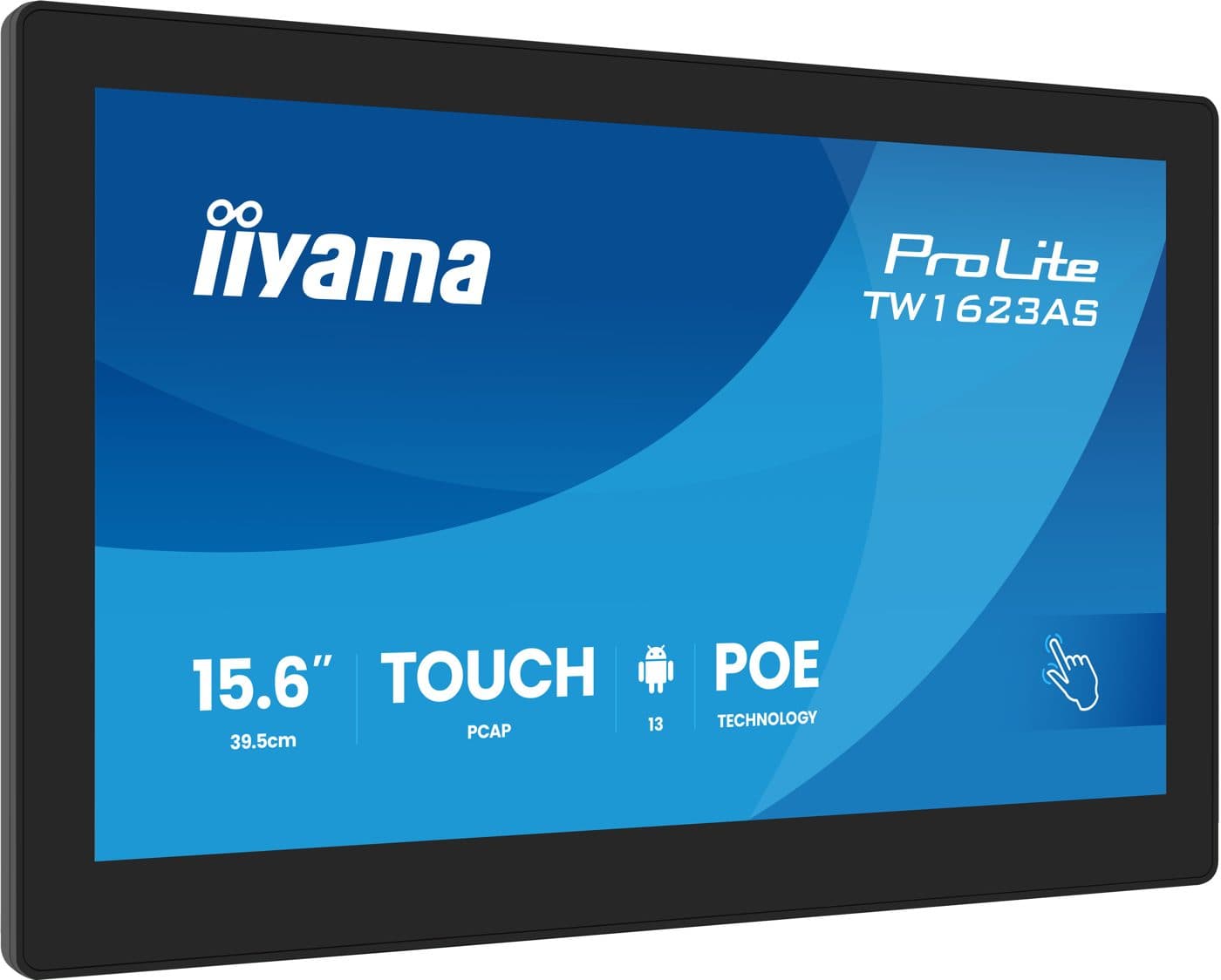

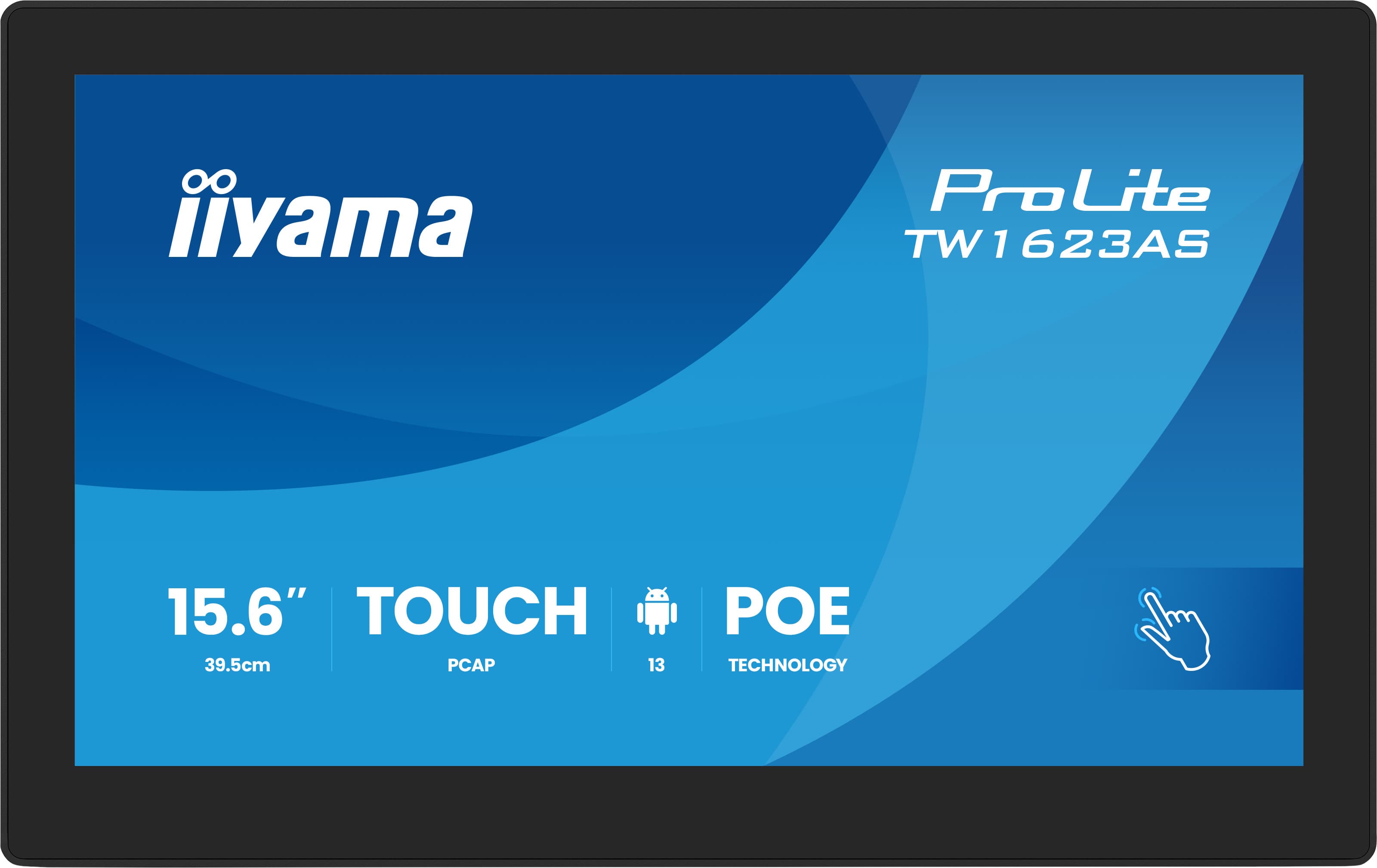

iiyama TW1623AS-B3P 15.6" Touch Panel PC

Name: iiyama TW1623AS-B3P 15.6" Touch Panel PC
Brand: iiyama
SKU: TW1623AS-B3P
Price: 296.52 GBP
Availability: OutOfStock

Return within 14 days

3-year manufacturer warranty

Installation services available

£296.52inc. VAT

£247.10 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £98.84 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignEdge to edge glass

Diagonal15.6", 39.5cm

PanelIPS Panel Technology, LED

Native resolution1920 x 1080 (2 megapixel HD)

Aspect ratio16:9

Panel brightness450 cd/m²

Brightness385 cd/m² with touch

Light transmittance86%

All 60 specifications

Talk to an Expert

Description

ProLite TW1623AS-B3P 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage² The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 16, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your mess

Also in this range:21.5" model 23.8" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (10)

Panel: IPS Panel Technology, LED
Native resolution: 1920 x 1080 (2 megapixel HD)
Aspect ratio: 16:9
Panel brightness: 450 cd/m²
Brightness: 385 cd/m² with touch
Static contrast: 1000:1 with touch
Touch technology: projective capacitive
Touch points: 10 ((HID, only supported by integrated OS, external OS only support single touch))
Touch method: finger, glove (latex), capacitive stylus
Touch interface: USB

Connectivity (7)

Colour support: 16.7mln 8bit
Digital signal output: HDMI x1 (mini HDMI, 1920x1080 @60Hz)
Audio output: Mini jack x1Speakers 2 x 2W
USB ports: x3
RJ45 (LAN): x1 (PoE - IEEE802.3at/30W)
WiFi: IEEE802.11a//b/g/n/ac
Bluetooth: 5.2

Audio (1)

Microphone: x1

Power & Physical (5)

VESA mounting: 100 x 100mm
Product dimensions W x H x D: 387 x 244 x 30,5mm
Box dimensions W x H x D: 477 x 298 x 75mm
Weight (without box): 1.5kg
Weight (with box): 2.45kg

General (37)

Design: Edge to edge glass
Diagonal: 15.6", 39.5cm
Light transmittance: 86%
Response time (GTG): 30ms
Viewing zone: horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Viewable area W x H: 344.2 x 193.6mm, 13.5 x 7.6"
Pixel pitch: 0.1792mm
Bezel colour and finish: black, matte
HDCP: yes
Integrated software: Android 16
CPU: Rockchip RK3568 Quad-core A55 up to 2.0GHz
GPU: Mali-G52
Storage: 32GB eMMC
Memory: 4GB LPDDR4X
Extra: Auto-rotation, SD card slot, anti-fingerprint coating, anti-glare coating, PoE
Kiosk mode: yes
Max. non-stop operating time: 24/7
Glass thickness: 1.8mm
Glass hardness: 6H
Control buttons: Power switch, volume/ button +, volume/ button -
Applications: Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video
Orientation: landscape, portrait, face-up
Cable management system: yes
Guides: quick start guide, safety guide
Other: AC adapter, interchangeable plugs (EU/UK)
Cable cover: yes
Power supply unit: external
Power supply: DC 12 V
Power usage: 9W typical, 0.5W stand by, 0.3W off mode
Regulations: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC: above 0.1%: Lead
EAN code: 4948570126934
User manual: TW1023ASC_16_2223AS-B3P-usermanual-e_revH.pdf
Technical specification: ProLite TW1623AS-B3P - gb_en.pdf
Drawing: ProLite TW1623AS-B3P drawing.pdf
Instructions: TW series API Setup instructions_20251001.zip
CE: TW1623A-B3P CE DoC.pdf
