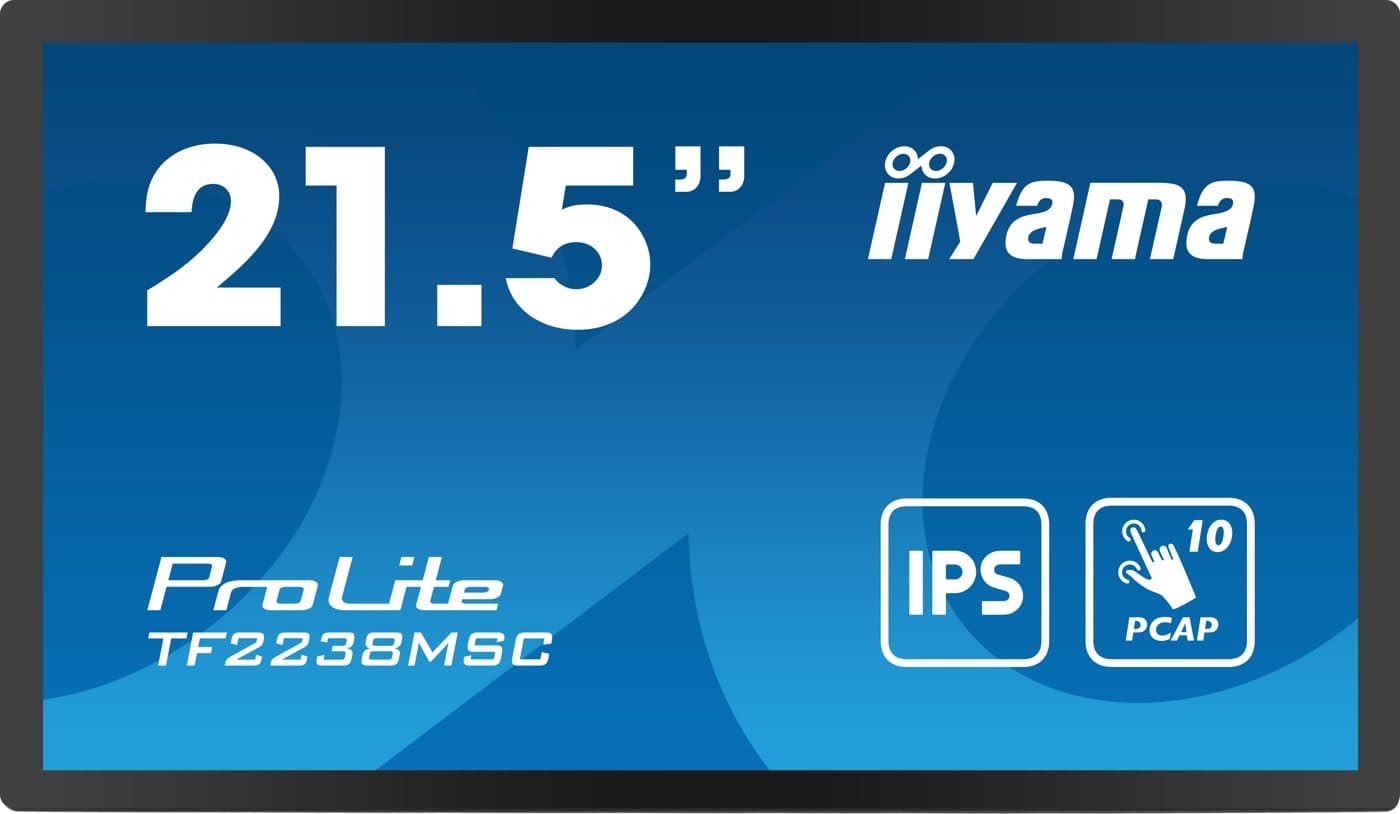

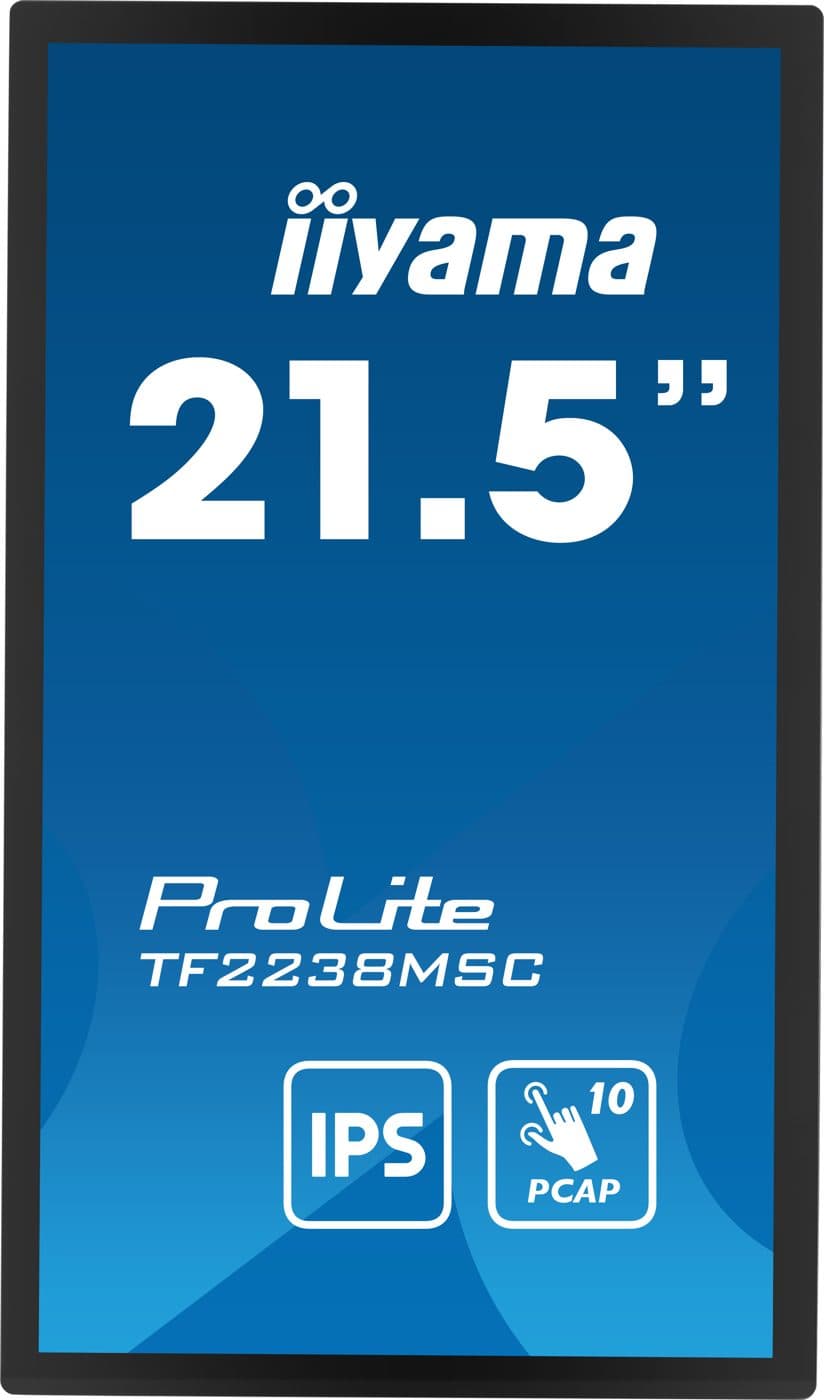

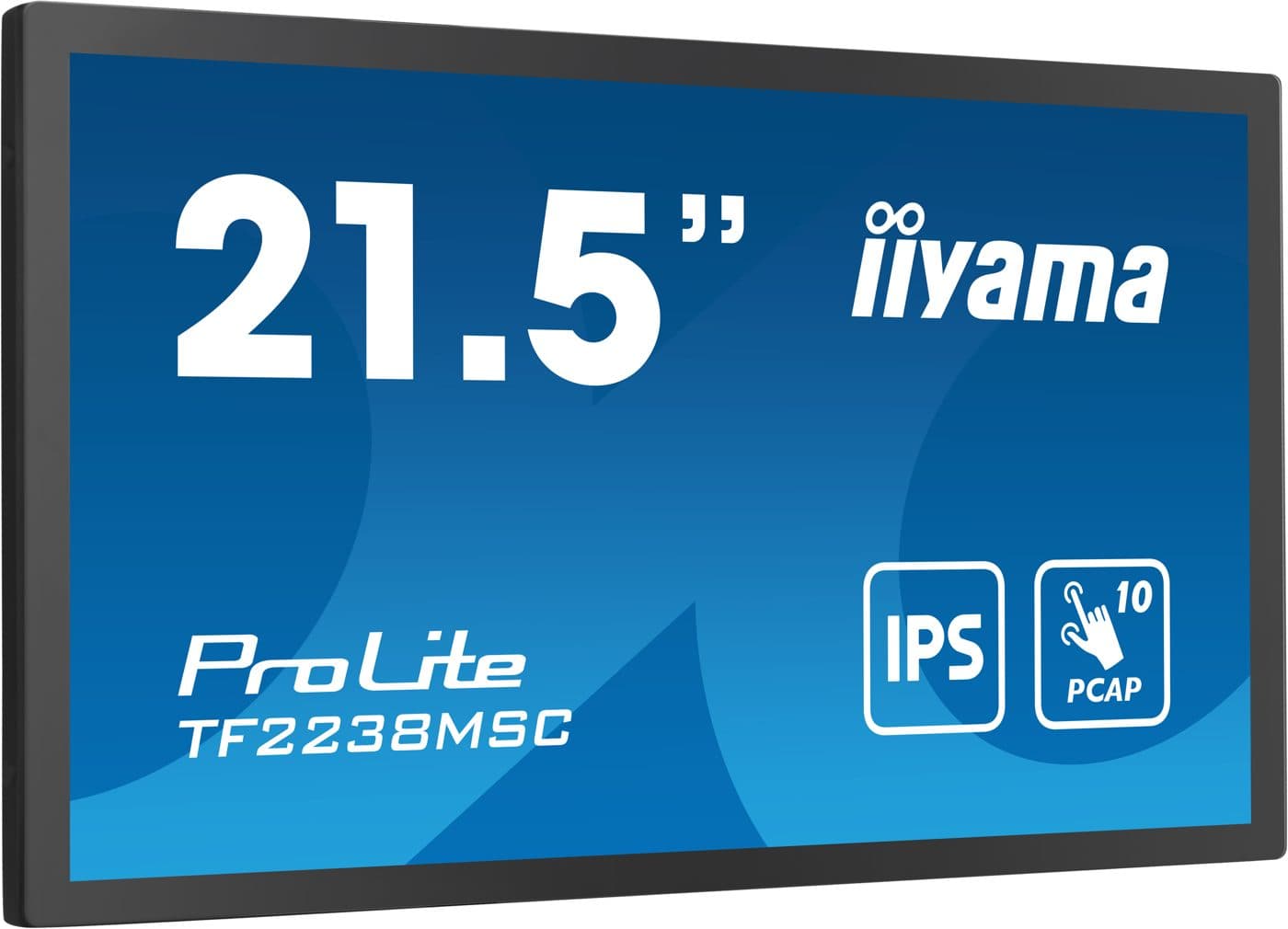

iiyama TF2238MSC-B1 21.5" Open Frame Touch Monitor

Name: iiyama TF2238MSC-B1 21.5" Open Frame Touch Monitor
Brand: iiyama
SKU: TF2238MSC-B1
Price: 360.43 GBP
Availability: LimitedAvailability

Return within 14 days

3-year manufacturer warranty

Installation services available

£360.43inc. VAT

£300.36 ex. VAT

Low stock (5 left), order soon

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £120.15 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3-year manufacturer warranty

Installation services available

Key specifications

DesignEdge to edge glass, Open Frame

Diagonal21,5", 54.5cm

PanelIPS

Native resolution1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio16:9

Panel brightness600 cd/m²

Brightness525 cd/m² with touch

Light transmittance87%

All 65 specifications

Talk to an Expert

Description

ProLite TF2238MSC-B1 21.5” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing The Full HD (1920x1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landsca

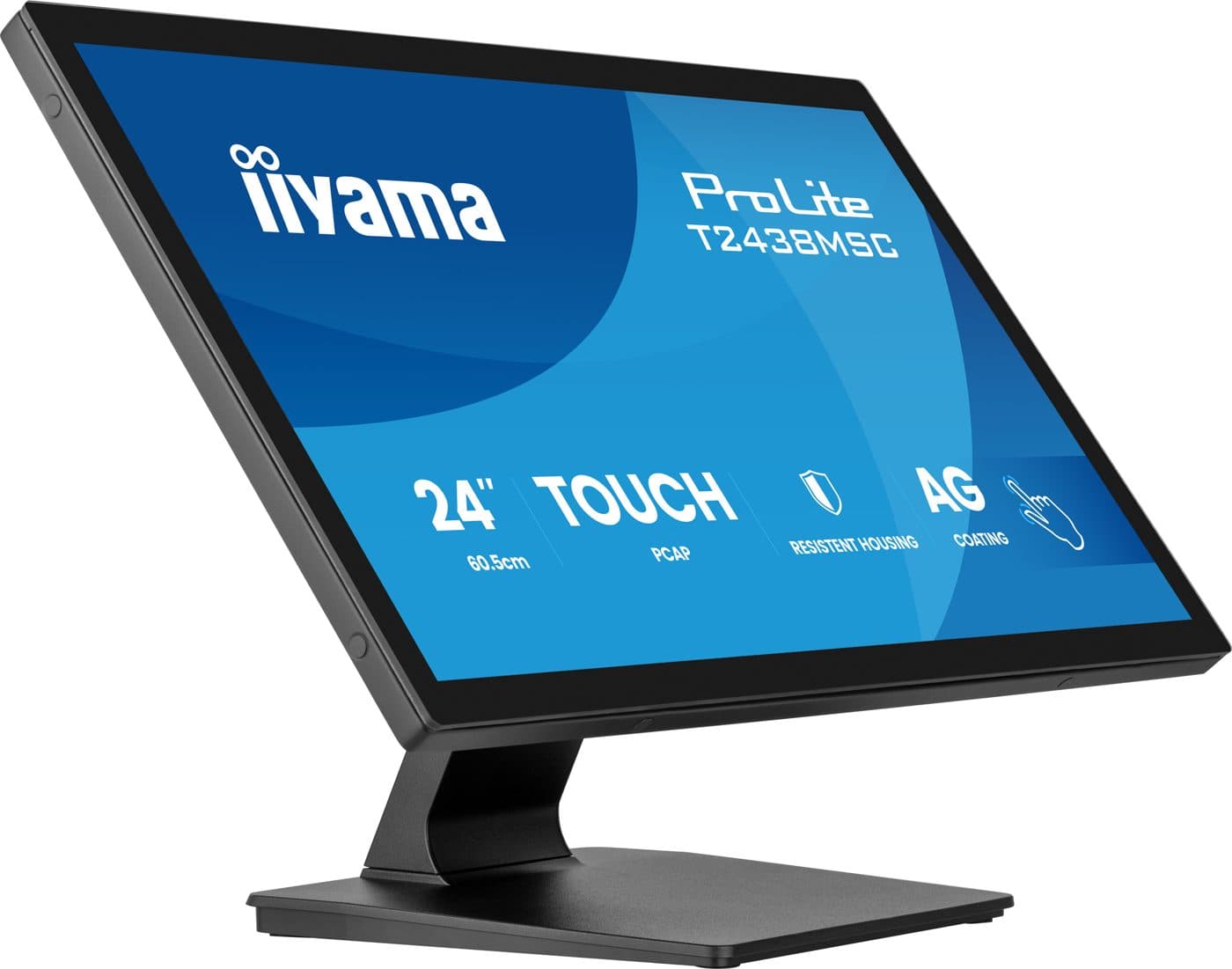

Also in this range:15.6" model 24" TF2438MSC-B2 24" TF2438MSC-B1 27" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (10)

Panel: IPS
Native resolution: 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio: 16:9
Panel brightness: 600 cd/m²
Brightness: 525 cd/m² with touch
Static contrast: 1000:1
Touch technology: bonded PCAP
Touch points: 10 (HID, only with supported OS)
Touch method: stylus, finger, glove
Touch interface: USB

Connectivity (6)

Colour support: 16.7mln
Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Digital signal input: HDMI x1DisplayPort x1
Audio output: Speakers 2 x 2W
USB HUB: x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))
OSD languages: EN, DE, FR, CN, RU, JP, NL, PL

Power & Physical (6)

Bezel width (sides, top, bottom): 17mm, 19.8mm, 19.8mm
VESA mounting: 100 x 100mm
Product dimensions W x H x D: 512.5 x 300 x 47mm
Box dimensions W x H x D: 572 x 364 x 112mm
Weight (without box): 5.1kg
Weight (with box): 6.4kg

General (43)

Design: Edge to edge glass, Open Frame
Diagonal: 21,5", 54.5cm
Light transmittance: 87%
Response time (GTG): 5ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync: 30 - 83kHz
Viewable area W x H: 479 x 260mm, 20.2 x 11.8"
Pixel pitch: 0.249mm
Bezel colour and finish: black, matte
HDCP: yes
Extra: Optical bonding PCAP, metal housing, anti fingerprint coating, water proof touch function
Glass thickness: 3.6mm
Glass hardness: 7H
60950 Ball drop test: yes
Water and dust protection: IP1X (front)
Housing (bezel): metal
OSD key lock: yes
Control buttons: Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
User controls: Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Blue light reducer: yes
Plug&Play: DDC2B
Orientation: landscape, portrait, face-up
Fanless design: yes
MTBF: 50000 hours
Cables: power, USB, HDMI
Guides: quick start guide, safety guide
Cable cover: yes
Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 17W typical, 1.5W stand by, 0.3W off mode
Regulations: CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Energy efficiency class (Regulation (EU) 2017/1369): D
REACH SVHC: above 0.1%: Lead
EAN code: 4948570121618
Product series: ProLite TF2438MSC-B1
User manual: TF24_2238MSC_usermanual-e-revE.pdf
Technical specification: ProLite TF2238MSC-B1 - gb_en.pdf
Drawing: TF2238MSC_drawing.pdf
EU Energy Label: TF2238MSC-B1 EU Energy Label (1518603).pdf
UK Energy Label: TF2238MSC-B1 UK Energy Label (1518603).pdf
CE: TF2238MSC-1 CE DoC.pdf
TUV: TF2238MSC-1 TUV Certificate.pdf
UL: TF2238MSC-1 UL Certificate.pdf
