iiyama

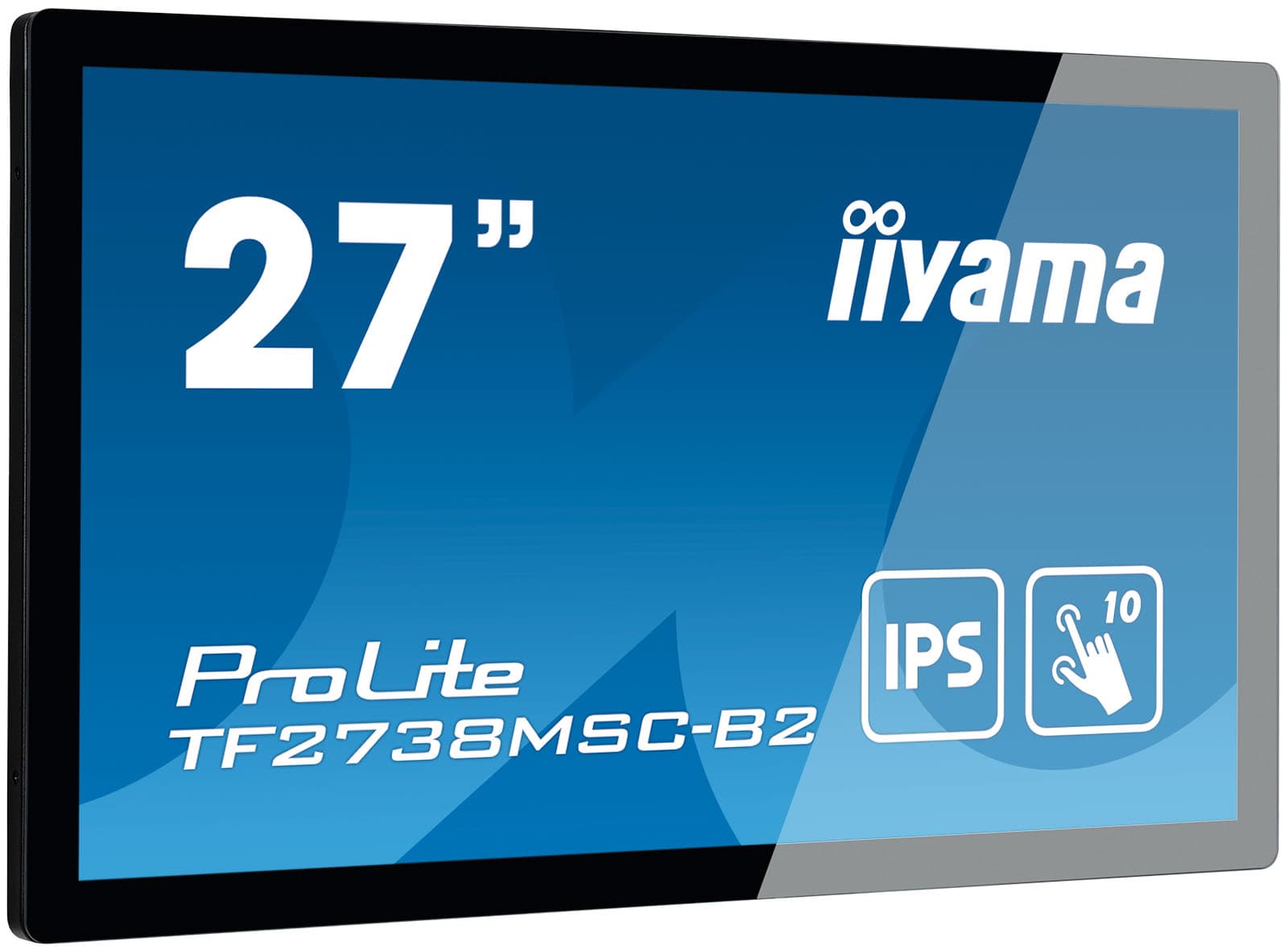

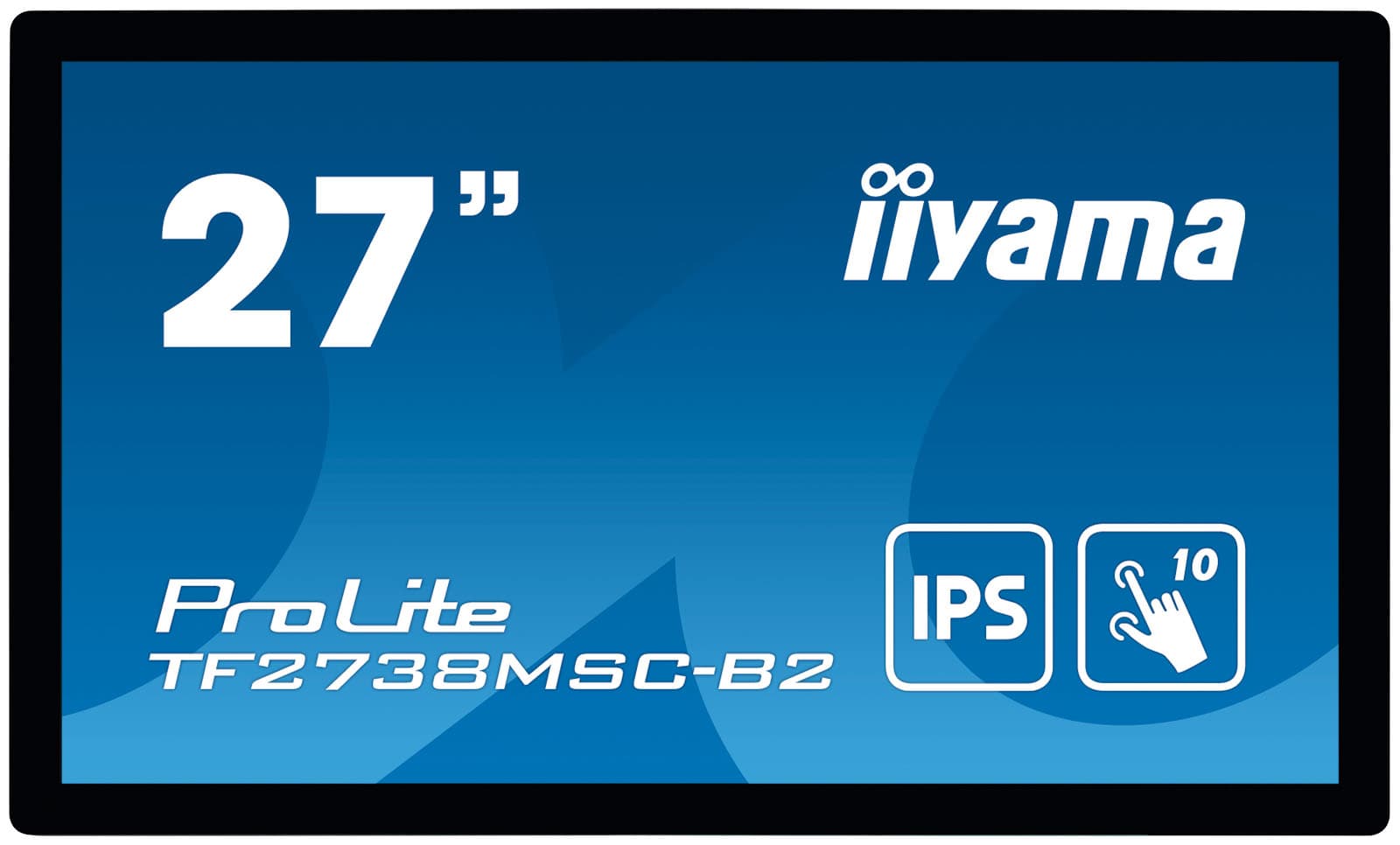

iiyama TF2738MSC-B2 27" Open Frame Touch Monitor

SKU TF2738MSC-B2
£469.64inc. VAT
£391.37 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignOpen Frame
Diagonal27", 68.6cm
PanelIPS LED
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness500 cd/m²
Brightness425 cd/m² with touch
Light transmittance85%

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TF2738MSC-B2 27" Open Frame Touch Monitor × 1£469.64
Total£469.64
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite TF2738MSC-B2 27” 10pt open frame touch monitor with edge-to-edge glass With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. 21.5" 1920 x 1080 23.8" 1920 x 1080 27" 1920 x 1080

Technical specifications

DesignOpen Frame
Diagonal27", 68.6cm
PanelIPS LED
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness500 cd/m²
Brightness425 cd/m² with touch
Light transmittance85%
Static contrast1000:1
Advanced contrast12M:1
Response time (GTG)5ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln
Horizontal Sync30 - 80kHz
Viewable area W x H597.6 x 336.2mm, 23.5 x 13.2"
Bezel width (sides, top, bottom)24.5mm, 24mm, 24mm
Pixel pitch0.311mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Digital signal inputDVI x1HDMI x1DisplayPort x1
Audio outputSpeakers 2 x 3W
HDCPyes
Max. non-stop operating time16/7
Glass thickness3.6mm
Glass hardness6H
60950 Ball drop testyes
Water and dust protectionIP1X (front)
OSD key lockyes
OSD languagesEN, DE, FR, CN, RU, JP, NL, PL
Control buttonsMenu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power
User controlspicture adjust (contrast, brightness, adv. contrast, ECO mode, OD) input select, audio adjust (volume, mute, audio input) colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED) memory recall
Blue light reduceryes
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
Fanless designyes
VESA mounting100 x 100mm, 200 x 100mm
Cablespower, USB, HDMI, mDP - DP, DP
Guidesquick start guide, safety guide
Cable coveryes
Power supply unitinternal
Power supplyAC 100 - 240V, V, 50/%4Hz
Power usage25W typical, 1.5W stand by, 0.3W off mode
RegulationsCE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)F
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D648.5 x 386.5 x 52mm
Box dimensions W x H x D746 x 500 x 123mm
Pallet volume36pcs
Pallet dimensions W x H x D747 x 1107 x 2005mm
Weight (without box)8.3kg
Weight (with box)9.4kg
EAN code4948570118199
User manualTF2738MSC-B2_usermanual-e-revE.pdf
Technical specificationProLite TF2738MSC-B2 - gb_en.pdf
DrawingTF2738MSC-B2 drawing.pdf
EU Energy LabelTF2738MSC-B2 B EU Energy Label (2521675).pdf
UK Energy LabelTF2738MSC-B2 B UK Energy Label (2521675).pdf
