Home / 10 - 19" Touch Screens / iiyama TF1934MC-B7X 19" Open Frame Touch Monitor
Est. delivery 27 Aug - 31 Aug
Return within 14 days
3 Year Warranty
Installation services available
iiyama

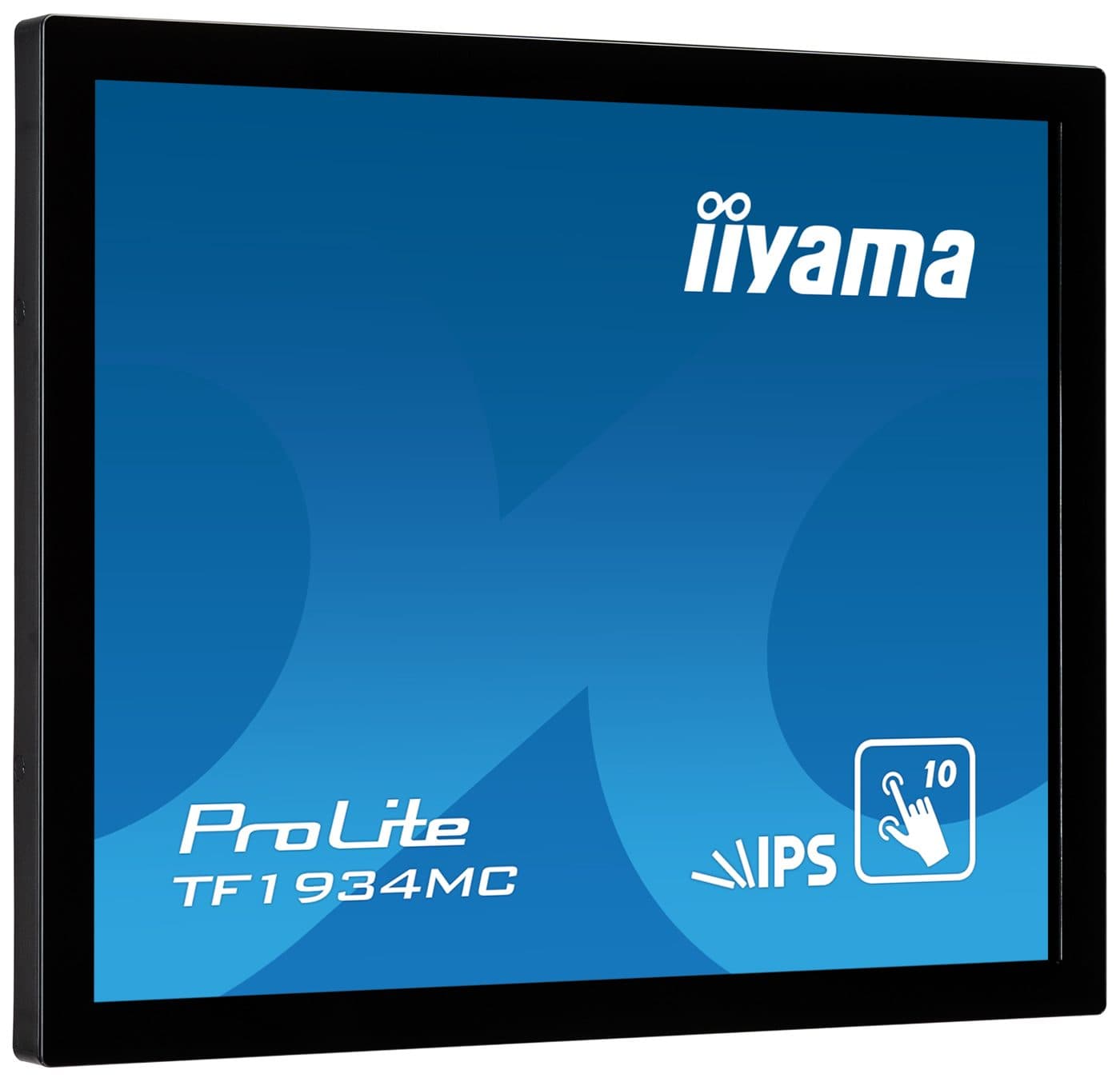

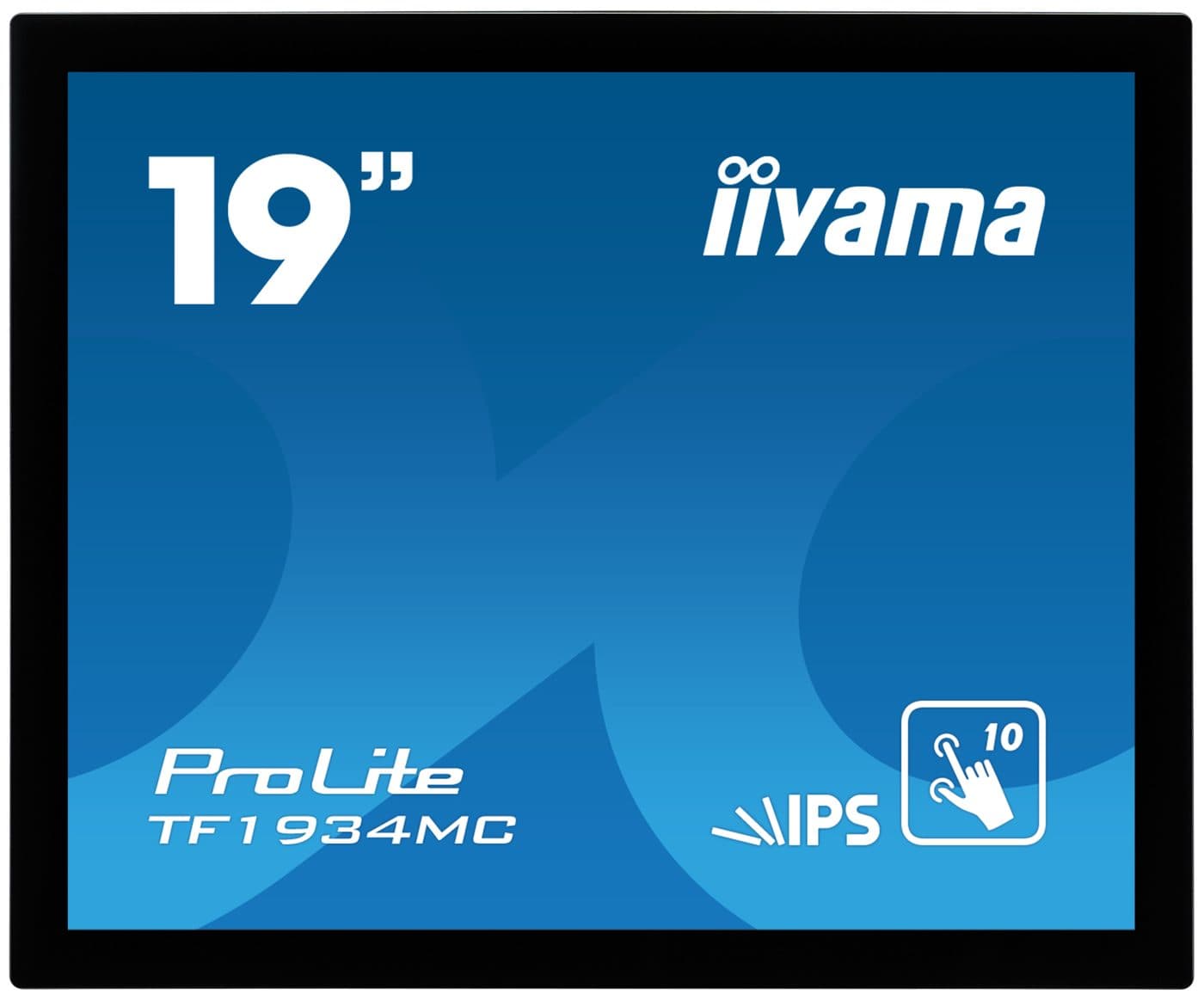

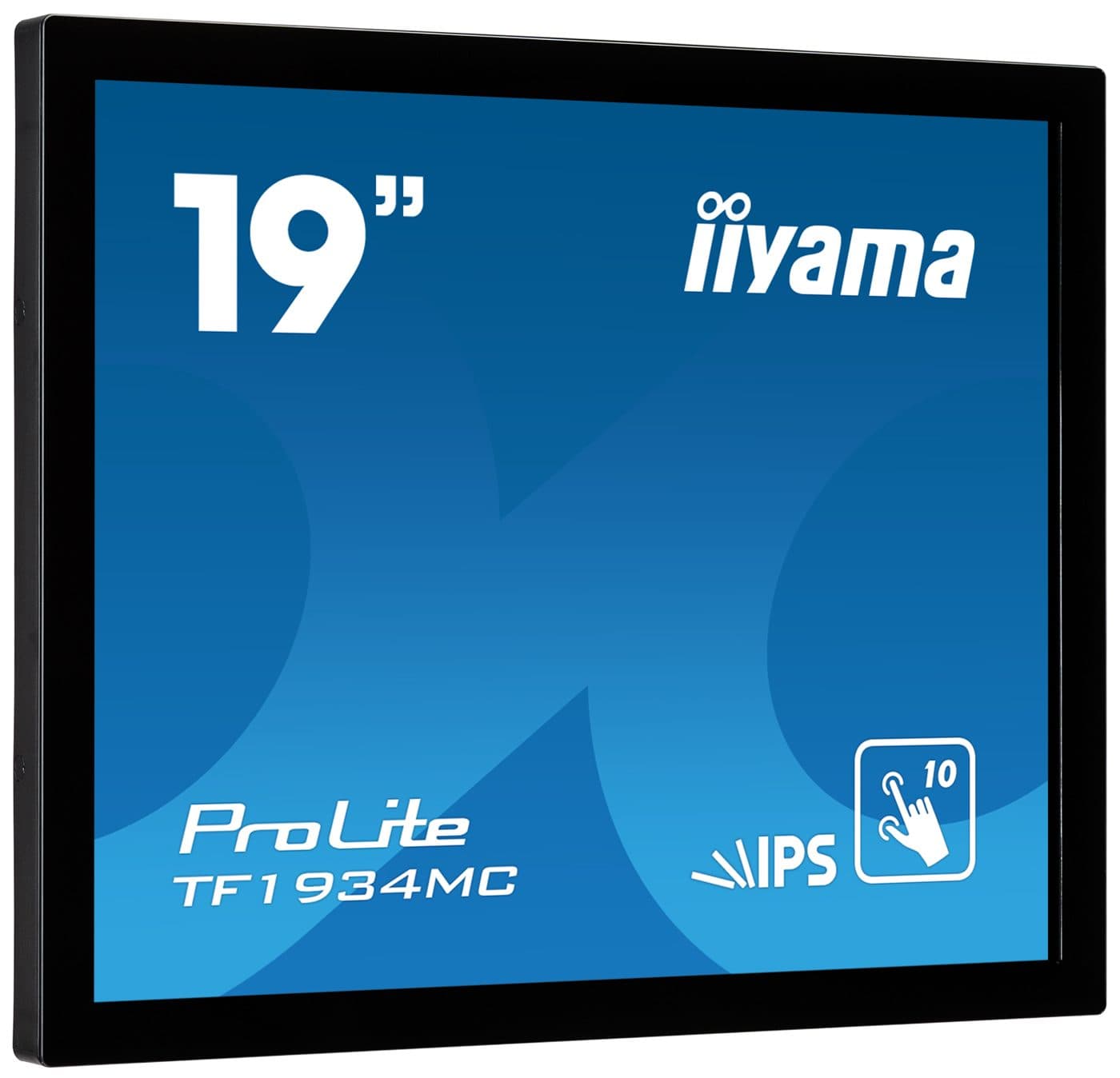

iiyama TF1934MC-B7X 19" Open Frame Touch Monitor

SKU TF1934MC-B7X
£422.30inc. VAT
£351.92 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignOpen Frame
Diagonal19", 48cm
PanelIPS LED
Native resolution1280 x 1024 (1.3 megapixel)
Aspect ratio5:4
Panel brightness350 cd/m²
Brightness315 cd/m² with touch
Light transmittance90%

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TF1934MC-B7X 19" Open Frame Touch Monitor × 1£422.30
Total£422.30
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite TF1934MC-B7X 10pt touch Open Frame monitor with IPS panel and touch through glass function ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution f

Technical specifications

DesignOpen Frame
Diagonal19", 48cm
PanelIPS LED
Native resolution1280 x 1024 (1.3 megapixel)
Aspect ratio5:4
Panel brightness350 cd/m²
Brightness315 cd/m² with touch
Light transmittance90%
Static contrast1000:1 with touch
Response time (GTG)14ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln
Horizontal Sync31.4 - 80kHz
Viewable area W x H376.5 x 301.1mm, 14.8 x 11.9"
Pixel pitch0.294mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Through-Glass6mm
Palm rejectionyes
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Extraanti-fingerprint coating, touch through-glass
Water and dust protectionIP65 (front)
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controlspicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Cablespower, USB, HDMI, DP
Guidesquick start guide, safety guide
OtherAC adapter, Touch Panel Driver Disk (CD-ROM)
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage21W typical, 1.5W stand by, 1.5W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)F
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D416 x 344 x 46.5mm
Box dimensions W x H x D16.4 x 13.5 x 1.8mm
Weight (without box)4.4kg
EAN code4948570118403
Mounts / Stands / BracketsOMK1-1
Related productsRC TOUCHV01, OMK1-1
User manualTF15_17_1934MC-B7X-usermanual-e.pdf
Technical specificationProLite TF1934MC-B7X - gb_en.pdf
DrawingTF1934MC_drawing.pdf
EU Energy LabelTF1934MC-B7X EU Energy Label pdf data(392527).pdf
UK Energy LabelTF1934MC-B7X UK Energy Label pdf data(392527).pdf
CETF1934MC-7XC CE DoC.pdf

Documents

iiyama TF1934MC-B7X datasheet
