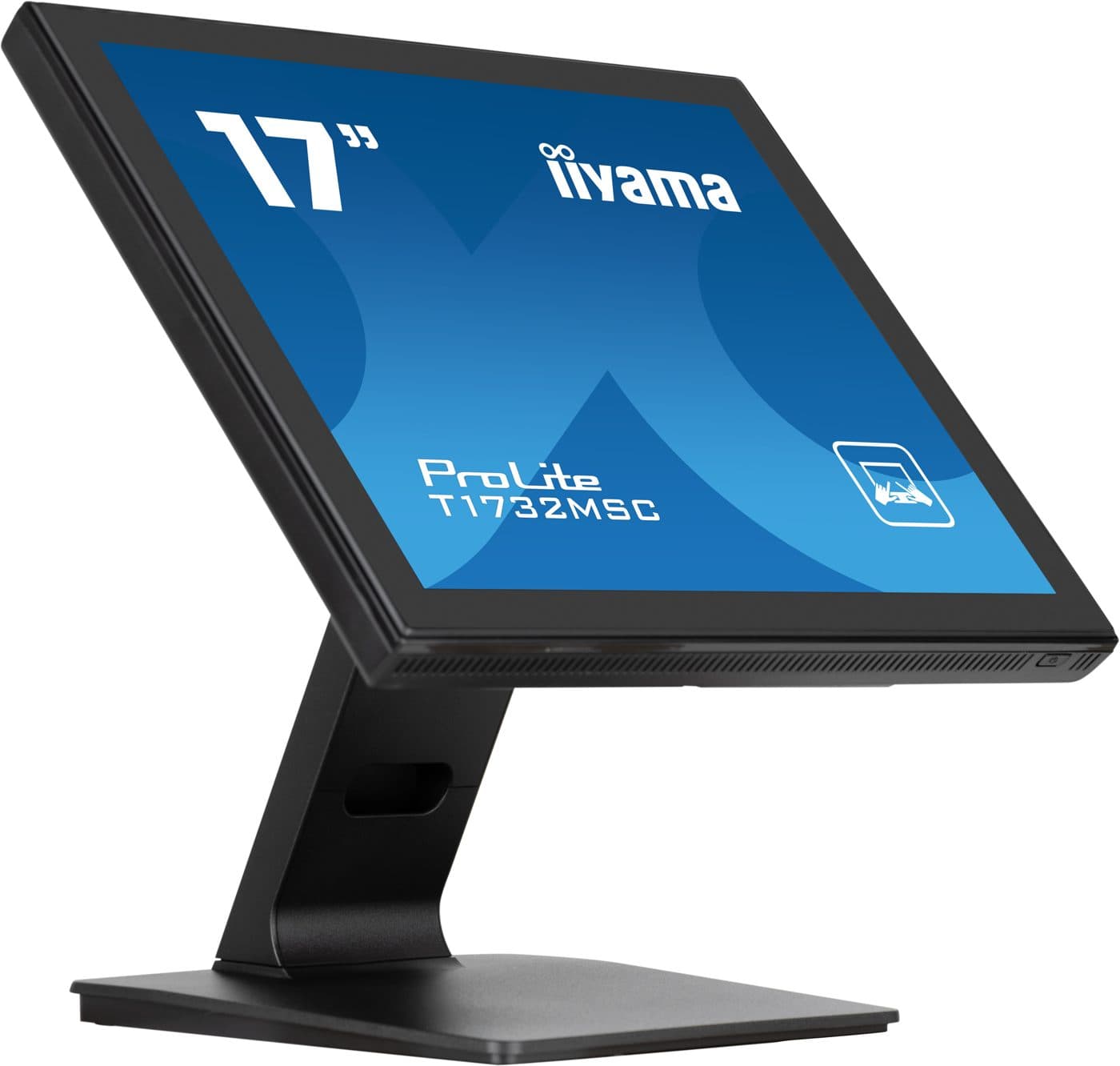

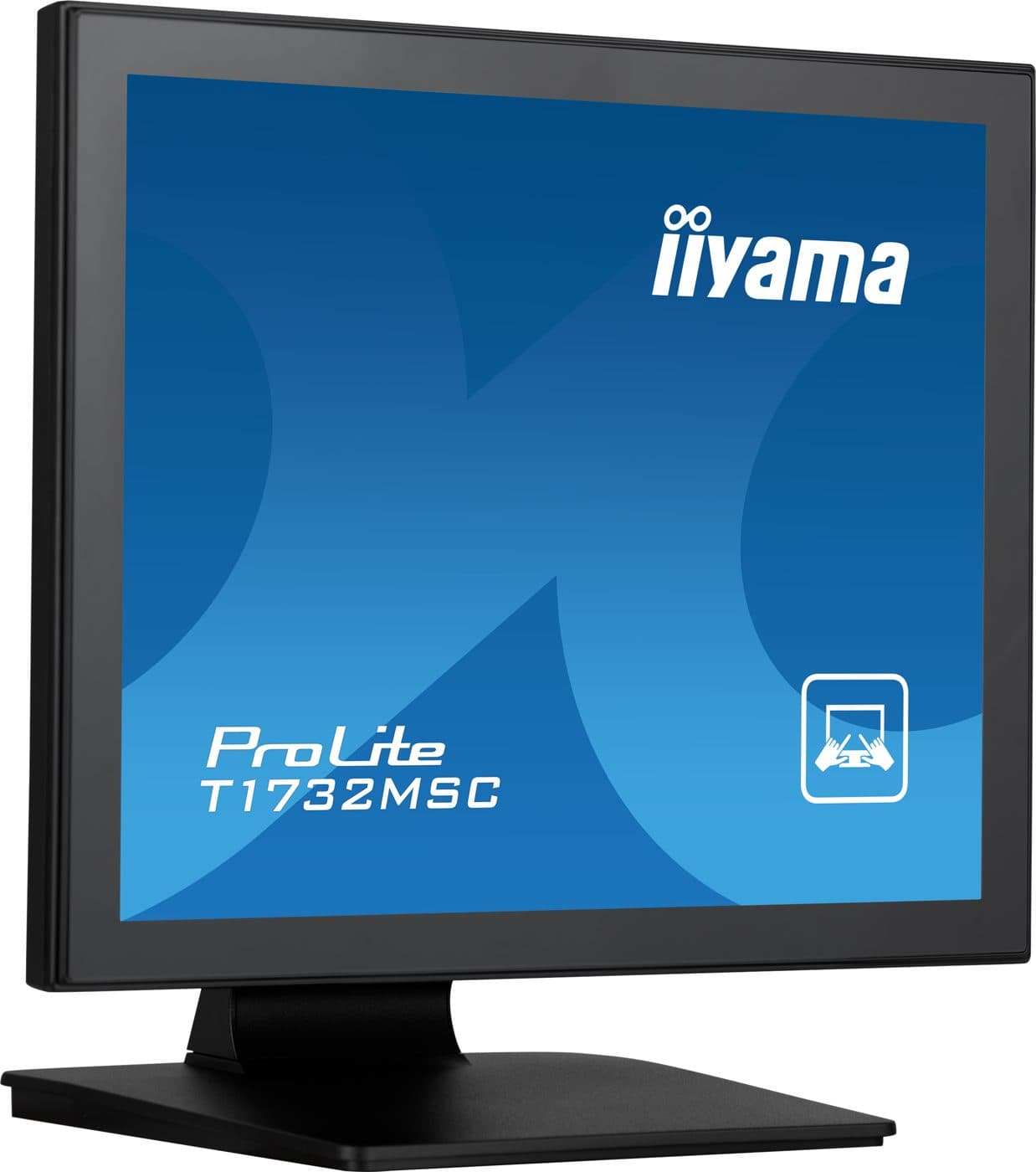

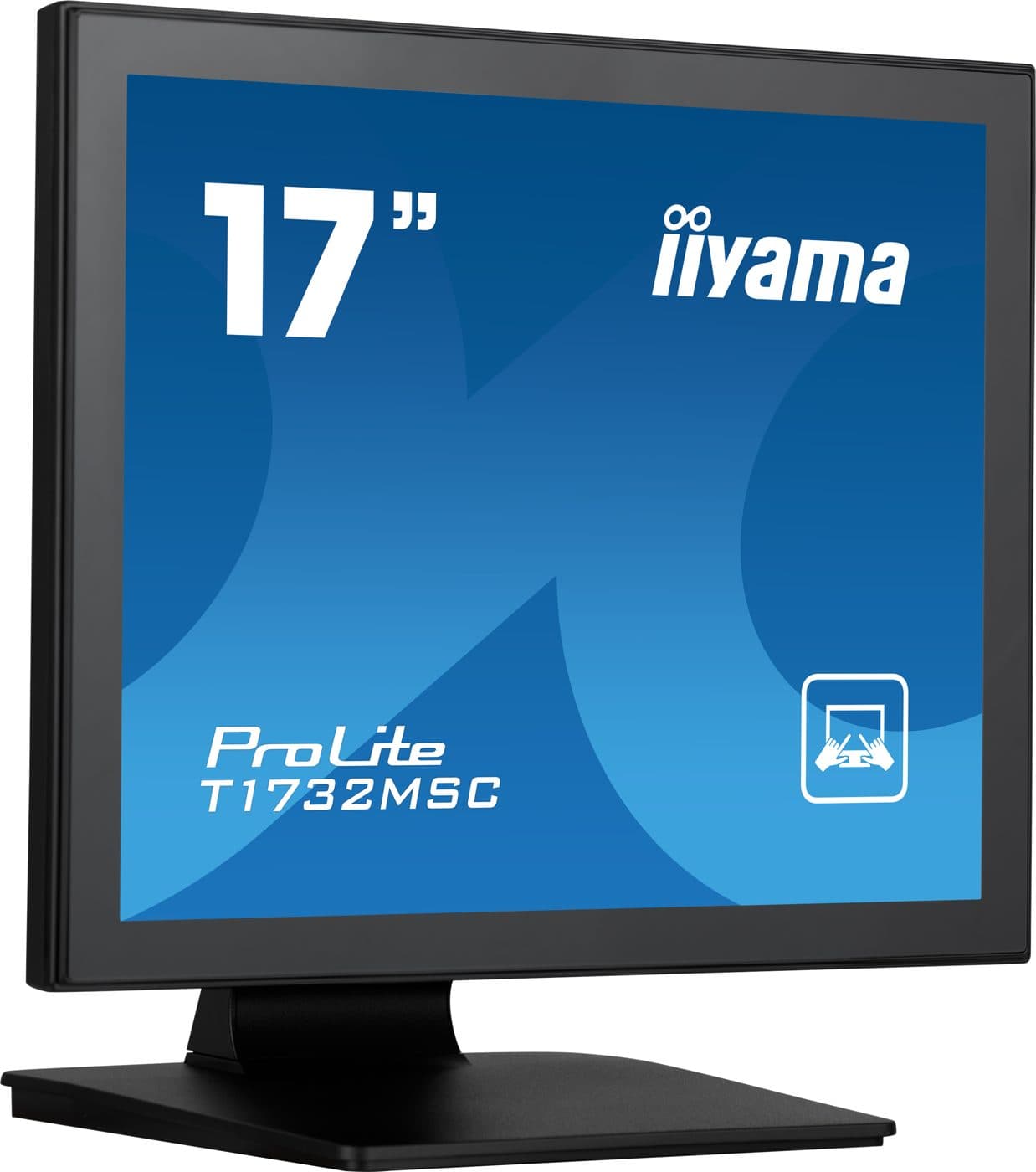

iiyama T1732MSC-B1SAG 17" Touch Monitor

SKU T1732MSC-B1SAG
£396.64inc. VAT
£330.53 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
Cable management systemyes
DesignEdge to edge glass
Diagonal17", 43cm
PanelTN LED, AG coated glass
Native resolution1280 x 1024 (1.3 megapixel)
Aspect ratio5:4
Panel brightness250 cd/m²
Brightness215 cd/m² with touch

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama T1732MSC-B1SAG 17" Touch Monitor × 1£396.64
Total£396.64
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite T1732MSC-B1SAG 17" Projective Capacitive 10pt touch screen with AG-coating The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light tran

Technical specifications

Cable management systemyes
DesignEdge to edge glass
Diagonal17", 43cm
PanelTN LED, AG coated glass
Native resolution1280 x 1024 (1.3 megapixel)
Aspect ratio5:4
Panel brightness250 cd/m²
Brightness215 cd/m² with touch
Light transmittance85%
Static contrast1000:1 with touch
Response time (BTB)5ms
Viewing zonehorizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support16.7mln
Horizontal Sync31 - 80kHz
Viewable area W x H338 x 270.5mm, 13.3 x 10.6"
Pixel pitch0.264mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Audio inputMini jack x1
Audio outputSpeakers 2 x 1W
HDCPyes
Water and dust protectionIP54 (front)
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controlscontrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
ConvenienceKensington-lock™ prepared
Plug&PlayDDC2B
Tilt angle90° up; 5° down
VESA mounting100 x 100mm
Cablespower, USB, HDMI, Audio, DP
Guidesquick start guide, safety guide
Cable coveryes
Power supply unitinternal
Power supplyAC 100 - 240V, 50/60Hz
Power usage20W typical, 1.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)E
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D387 x 378 x 240mm
Weight (without box)4.9kg
EAN code4948570122158
Product seriesProLite T1532MSC-B1S, ProLite T1732MSC-B1S, ProLite T1932MSC-W1SAG , ProLite T1932MSC-B1S
User manualT15_17_1932MSC-x1S_AG-usermanual-e.pdf
Technical specificationProLite T1732MSC-B1SAG - gb_en.pdf
DrawingT1732MSC-B1S_Drawing.pdf
EU Energy LabelT1732MSC-B1SAG EU Energy Label (1518684).pdf
UA Energy LabelT1732MSC-B1SAG UK Energy Label (1518684).pdf

Documents

iiyama T1732MSC-B1SAG datasheet
