Home / 10 - 19" Touch Screens / iiyama TW1023ASC-B3P 10.1" Touch Panel PC
Est. delivery 27 Aug - 31 Aug
Return within 14 days
3 Year Warranty
Installation services available
iiyama

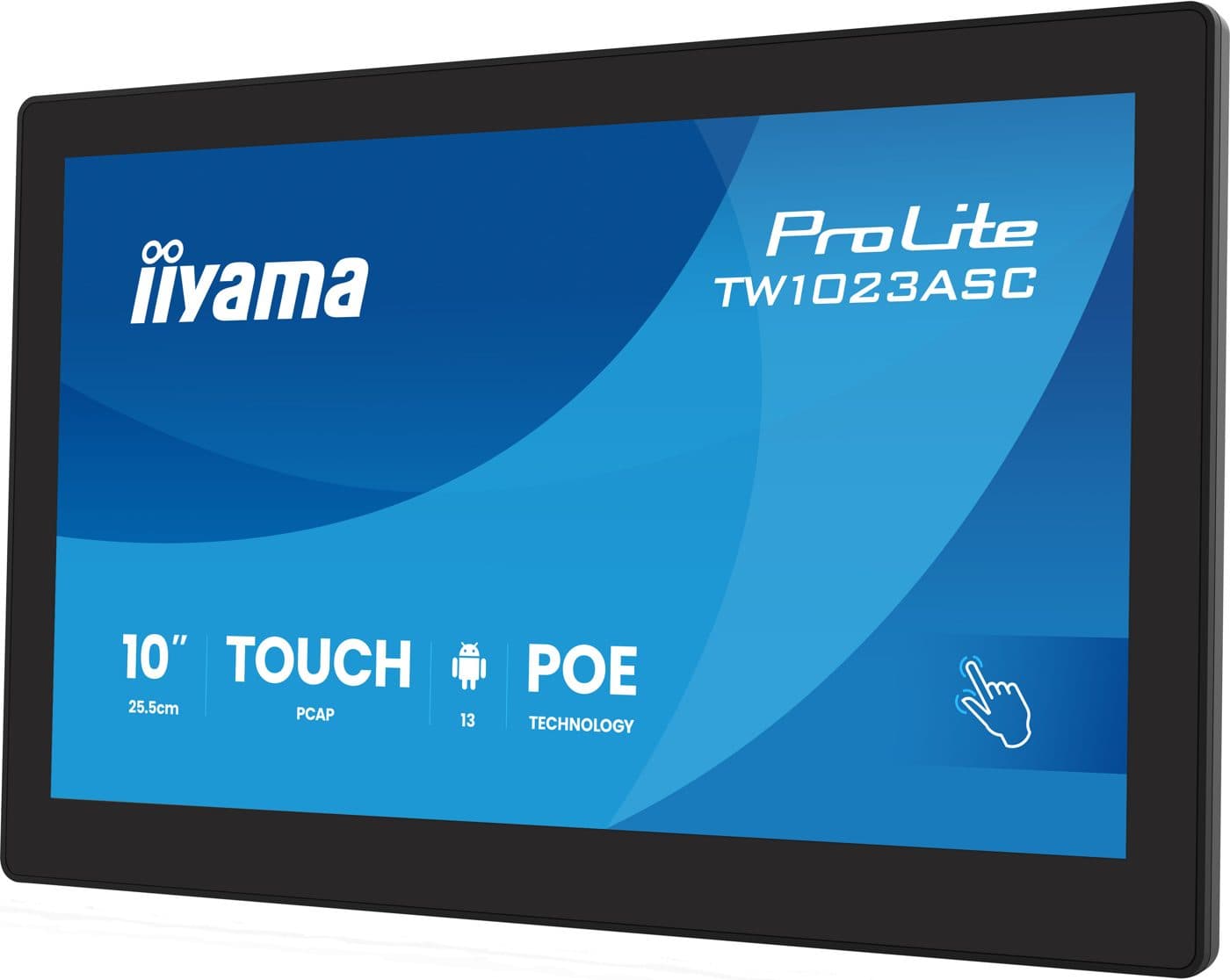

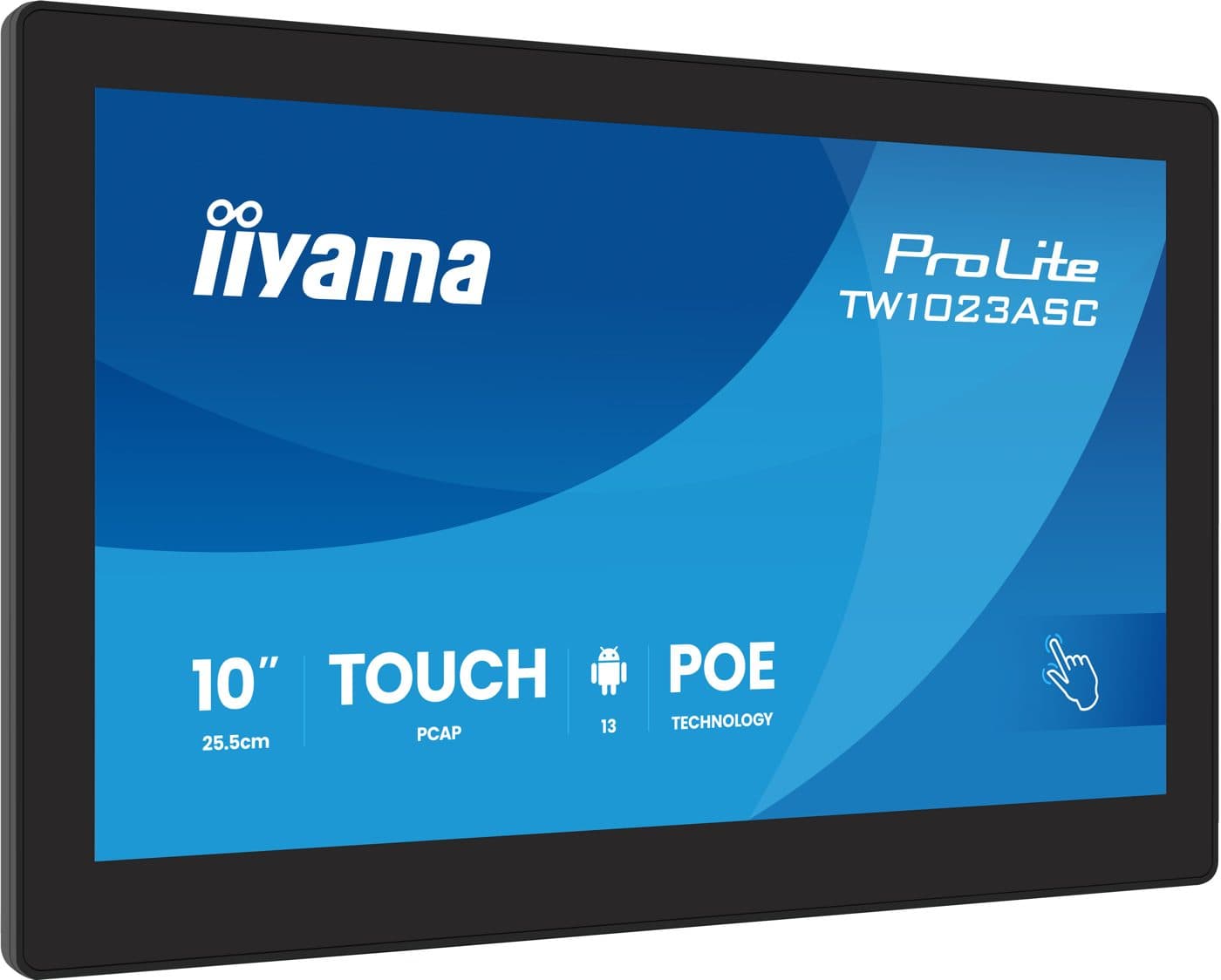

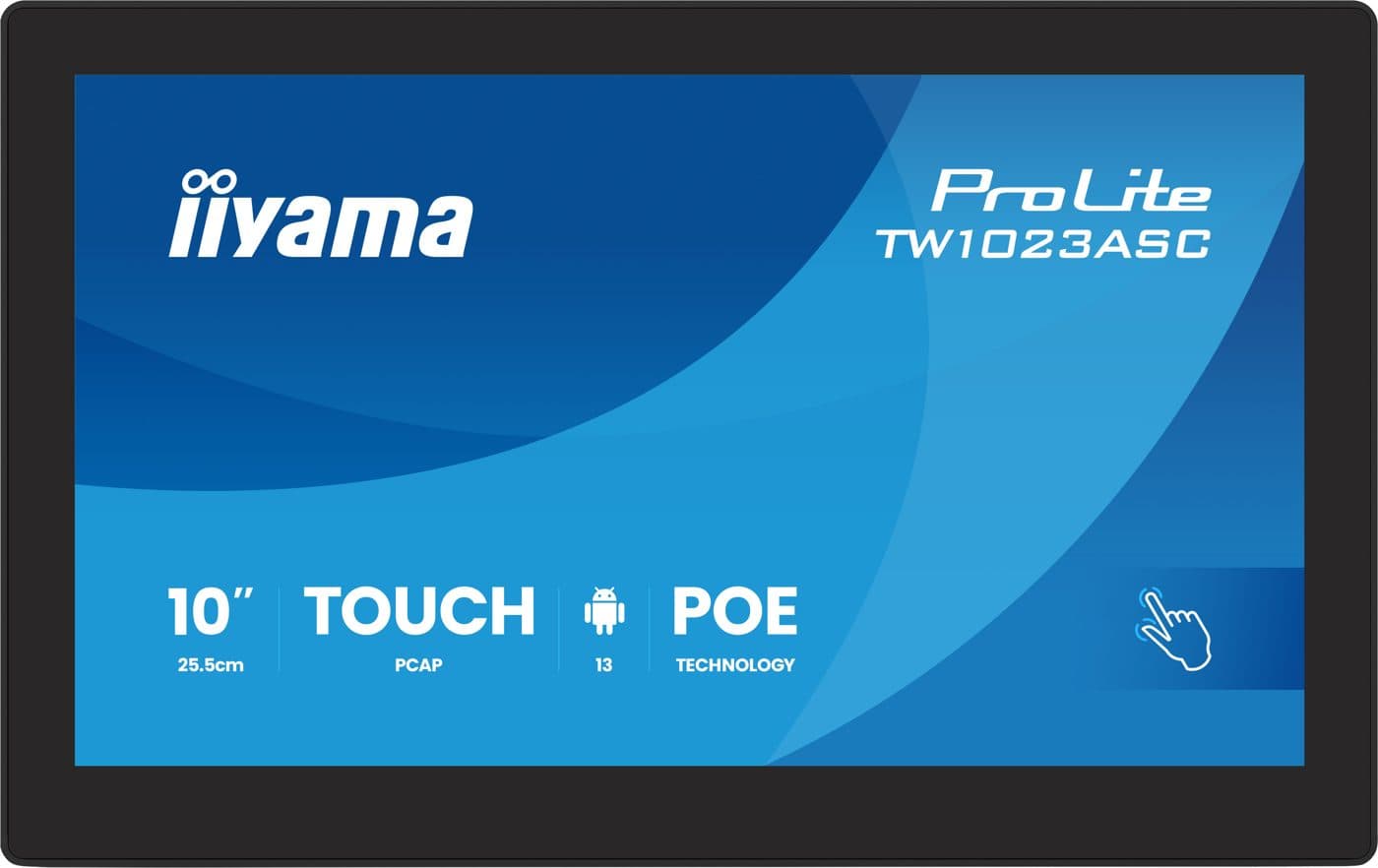

iiyama TW1023ASC-B3P 10.1" Touch Panel PC

SKU TW1023ASC-B3P
£226.80inc. VAT
£189.00 ex. VAT
Ask a question
Out of stock
Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignEdge to edge glass
Diagonal10.1", 25.5cm
PanelIPS
Native resolution1280 x 800 (1 megapixel HD)
Aspect ratio16:9
Panel brightness450 cd/m²
Brightness385 cd/m² with touch
Light transmittance86%

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TW1023ASC-B3P 10.1" Touch Panel PC × 1£226.80
Total£226.80
inc. VAT
1

This item is currently out of stock. Please check back soon or contact us.

Request a QuoteTalk to an Expert

Description

ProLite TW1023ASC-B3P 10.1” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage² The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 16, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over

Technical specifications

DesignEdge to edge glass
Diagonal10.1", 25.5cm
PanelIPS
Native resolution1280 x 800 (1 megapixel HD)
Aspect ratio16:9
Panel brightness450 cd/m²
Brightness385 cd/m² with touch
Light transmittance86%
Static contrast1000:1 with touch
Response time (GTG)25ms
Viewing zonehorizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Colour support16.7mln 8bit
Viewable area W x H216.6 x 135.4mm, 8.5 x 5.3"
Pixel pitch0.1692mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only supported by integrated OS, external OS only support single touch)
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Audio inputMini jack x1
Digital signal outputHDMI x1 (mini HDMI, 1280x720 @60Hz)
Audio outputSpeakers 2 x 1.5W
USB portsx4 (1 x 3.2 Gen1 (5Gbps, DC5V, 900mA), 2 x 2.0 (DC5V, 500mA), 1 x MICRO with OTG)
RJ45 (LAN)x1 (PoE - IEEE802.3 at/Max. 30W)
Microphonex1
Integrated softwareAndroid 16
CPURockchip RK3568 Quad-core A55 up to 2.0GHz
GPUMali G52
Storage32GB eMMC
Memory4GB LPDDR4X
WiFiIEEE802.11a//b/g/n/ac
Bluetooth5.2
Extraauto-rotation, webcam (5 megapixel), microphone, SD card slot, anti-fingerprint coating
Kiosk modeyes
Max. non-stop operating time24/7
Glass thickness1.25mm
Glass hardness6H
OSD key lockyes
Control buttonsPower, home, brightness +, brightness -, volume +, volume -
Applicationslock applications, manage restart time, manage power on/off, calculator, calendar, Chrome, alarm/ clock/ timer/ stopwatch, manage files and folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system preferences, sound recorder, play video files
Flicker freeyes
Orientationlandscape, portrait, face-up
Cable management systemyes
Cablespower (2.5m)
Guidesquick start guide, safety guide
OtherAC adapter, interchangeable plugs (EU/UK)
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage18W typical, 0.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D255 x 172 x 30.5mm
Box dimensions W x H x D398 x 223 x 68mm
Pallet volume256pcs
Pallet dimensions W x H x D1000 x 1200 x 2150mm
Weight (without box)0.8kg
Weight (with box)1.36kg
EAN code4948570126927
User manualTW1023ASC_16_2223AS-B3P-usermanual-e_revH.pdf
Technical specificationProLite TW1023ASC-B3P - gb_en.pdf
DrawingTW1023ASC-B2P_B3P drawing.pdf
InstructionsTW series API Setup instructions_20251001.zip
CETW1023A-B3P CE DOC.pdf
