Home / 20 - 31" Touch Screens / iiyama TF3239AS-B1AG 31.5" Open Frame Touch Monitor
Est. delivery 27 Aug - 31 Aug
Return within 14 days
3 Year Warranty
Installation services available
iiyama

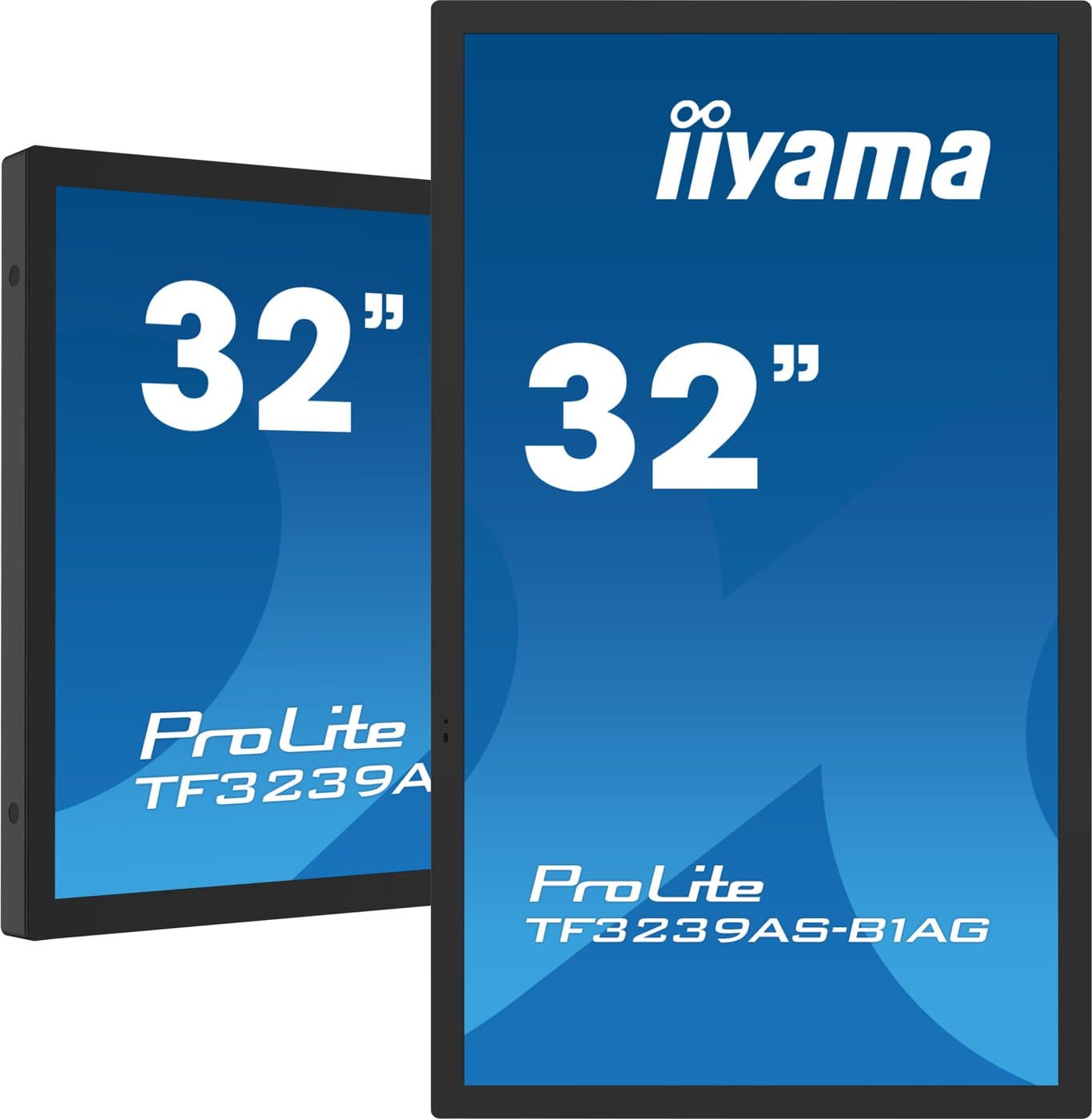

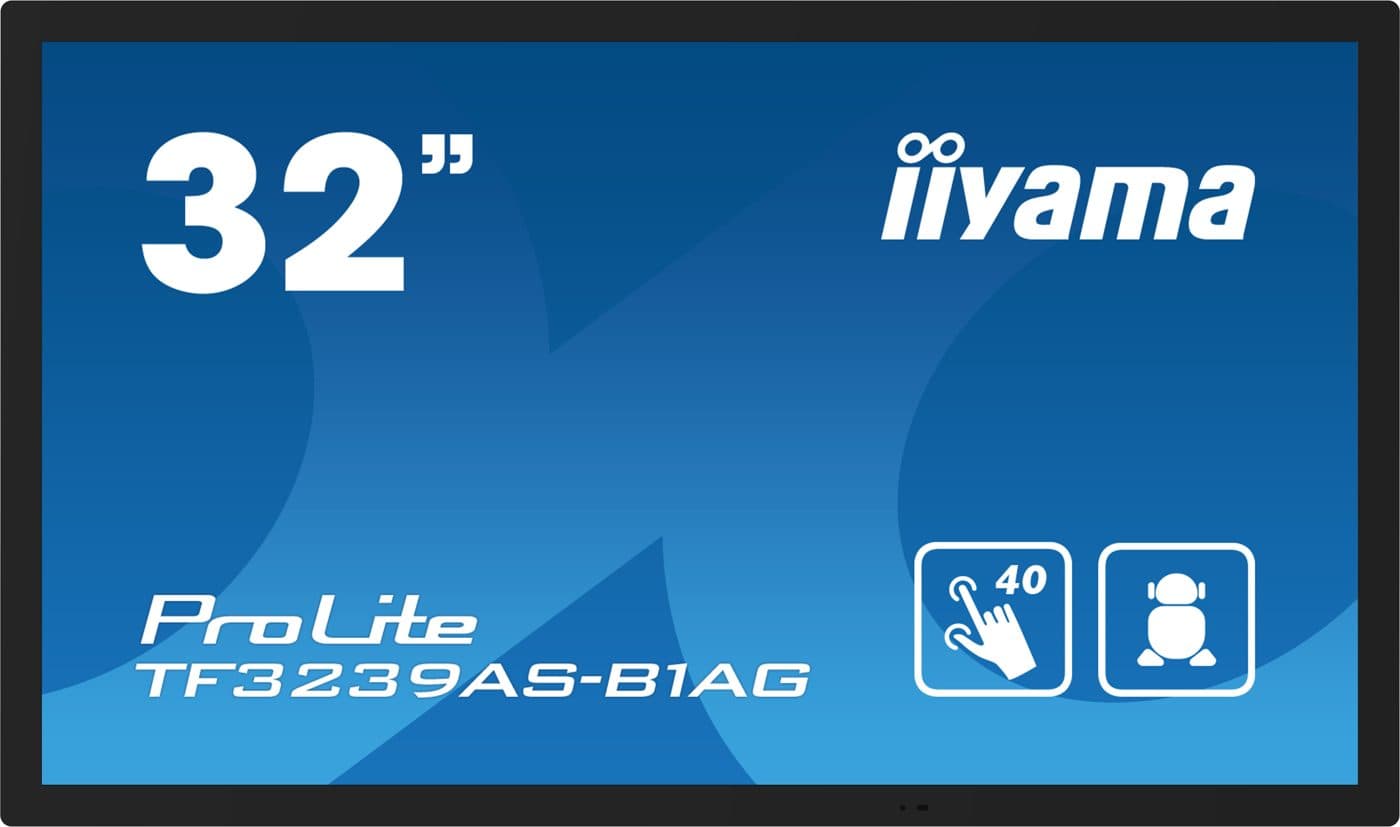

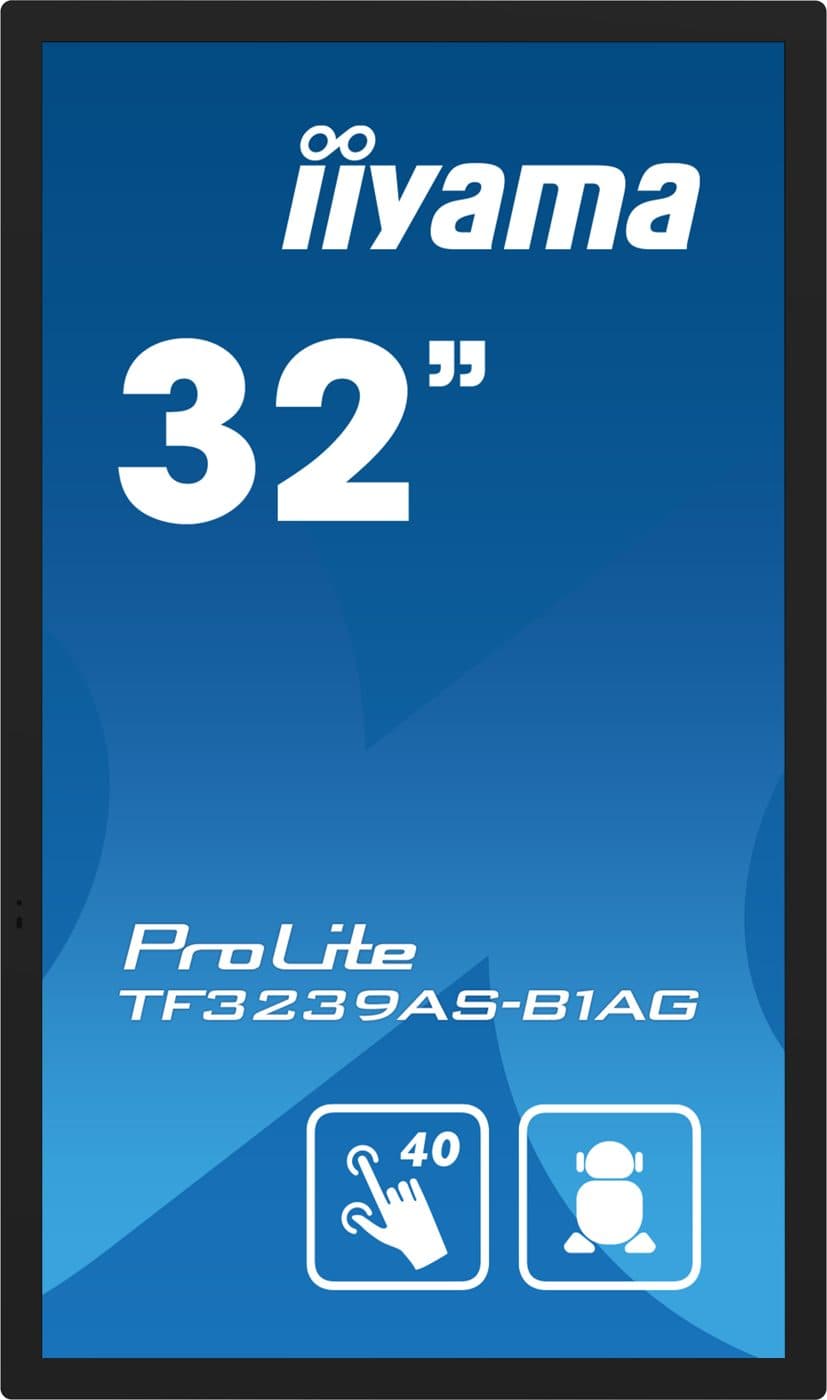

iiyama TF3239AS-B1AG 31.5" Open Frame Touch Monitor

SKU TF3239AS-B1AG
£999.00inc. VAT
£832.50 ex. VAT
Ask a question
Low stock (5 left) — order soon
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignEdge to edge glass, Open Frame
Diagonal31.5", 80cm
PanelIPS LED, AG coated glass, matte finish
Native resolution1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness500 cd/m²
Brightness435 cd/m² with touch
Light transmittance87%

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TF3239AS-B1AG 31.5" Open Frame Touch Monitor × 1£999.00
Total£999.00
inc. VAT
1
Request a QuoteTalk to an Expert

Description

ProLite TF3239AS-B1AG 32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enable

Technical specifications

DesignEdge to edge glass, Open Frame
Diagonal31.5", 80cm
PanelIPS LED, AG coated glass, matte finish
Native resolution1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness500 cd/m²
Brightness435 cd/m² with touch
Light transmittance87%
Static contrast1200:1
Response time (GTG)8ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln 8bit (72% NTSC)
Horizontal Sync28 - 160kHz
Viewable area W x H698.4 x 392.8mm, 27.5 x 15.5"
Bezel width (sides, top, bottom)22mm, 22mm, 22mm
Pixel pitch0.363mm
Bezel colour and finishblack, matte
Touch technologybonded PCAP
Touch points40
Touch accuracy+- 2.5mm
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass6mm
Palm rejectionyes
Digital signal inputHDMI x2 (2.0, max. 3840x2160 @60Hz)DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
Monitor control inputRS-232c x1 (Get/Set Command)RJ45 (LAN) x1 (Control and Internet)
Audio outputMini jack x1Speakers 2 x 10W
HDCP2.2
USB portsx2 (2.0 x2 (Type A))
Integrated softwareAndroid 11 OS, iiSignage², EShare, FailOver
HardwareCPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extrahandles, Touch Through-Glass
Kiosk modeyes
Max. non-stop operating time24/7
Anti image retentionyes
Glass thickness3mm
Glass hardness7H
60950 Ball drop testyes
Water and dust protectionIP65 (front)
Housing (bezel)metal
OSD key lockyes
Remote control lockyes
OSD languagesEN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttonsPower
User controlspicture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
VESA mounting200 x 200mm
Mini PC mountVESA 100 x 100, NUC INTEL
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - 60°C
MTBF50000 hours (excluding backlight)
Cablespower (1.8m), USB (1.8m), HDMI (1.8m)
Guidesquick start guide, safety guide
Cable coveryes
Remote controlyes (batteries included)
Power supply unitinternal
Power supplyAC 100 - 240V, 50/60Hz
Power usage50W typical, 0.5W stand by, 0.3W off mode
RegulationsCB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Energy efficiency class (Regulation (EU) 2017/1369)F
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D746.2 x 440.7 x 62.4mm
Box dimensions W x H x D840 x 560 x 149mm
Weight (without box)13.2kg
Weight (with box)16.6kg
EAN code4948570123865
Mounts / Stands / BracketsOMK4-4, MD-WLIFT2031-W1, MD-CAR2031-B1
Product seriesProLite TF6539AS-B1AG, ProLite TF5039AS-B1AG, ProLite TF4339AS-B1AG, ProLite TF5539AS-B1AG
Related productsMD 052B2000, MD-WM4040
User manualTF32_43_50_55_6539AS-usermanual-e-RevB.pdf
Technical specificationProLite TF3239AS-B1AG - gb_en.pdf
DrawingTF3239AS-B1AG_Drawing.pdf
EU Energy LabelTF3239AS-B1AG EU Energy Label (2040941).pdf
UK Energy LabelTF3239AS-B1AG UK Energy Label (2040941).pdf
3D-Files (.stp)TF3239AS.zip
TF39AS SERIES RS232 - LAN ProtocolRS232-LAN_commands_2025_03_TFxx39AS.pdf
Mac OS Drivers for OS 10.14 - 14.xMac OS Driver for OS version 10.14 to 14.x_UPDD_07_01_108.zip
EShare Network RequirementsEShare Network Requirements v7.4-e.pdf
iiSignage²ii_iisignage2_whitepaper_A4_EN (09.23).pdf
