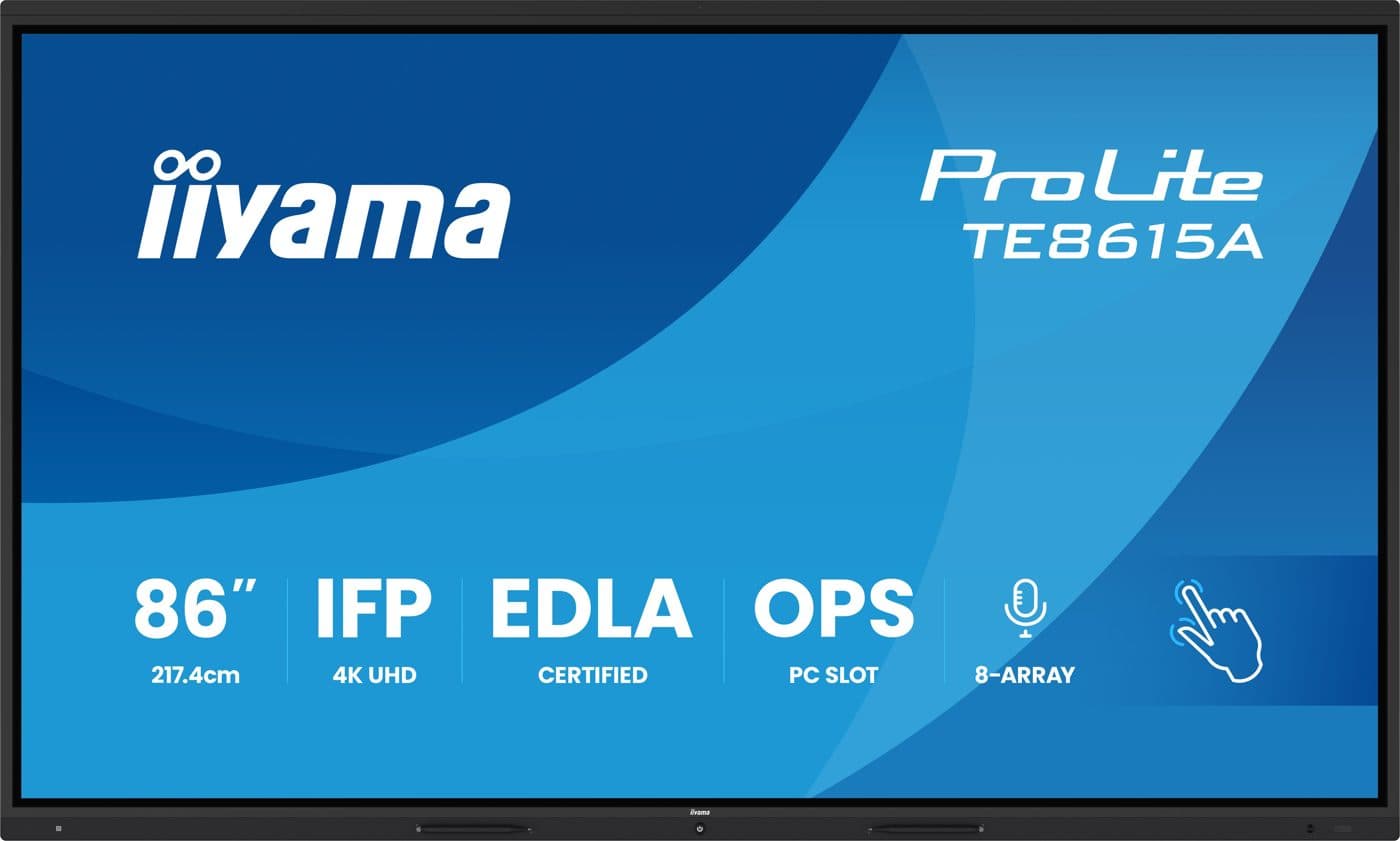

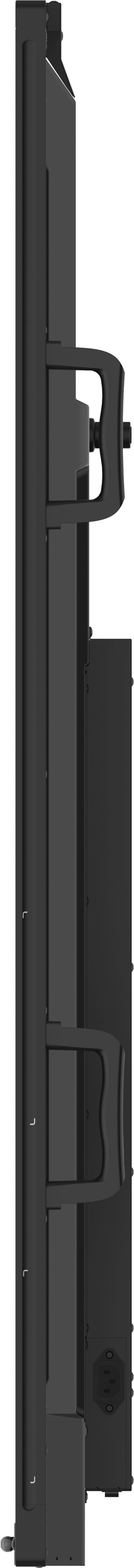

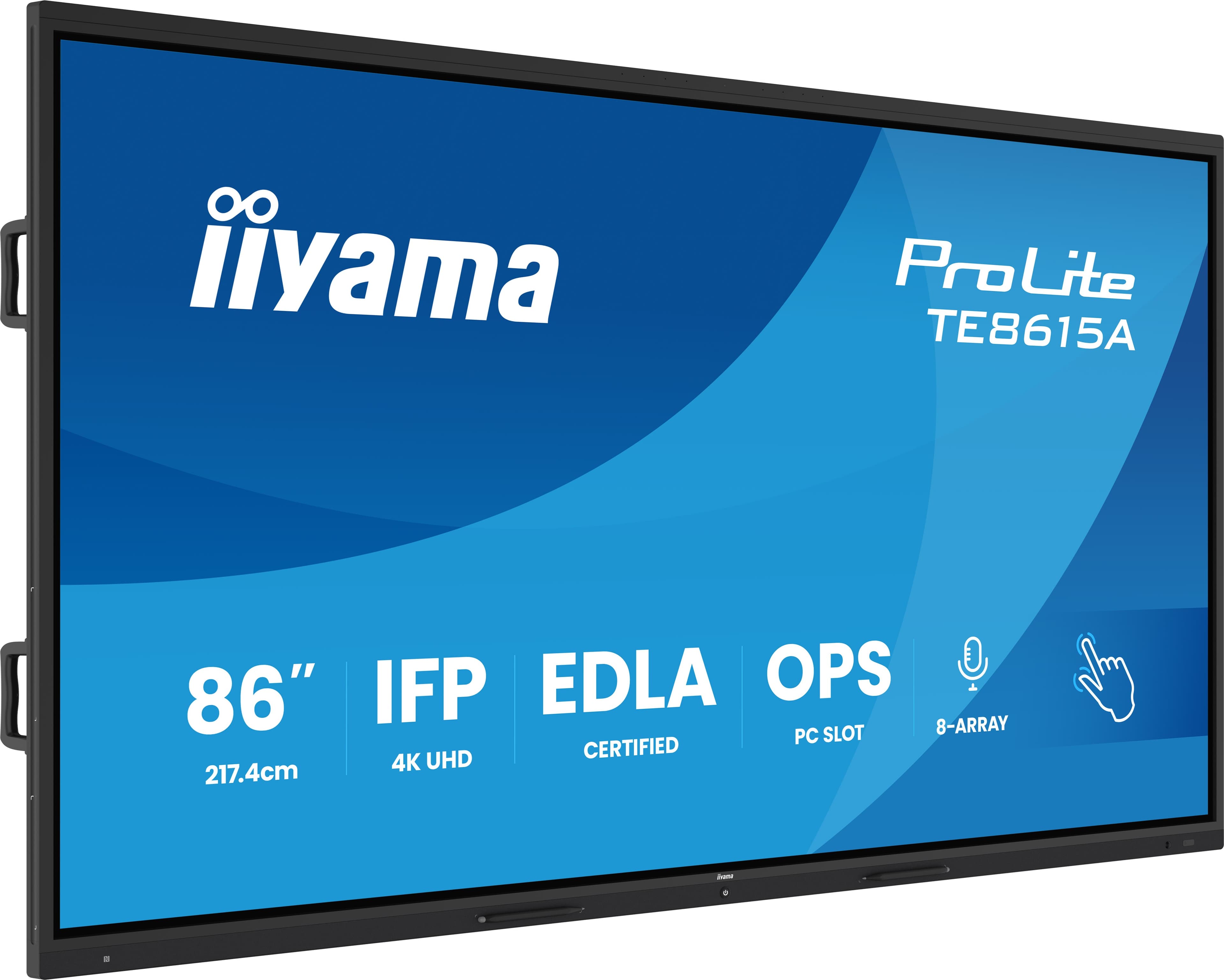

iiyama TE8615A-B2AG 86-inch 4K interactive display
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
An 86-inch 4K UHD interactive display running iiWare 21E on Android 14 with Google EDLA certification, 40-point DeepContrast-IR++ touch scanned at 200Hz, an optically bonded anti-glare writing surface and WiFi 6E.
TopAV buying advice
Is the iiyama TE8615A-B2AG right for your classroom?
For the large room where the back row still has to read the board.
Shortlist the TE8615A for a big classroom, a lecture space or a wide boardroom where people write on the glass and the furthest viewer is a long way back. It runs sessions on its own Android system, and the DeepContrast-IR++ layer is scanned at 200Hz with a 5ms touch response, so ink keeps up with a fast hand. It is a 68kg panel almost two metres wide, so treat the wall, the lift and the access route as part of the decision rather than an afterthought.
Reasons to shortlist it
- DeepContrast-IR++ tracks 40 touch points with 32-point writing on a supported operating system, scanned at 200Hz with a 5ms touch response and +- 1mm accuracy, so handwriting keeps pace across a panel this wide instead of lagging behind the pen.
- The writing surface is optically bonded anti-glare glass with an anti-gloss treatment, an anti-bacterial coating and 7H hardness, which removes the parallax gap between pen tip and ink and stands up to daily contact from a whole class.
- iiWare 21E runs on Android 14 and is Google EDLA certified, so managed Google accounts, Google apps and iiyama's own iiControl device management, whiteboard, browser, file manager and iiShare all run on the display itself with no PC in the room.
- Two 20W front-facing speakers with a 20W subwoofer on the back and an 8-array microphone rated for 8m voice pick-up carry a large room, and kiosk mode plus two gigabit RJ45 ports let an estate of displays be locked down and driven from a desk.
- WiFi 6E and Bluetooth 5.0 are built in alongside an OPS slot, a micro SD card slot and ambient light, NFC, PIR motion and pen pick-up sensors, so wireless sharing, wake-on-approach and an optional Windows module are all catered for without external boxes.
Check before you choose
- This is a 68kg panel, 82.7kg in its box and 1955.6mm wide. Check the doorways and the lift on the delivery route, plan a multi-person install and make sure the wall or stand is rated for the load before you order.
- This is a lot of screen for an ordinary meeting room. If the furthest viewer is close and the wall is narrow, the TE7515A covers the same features in a smaller panel, and it carries 16GB of RAM against this model's 8GB.
- Four touch pens, the remote and the cables are in the box; an OPS PC module and a camera are not. iiyama rates the components for continuous operation but recommends no more than 18 hours of use a day, so agree the power schedule and the Google account policy with your IT team before rollout.
See the 86" on your wall, to scale
On a phone, point your camera at the wall and see the 86" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 86" is the right size for the room? The screen size calculator shows how far a 86" display carries for presentations, touch work and video.
What to plan before installing the TE8615A-B2AG
01
Size & sightlines
Measure the longest viewing distance and the smallest text people need to read, then check the wall is wide enough for a panel just under two metres across and that presenters can still reach the lower part of the glass.
02
Mount & connections
Check the wall construction and plan for a 68kg panel on the mounting pattern listed in the specification table. Decide which sources use the two HDMI inputs, the DisplayPort input and the USB-C input, and run a wired network drop to one of the two RJ45 ports if the display will be managed centrally. iiyama lists a 800 x 600 mm VESA pattern.
03
Delivery & installation
Confirm the access route, the lift and the number of people on site before the delivery date, then decide whether sessions run on the built-in Android system or on an optional OPS PC module in the rear slot. Tell us if you need mounting, cabling, a trolley or a camera quoted with it.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the TE8615A-B2AG needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
iiyama TE8615A-B2AG vs TE7515A-B1AG: 86-inch or 75-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | TE8615A-B2AG | TE7515A-B1AG |
|---|---|---|
| Screen Size | 86 in | 75 in |
| Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Touch Points | 40, 32pt writing (HID, only with supported OS, 40-Punkt-Touch mit Android) | 40, 32pt writing (HID, only with supported OS, 40-Punkt-Touch mit Android) |
| Brightness | 550 cd/m² | 550 cd/m² |
| Speakers | 2 x 20W front facing plus 20W subwoofer | 2 x 20W front facing plus 20W subwoofer |
| Power Consumption | 300W typical, 0.5W standby, 0.3W off | 216W typical, 0.5W standby, 0.3W off |
Specifications checked on 13 September 2026: iiyama ProLite TE8615A-B2AG (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 86-inch display to scaleiiyama TE8615A-B2AG specifications and documents
iiyama specifications (opens in a new tab)Choose a section to view its specifications.
Display (16)
- Panel
- IPS
- Touch Glass
- Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Optical Bonding
- Touch response time
- 5ms
- Touch accuracy
- +- 1mm
- Touch method
- stylus, finger, glove (Passive pen, Opaque objects)
- Touch interface
- USB
- Touch pen
- x4 (Dual function tips)
- RS232 and RJ45 Protocol _IFP - Interactive Displays
- TExx15A_RS232_RJ45_website.zip
- Resolution
- 3840 x 2160 (4K UHD)
- Brightness
- 550 cd/m²
- Contrast Ratio
- 1200:1
- Touch Points
- 40, 32pt writing (HID, only with supported OS)
- Touch Technology
- DeepContrast-IR++ (200Hz scan, 5ms response)
- Aspect Ratio
- 16:9
- Backlight Life
- 50,000 hours MTBF (excluding backlight)
- Screen Size
- 86 in
Connectivity (15)
- Colour support
- 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Digital signal input
- HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1)DisplayPort x1 (1.2, max. 3840x2160 @60Hz)USB-C x1 (2.0, 480Mbps), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode, PD 100W, Data, Touch)
- Audio input
- Mini jack x1 (Microphone)
- Monitor control input
- RS-232c x1 (DSUB 9pin)RJ45 (LAN) x2
- Digital signal output
- HDMI x1 (USB-C X1 (3.2, Gen 1, 5 Gbps), 3840 x 2160 @60Hz (YUV444 / RGB 444), DP 1.2 Alt Mode)USB-C x1 (2.0, 480Mbps), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode)
- Audio output
- S/PDIF (Optical) x1Mini jack x1 (Headphone)Speakers 2 x 20W (Front facing + 20W Subwoofer on backside)
- Monitor control output
- OPS Slot x1 (Intel OPS 80pin)
- USB ports
- x4 (media playback / peripherals / storage – side: 2x 3.2 (Gen 1, 5Gbit), 1x 2.0 (Android only), 1x USB-C IN 2.0 (480Mbps, 100W PD))
- RJ45 (LAN)
- x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
- WiFi
- yes (Built-in WiFi-6E, Bluetooth 5.0)
- OSD languages
- EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB
- MAC AIR UPDATE TO MACOS V11.6
- MAC AIR update to MACOS V11.6_UPDD_06_00_717.zip
- USB-C Power Delivery
- 100W (side USB-C IN)
- HDMI Inputs
- 2 (HDMI 2.0, ARC on HDMI 1)
Audio (2)
- Speakers
- 2 x 20W front facing plus 20W subwoofer
- Microphone
- 8-array (8m voice pick-up)
Power & Physical (8)
- Size Band
- 80 - 99"
- Bezel width (sides, top, bottom)
- 16.5mm, 16.5mm, 41mm
- Product dimensions W x H x D
- 1955.6 x 1174.3 x 87.1mm
- Box dimensions W x H x D
- 2095 x 1265 x 185mm
- Power Consumption
- 300W typical, 0.5W standby, 0.3W off
- VESA Mount
- 800 x 600 mm
- Weight
- 68 kg
- Shipping Weight
- 82.7 kg
Certifications & Warranty (1)
- Warranty
- 5 years
General (59)
- EAN # :
- 4948570127504
- Design
- Thin bezel
- Light transmittance
- 88%
- Response time (GTG)
- 8ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Horizontal Sync
- 30 - 135kHz
- Viewable area W x H
- 1895 x 1066mm, 74.6 x 42"
- Pixel pitch
- 0.493mm
- Bezel colour and finish
- black, matte (sandblasted oxidation)
- Scan rate
- 200Hz
- Palm rejection
- yes
- Integrated software
- iiWare 21E (Android 14 OS, Android 16 Q4 2026) featuring Google EDLA, iiControl (DMS), Whiteboard, iiBrowser, file manager, cloud drives and iiShare, plus EShare for wireless connection with Windows/iOS/Android devices
- Hardware
- CPU: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 RAM: 8GB, ROM: 128GB
- Extra
- Sensors: Ambient light, NFC Reader, PIR Motion, Pen Pick-up; Slot for optional OPS PC, Micro SD card slot, 4x Touch pen
- Kiosk mode
- yes
- PiP
- yes
- Max. non-stop operating time
- 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity.)
- Media playback
- yes
- Glass thickness
- 3.2mm
- Glass hardness
- 7H
- Housing (bezel)
- metal
- OSD key lock
- yes
- Control buttons
- Power (press and hold 3-5 seconds), Home (shortcut on screen): Short press Power button
- User controls
- personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
- Blue light reducer
- yes
- Flicker free
- yes
- Plug&Play
- DDC2B
- Fanless design
- yes
- Operation temperature range
- 0°C - 40°C
- Storage temperature range
- - 20°C - %2°C
- Cables
- power (EU 3m, UK 3m), USB (3m), HDMI (3m)
- Guides
- quick start guide, safety guide
- Other
- MD-CAR2031-B1, MD-WLIFT2031-W1, UC-CAM10PRO-1, UC CAM120ULB-1, OPC51204BC-1, WP-D003C
- Remote control
- yes (batteries included)
- Power supply unit
- internal
- Power supply
- AC 100 - 240V, 50/60Hz
- Regulations
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS)
- Energy efficiency class (Regulation (EU) 2017/1369)
- G
- EPEAT
- EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Bronze certification means the monitor meets all required criteria. EPEAT Bronze is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
- REACH SVHC
- above 0.1%: Lead
- Pallet volume
- 6pcs
- EAN code
- 4948570127504
- User manual
- TE65_75_8615A-B2AG-usermanual-e.pdf
- Technical specification
- ProLite TE8615A-B2AG - gb_en.pdf
- Drawing
- TE8615A--B1AG_Drawing.pdf
- EShare Users Guide
- ESHARE User Guide_V7.3_(20220906b)-e.pdf
- EU Energy Label
- TE8615A-B2AG EU Energy Label (2593868).pdf
- UK Energy Label
- TE8615A-B2AG UK Energy Label (2593868).pdf
- 3D-File (.stp)
- TE8615A-B1AG.zip
- MAC OS DRIVER FOR OS VERSION 10 & 11
- Mac OS Driver for OS version 10 & 11_UPDD_06_00_729.zip
- Operating System
- iiWare 21E (Android 14, Google EDLA certified)
- Orientation
- Landscape
- RAM
- 8GB
- Storage
- 128GB
- OPS Slot
- Yes (Intel OPS 80-pin)
- Glass
- Anti-Glare with Anti-Gloss treatment, Anti-Bacterial coating, Optical Bonding, 7H hardness
- Sensors
- Ambient light, NFC reader, PIR motion, pen pick-up
- Manufacturer part number
- TE8615A-B2AG
- GTIN
- 4948570127504
Specifications are iiyama's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
iiyama TE8615A-B2AG questions answered
Who is the iiyama ProLite TE8615A-B2AG best suited to?
Consider it for a large classroom, a lecture room, a training space or a wide boardroom where people write on the board and the furthest viewer is well back. The panel measures 86 inches on the diagonal and is close to two metres wide, so it needs the wall space and the sightline to earn its size.
Does the TE8615A need a computer to work?
No. iiWare 21E runs on the display's own Android 14 system with a whiteboard, the iiBrowser web browser, a file manager, cloud drive access and iiShare wireless sharing built in. A laptop connects over HDMI, DisplayPort or USB-C when you want to work from your own files, and an Intel OPS 80-pin module can be fitted in the rear slot if you want a full Windows PC behind the screen.
What is the difference between DeepContrast-IR++ and the IR+ on the TE7515A?
Both list 40 touch points and 32-point writing on a supported operating system with palm rejection and +- 1mm accuracy. On this model iiyama additionally publishes a 200Hz scan rate and a 5ms touch response time, which are the figures that describe how quickly the panel follows a moving pen. That matters most on a large surface where a stroke covers a lot of ground.
What does Google EDLA certification mean in practice?
It means the display is licensed to run Google's mobile services, so managed Google accounts, the Google app catalogue and Google sign-in work natively on the panel rather than through a workaround. For an organisation already using Google Workspace, that is what lets the board be enrolled and managed like any other device. Account policy and licences are agreed with your IT team separately from the hardware.
Which version of Android does it run?
It ships with iiWare 21E on Android 14. iiyama has published a later Android update for this series as a future roadmap item rather than a shipped version, so plan around Android 14 and ask us to confirm the build installed on your delivery if a particular app or policy depends on it.
How heavy is it and what does installation involve?
The display weighs 68kg and 82.7kg boxed, and measures 1955.6 x 1174.3 x 87.1mm. That is a multi-person lift on to a wall or stand rated for the load, and the boxed size needs checking against your doorways, corridors and lift. Send us the wall type and the mounting height and we will quote the bracket and the installation alongside the display.
How much memory and storage does it have?
8GB of RAM and 128GB of internal storage, driven by an RK3576 octa-core processor with Mali G52 graphics, plus a micro SD card slot. The TE7515A uses the same processor with 16GB of RAM, so if you expect many apps and browser tabs open at once the smaller panel is actually the better specified of the two on memory.
Can I connect a laptop with one cable?
Yes. The USB-C input carries DisplayPort 1.2 alternate mode video at 3840 x 2160, touch data back to the laptop and 100W of power delivery on a single lead. Your laptop and cable both have to support DisplayPort over USB-C, and a machine that draws more than 100W will still want its own charger.
How much power does it use?
iiyama lists 300W typical, 0.5W in standby and 0.3W in off mode, on an internal power supply running from 100V to 240V AC. The TE7515A is listed at 216W typical, which is worth factoring in if you are fitting several displays on one circuit.
Should I choose the TE8615A or the smaller TE7515A?
Choose by viewing distance and the smallest text in your material. Both are 4K UHD at 550 cd/m2 with the same iiWare 21E system, the same 40 touch points and the same speakers, so the larger panel adds size rather than detail. This model publishes a 200Hz touch scan rate and adds WiFi 6E and kiosk mode; the TE7515A is lighter at 54.6kg and carries twice the RAM.
Trusted by thousands of customers
Explore recent installations
See recent installations supplied by StriveAV, TopAV’s parent company. Customer names are masked for privacy.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Samsung LH86WEFWLGCXEN 86" Interactive Display WEFX
Promethean 86" ActivPanel LE

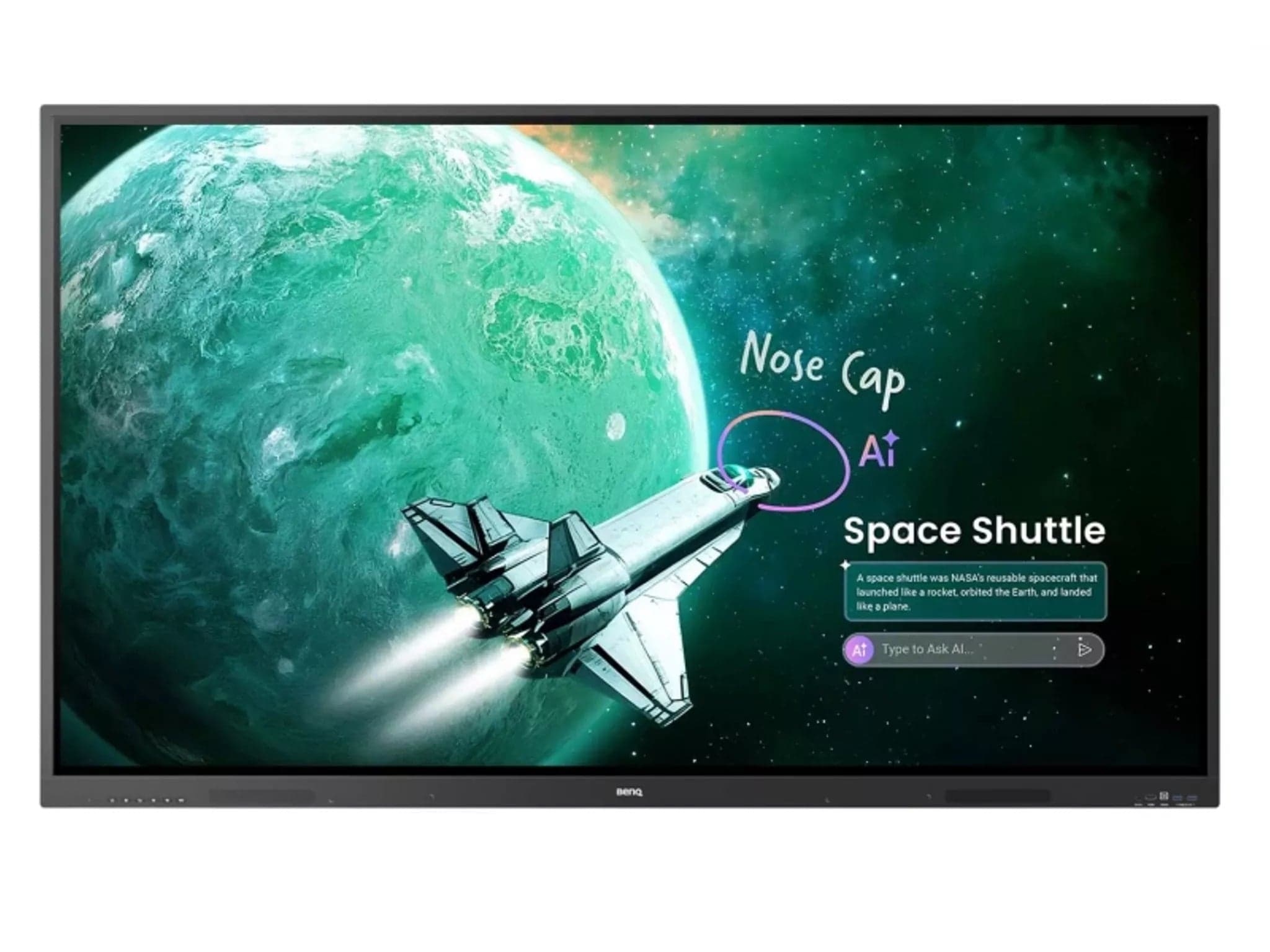

BenQ RE8604A 86" Interactive Display
