Home / Fixed Wall Mounts / Chief PSMH2079 Heavy Duty Flat Panel Wall Mount

Chief

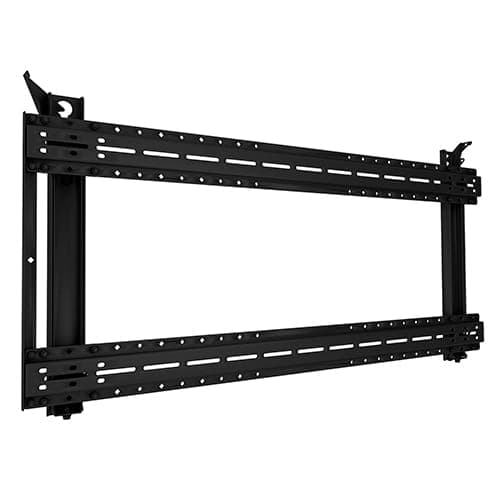

Chief PSMH2079 Heavy Duty Flat Panel Wall Mount

Name: Chief PSMH2079 Heavy Duty Flat Panel Wall Mount
Brand: Chief
SKU: PSMH2079
Price: 613.20 GBP
Availability: OutOfStock

£613.20inc. VAT

£511.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Weight capacity158.8 kg

Plumb adjustment+1.6 degrees

AdjustabilityFixed

Overall dimensions660 x 1380 x 67 mm

Depth6.7 cm

Height66 cm

Width138.1 cm

Wall stud compatibility406 and 610 mm

All 16 specifications

Description

The PSMH2079 is built for the displays that ordinary wall mounts will not take: very large panels and heavy interactive screens. It is rated to 158.8 kg on a rail assembly 1,380 mm wide and 660 mm high that stands 67 mm off the wall.

Also in this range:PSMH2840 Full specifications Datasheet Compare alternatives

A plumb adjustment of plus 1.6 degrees lets the installer bring the display vertical on a wall that is not, which matters on a screen this size. The Q-Latch mounting system secures the panel to the wall plate and releases it again for service without tools, and the wall plate fixes to either 406 mm or 610 mm stud centres.

The display interface is a custom bracket design matched to the panel rather than a universal pattern, and the mount is fixed and landscape only - there is no tilt. It is TAA compliant and UL Listed. Typical screen size varies with the display the bracket is specified for. Supplied by TopAV. Manufacturer part number PSMH2079.

Key features

Weight capacity

Rated to 158.8 kg (350 lb).

Plumb adjustment

Plus 1.6 degrees, to bring a large display vertical on an out-of-plumb wall.

Q-Latch mounting

Secures the panel to the wall plate and releases it for service without tools.

Stud compatibility

Fixes to 406 mm or 610 mm stud centres.

Custom bracket design

Display interface is specified to the panel rather than a universal VESA pattern.

TAA compliant and UL Listed

Fixed landscape mount, 1,380 mm wide and 67 mm deep.

Technical specifications

Display

Number of displays1

Typical screen sizeVaries by display bracket specified

Power & Physical

Weight capacity158.8 kg

Overall dimensions660 x 1380 x 67 mm

Depth6.7 cm

Height66 cm

Width138.1 cm

ColourBlack

Shipping weight19.6 kg

Certifications & Warranty

CertificationsTAA, UL Listed

General

Plumb adjustment+1.6 degrees

AdjustabilityFixed

Wall stud compatibility406 and 610 mm

OrientationLandscape

ApplicationWall

TAA compliantYes

Documents

Chief PSMH2079 installation manual (PDF, Legrand AV). Attached in place of the cutsheet, which Legrand generates in the browser rather than hosting.
