iiyama · iiyama ProLite ultra-wide interactive series

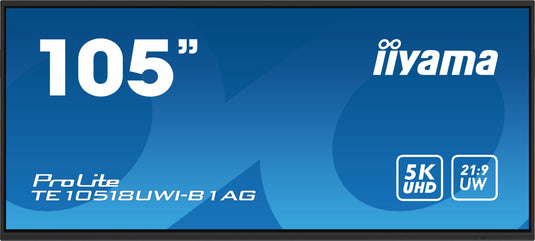

iiyama TE10518UWI-B1AG 105-inch interactive display
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
A 105-inch 21:9 ultra-wide interactive display at 5120 x 2160 with 40-point PureTouch-IR+ touch, a 4000:1 VA panel, four HDMI inputs and iiWare 11 on Android 13, built for showing two full sources side by side in a large room.
TopAV buying advice
Is the iiyama TE10518UWI-B1AG right for your meeting room?
For the large boardroom where two things need to be on screen at full size.
Shortlist the TE10518UWI when a big room needs width rather than height: a call on one side and a plan, model or dashboard on the other, both full size instead of two shrunken windows. The 21:9 canvas is 5120 pixels across, and at over two and a half metres wide this is the largest panel in the family. It is also the heaviest by a long way, so settle the wall, the access route and the install team before you settle the specification.
Reasons to shortlist it
- The 21:9 canvas is 5120 x 2160, so two full sources sit side by side at usable size rather than being shrunk into a split view. Across a panel this wide, each half is still bigger than many rooms' entire main display.
- PureTouch-IR+ tracks 40 touch points with 32-point writing on a supported operating system, with palm rejection and support for a stylus, a finger or a gloved hand, so a group can annotate along the full width at once.
- The VA panel quotes 4000:1 static contrast at 450 cd/m2 behind AG coated anti-gloss glass with 7H hardness, which keeps dark slides, video and drawing work legible in a room with the lights on.
- Four HDMI inputs, one of them HDMI 2.1 carrying the full 5120 x 2160 at 60Hz and three at HDMI 2.0, plus DisplayPort 1.4 and a front USB-C port with 15W power delivery, so every source that shares the canvas can stay connected.
- Two 16W front speakers with a 16W subwoofer and a front-facing 8-array microphone rated for 8m pick-up cover a large room for conferencing, and eight USB ports with two gigabit RJ45 ports handle cameras, peripherals and wired management.
Check before you choose
- This is the heaviest and widest display in the range: 91.4kg on its own, 119.5kg in its box, and 2507.2mm wide by 1130.1mm tall. Confirm doorway and corridor widths, lift dimensions and the load rating of the wall before ordering, and budget for a multi-person install rather than a two-person lift.
- iiyama rates this panel for 16/7 operation, not round-the-clock running. It is built for a working day in a meeting room, so do not specify it as an always-on signage screen that never powers down.
- This is a 21:9 panel, and at 450 cd/m2 it is the dimmer of the two ultra-wides; the smaller TE9218UWI is listed at 500 cd/m2. Conventional widescreen material is also letterboxed with black bars either side unless the application fills the extra width, so confirm your conferencing platform and presentation templates use the shape before committing to it.
What to plan before installing the TE10518UWI-B1AG
01
Wall & access route
Measure the wall width first: at 2507.2mm across this panel needs more than two and a half metres of clear wall. Then measure the delivery route, because a 119.5kg box of that width has to reach the room before it can be mounted.
02
Sources & connections
Decide which source drives the full 5120 x 2160 canvas. One HDMI input is 2.1 and carries that resolution at 60Hz, and DisplayPort 1.4 also reaches it; the three HDMI 2.0 inputs top out at 3840 x 2160. Plan a wired network drop to one of the two RJ45 ports if the display will be managed centrally. iiyama lists a 1000 x 400 mm VESA pattern.
03
Software & installation
Decide whether sessions run on the built-in iiWare 11 Android system with its note, browser, file manager and cloud drive apps, on a connected laptop, or on an optional OPS slot PC. Confirm the conferencing platform and account policy with your IT team, and tell us if you need mounting, cabling, a heavy-duty bracket or a camera quoted with it.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the TE10518UWI-B1AG needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
iiyama TE10518UWI-B1AG vs TE9218UWI-B1AG: 105-inch or 92-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | TE10518UWI-B1AG | TE9218UWI-B1AG |
|---|---|---|
| Screen Size | 105 in | 92 in |
| Resolution | 5120 x 2160 (5K UHD) | 5120 x 2160 (5K UHD) |
| Touch Points | 40, 32pt writing (HID, only with supported OS) | 50, 32pt writing (HID, only with supported OS) |
| Brightness | 450 cd/m² | 500 cd/m² |
| Speakers | 2 x 16W front facing plus 16W subwoofer | 2 x 20W front facing plus 20W subwoofer |
| Power Consumption | 282W typical, 0.5W standby, 0.3W off | 227W typical, 0.5W standby, 0.3W off |
Specifications checked on 13 September 2026: iiyama ProLite TE10518UWI-B1AG (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 105-inch display to scaleiiyama TE10518UWI-B1AG specifications and documents
iiyama specifications (opens in a new tab)Choose a section to view its specifications.
Display (9)
- Panel Type
- VA
- Resolution
- 5120 x 2160 (5K UHD)
- Brightness
- 450 cd/m²
- Contrast Ratio
- 4000:1
- Touch Points
- 40, 32pt writing (HID, only with supported OS)
- Touch Technology
- PureTouch-IR+
- Aspect Ratio
- 21:9
- Backlight Life
- 50,000 hours MTBF (excluding backlight)
- Screen Size
- 105 in
Connectivity (2)
- USB-C Power Delivery
- 15 W (front port)
- HDMI Inputs
- 4 (1x 2.1 to 5120 x 2160 @60Hz, 3x 2.0 to 3840 x 2160 @60Hz)
Audio (2)
- Speakers
- 2 x 16W front facing plus 16W subwoofer
- Microphone
- 8-array (8m voice pick-up, front facing)
Power & Physical (5)
- Size Band
- 100"+
- Power Consumption
- 282W typical, 0.5W standby, 0.3W off
- VESA Mount
- 1000 x 400 mm
- Weight
- 91.4 kg
- Shipping Weight
- 119.5 kg
Certifications & Warranty (1)
- Warranty
- 5 years
General (9)
- Operating System
- iiWare 11 (Android 13)
- Orientation
- Landscape
- RAM
- 8GB
- Storage
- 64GB
- OPS Slot
- Yes (slot for optional OPS PC)
- Glass
- AG coated with Anti-Gloss finish, 7H hardness
- Max. non-stop operating time
- 16/7
- Manufacturer part number
- TE10518UWI-B1AG
- GTIN
- 4948570122011
Specifications are iiyama's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
iiyama TE10518UWI-B1AG questions answered
Who is the iiyama ProLite TE10518UWI-B1AG best suited to?
Consider it for a large boardroom, an executive briefing space or a big collaboration room where a video call and a working document both need to be visible at full size, and where there is genuinely two and a half metres of clear wall to put it on. If the room is smaller, the TE9218UWI gives the same shape and resolution in a panel that is easier to install.
Is this a 4K display?
No, and it is worth being precise about it. The panel is 21:9 at 5120 x 2160, which iiyama describes as 5K UHD and lists at 14.75 megapixels. It is 5120 pixels wide rather than 3840, and 2160 pixels tall, so it adds horizontal room rather than vertical detail compared with a conventional widescreen panel.
How heavy is it and what does installation involve?
The display weighs 91.4kg on its own and 119.5kg in its box, and measures 2507.2 x 1130.1 x 103mm. That is well beyond a two-person lift, so plan a multi-person install with the right lifting equipment, confirm the wall or structure is rated for the load, and check the box will physically pass through your doorways, corridors and lift. Send us the site details and we will quote the bracket and the installation with the display.
What happens to normal widescreen content on a 21:9 screen?
A single 16:9 source fills the height and leaves black bars at each side unless the application stretches it, which you would not normally want. The shape earns its keep when two things are on screen at once, or when a conferencing layout or an application is built to use the extra width. Check your main platforms before you commit to the format.
Does it need a PC to work?
No. iiWare 11 runs on the display's own Android 13 system with note-taking, a web browser, a file manager and cloud drive access built in, driven by an A311D2 octa-core processor with Mali G610 graphics, 8GB of RAM and 64GB of storage. A laptop connects over HDMI, DisplayPort or the front USB-C port, and there is a slot for an optional OPS PC if you want Windows behind the screen.
How many inputs does it have and which one gives the full resolution?
Four HDMI inputs and one DisplayPort. The HDMI 2.1 input carries 5120 x 2160 at 60Hz and DisplayPort 1.4 reaches the same, while the three HDMI 2.0 inputs are listed to 3840 x 2160 at 60Hz. There are also eight USB ports, two of them USB 3.2 Gen 1 on the front along with a front USB-C port carrying 15W of power delivery.
Can it be left on all day as a signage screen?
It is not specified for that. iiyama rates the maximum non-stop operating time at 16 hours a day, seven days a week, which covers a long working day in a meeting room but not continuous unattended running. If you need a screen that never powers down, specify a display rated for that pattern of use instead.
How much power does it use?
iiyama lists 282W typical, 0.5W in standby and 0.3W in off mode. The smaller TE9218UWI is listed at 227W typical, so if you are fitting more than one of these on a circuit it is worth checking the load with your electrician as part of the install.
How many people can write on it at once?
iiyama lists 40 touch points with 32-point writing on a supported operating system, using PureTouch-IR+ with palm rejection. Input works with a stylus, a finger or a gloved hand, and four touch pens are supplied. The smaller TE9218UWI lists 50 touch points, so it is actually the higher of the two on that figure despite the smaller panel.
Should I choose this or the smaller TE9218UWI?
Both are 21:9 at 5120 x 2160 with the same processor, memory, storage, inputs and 16 hour duty cycle, so this one adds width rather than detail. The smaller model is brighter at 500 cd/m2 against 450, lists 50 touch points against 40, and carries larger 20W speakers and subwoofer against 16W here. Choose this one when the room is big enough that the smaller panel would be lost on the wall, and when the delivery route and the wall can take 91.4kg.
