iiyama · iiyama ProLite T29 All-in-One PCAP series
iiyama T5529AS-B1AG 55-inch 4K interactive display
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £463.86 with PayPal Pay in 3.
Independently reviewed on TrustpilotSeen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices

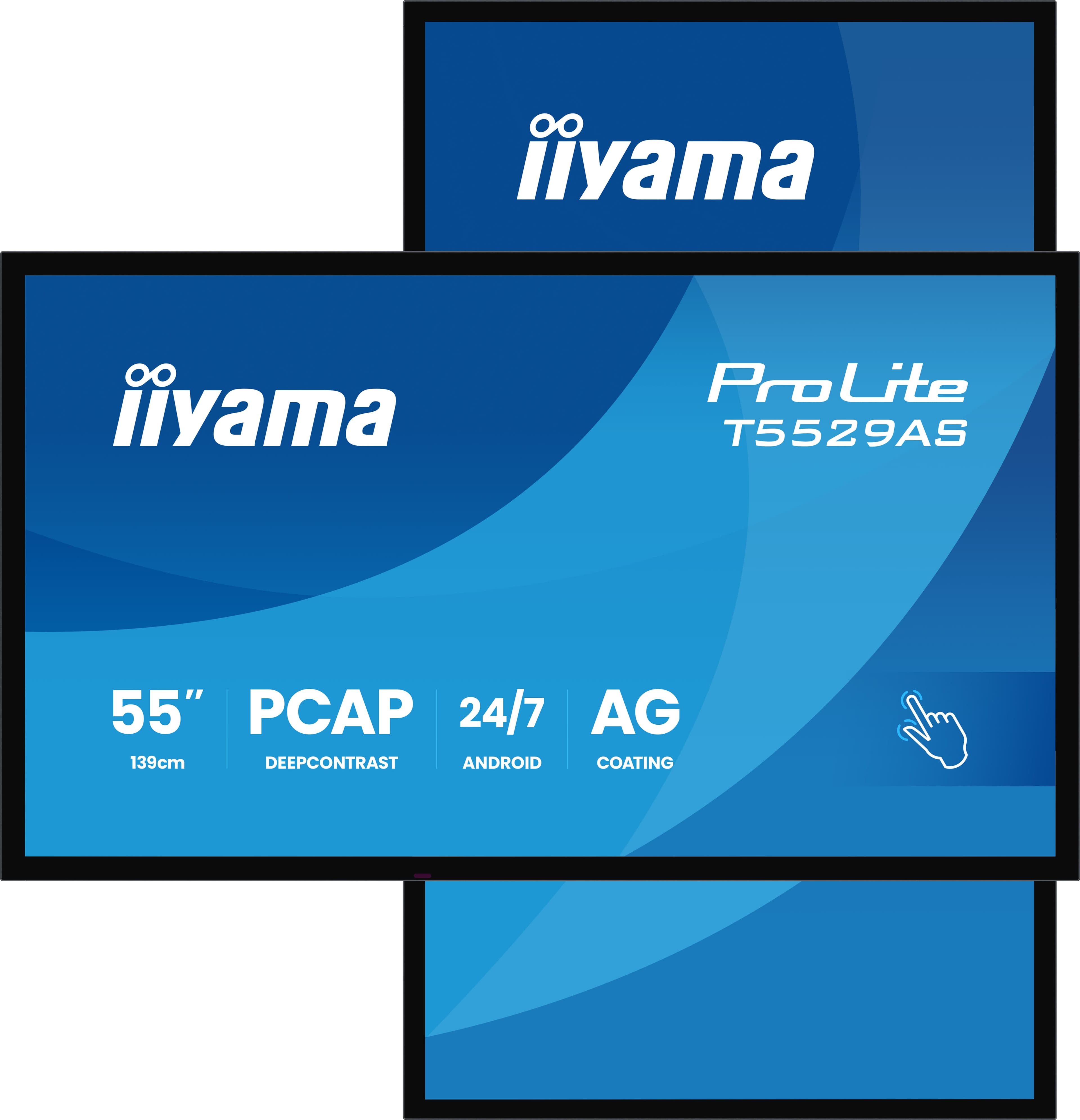

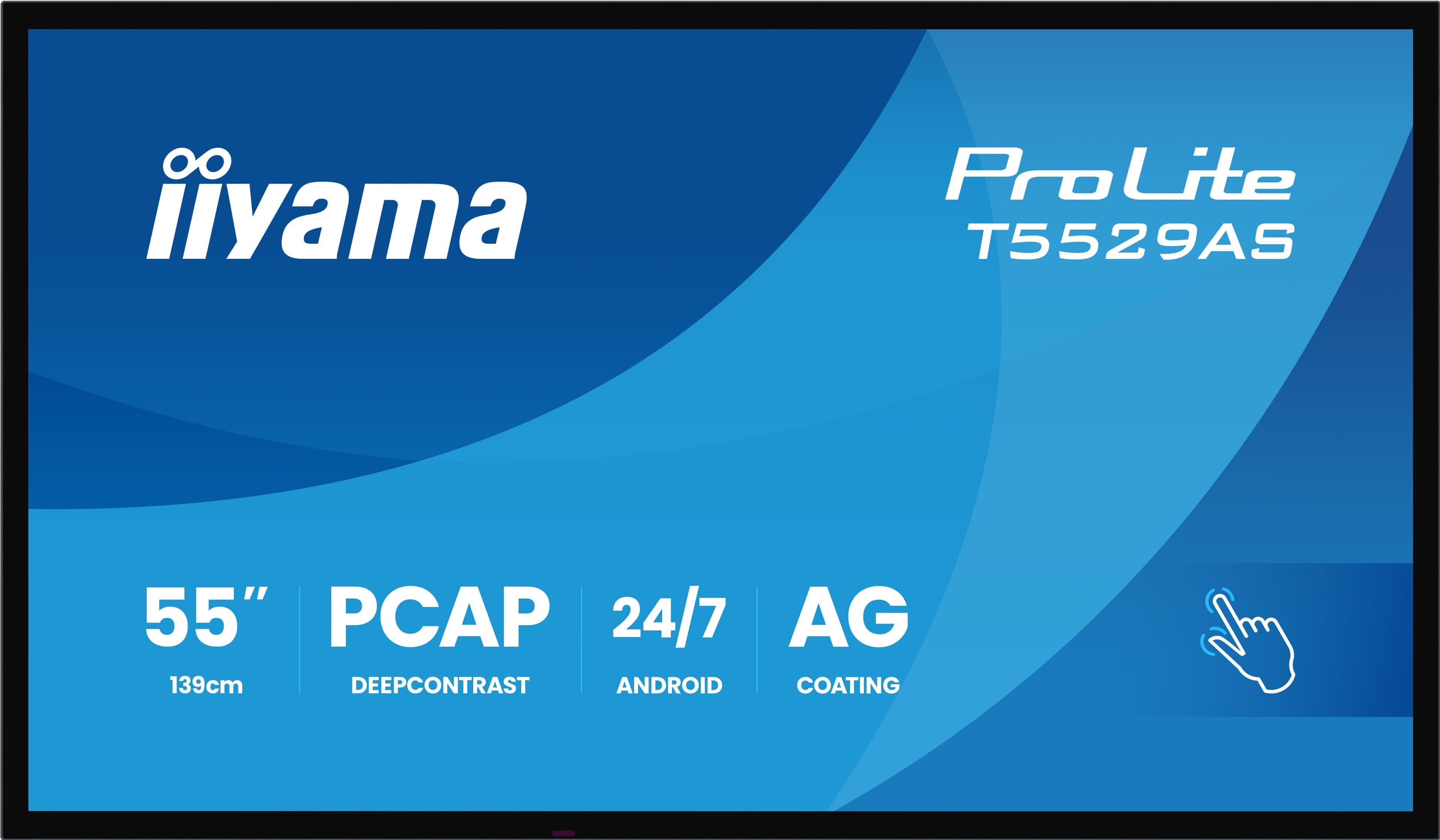

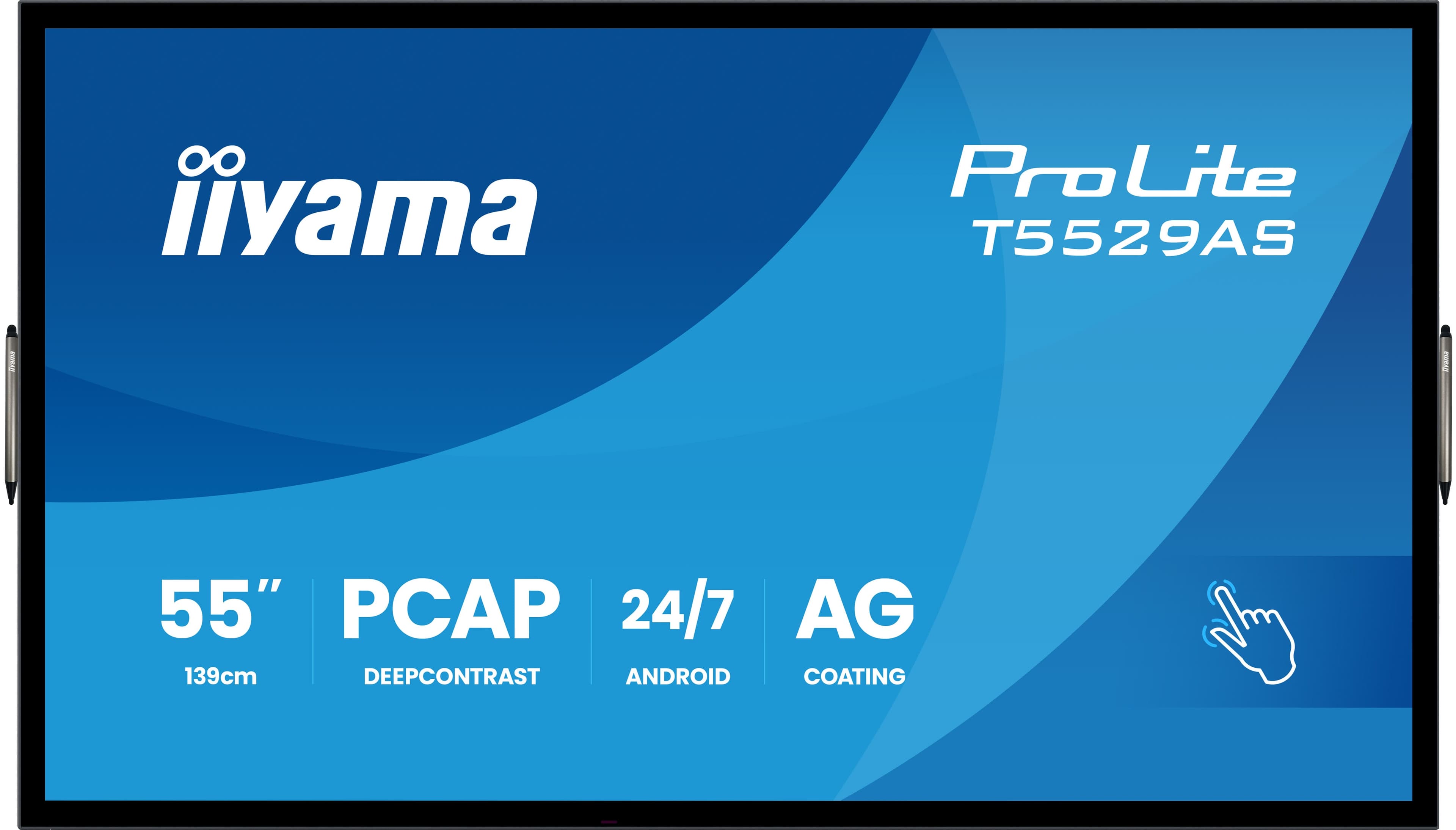

A 55-inch 4K UHD all-in-one PCAP touch display for huddle spaces and small meeting rooms, with 20 touch points on air-bonded anti-glare glass, Android 14 and iiSignage2 built in, USB-C and two HDMI inputs, a 42.3mm deep fanless chassis and a 24/7 duty rating.
TopAV buying advice
Is the iiyama T5529AS-B1AG right for your meeting room?
For a huddle space where two or three people work at the glass, not a room full of them.
Shortlist the T5529AS-B1AG for a huddle space, a small meeting room or a shared corner of an open office where a short working session starts without anyone hunting for a cable. Android 14 runs on the display itself with a whiteboard, a browser and wireless sharing, so the room works with no PC in it, and the chassis is 42.3mm deep and fanless so it sits close to the wall and stays quiet. Check the furthest seat first: 55 inches suits a small group gathered around one table or standing at the screen, and a training room or a classroom needs one of iiyama's larger interactive boards instead.
Reasons to shortlist it
- Twenty touch points on DeepContrast PCAP glass, with stylus and finger told apart, palm rejection on and accuracy quoted at plus or minus 2.5mm, so two people can annotate side by side without the display switching tools under their hands. iiyama lists the full twenty as HID, available on a supported operating system.
- Anti-glare glass with an anti-gloss treatment, air bonded with zero gap, 3.7mm thick and rated 8H for hardness, passing 83% of the light through, so the writing point sits under the pen tip instead of behind an air layer and overhead lighting does not bounce straight back at the room. Two dual-tip pens and magnetic holders on the sides come in the box.
- Android 14 runs on the display with a whiteboard, iiBrowser, a web, PDF and media player, iiShare and EShare wireless sharing, iiSignage2 content management, iiControl, FailOver, TeamViewer and a file manager, on a quad-core MTK9679 with Mali G51 graphics, 4GB of memory, 32GB of storage and WiFi 5 on 2.4G and 5G.
- Two HDMI inputs take 3840 x 2160 at 60Hz and a USB-C input carries video over DisplayPort 1.2 Alt Mode on the same cable, with HDCP 1.4 and 2.2 on the digital inputs, so a laptop meeting needs one cable. RS-232c in and out, an RJ45 network port and an IR input with an IR loop through output let the screen be driven from a rack or a desk and pass the remote signal on.
- Rated for 24/7 non-stop operation with anti image retention, a fanless chassis, kiosk mode and a 50,000 hour MTBF figure, and at 42.3mm deep and 26.8kg it is a slimmer, lighter panel than the large interactive boards that need the same wall.
Check before you choose
- Twenty touch points and 15W of USB-C power delivery both sit well below iiyama's larger TE13 and TE15 interactive boards. That makes this a display for two or three people working at the glass rather than a whole class or a training group, and the 15W will keep a phone or a small accessory topped up but will not charge a working laptop, so plan for the laptop's own power supply.
- The built-in audio is two 10W speakers, which is modest for a room of any size. If the screen has to carry a call or a video for a group rather than one or two people leaning in, budget for a soundbar and a separate microphone, as iiyama publishes no microphone on this model. The two USB Type A ports are USB 2.0, which is slow for moving large files on and off the display.
- The system on the display is iiyama's own Android 14 build with iiSignage2, iiControl, iiShare, EShare, FailOver and TeamViewer. Confirm with your IT team that the apps and the device management you rely on will run on it, and that the wireless sharing tools suit your devices, before you commit to a rollout.
See the 55" on your wall, to scale
On a phone, point your camera at the wall and see the 55" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 55" is the right size for the room? The screen size calculator shows how far a 55" display carries for presentations, touch work and video.
What to plan before installing the T5529AS-B1AG
01
Size & sightlines
Measure the longest viewing distance and the smallest text people need to read, and allow space for someone to stand at the glass without blocking the view. The viewable area is 1209.6 x 680.4mm, which is a working size for a small group around one table rather than rows of seats.
02
Mount & connections
Check the wall build, the mounting height and where power and data land. The mounting pattern and the 26.8kg panel weight are in the specification table, and a wall bracket is supplied in the box. Decide which of the two HDMI inputs and the USB-C input each source will use, whether you need the RJ45 or RS-232c control run, and whether the screen goes up in portrait as well as landscape. iiyama lists a 300 x 400 mm VESA pattern.
03
System & installation
Decide whether sessions run on the built-in Android system or on a connected laptop, and confirm network access, wireless sharing and content management with your IT team. Tell us if you want mounting, cabling, audio or a room PC quoted alongside the display.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the T5529AS-B1AG needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
iiyama T5529AS-B1AG vs T4329AS-B1AG: 55-inch or 43-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | T5529AS-B1AG | T4329AS-B1AG |
|---|---|---|
| Screen Size | 55 in | 43 in |
| Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Touch Points | 20 (HID, only with supported OS) | 20 (HID, only with supported OS) |
| Brightness | 450 cd/m² | 420 cd/m² |
| USB-C Power Delivery | 15 W | 15 W |
| Speakers | 2 x 10W | 2 x 10W |
Specifications checked on 13 September 2026: iiyama ProLite T5529AS-B1AG (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 55-inch display to scaleiiyama T5529AS-B1AG specifications and documents
iiyama specifications (opens in a new tab)Choose a section to view its specifications.
Display (15)
- Panel
- VA DLED
- Touch Glass
- Anti-Glare Glass with Anti-Gloss treatment, Smooth writing, Zero Gap - Air Bonde, DeepContrast PCAP
- Touch accuracy
- +- 2.5mm
- Touch method
- stylus, finger
- Touch interface
- USB
- Touch pen
- x2 (Dual tips)
- Android Touch Displays - One Pager
- ii_T_TF_TW_one_pager_A4_03_2025_EN_web.pdf
- Screen Size
- 55 in
- Resolution
- 3840 x 2160 (4K UHD)
- Brightness
- 450 cd/m²
- Contrast Ratio
- 4000:1
- Touch Points
- 20 (HID, only with supported OS)
- Touch Technology
- DeepContrast-PCAP
- Aspect Ratio
- 16:9
- Backlight Life
- 50,000 (MTBF, excluding backlight) hours
Connectivity (13)
- Colour support
- 1.07G (8 Bits+FRC) (72% NTSC)
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Digital signal input
- HDMI x2 (1.4/ 2.0, max. 3840x2160 @60Hz)USB-C x1 (3.2, DP 1.2 Alt mode, 15W PD)
- Monitor control input
- RS-232c x1RJ45 (LAN) x1IR x1 (3.5mm)
- Audio output
- Speakers 2 x 10W
- Monitor control output
- RS-232c x1IR loop through x1 (3.5mm)
- USB ports
- x2 (2.0 with Multi-Media support)
- WiFi
- WiFi 5 @ 2.4G / 5G
- OSD languages
- EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
- TF29AS SERIES RS232 - LAN Protocol
- RS232-LAN_commands_2026_08_Txx29AS_LHxx66_LHxx81.pdf
- EShare Network Requirements
- EShare Network Requirements v7.4-e.pdf
- USB-C Power Delivery
- 15 W
- HDMI Inputs
- 2 (HDMI 1.4/2.0, max 3840 x 2160 at 60Hz)
Audio (1)
- Speakers
- 2 x 10W
Power & Physical (6)
- Product dimensions W x H x D
- 1258.2 x 728.8 x 42.3mm
- Box dimensions W x H x D
- 1400 x 850 x 164mm
- Power Consumption
- 104W typical, 0.5W standby, 0.3W off mode
- VESA Mount
- 300 x 400 mm
- Weight
- 26.8 kg
- Shipping Weight
- 32.7 kg
Certifications & Warranty (1)
- Warranty
- 3 years iiyama VisionCare (onsite exchange, mainland UK and Ireland)
General (51)
- Design
- Edge to edge glass
- Light transmittance
- 83%
- Response time (GTG)
- 6.5ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Horizontal Sync
- 28 - 160kHz
- Viewable area W x H
- 1209.6 x 680.4mm, 47.6 x 26.8"
- Pixel pitch
- 0.315mm
- Bezel colour and finish
- black, matte
- Palm rejection
- yes
- HDCP
- 1.4 / 2.2
- RS-232c
- x1
- Integrated software
- Android 14 OS, Whiteboard, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, Web-, PDF & Media Player, iiBrowser, File manager
- Hardware
- CPU: MTK9679 Quad-core A73*4, GPU: Mali G51, RAM: 4GB, ROM: 32GB
- Kiosk mode
- yes
- Max. non-stop operating time
- 24/7
- Anti image retention
- yes
- Glass thickness
- 3.7mm
- Glass hardness
- 8H
- Housing (bezel)
- metal (front)
- OSD key lock
- yes
- Remote control lock
- yes
- Control buttons
- Power (long press for Quick Menu (source, volume +, volume -, brightness +, brightness -, Touch unlock)
- User controls
- picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export)
- Plug&Play
- DDC2B
- Fanless design
- yes
- Operation temperature range
- 0°C - 40°C
- Cables
- power (1.8m), HDMI (1.8m), RS-232c (1.8m)
- Guides
- quick start guide, safety guide
- Other
- Wall Mounting Bracket (VESA 300x400), Magnetic holding places for Touch pens (on sides in landscape)
- Remote control
- yes (batteries included)
- Power supply unit
- internal
- Power supply
- AC 100 - 240V, 50/60Hz
- Regulations
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
- Energy efficiency class (Regulation (EU) 2017/1369)
- G
- REACH SVHC
- above 0.1%: Lead, Lead monoxide
- EAN code
- 4948570125586
- Product series
- ProLite T4329AS-B1AG, ProLite T5529AS-B1AG
- User manual
- T43_55_6529AS-usermanual-e-revC.pdf
- Technical specification
- ProLite T5529AS-B1AG - gb_en.pdf
- Drawing
- T55_6529AS-B1AG_Wall Mounting bracket Drawing.pdf
- EU Energy Label
- T5529AS-B1AG EU Energy Label (2255437).pdf
- UK Energy Label
- T5529AS-B1AG UK Energy Label (2255437).pdf
- Mac OS Driver for OS 10.14 - 14.x
- Mac OS Driver for OS version 10.14 to 14.x_UPDD_07_01_108.zip
- iiSignage²
- ii_iisignage2_whitepaper_A4_EN (09.23).pdf
- Operating System
- Android 14
- Orientation
- Landscape or portrait
- RAM
- 4GB
- Storage
- 32GB
- Glass
- Anti-glare glass with anti-gloss treatment, zero gap air bonded, 8H hardness
- Manufacturer part number
- T5529AS-B1AG
- GTIN
- 4948570125586
Specifications are iiyama's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
iiyama T5529AS-B1AG questions answered
Who is the iiyama ProLite T5529AS-B1AG best suited to?
Consider it for a huddle space, a small meeting room, an innovation corner or a breakout area where people work at the screen and a session needs to start quickly. At 55 inches it suits a small group around one table; check the smallest text you need read from the furthest seat, and look at one of iiyama's larger interactive boards if the room is a training room or a classroom.
Does it need a PC to work?
No. Android 14 is built into the display on a quad-core MTK9679 with 4GB of memory and 32GB of storage, and it carries a whiteboard, the iiBrowser web browser, a web, PDF and media player, iiShare and EShare wireless sharing, iiSignage2 content management, iiControl, FailOver, TeamViewer and a file manager. A laptop connects over HDMI or USB-C when someone wants to present their own files.
How many people can write on it at once?
iiyama lists 20 touch points, reported as HID and available on a supported operating system, with touch accuracy of plus or minus 2.5mm. Stylus and finger are told apart and palm rejection is on, and two dual-tip pens are supplied with magnetic holders on the sides. Twenty points is a huddle-space figure: it suits two or three people at the glass rather than a class working on the board together.
Can I connect a laptop with a single USB-C cable?
Yes for video. The USB-C port is USB 3.2 with DisplayPort 1.2 Alt Mode, so one cable carries the picture. Power delivery on that port is 15W, which is not enough to run a working laptop, so bring the laptop's own power supply as well. Two HDMI inputs are also fitted, each taking 3840 x 2160 at 60Hz, with HDCP 1.4 and 2.2 support.
Which version of Android does it run, and what software is included?
Android 14, with a whiteboard, iiSignage2 content management, iiControl, iiShare, EShare, FailOver, TeamViewer, a web, PDF and media player, the iiBrowser browser and a file manager, over WiFi 5 on 2.4G and 5G. This is iiyama's own build rather than a certified Android device, so check any app or device-management requirement with your IT team before rollout.
Is the built-in sound good enough for a meeting?
It depends on the room. The display has two 10W speakers and iiyama publishes no microphone on this model, so it is fine for one or two people leaning in at the screen and thin for a group call or a video shown to a room. If the screen is going to carry conferencing audio, budget for a soundbar and a microphone alongside it and tell us the room size so we can quote the right one.
Can it be left on all day?
Yes. iiyama rates it for 24/7 non-stop operating time with anti image retention, and gives an MTBF figure of 50,000 hours excluding the backlight. The chassis is fanless, so there is no fan noise in a quiet room. Typical power draw is 104W, dropping to 0.5W in standby and 0.3W in off mode, and it runs on 100V to 240V AC at 50Hz to 60Hz from an internal power supply. That is the rating to check against a consumer television, which is not built or covered for that pattern of use.
How heavy is it and what does mounting involve?
The panel is 26.8kg without its box and 32.7kg boxed, and it measures 1258.2 x 728.8 x 42.3mm, so at 42.3mm deep it sits close to the wall. A wall mounting bracket is supplied in the box. Check the wall build, the mounting height and where the power and data points land before the install date, and note that iiyama lists both landscape and portrait orientation for this model.
What warranty does it come with?
iiyama covers it under VisionCare, and the cover is set by product group rather than printed on each product page. This model sits in the interactive display group, which is separate from the longer cover iiyama gives its TE and TN ranges. The exact period is shown in the specification above. Cover is onsite exchange, with de-installation and re-installation available as a paid upgrade on mainland UK and Ireland, and we will confirm it in writing on your quotation.
Should I choose the 55-inch T5529AS-B1AG or the 43-inch T4329AS-B1AG?
Choose by viewing distance and the smallest text people must read. Both run the same Android 14 system, the same 4K resolution, the same 20 touch points, the same 15W USB-C power delivery and the same two 10W speakers, so the larger panel adds size rather than capability. The 55-inch model is 26.8kg against 13.7kg and draws 104W against 98W, and it is the slimmer of the two at 42.3mm deep against 72.8mm, so the wall, the lift and the mounting pattern all change with it.
