Home / Matrix Switchers & Splitters / ATEN VP3520 5 x 2 True 4K Seamless Presentation Matrix Switch with Control
ATEN

ATEN VP3520 5 x 2 True 4K Seamless Presentation Matrix Switch with Control

£3,109.26inc. VAT
£2,591.05 ex. VAT
Out of stock
1
  • Visa
  • Mastercard
  • American Express
  • PayPal
Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Call 020 3815 8642
Return within 14 days
Installation services availablePurchase orders: education customers only
2 Years Warranty Included
Key specifications
Video Input — Interfaces3 x HDMI Type A female (Black); 2 x HDBaseT (RJ-45) Female (Silver) with PoH
Video Input — Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m; HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video Output — Interfaces1 x HDMI Type A female (Black); 1 x HDBaseT (RJ-45) Female (Silver) with PoH
Video Output — Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m; HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video — Max. ResolutionHDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDBaseT: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Video — ComplianceHDMI; 4K HDR; HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Audio — OutputLine Out (Unbalanced): 1 x Captive Screw Connector, 3-pole; Digital Audio: 1 x Coaxial; Amplifier out: 1 x Captive Screw Connector, 4-pole
Audio — InputStereo Audio (HDMI/HDBT): 1 x mini stereo Jack female (Green); Microphone: 1 x Captive Screw Connector, 3-pole (with selectable phantom power)
All 15 specifications

Description

The ATEN VP3520 is a presentation switch for meeting and teaching spaces: several sources in, a display out, and automatic switching so whoever plugs in gets the screen without anyone hunting for a remote.

Also in this range:VP2730 VP1420 VP1421 VP1920 Full specifications Datasheet Compare alternatives

Seamless switching means no black frame between sources, which matters when the room is being recorded or streamed.

Video is handled to HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4). Control is available over RS-232 and IP so the switch can be driven by a room control system rather than by its front panel. Supplied to order from TopAV with ATEN's 36-month warranty.

Call 020 3815 8642

Key features

Display Control Auto display on / off control

Supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port.

Flexible control methods

Triggered by source detection or 4 function keys on front panel.

Audio embedding

Stereo audio can be embedded into display output or separated to stereo line out and coaxial audio output.

Audio de-embedding

HDMI / HDBaseT audio can be extracted to stereo line out.

Technical specifications

Choose a section to view its specifications.

Display (1)
Video — Max. Resolution
HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDBaseT: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Connectivity (10)

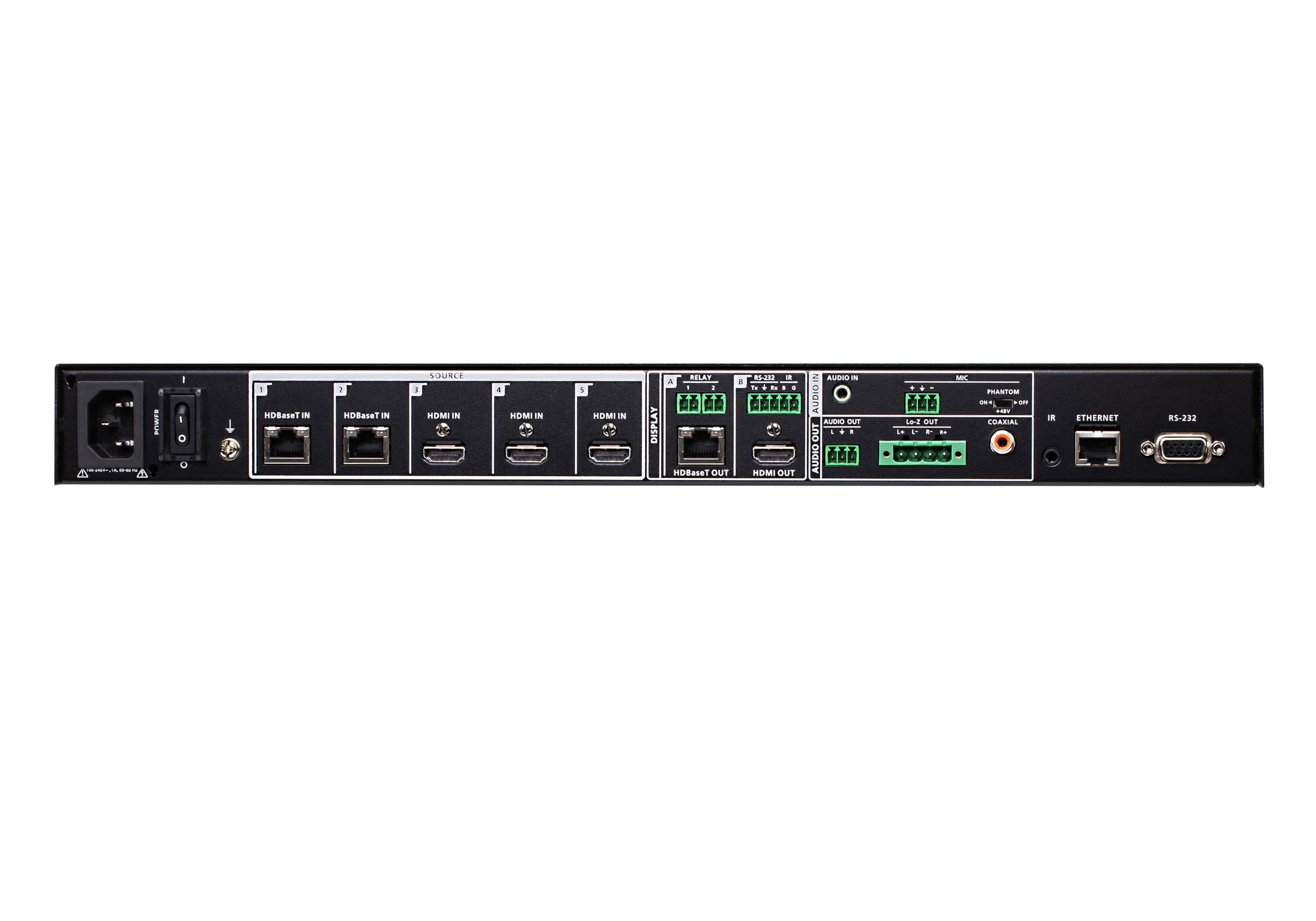

Video Input — Interfaces
3 x HDMI Type A female (Black); 2 x HDBaseT (RJ-45) Female (Silver) with PoH
Video Input — Max. Distance
HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m; HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video Output — Interfaces
1 x HDMI Type A female (Black); 1 x HDBaseT (RJ-45) Female (Silver) with PoH
Video Output — Max. Distance
HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m; HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Audio — Output
Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole; Digital Audio: 1 x Coaxial; Amplifier out: 1 x Captive Screw Connector, 4-pole
Audio — Input
Stereo Audio (HDMI/HDBT): 1 x mini stereo Jack female (Green); Microphone: 1 x Captive Screw Connector, 3-pole (with selectable phantom power)
Control — IR
1 x Mini Stereo Jack Female (Black); VP device control; 1 x Captive Screw Connector, 2-pole; AV device control
Control — Ethernet
1 x RJ-45 Female (Silver); Support PJLink protocol

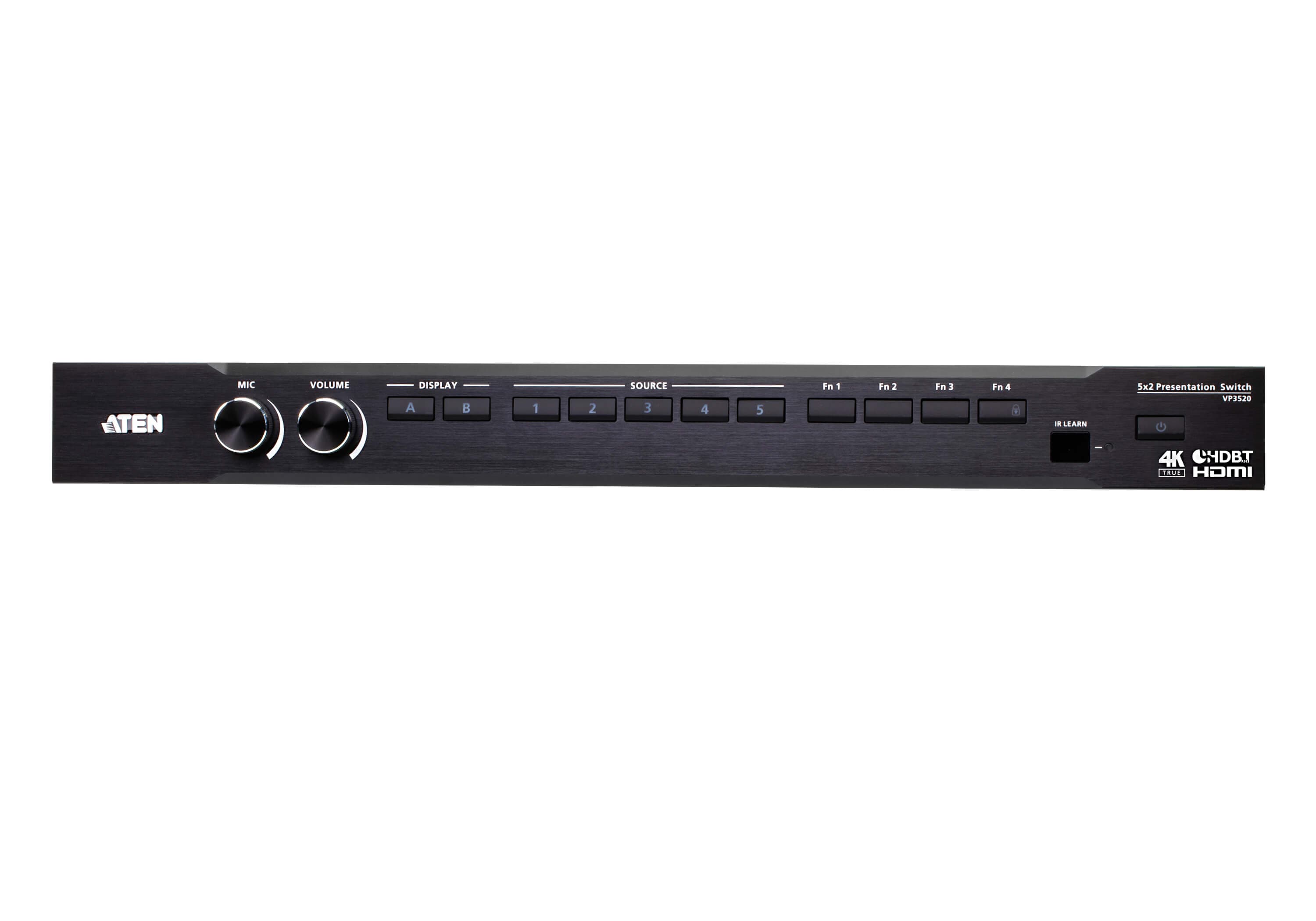

Switches — Video Input Port Selection
5 x Pushbutton (LED: Green)
Switches — Video Output Port Selection
2 x Pushbutton (LED: Orange)
Certifications & Warranty (1)
Video — Compliance
HDMI; 4K HDR; HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
General (3)
Control — RS-232
1x DB-9 Female (Black); VP device control & configuration; 1 x Captive Screw Connector, 3-pole ; AV device control
Interfaces — Relay
2 x Captive Screw Connector, 2-pole
Switches — Power
1 x Pushbutton (LED: Green / Orange); 1 x Slide Switch (+48V Phantom Power)
Call 020 3815 8642

Documents

ATEN VP3520 manufacturer datasheet (PDF)
