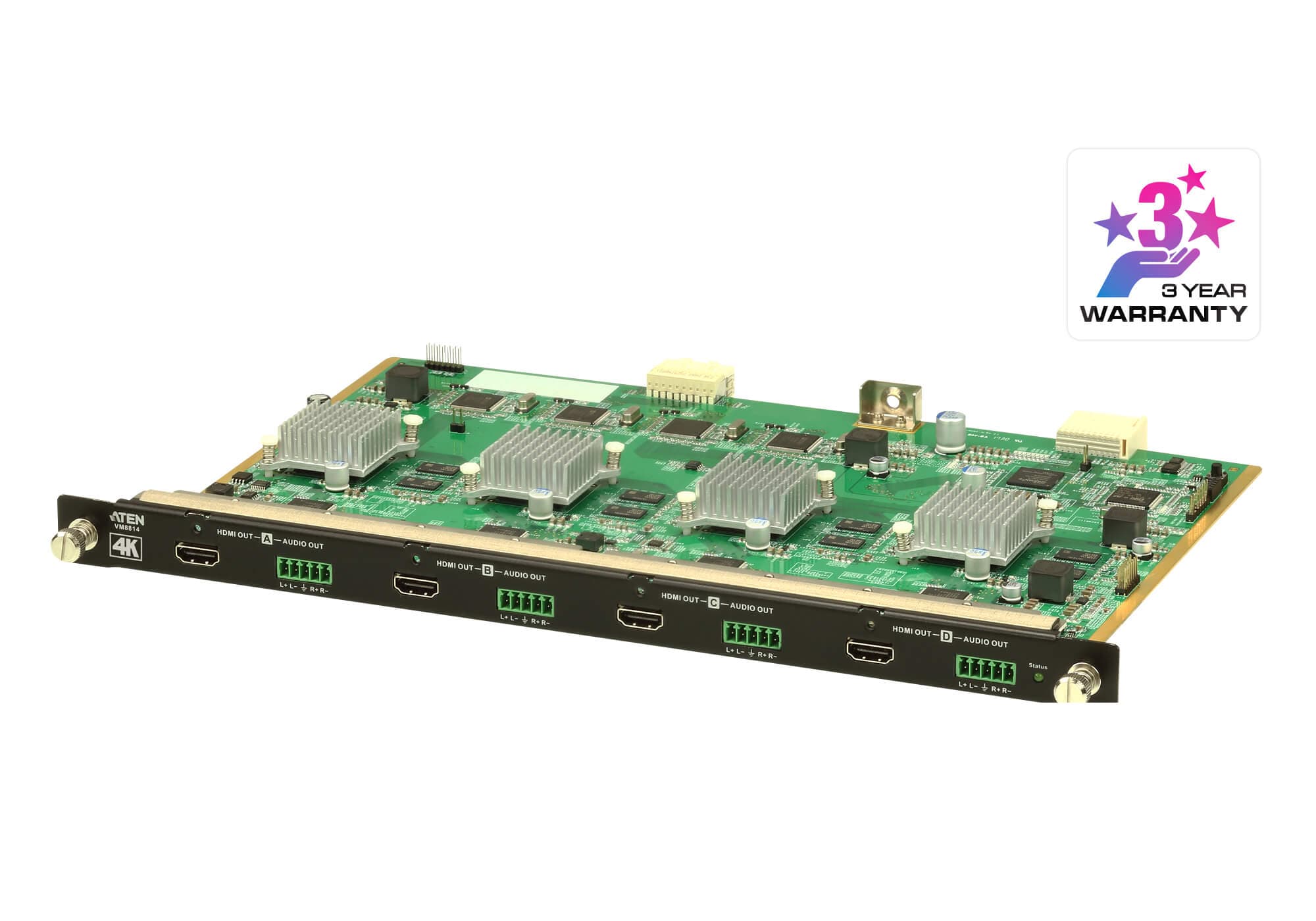

ATEN VM8814 4-Port 4K HDMI Output Board with Scaler
4K UHD
£2,582.10inc. VAT
Out of stock
Home / Matrix Switchers & Splitters / ATEN VP2730 7 x 3 Seamless Presentation Matrix Switch with Scaler, Streaming, Audio Mixer and HDBaseT
ATEN
ATEN VP2730 7 x 3 Seamless Presentation Matrix Switch with Scaler, Streaming, Audio Mixer and HDBaseT
£2,512.13inc. VAT
£2,093.44 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Inputs5 x HDMI Type A female, 1 x DisplayPort female, 1 x VGA HDB-15 female
Video Outputs2 x HDMI Type A female, 1 x HDBaseT RJ-45 female
Maximum ResolutionHDMI/DP up to 1080p at 60 Hz; VGA up to 1920 x 1200 at 60 Hz
HDBaseT DistanceUp to 60 m at 1080p (Cat 5e/6), 70 m (Cat 6a)
HDCPHDCP 1.4 compatible
Audio Inputs1 x mini stereo jack, 1 x 5-pole captive screw balanced, 1 x 3-pole captive screw microphone
Audio Outputs1 x Toslink optical, 1 x coaxial RCA, 2 x stereo RCA
USB Ports2 x USB 2.0 Type A, 1 x USB 3.0 Type A
Description
The VP2730 gathers the parts of a mid-size presentation system into one 1U box. Seven inputs cover five HDMI, one DisplayPort and one VGA source, and there are three outputs: two HDMI and one HDBaseT that will reach 60 m over Cat 5e/6 or 70 m over Cat 6a at 1080p.
The audio side is more capable than a typical switch. As well as a stereo mini-jack input there is a five-pole balanced audio input and a three-pole microphone input with switchable phantom power, plus optical, coaxial and stereo RCA outputs, so a lectern microphone and a programme feed can be mixed without a separate DSP. A Go Live button set on the front panel drives the streaming function.
Control covers front-panel pushbuttons, RS-232, IR and Ethernet, and the unit pairs with ATEN's VPK312K1 network remote pad for wall-plate operation. The chassis is metal, rack-mountable and draws around 27 W.
Key features
Seven inputs, three outputs
Five HDMI, one DisplayPort and one VGA in; two HDMI and one HDBaseT out from a single 1U chassis.
HDBaseT to the far display
The HDBaseT output reaches up to 60 m over Cat 5e/6 or 70 m over Cat 6a at 1080p.
Audio mixer with phantom power
Balanced and microphone inputs with switchable phantom power, plus optical, coaxial and stereo RCA outputs.
Streaming and Go Live
A streaming input and dedicated Go Live buttons on the front panel for pushing a source out to viewers.
Technical specifications
Display
Maximum ResolutionHDMI/DP up to 1080p at 60 Hz; VGA up to 1920 x 1200 at 60 Hz
Connectivity
Video Inputs5 x HDMI Type A female, 1 x DisplayPort female, 1 x VGA HDB-15 female
Video Outputs2 x HDMI Type A female, 1 x HDBaseT RJ-45 female
Audio Inputs1 x mini stereo jack, 1 x 5-pole captive screw balanced, 1 x 3-pole captive screw microphone
Audio Outputs1 x Toslink optical, 1 x coaxial RCA, 2 x stereo RCA
USB Ports2 x USB 2.0 Type A, 1 x USB 3.0 Type A
Control Ports1 x RS-232 DB-9 female, 1 x IR mini stereo jack, 1 x RJ-45 Ethernet
Power & Physical
Power Consumption27.3 W at 230 VAC
Dimensions43.24 x 26.28 x 4.40 cm
Weight3.70 kg
General
HDBaseT DistanceUp to 60 m at 1080p (Cat 5e/6), 70 m (Cat 6a)
HDCPHDCP 1.4 compatible
HousingMetal
Operating Temperature0-40 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN

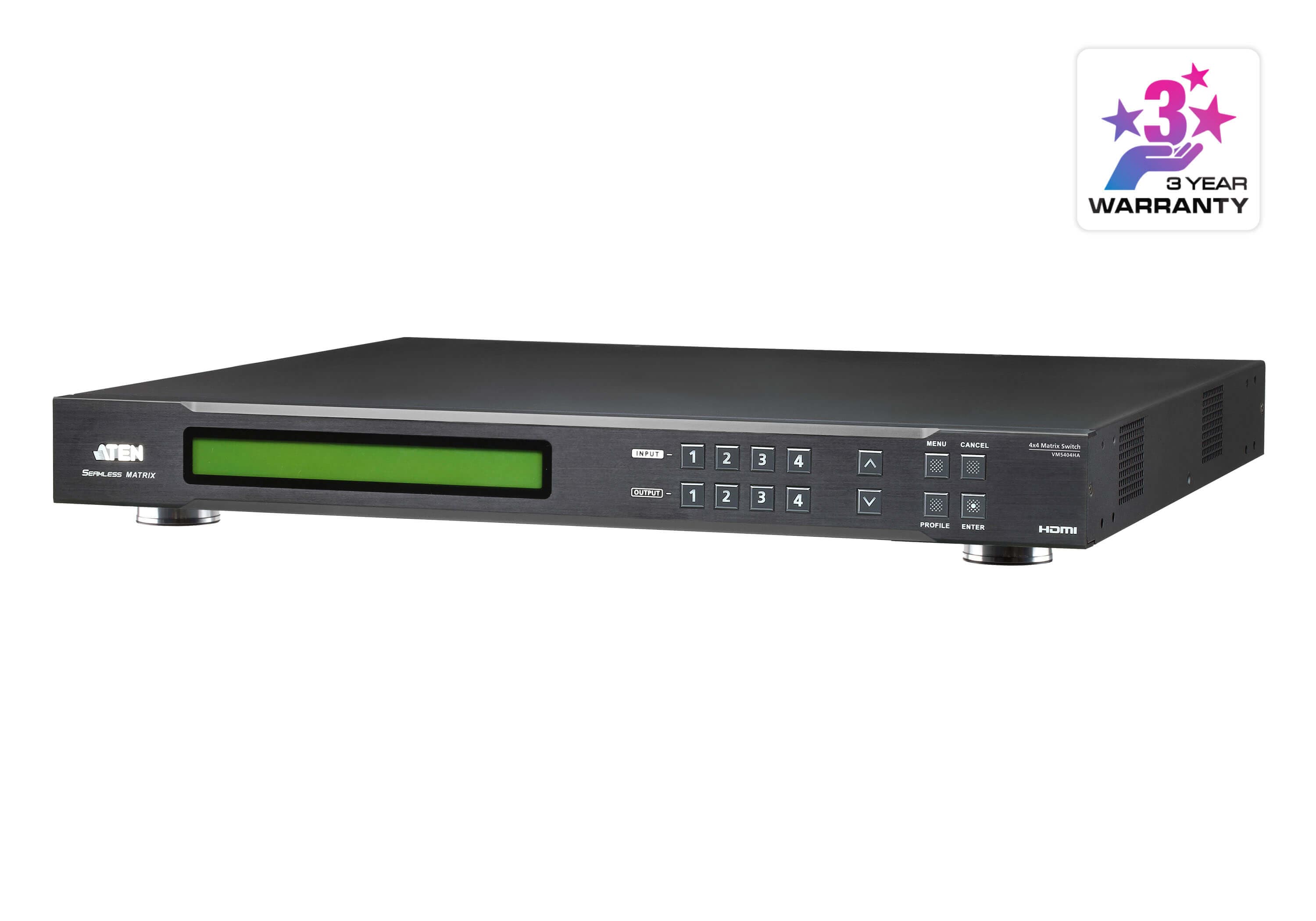

ATEN VM5404HA 4 x 4 HDMI Matrix Switch with Scaler
1080p
£2,427.13inc. VAT
Out of stock
ATEN

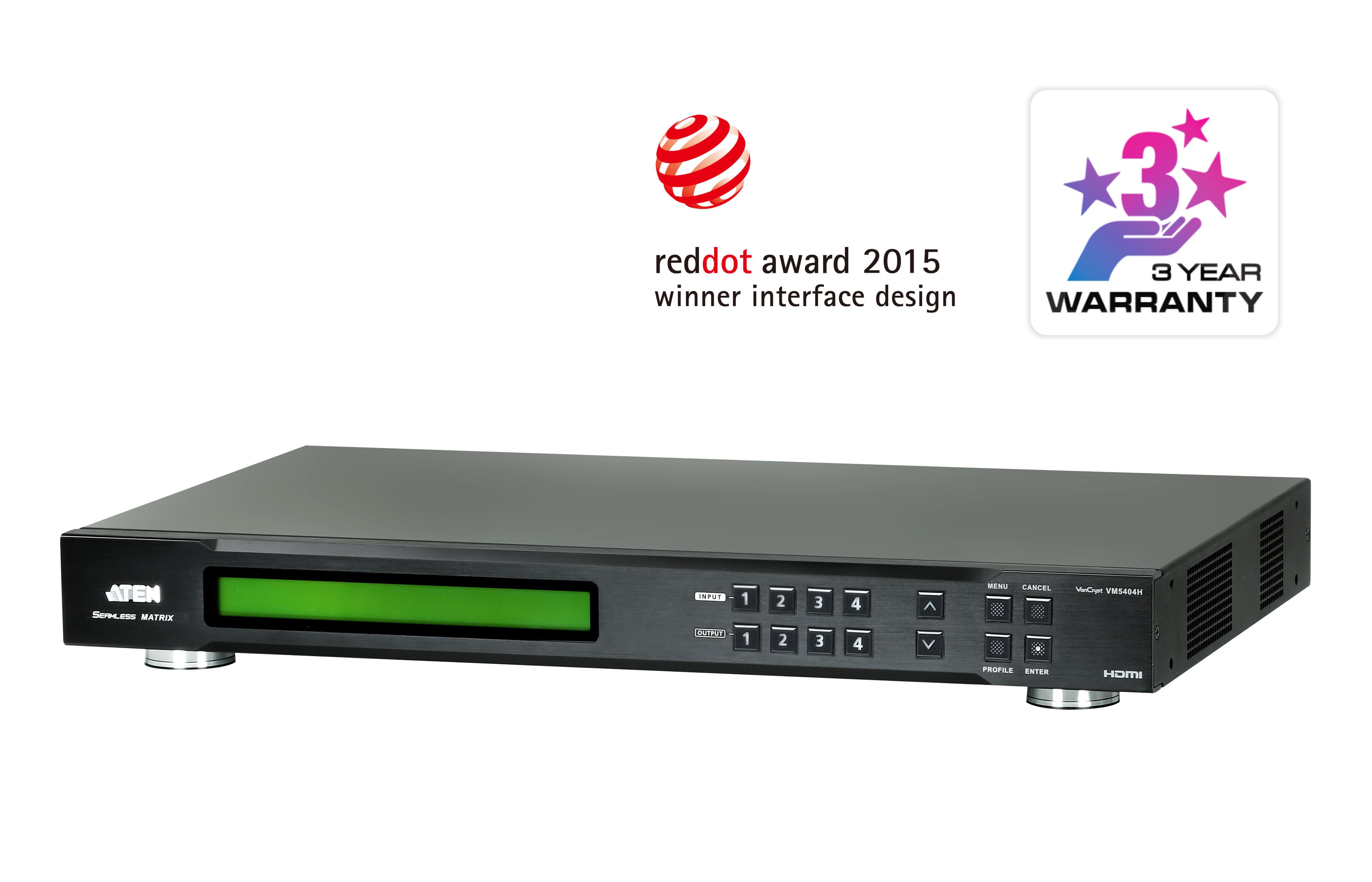

ATEN VanCryst VM5404H 4 x 4 HDMI Matrix Switch with Scaler
1080p
£2,422.50inc. VAT
Out of stock
ATEN

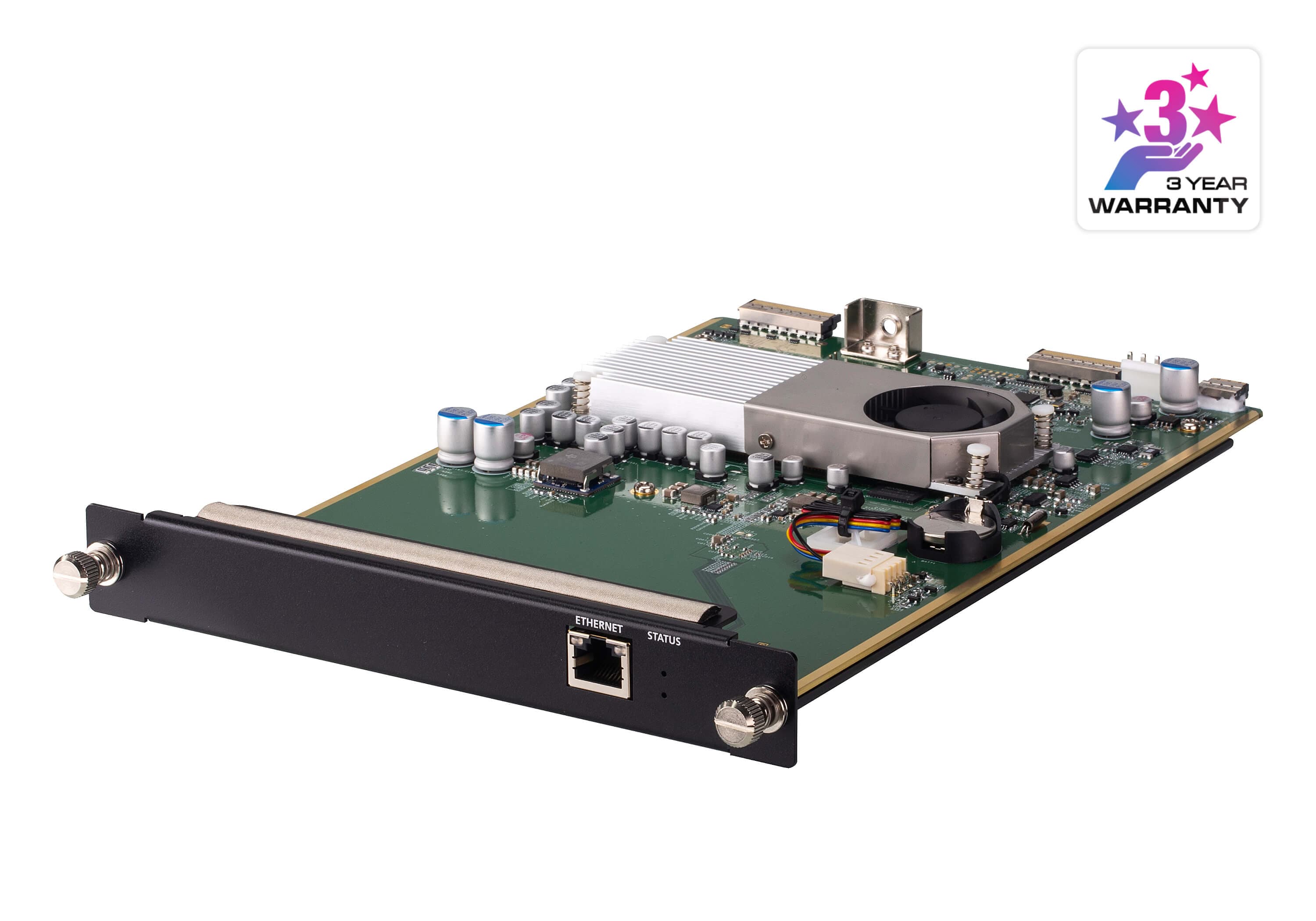

ATEN VW-CPU VW3620 CPU Module
