Home / Matrix Switchers & Splitters / ATEN VP1421 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP and HDBaseT-Lite
ATEN
ATEN VP1421 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP and HDBaseT-Lite
£1,433.22inc. VAT
£1,194.35 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £477.74 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Inputs2 x HDMI Type A female, 1 x VGA HDB-15 female, 1 x HDBaseT RJ-45 with selectable PoH
Video Outputs1 x HDMI Type A female, 1 x HDBaseT RJ-45 with selectable PoH
Maximum ResolutionHDMI up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4)
HDBaseT Distance4K 30 Hz at 35 m (Cat 5e/6); 1080p 60 Hz at 60 m (Cat 5e/6), 70 m (Cat 6a)
HDCPHDCP 2.2 compatible
Audio Inputs2 x mini stereo jack, 1 x 6.3 mm microphone jack with selectable phantom power
Audio OutputsLine out 3-pole captive screw, 1 x Toslink optical
Control PortsRS-232 3-pole captive screw, 1 x IR mini stereo jack, 1 x RJ-45 Ethernet
Description
The VP1421 adds distance and audio processing to the compact presentation matrix format. Alongside two HDMI inputs and a VGA input there is an HDBaseT input with selectable Power over HDBaseT, and the outputs are one HDMI and one HDBaseT, so a far display up to 60 m away over Cat 5e/6 can be driven directly without a separate transmitter.
A 6.3 mm microphone input with switchable phantom power feeds the on-board DSP, with front-panel microphone and volume knobs, and audio leaves on an unbalanced line-level captive screw connector or a Toslink optical output. IR and RS-232 channels are extended over the HDBaseT link in both directions, so a remote source or display can still be controlled.
Contact-in and LED-out ports support a wall keypad such as the VPK104, and the unit also accepts local RS-232, IR and Ethernet control. It runs from an external 12 V supply.
Key features
HDBaseT in and out
An HDBaseT-Lite input and output with selectable PoH reach 60 m over Cat 5e/6 at 1080p or 35 m at 4K 30 Hz.
Microphone input with phantom power
A 6.3 mm microphone input with switchable 48 V phantom power and front-panel level and volume knobs.
Bi-directional IR and RS-232 channels
Control signals are carried over the HDBaseT link in both directions for remote sources and displays.
True 4K switching with scaling
HDMI inputs support 4096 x 2160 at 60 Hz 4:4:4 with HDCP 2.2 and 4K HDR.
Technical specifications
Display
Maximum ResolutionHDMI up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4)
Connectivity
Video Inputs2 x HDMI Type A female, 1 x VGA HDB-15 female, 1 x HDBaseT RJ-45 with selectable PoH
Video Outputs1 x HDMI Type A female, 1 x HDBaseT RJ-45 with selectable PoH
Audio Inputs2 x mini stereo jack, 1 x 6.3 mm microphone jack with selectable phantom power
Audio OutputsLine out 3-pole captive screw, 1 x Toslink optical
Control PortsRS-232 3-pole captive screw, 1 x IR mini stereo jack, 1 x RJ-45 Ethernet
Power & Physical
Dimensions20.00 x 17.01 x 4.40 cm
Weight1.16 kg
General
HDBaseT Distance4K 30 Hz at 35 m (Cat 5e/6); 1080p 60 Hz at 60 m (Cat 5e/6), 70 m (Cat 6a)
HDCPHDCP 2.2 compatible
Contact Control1 x 5-pole captive screw contact in, 1 x 5-pole captive screw LED out
PowerDC 12 V, 14.93 W
HousingMetal
Operating Temperature0-40 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN

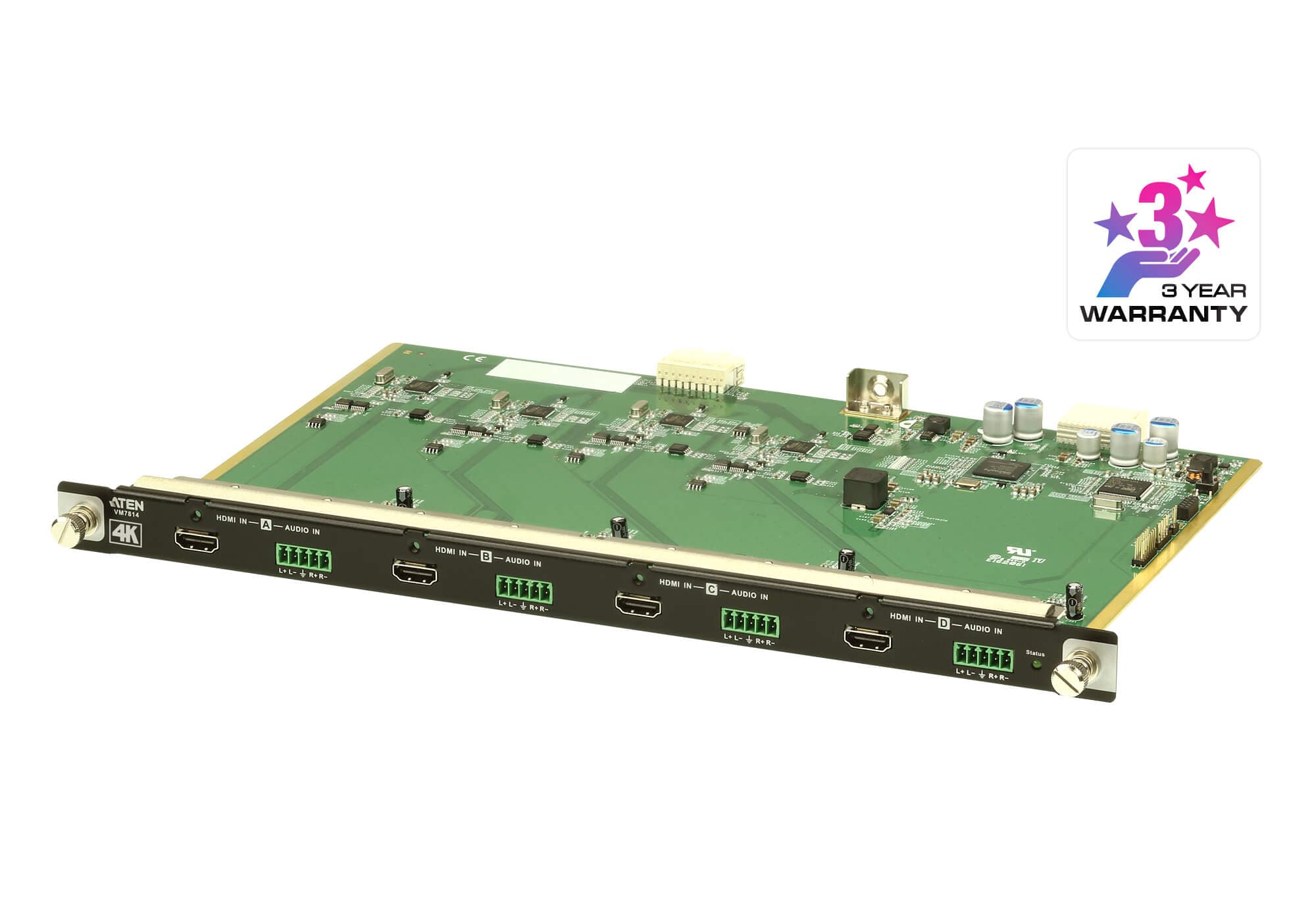

ATEN VM7814 4-Port 4K HDMI Input Board
4K UHD
£1,347.97inc. VAT
Out of stock
ATEN

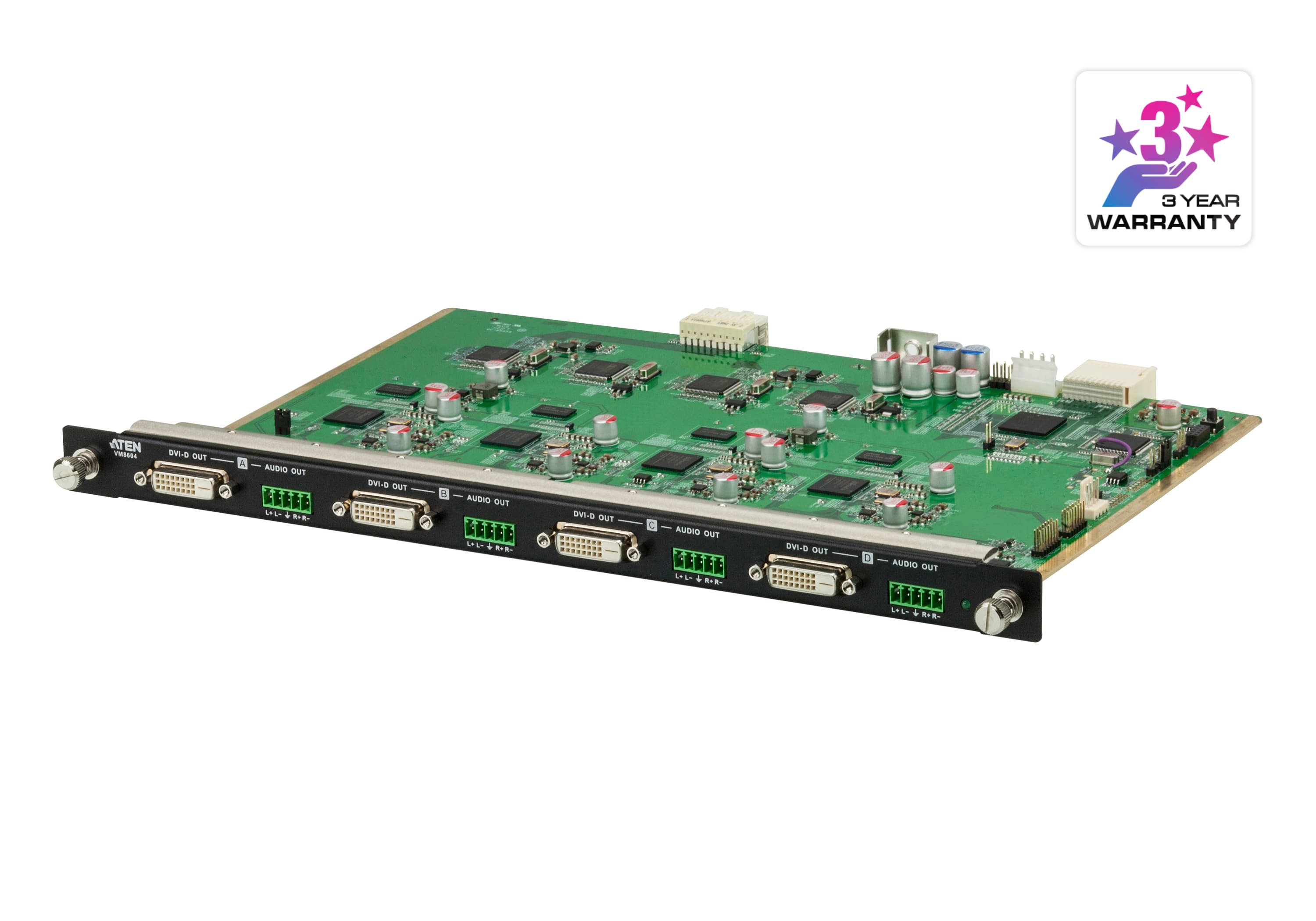

ATEN VM8604 4-Port DVI Output Board with Scaler
WUXGA
£1,546.99inc. VAT
Out of stock
ATEN

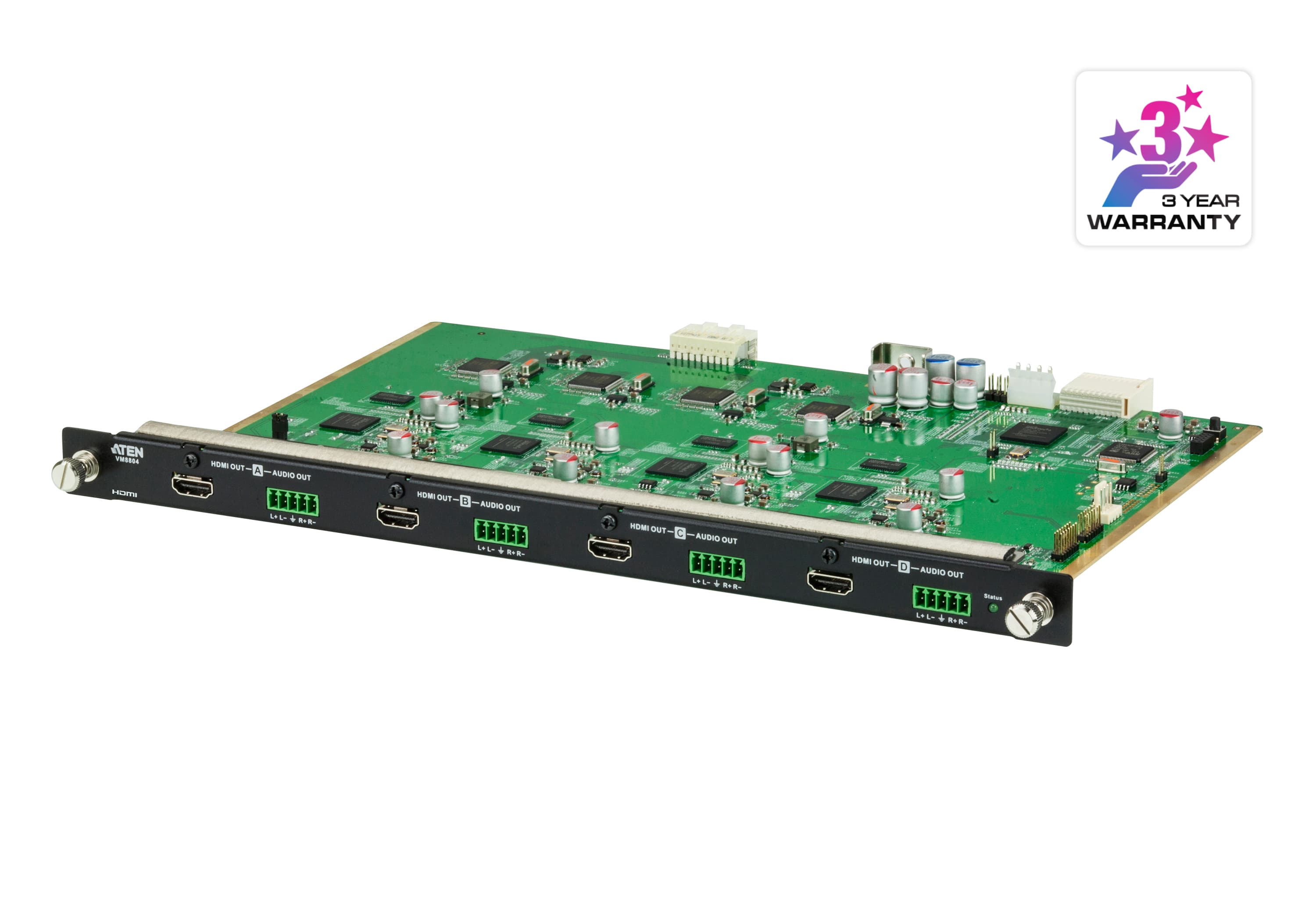

ATEN VM8804 4-Port HDMI Output Board with Scaler
