ATEN VP1920 9 x 2 4K Presentation Matrix Switch

Name: ATEN VP1920 9 x 2 4K Presentation Matrix Switch
Brand: ATEN
SKU: VP1920
Price: 887.22 GBP
Availability: OutOfStock

£887.22inc. VAT

£739.35 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £295.74 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Video Inputs6 x HDMI Type A female, 1 x DisplayPort female, 1 x VGA HDB-15 female, 1 x component (3 x RCA), 1 x composite (RCA)

Video Outputs2 x HDMI Type A female

Maximum ResolutionHDMI up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0) or 30 Hz (4:4:4)

Maximum Output DistanceUp to 15 m

HDCPHDCP 1.4 compatible

Audio Inputs1 x mini stereo jack, 2 x RCA composite/component audio

Audio Outputs1 x Toslink optical, 1 x coaxial RCA, 2 x stereo RCA

USB Ports2 x USB Type B computer, 2 x USB Type A keyboard/mouse, 2 x USB Type A device

All 14 specifications

Description

The VP1920 exists for rooms where the source list has not been tidied up: six HDMI inputs, one DisplayPort, one VGA and one component/composite pair, switched to two HDMI outputs. The VGA port accepts RGBHV, RGBs, YCbCr and YPbPr analogue formats, so legacy equipment stays usable.

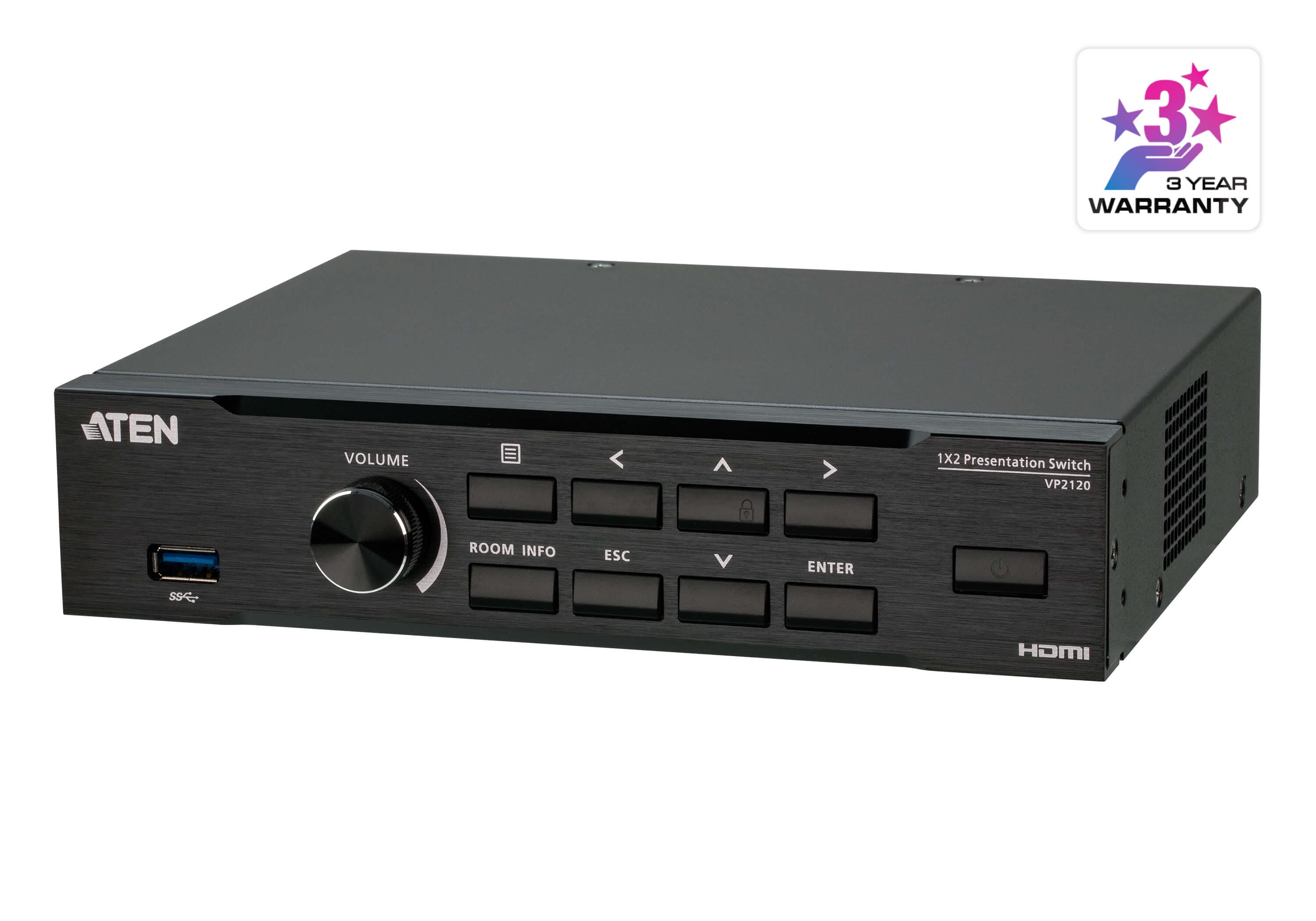

Also in this range:VP2730 VP1420 VP1421 VP2120 Full specifications Datasheet Compare alternatives

Audio can be extracted from the HDMI or DisplayPort inputs to digital or analogue outputs, and stereo, composite or component audio can be embedded into the digital output, with optical, coaxial and stereo RCA outputs available. Two USB Type B computer ports and paired keyboard/mouse and device ports let a shared keyboard, mouse and USB peripheral follow the selected computer.

Output runs up to 15 m and resolutions to 4096 x 2160 at 60 Hz 4:2:0 or 30 Hz 4:4:4 are supported. Control is by front-panel pushbuttons, RS-232 or IR, and the metal chassis is rack-mountable.

Key features

Nine mixed-format inputs

Six HDMI, one DisplayPort, one VGA and a component/composite pair, so old and new sources share one switch.

Audio embed and de-embed

Digital audio can be extracted to optical, coaxial or analogue outputs, and analogue audio embedded into the digital output.

USB switching for two computers

Two USB Type B computer ports with keyboard/mouse and device ports so peripherals follow the selected PC.

Analogue format flexibility

The VGA port accepts RGBHV, RGBs, YCbCr and YPbPr signals.

Technical specifications

Choose a section to view its specifications.

Display (1)

Maximum Resolution: HDMI up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0) or 30 Hz (4:4:4)

Connectivity (7)

Video Inputs: 6 x HDMI Type A female, 1 x DisplayPort female, 1 x VGA HDB-15 female, 1 x component (3 x RCA), 1 x composite (RCA)
Video Outputs: 2 x HDMI Type A female
Maximum Output Distance: Up to 15 m
Audio Inputs: 1 x mini stereo jack, 2 x RCA composite/component audio
Audio Outputs: 1 x Toslink optical, 1 x coaxial RCA, 2 x stereo RCA
USB Ports: 2 x USB Type B computer, 2 x USB Type A keyboard/mouse, 2 x USB Type A device
Control Ports: 1 x RS-232 DB-9 female, 1 x IR mini stereo jack

Power & Physical (3)

Power Consumption: 7.3 W at 230 VAC
Dimensions: 43.72 x 16.36 x 4.40 cm
Weight: 2.36 kg

General (3)

HDCP: HDCP 1.4 compatible
Housing: Metal
Operating Temperature: 0-40 degrees C

Documents

ATEN VP1920 9 x 2 4K Presentation Matrix Switch datasheet (PDF)
