Home / Matrix Switchers & Splitters / StarTech.com ST124HDVW 2x2 HDMI Video Wall Controller

StarTech.com

StarTech.com ST124HDVW 2x2 HDMI Video Wall Controller

Name: StarTech.com ST124HDVW 2x2 HDMI Video Wall Controller
Brand: StarTech.com
SKU: ST124HDVW
Price: 898.79 GBP
Availability: OutOfStock

£898.79inc. VAT

£748.99 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £299.60 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

HDMI Input1 (HDMI 2.0)

HDMI Outputs4 (HDMI 2.0)

Supported Input ResolutionUp to 4096 x 2160 at 60 Hz

AudioHDMI 7.1 channel

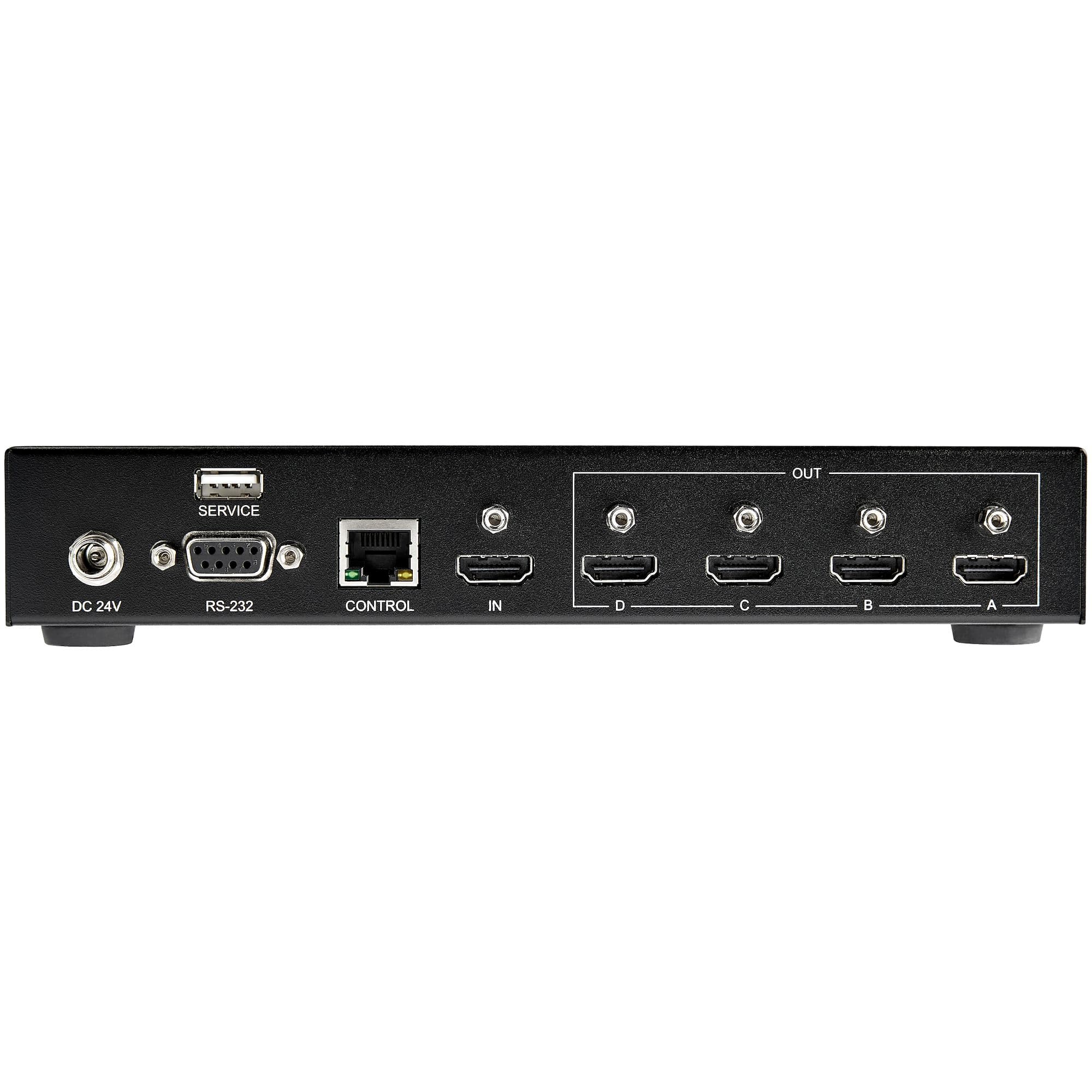

Control Connectors1 x RJ-45, 1 x DB-9 serial, 1 x USB-A

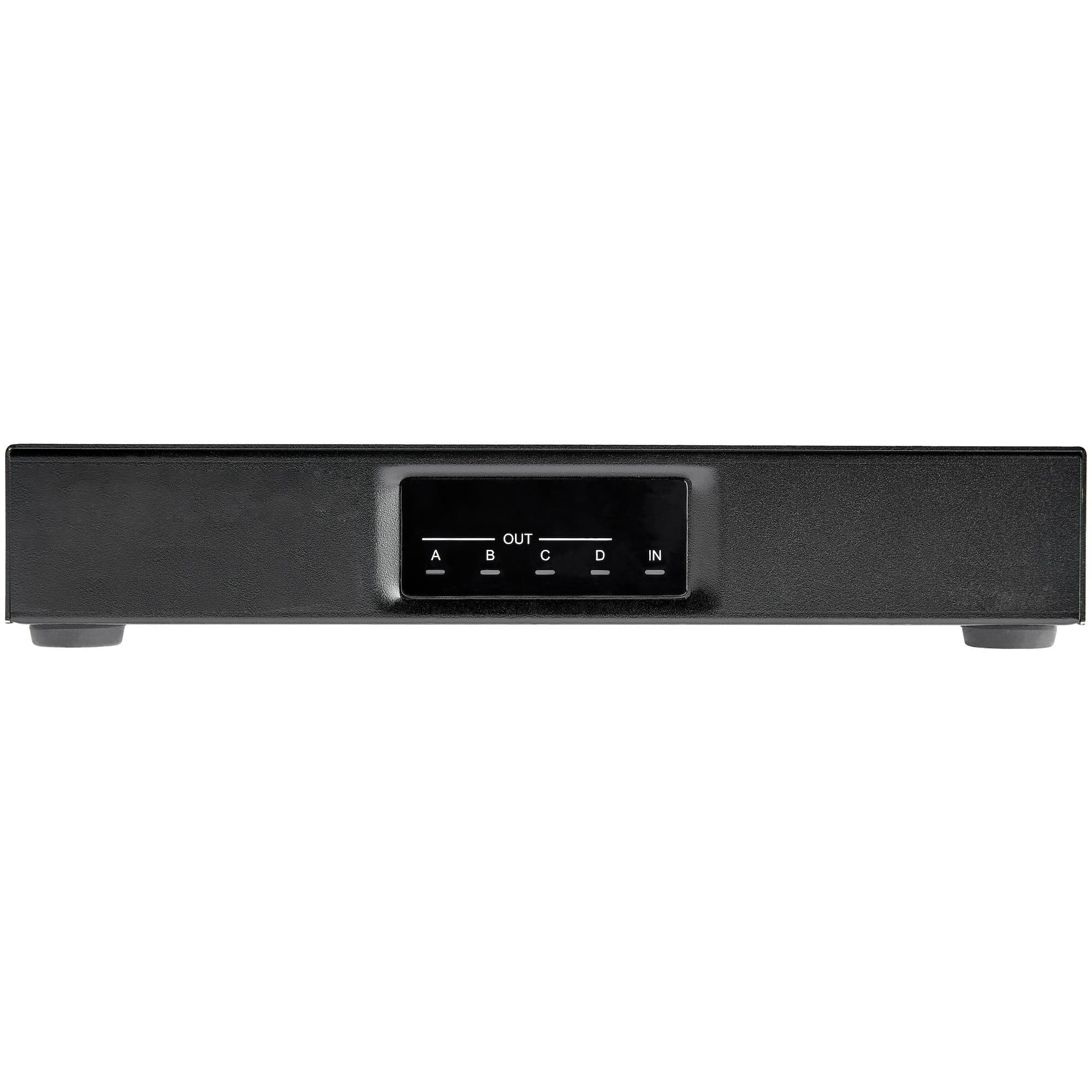

LED Indicators1 video input, 4 video output

Power SupplyAC adapter included, 100-240 V AC in, 24 V DC 1.25 A out

Product Dimensions21.2 x 15.8 x 4.5 cm

All 14 specifications

Description

The ST124HDVW takes a single 4K 60Hz HDMI input and splits it into four 1080p HDMI outputs to build a 2x2 video wall. Because the splitting and scaling are done in hardware rather than by a PC graphics driver, the wall comes up the same way every time and does not depend on the source machine's display settings.

Full specifications Datasheet Compare alternatives

The 2x2 layout is pre-configured out of the box, and EDID emulation lets the source detect the wall correctly and send the right video format. Bezel compensation adjusts the image so that the picture lines up across the gaps between the panels. Other layouts are available too, including 1x1, 1x4 and mirrored duplication.

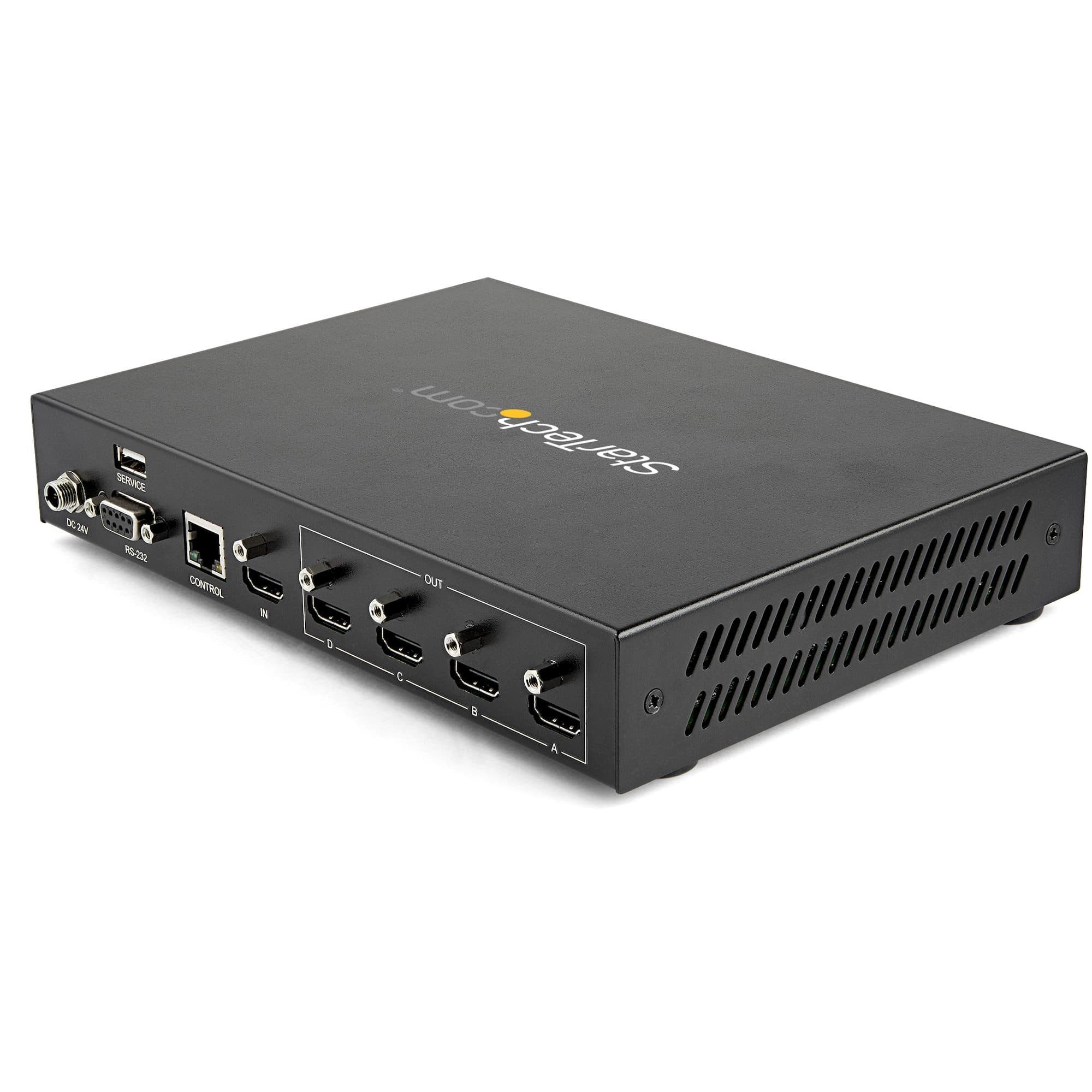

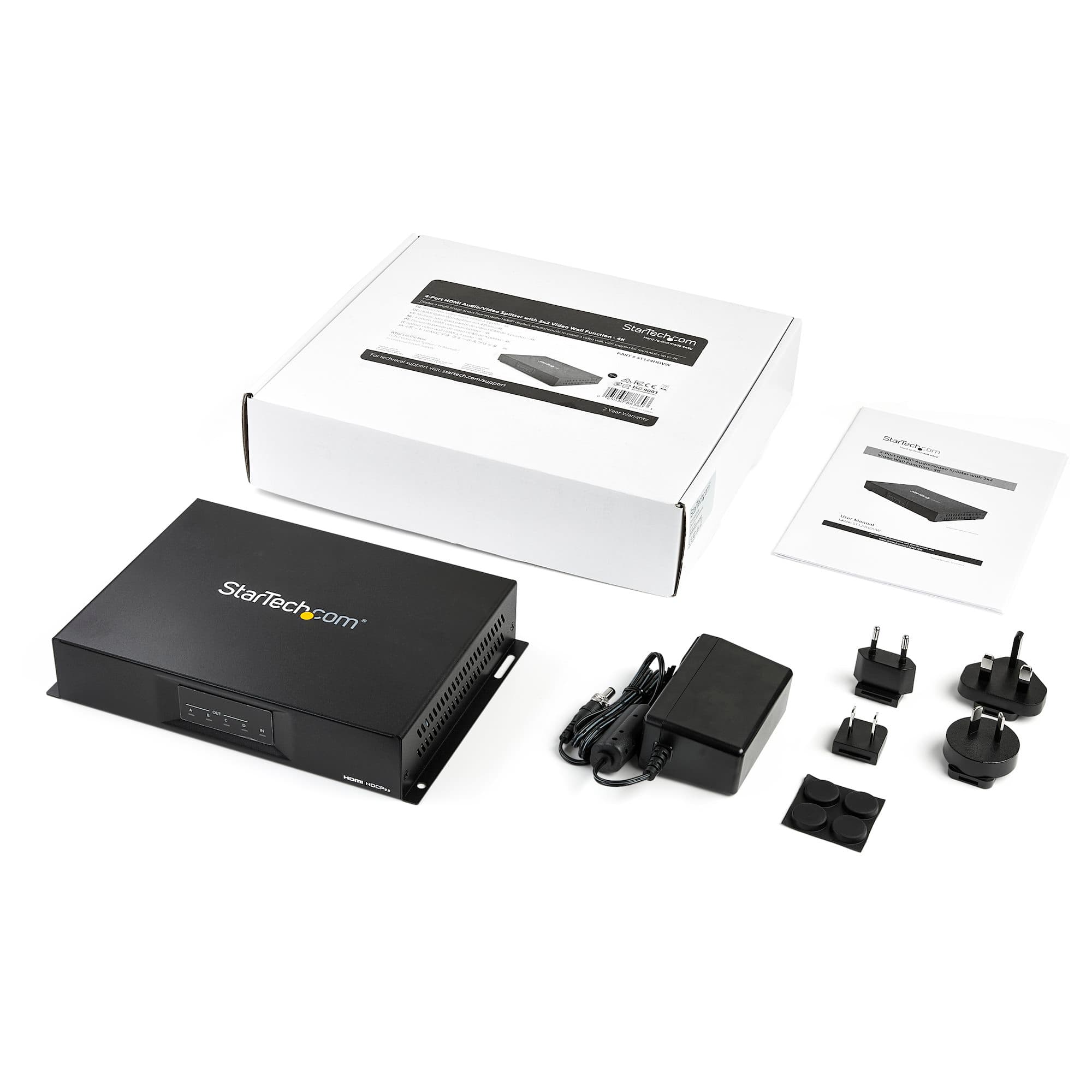

RS232 and Ethernet ports allow configuration and switching from a Windows application, command line, Telnet or UDP. The ventilated steel housing has built-in mounting brackets for wall or surface mounting and supports screw-locking cables. A universal power supply is included and StarTech.com provides a two-year warranty.

Key features

Hardware 2x2 wall processing

Splits and scales a 4K 60Hz input into four 1080p outputs without relying on the source PC's graphics driver.

Bezel compensation

Adjusts the image across the panel gaps so lines and text stay continuous over the wall.

Several layouts

2x2, 1x1, 1x4 and mirror-duplication modes, with the 2x2 wall pre-configured by default.

Serial and IP control

RS232 and Ethernet ports for control by Windows application, command line, Telnet or UDP.

Technical specifications

Display

Supported Input ResolutionUp to 4096 x 2160 at 60 Hz

Connectivity

HDMI Input1 (HDMI 2.0)

HDMI Outputs4 (HDMI 2.0)

Control Connectors1 x RJ-45, 1 x DB-9 serial, 1 x USB-A

Audio

AudioHDMI 7.1 channel

Power & Physical

Product Dimensions21.2 x 15.8 x 4.5 cm

Weight1.0 kg

MaterialSteel

ColourBlack

Certifications & Warranty

Warranty2 years

General

LED Indicators1 video input, 4 video output

Power SupplyAC adapter included, 100-240 V AC in, 24 V DC 1.25 A out

Operating Temperature0 to 40 degrees C

Humidity20% to 90% RH non-condensing

Documents

StarTech.com ST124HDVW 2x2 HDMI Video Wall Controller datasheet (PDF)
