Kramer
Kramer MC3-2H-2T 4K60 HDMI/HDBT 2xIN + 2xOUT Scaling Card
£2,973.60inc. VAT
Out of stock
Kramer
Kramer VS-66H2 6x6 4K60 HDMI Matrix
£2,973.60inc. VAT
£2,478.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
Inputs - 6 HDMIOn female HDMI connectors
Outputs - 6 HDMIOn female HDMI connectors
Ports - 1 USBOn a mini-USB connector for device firmware upgrade or management
Ports - 1 RS-232On a 3-pin terminal block connector
Ports - 1 EthernetOn an RJ-45 female connector for device control and management
Ports - 1 5V/2A USBOn a female USB-A connector for powering another device
Video - Max. Output Resolution4K@60Hz (4:4:4)
Video - Max Data Rate18Gbps bandwidth (6Gbps per graphic channel)
Description
VS-66H2 is a high-quality matrix with six HDMI inputs independently routable to six HDMI outputs. Integrated audio matrix, enable independent and flexible audio and ARC extraction, insertion and routing between any HDMI port. Manufacturer part number VS-66H2.
Key features
Flexible and Safe Matrix Routing - Clean switching between inputs
Flexible and Safe Matrix Routing - Clean switching between inputs, with smooth and safe transition between presented content on displays, for convenient presentation experience of end-users.
Auto Switcher Ease of Use - Automatically plays the switched source
Auto Switcher Ease of Use - Automatically plays the switched source signal on the connected display according to user-configured preferences, such as priority or last-connected input.
HDMI Signal Switching - HDCP 2.2 compliant, supporting deep color
HDMI Signal Switching - HDCP 2.2 compliant, supporting deep color, ARC, up to 7.1 uncompressed audio channels, and 3D, as specified in HDMI 2.0.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Individual EDID
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Individual EDID management per input for flexibly capturing and storing EDID from output-connected displays or custom files. Intelligent EDID handling and processing ensures plug & play operation for HDMI source and display systems.
Independent Audio Breakaway and Routing - The digital audio signals
Independent Audio Breakaway and Routing - The digital audio signals passing through to the selectable outputs, and ARC (Audio Return Channel) signals from the output-connected displays, are extracted, converted to analog audio signals, and input to the built-in audio matrix. Flexible matrix routing enables insertion of any audio input signal to any AV matrix output port.
Simple Control - Remote IP-controller connection, browser operation
Simple Control - Remote IP-controller connection, browser operation webpage, or local panel buttons, and multiple preset configurations, for easy and fully flexible user ports selection, signals routing, and matrix control.
Secured Web-UI Operation - User credentials authentication for
Secured Web-UI Operation - User credentials authentication for secured web-UI access and operation.
Comprehensive Management - Local panel-button operation, remote
Comprehensive Management - Local panel-button operation, remote IP-driven firmware upgrade and management via user-friendly embedded web pages, built-in test video patterns for outputs and displays diagnostics, and remote IP or local serial service and management via API commands and responses communication, for flexible service options and ensure lasting, field proven deployment.
Easy and Elegant Installation - 19" enclosure for rack mounting in a
Easy and Elegant Installation - 19" enclosure for rack mounting in a 1U rack space with included rack ears and universal 100-240V AC power supply.
Technical specifications
Display
Video - Max. Output Resolution4K@60Hz (4:4:4)
Control - Front PanelButtons for device operation, (for example, input/output selection)
Connectivity
Inputs - 6 HDMIOn female HDMI connectors
Outputs - 6 HDMIOn female HDMI connectors
Ports - 1 USBOn a mini-USB connector for device firmware upgrade or management
Ports - 1 RS-232On a 3-pin terminal block connector
Ports - 1 EthernetOn an RJ-45 female connector for device control and management
Ports - 1 5V/2A USBOn a female USB-A connector for powering another device
Audio
Audio - Matrix Size16x16
Audio - Routable SignalsBreakaway forward/ARC signals
Power & Physical
Enclosure - Size19", 1U
General - Net Dimensions (W, D, H)43.6cm x 18.3cm x 4.4cm
Certifications & Warranty
Video - ComplianceDeep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
General
Video - Max Data Rate18Gbps bandwidth (6Gbps per graphic channel)
Video - Content ProtectionHDCP 2.2
Video - Max. Switching TimeStandard Mode: 3sec
Control - Indicators7 segment display
Power - Source100-240V AC, 50/60Hz
Power - Consumption66VA
Enclosure - TypeAluminum
Enclosure - CoolingFAN ventilation
Enclosure - Max. Noise46dBA
Environmental Conditions - Operating Temperature0° to +40°C (32° to 104°F)
Environmental Conditions - Storage Temperature-40° to +70°C (-40° to 158°F)
Environmental Conditions - Humidity10% to 90%, RH non-condensing
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Kramer

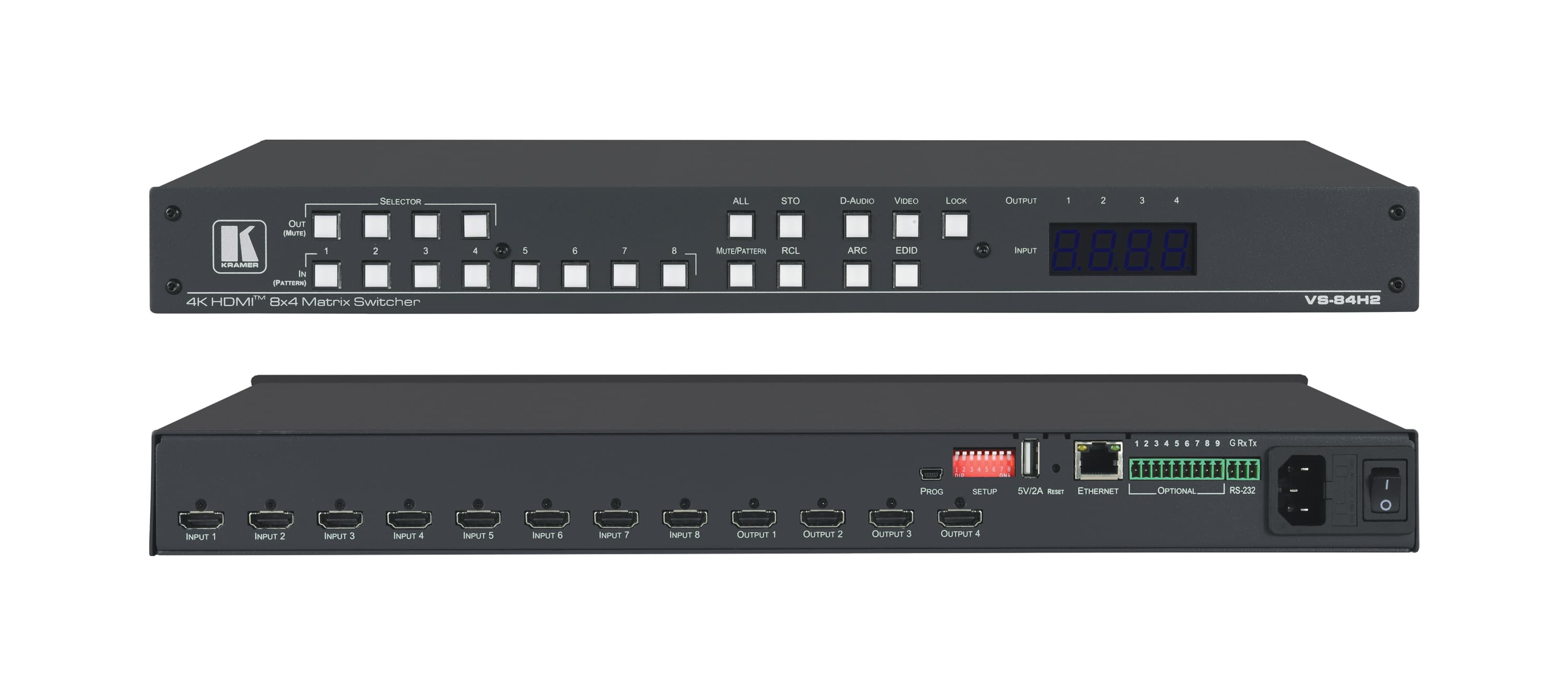

Kramer VS-84H2 8x4 4K60 HDMI Matrix
