SMART · SMART Board MX (V5) series

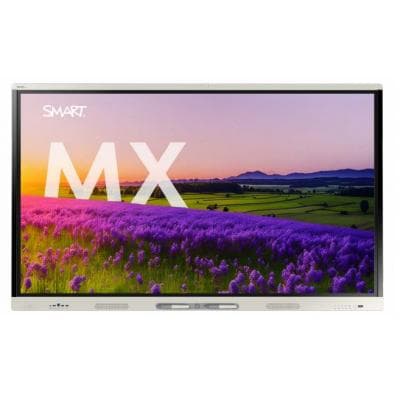

SMART MX265-V5-5A 65-inch 4K interactive display
SMART Platinum Partner
We work closely with SMART Technologies to secure competitive pricing for your project.
Buying multiple displays? Ask us for a tailored deal.
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
A 65-inch 4K interactive display for teaching spaces, with SMART's iQ Android system built in, HyPr Touch tracking up to 50 touch points, optically bonded 400 cd/m2 glass, two 20W speakers and a rear OPS slot for a Windows module.
TopAV buying advice
Is the SMART MX265-V5-5A right for your classroom?
For a compact classroom where pupils still need to write on the board themselves.
Shortlist the 65-inch MX for a smaller or shallower classroom, a primary base room or a training space where the group sits reasonably close to the board but you want more writing width than the 55-inch gives you. It is the first size in the series to use the brighter 400 cd/m2 panel behind optically bonded glass, so it holds up in a room with windows. Measure the furthest seat before you settle: a standard-depth classroom usually reads better on the 75-inch MX275-V5, and at 40kg the 65-inch is the easiest size in the range to put on a mobile stand.
Reasons to shortlist it
- HyPr Touch with Advanced IR tracks up to 50 touch points and tells pen, finger and eraser apart at the same time, with 1 mm accuracy, a 2 mm minimum object size and a typical touch response under 5 ms, so several pupils can write and wipe together.
- The 65-inch panel runs at 400 cd/m2 behind optically bonded, anti-glare, anti-fingerprint glass, the same treatment used on the 75 and 86-inch sizes, which keeps ink looking like it sits on the surface and holds contrast in daylight.
- The iQ system runs the lesson without a laptop on 8GB of DDR4 memory and 64GB of storage, expandable to 576GB with a microSD card, and the Google Play Store is available on a Google Play Protect Certified build.
- Four HDMI 2.1 inputs (one front, three rear), a front USB-C carrying video, touch and 27W of charge, a rear USB-C at 65W and a rear OPS slot taking an 85W SMART PCM module, so a visiting laptop and a fixed PC can both stay connected.
- We are a SMART Platinum partner, so warranty claims and replacements go through us rather than a queue.
Check before you choose
- 65 inches suits a compact or shallow room. In a standard-depth classroom the back row often needs the 75-inch MX275-V5, and a hall or an upper-school space usually needs the 86-inch model, so choose on viewing distance rather than room capacity.
- Budget separately for the mount, installation and any Windows OPS module, camera or Tool Explorer accessory kit. The box holds the display, two pens, a remote with batteries, the antennas, two SMART ID cards, a power cable, a 5m USB A to B cable and a 1.8m USB-C cable.
- The front USB-C port delivers 27W, which is enough for a small notebook but not for a laptop that expects 60W or more; that machine will still need its own charger, or the 65W rear USB-C port. Confirm Android version, Google or Microsoft account policy and any 802.1X network requirements with your IT team before rollout.
See the 65" on your wall, to scale
On a phone, point your camera at the wall and see the 65" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 65" is the right size for the room? The screen size calculator shows how far a 65" display carries for presentations, touch work and video.
What to plan before installing the MX265-V5-5A
01
Size & sightlines
Measure the longest viewing distance and the smallest text pupils need to read, and allow space around the display for pupils to reach the lower part of the glass. At 65 inches, check the back row against the 75-inch model before you commit.
02
Mount & connections
Check wall construction, mounting height, a mains socket and a data point. The panel weighs 40kg, so confirm the wall or stand is rated for it, and consider a height-adjustable mount so younger pupils can reach the writing area. SMART lists a 600 x 400 mm (M8) VESA pattern.
03
Software & installation
Decide whether lessons run on the built-in iQ system or a connected laptop, and confirm SMART Notebook, account sign-in and app licences with your IT team. Tell us if you need mounting, cabling, a camera or an OPS PC module.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the MX265-V5-5A needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
SMART MX265-V5-5A vs MX275-V5-5A: 65-inch or 75-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | MX265-V5-5A | MX275-V5-5A |
|---|---|---|
| Screen Size | 65 in | 75 in |
| Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Touch Points | 50 points | 50 points |
| Brightness | 400 cd/m² | 400 cd/m² |
| USB-C Power Delivery | 27 W (front port) | 27 W (front port) |
| Speakers | 2 x 20W integrated | 2 x 20W integrated |
Specifications checked on 13 September 2026: SMART Board MX series (opens in a new tab) and SMART MX (V5) series specifications (PDF) (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 65-inch display to scaleSMART MX265-V5-5A specifications and documents
SMART specifications (opens in a new tab)Choose a section to view its specifications.
Display (7)
- Screen Size
- 65 in
- Resolution
- 3840 x 2160 (4K UHD)
- Brightness
- 400 cd/m²
- Touch Points
- 50 points
- Touch Technology
- HyPr Touch with Advanced IR
- Aspect Ratio
- 16:9
- Backlight Life
- 50,000 hours
Connectivity (3)
- USB-C Power Delivery
- 27 W (front port)
- USB-C Ports
- 3 (1 front input 27W, 1 rear input 65W, 1 rear output 4.5W)
- HDMI Inputs
- 4 (1 front, 3 rear), HDMI 2.1 4K 60Hz
Audio (2)
- Speakers
- 2 x 20W integrated
- Microphone
- Integrated linear six-microphone array with onboard acoustic echo cancellation
Power & Physical (5)
- Size Band
- 65 - 79"
- Power Consumption
- 90 W (typical)
- VESA Mount
- 600 x 400 mm (M8)
- Weight
- 40 kg
- Shipping Weight
- 56 kg
Certifications & Warranty (1)
- Warranty
- 5 years SMART Assure (UK & Ireland)
General (10)
- Orientation
- Landscape
- Operating System
- iQ embedded Android 15 (supports automatic update to Android 17)
- RAM
- 8 GB DDR4
- Storage
- 64 GB (expandable to 576 GB via microSD)
- OPS Slot
- Yes, 1 rear (SMART PCM modules, 85W)
- Glass
- Full heat-tempered, anti-glare, anti-fingerprint, optically bonded
- NFC Reader
- Integrated RFID NFC reader/writer (ISO 14443A/B, ISO 15693, NFC Tag 1-4)
- Sensors
- Ambient light, infrared, proximity (proximity on some models only)
- Manufacturer part number
- MX265-V5-5A
- GTIN
- 0628012403307
Specifications are SMART's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
SMART MX265-V5-5A questions answered
Who is the SMART Board MX265-V5 best suited to?
Consider it for a compact or shallow classroom, a primary base room or a training space where the group sits close enough to read a 65-inch screen comfortably. Check the furthest seat first; a standard-depth classroom usually needs the 75-inch MX275-V5, and a hall needs the 86-inch model.
Does the MX265-V5 need a computer to work?
No. The iQ system is built into the display, with a digital whiteboard, web browser, screen sharing and the Google Play Store, so it runs lessons on its own. A laptop connects over USB-C or HDMI when you want to teach from your own files, and a SMART PCM module can be fitted in the rear OPS slot for a fixed Windows PC.
How many pupils can use the board at once?
SMART lists up to 50 touch points, depending on the operating system in use, with pen, finger and eraser told apart at the same time. On a 65-inch panel that realistically means three or four pupils writing side by side rather than a whole group.
Can I connect a laptop with a single USB-C cable?
Yes, with a caveat about power. The front USB-C port carries video, touch data and 27W of power delivery, and the rear USB-C port carries 65W. A laptop that draws more than the port supplies will charge slowly or need its own mains adapter, and your laptop and cable must support DisplayPort over USB-C.
What is the difference between the 65-inch MX265-V5 and the 55-inch MX255-V5?
Size, brightness, glass and speakers. The 65-inch runs at 400 cd/m2 behind optically bonded glass with two 20W speakers, while the 55-inch runs at 300 cd/m2 with plain anti-glare glass and two 15W speakers. Resolution, touch system, memory, storage and ports are the same on both.
How does the 65-inch compare with the 75-inch MX275-V5?
They differ only in size, power draw and weight. Both run at 400 cd/m2 behind optically bonded glass with two 20W speakers, 50 touch points and the same ports; the 65-inch draws 90W typical and weighs 40kg, against 103W and 54kg for the 75-inch. Choose on viewing distance and on what the wall or stand can carry.
How much memory and storage does it have?
8GB of DDR4 memory and 64GB of storage, expandable to 576GB with a microSD card in the rear slot, as listed on SMART's MX (V5) specification sheet.
What sound and microphone hardware is built in?
Two 20W speakers and a linear six-microphone array with onboard acoustic echo cancellation. That covers lesson playback and video calls in a normal classroom without a separate soundbar, though a hall or an acoustically difficult room may still want additional audio.
Does it include a camera, a Windows PC or the Tool Explorer kit?
Treat all three as separate items. SMART lists the Ultra HD Camera 120, its PCM OPS modules and the MultiStylus with Tool Explorer kit as optional accessories, and the display's rear OPS slot and USB ports are there to take them. Ask for a quote that names the camera, PC module, accessory kit and mount you need.
What power does the MX265-V5 draw?
SMART lists 90W typical for the 65-inch size and 0.2W in standby, and the display carries ENERGY STAR and EPEAT listings. Other sizes in the series draw different amounts, so use the figure for the size you are actually buying when you plan circuits.
Can TopAV quote for installation and school purchase orders?
Yes. Request a project quote for mounting, cabling and installation, which is quoted separately from the display. Approved education customers can apply for purchase-order terms; eligibility and credit terms are subject to approval.
