iiyama · iiyama ProLite TN05 series

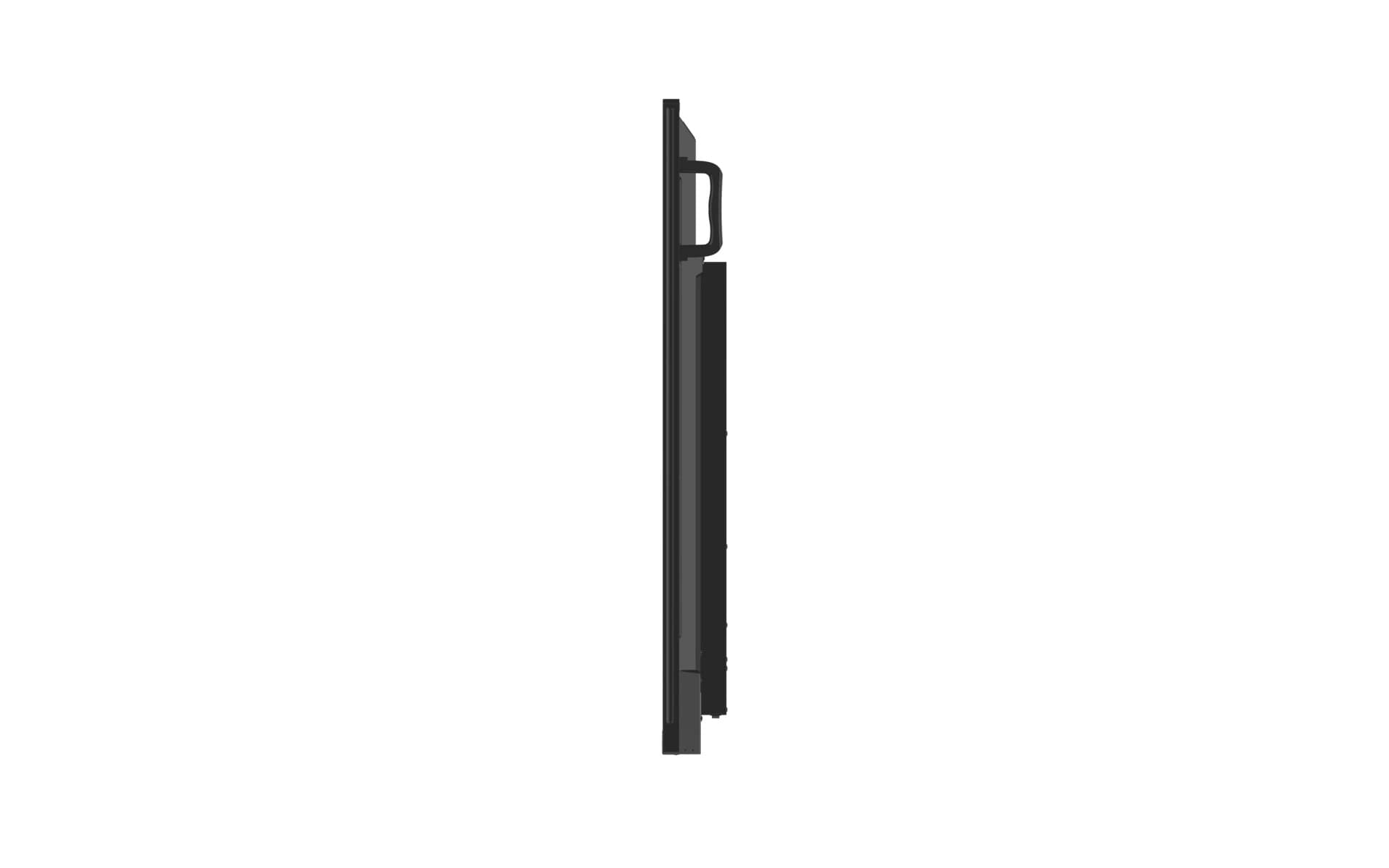

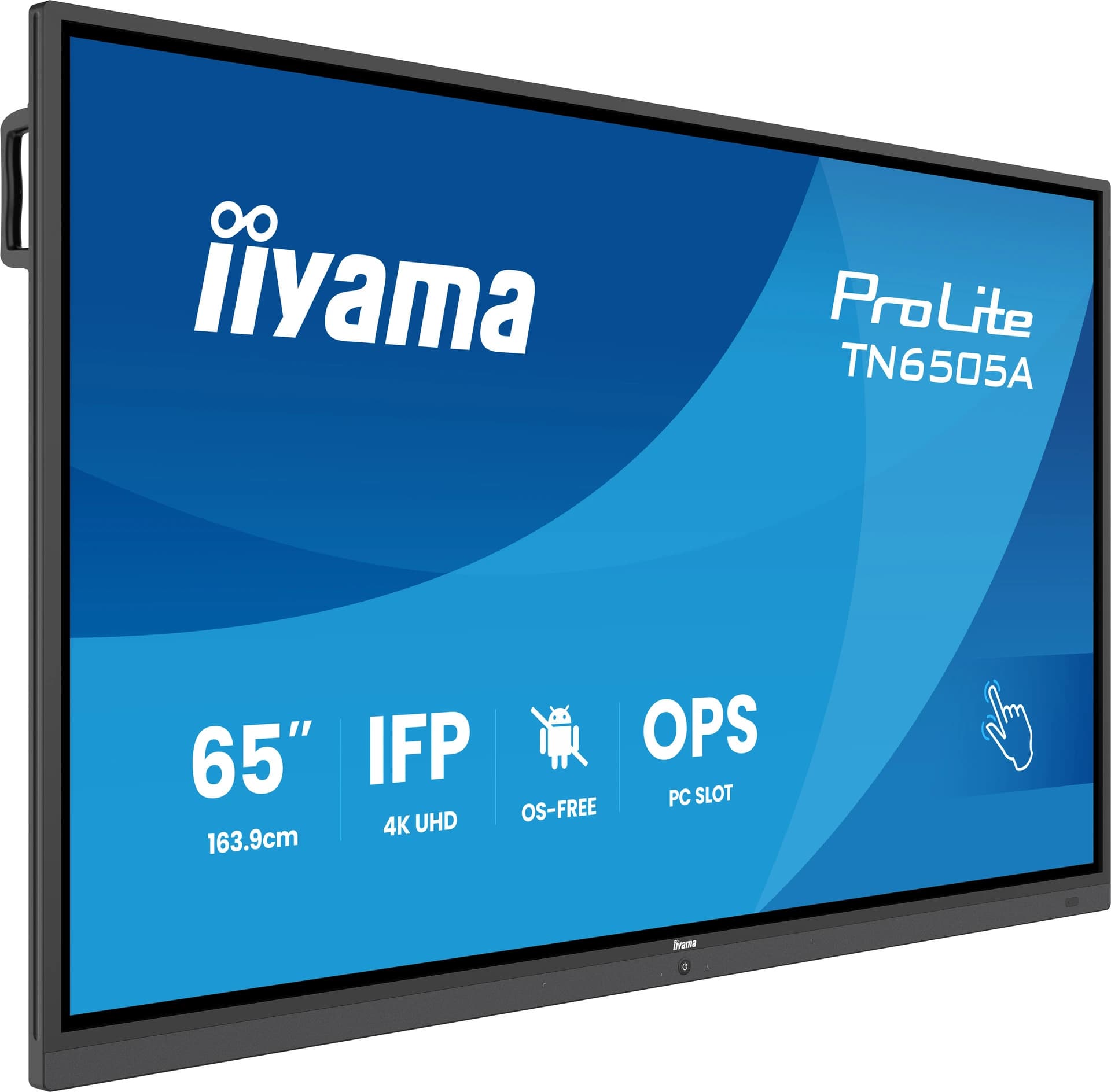

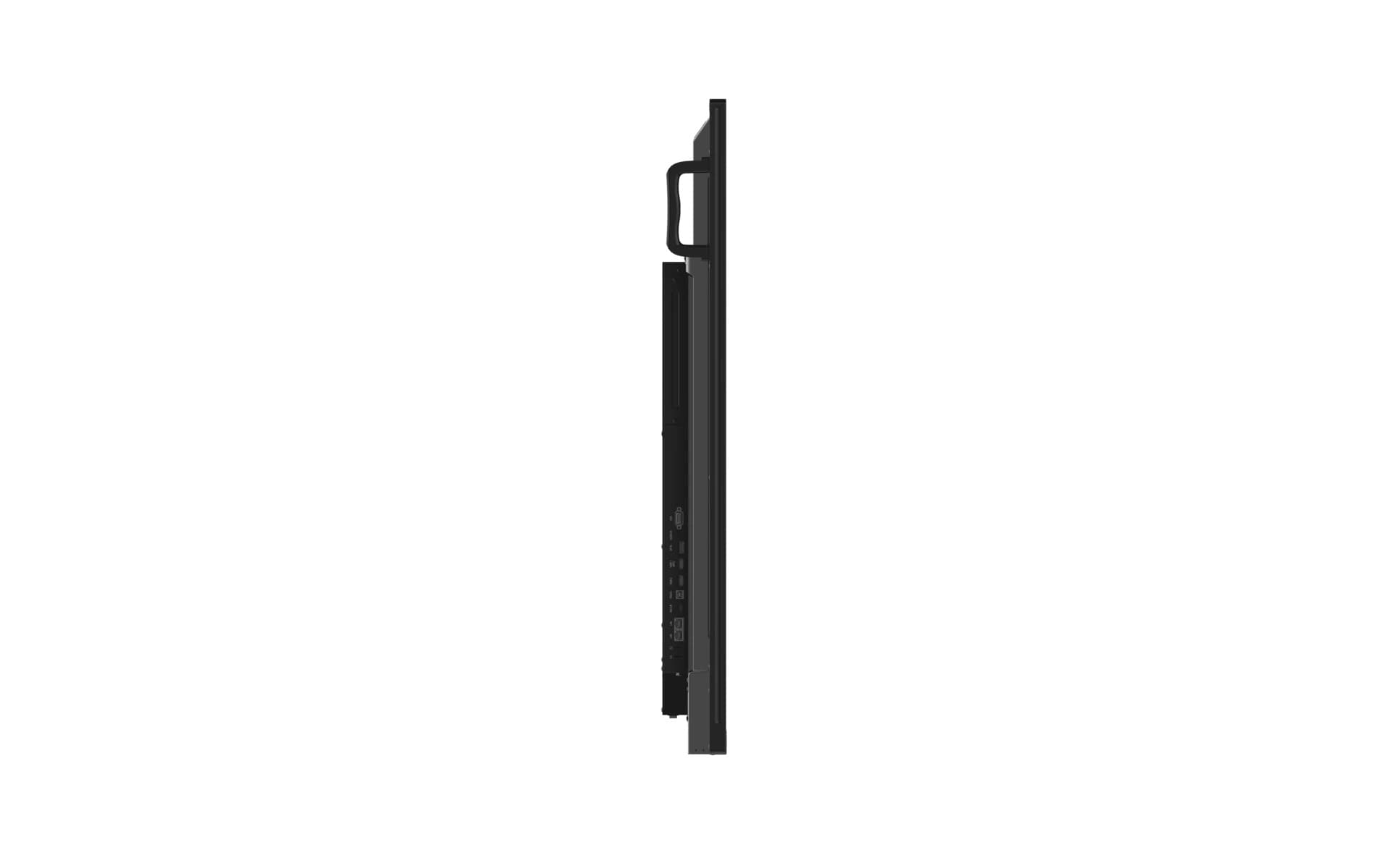

iiyama TN6505A-B1AG 65-inch 4K interactive display
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £347.37 with PayPal Pay in 3.
Independently reviewed on TrustpilotSeen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
A 65-inch 4K touch display that ships with no operating system, so the compute comes from an Intel OPS module or your own PC, with 40-point DeepContrast-IR+ touch, USB-C carrying video, touch and 65W of charge, and RS-232 and dual LAN control.
TopAV buying advice
Is the iiyama TN6505A-B1AG right for your meeting room?
For IT teams that will not put a vendor operating system on their network.
Shortlist the TN6505A where the display has to be a display and nothing else. There is no vendor system on the panel to enrol, patch or give a network account to, so the only software in the room is software you already approve: an Intel OPS80 module in the rear slot, or an external PC on HDMI, DisplayPort or USB-C. That suits banks, courts, defence, healthcare, central government and corporate IT, where a screen that reaches the internet on its own is a procurement problem rather than a feature. At 65 inches it suits a standard meeting room; check the furthest seat against the smallest text you use before ruling out the 75-inch model.
Reasons to shortlist it
- There is no operating system on the panel, so nothing on it has to be patched, enrolled, licensed or given a network account. The compute is whatever your IT team approves: an Intel OPS80 module in the rear slot, or an external PC on HDMI, DisplayPort or USB-C.
- One USB-C cable carries DisplayPort video, touch data and 65W of charge to a laptop, and two HDMI inputs with CEC/ARC, DisplayPort and a VGA input sit alongside it for fixed and older sources.
- DeepContrast-IR+ tracks 40 touch points with palm rejection and plus or minus 1mm accuracy on anti-glare, anti-bacterial glass, and four styluses are in the box, so a group can mark up a live source instead of passing a mouse around.
- RS-232, two RJ45 ports wired in and out, and an IR loop through let a control system drive the panel and pass commands on to the next screen, which is what an estate needs when nobody is standing at the display.
- Two 20W speakers with a 20W subwoofer, a fanless chassis and a 500 cd/m2 IPS panel running at 450 cd/m2 typical, so a room gets usable sound and a readable picture with no fan noise and no separate soundbar.
Check before you choose
- Nothing runs until you supply a source. Budget for the Intel OPS module or the PC that will drive the panel, its licence and its own support, and decide which of your standard images goes on it.
- 65 inches suits a standard meeting room. For a boardroom, a deep training room or a lecture space, compare viewing distances against the 75-inch and 86-inch models first, and plan for a 41.1 kg panel that is a two-person lift at minimum.
- Touch arrives over USB as HID, and iiyama qualifies the 40-point figure as applying only with a supported operating system. Confirm the touch driver and the usable point count against the exact Windows or Linux build your organisation runs before rollout.
See the 65" on your wall, to scale
On a phone, point your camera at the wall and see the 65" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 65" is the right size for the room? The screen size calculator shows how far a 65" display carries for presentations, touch work and video.
What to plan before installing the TN6505A-B1AG
01
Size & sightlines
Measure the longest viewing distance and the smallest text people have to read, then check that a presenter can reach the lower part of the writing area from the floor.
02
Mount & connections
Check the wall construction, the mounting height, power and data, and plan the lift and the access route for a panel of this weight. Decide which of the two HDMI inputs, DisplayPort, VGA or USB-C your fixed sources will use, and whether you need the RJ45 and RS-232 runs for control. iiyama lists a 600 x 400 mm VESA pattern.
03
Compute & control
Decide now what will drive the panel: an Intel OPS80 module in the rear slot, an existing room PC, or laptops over USB-C. Agree the image, the patching and the support for that machine with your IT team, because the display itself provides none. Tell us if you need installation or cabling.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the TN6505A-B1AG needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
iiyama TN6505A-B1AG vs TN7505A-B1AG: 65-inch or 75-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | TN6505A-B1AG | TN7505A-B1AG |
|---|---|---|
| Screen Size | 65 in | 75 in |
| Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Brightness | 450 typical (panel 500) cd/m² | 450 typical (panel 500) cd/m² |
| Operating System | None (OPS slot for customer-supplied PC) | None (OPS slot for customer-supplied PC) |
| Speakers | 2 x 20W with 20W subwoofer | 2 x 20W with 20W subwoofer |
| VESA Mount | 600 x 400 mm | 800 x 400 mm |
Specifications checked on 13 September 2026: iiyama ProLite TN6505A-B1AG (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 65-inch display to scaleiiyama TN6505A-B1AG specifications and documents
iiyama specifications (opens in a new tab)Choose a section to view its specifications.
Display (10)
- Panel
- IPS, AG coating & Anti-Bacteria coating, haze 25%
- Touch accuracy
- +- 1mm
- Touch interface
- USB
- Screen Size
- 65 in
- Resolution
- 3840 x 2160 (4K UHD)
- Aspect Ratio
- 16:9
- Brightness
- 450 typical (panel 500) cd/m²
- Contrast Ratio
- 1200:1
- Touch Technology
- DeepContrast-IR+
- Touch Points
- 40pt (HID, only with supported OS)
Connectivity (14)
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Analog signal input
- VGA x1 (FHD)
- Digital signal input
- HDMI x2 (CEC/ARC)DisplayPort x1USB-C x1 (Power Delivery 65W, DP-Alt, Data, Touch)
- Audio input
- Mini jack x3.5 mm
- Monitor control input
- RS-232c x1RJ45 (LAN) x2 ((in/out))
- Digital signal output
- USB-C x1
- Audio output
- Mini jack x1Speakers 2 x 20W (Subwoofer 1x 20W)
- Monitor control output
- RS-232c x1IR loop through x1OPS Slot x1 (Intel OPS80 standard)
- USB ports
- x1 2.0 (2x 3.2 (USB-B up for touch HDMI1/DP/VGA))
- RJ45 (LAN)
- x2
- OSD languages
- EN, DE, FR, ES, IT, RU, JP, NL
- RS232 commands list
- TNxx05A_RS232_LAN_website.zip
- USB-C Power Delivery
- 65 W
- HDMI Inputs
- 2 (CEC/ARC)
Audio (1)
- Speakers
- 2 x 20W with 20W subwoofer
Power & Physical (4)
- Product dimensions W x H x D
- 1489.1 x 911.8 x 118.6mm
- Power Consumption
- 146 typical, 0.5 standby, 0.3 off W
- VESA Mount
- 600 x 400 mm
- Weight
- 41.1 kg
Certifications & Warranty (1)
- Warranty
- 5 years iiyama VisionCare (onsite exchange, mainland UK and Ireland)
General (34)
- Response time (GTG)
- 5ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Horizontal Sync
- 30 - 135kHz
- Viewable area W x H
- 1428.5 x 803.5mm, 56.2 x 31.6"
- Palm rejection
- yes
- RS-232c
- x1
- Integrated software
- No Operating System
- PiP
- yes
- PbP
- yes
- Max. non-stop operating time
- 16/7 (We recommend usage not exceeding 16 hours per day to ensure optimal product longevity.)
- Glass thickness
- 3.2mm
- Glass hardness
- 7H
- Housing (bezel)
- metal
- User controls
- Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast.
- Fanless design
- yes
- Operation temperature range
- 0°C - 40°C
- Storage temperature range
- - 20°C - 60°C
- Cables
- power, HDMI, RS-232c
- Other
- 4x Stylus, Webcam bracket, Wall mount, HDMI 3m, USB 3m, WP-MEET03M
- Power supply unit
- internal
- Regulations
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
- Energy efficiency class (Regulation (EU) 2017/1369)
- G
- REACH SVHC
- above 0.1%: Lead
- EAN code
- 4948570127061
- User manual
- TN65_75_8605A-B1AG -usermanual-e.pdf
- Technical specification
- TN65_75_8605A-B1AG.jpg
- UK Energy Label
- TN6505A-B1AG UK Energy Label (2531007).pdf
- EU Energy Label
- TN6505A-B1AG EU Energy Label (2531007).pdf
- Operating System
- None (OPS slot for customer-supplied PC)
- Orientation
- Landscape
- OPS Slot
- Yes (Intel OPS80 standard)
- Glass
- Anti-glare and anti-bacterial coating, haze 25%, 3.2mm
- Manufacturer part number
- TN6505A-B1AG
- GTIN
- 4948570127061
Specifications are iiyama's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
iiyama TN6505A-B1AG questions answered
Who is the iiyama ProLite TN6505A best suited to?
Consider it for a meeting room, a boardroom, a control room or a training space in an organisation that controls what runs on its own hardware. It is aimed at IT, security and compliance teams who want a touch screen without a vendor system attached to it. At 65 inches it suits a standard room, so check the furthest seat against the smallest text you use before you settle on the size.
Does the TN6505A need a computer to work?
Yes, and that is deliberate. iiyama lists the integrated software for this range as no operating system, so the panel shows and responds to whatever source you connect. That source is either an Intel OPS80 module fitted in the rear slot or an external PC on HDMI, DisplayPort or USB-C. The panel will show a connected source and pass touch back to it out of the box, but it runs no apps of its own.
Why would I want a display with no operating system?
Because it removes a managed device from the wall. There is no vendor account to create, no app store to police, no firmware platform to keep patched and nothing on the panel asking for outbound network access. The security review covers the PC or OPS module you already own and already patch. That is why this range is bought by banks, courts, defence and public-sector IT rather than by classrooms.
Can I connect a laptop with a single USB-C cable?
Yes. The USB-C port carries DisplayPort video, touch data and up to 65W of power delivery, so one cable drives the panel, returns touch to the laptop and charges it. Your laptop and your cable both have to support DisplayPort over USB-C, and a laptop that needs more than 65W will still want its own charger.
How many people can write on it at once?
iiyama lists 40 touch points for this model, qualified as HID and only with a supported operating system, with palm rejection and plus or minus 1mm accuracy. In practice the usable number depends on the machine you connect and its touch driver, so confirm it against your own Windows or Linux build if a particular number of simultaneous users matters.
Can the panel be controlled from a room control system?
Yes. There is an RS-232 input and an RS-232 output, two RJ45 ports wired as LAN in and LAN out, and an IR loop through, so a control processor can drive the display and daisy chain commands to the next one. iiyama publishes an RS-232 and LAN command list for the TN05 range, which is linked in the documents on this page.
What is in the box?
Four styluses, a webcam bracket, a wall mount, a 3 m HDMI cable, a 3 m USB cable and the power cable. There is no PC, no OPS module and no camera: the bracket is there to take a camera you supply. Ask for a quote that names the OPS module or camera you want rather than assuming either is included.
What audio is built in, and do I need a soundbar?
Two 20W speakers with a 20W subwoofer are built in, with a 3.5 mm audio input and a mini jack output if you want to feed a room system. For a standard meeting room that is usually enough on its own; a large or acoustically difficult room may still want a separate system.
How long can it run each day?
iiyama gives a maximum non-stop operating time of 16/7 for this panel and recommends not exceeding 16 hours a day to protect its life. That covers a working day in a meeting room or a reception with room to spare, but it is not the specification for a screen that is meant to stay on around the clock.
Should I choose the 65-inch TN6505A or the 75-inch TN7505A?
Choose by viewing distance and the smallest text people have to read, not by room capacity alone. Both share the same 4K resolution, the same DeepContrast-IR+ touch, the same 65W USB-C connection, the same audio and the same absence of an operating system, so the larger panel adds size rather than capability. The 75-inch model is heavier and draws more power, so check the wall, the access route and the sightline together.
