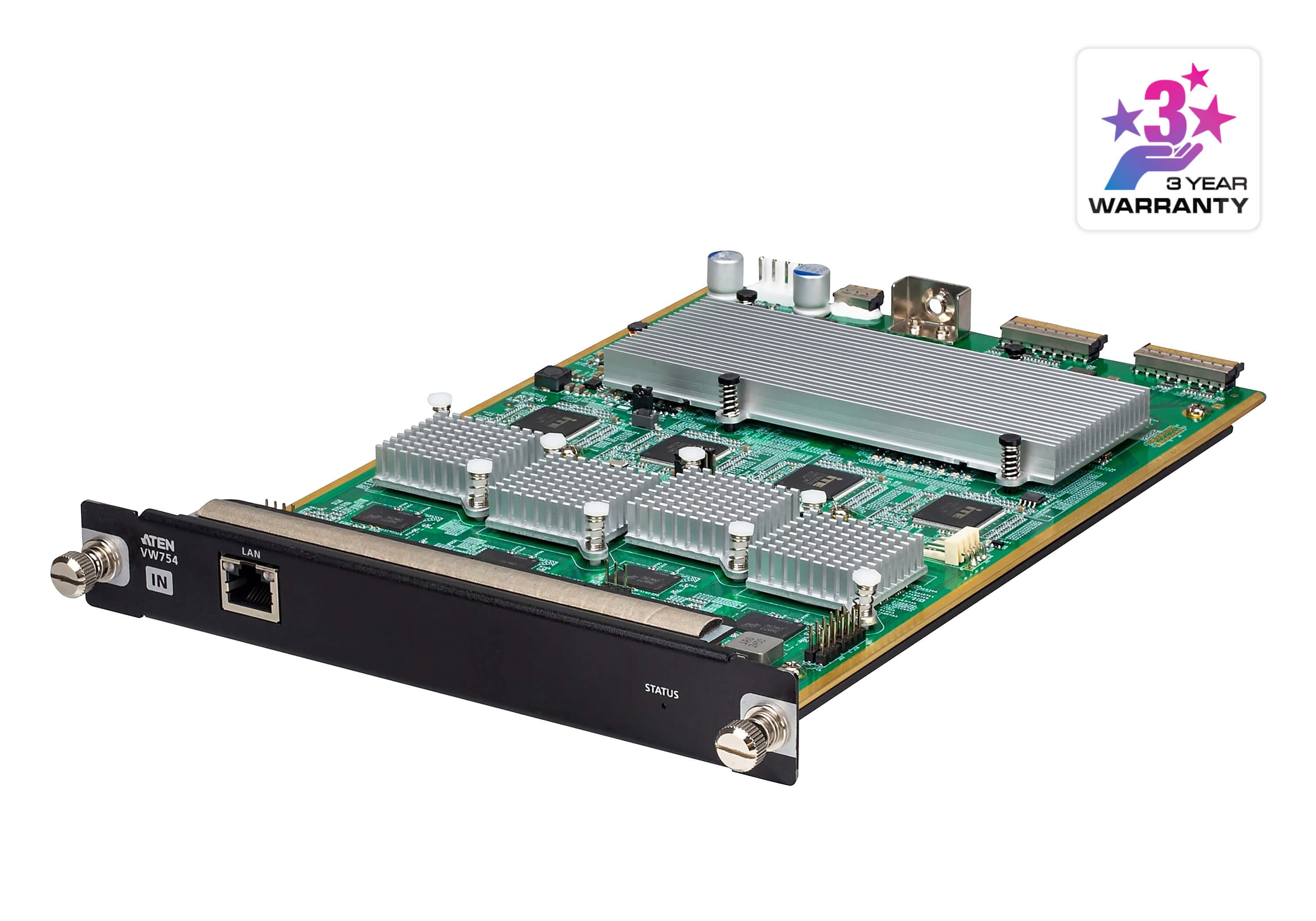

ATEN VW754 4-Channel 4K H.265 IP Stream Decoder Input Card
4K UHD
£8,778.06inc. VAT
Out of stock
ATEN
ATEN VM6809H 8 x 9 4K HDMI Matrix Switch with Scaler
£6,897.66inc. VAT
£5,748.05 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Inputs8 x HDMI Type A female
Video Outputs9 x HDMI Type A female
Maximum ResolutionUp to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0); 30 Hz (4:4:4)
Maximum Data Rate10.2 Gbps (3.40 Gbps per lane)
Maximum Pixel Clock340 MHz
HDCPHDCP 2.2 compatible
Audio Output1 x mini stereo jack female
Control Ports1 x RS-232 DB-9 female, 1 x RJ-45 Ethernet
Description
The VM6809H is built for video wall work: eight HDMI inputs and nine HDMI outputs, which is exactly the output count a 3 x 3 wall needs. A 4K signal can be split across four 1080p displays for a 2 x 2 wall or nine 720p displays for a 3 x 3, so an existing set of lower-resolution screens can still be driven from a 4K source.
The built-in 4K scaler converts each input to the native resolution of its display, Seamless Switch keeps the picture continuous through a source change, and FrameSync prevents tearing by locking the scaler output frame rate to the incoming signal. Layouts are configured in the web GUI and EDID Expert handles resolution negotiation.
The switch is managed from the front panel, over RS-232, or across the network by Telnet or web GUI, and it appears in the ATEN Video Matrix Control app. It is a rack-mountable metal chassis rated to 50 degrees C.
Key features
Nine outputs for a 3x3 wall
Eight HDMI inputs and nine HDMI outputs, sized for a three-by-three video wall from a single chassis.
4K wall from lower-resolution screens
A 4K signal can be split across four 1080p or nine 720p displays to build a 4K wall from existing panels.
Seamless Switch and FrameSync
Close-to-zero switching plus frame-rate locking to keep multi-screen output free of tearing.
Audio de-embedding
Stereo audio can be taken off any HDMI input at the mini stereo jack output.
Technical specifications
Display
Maximum ResolutionUp to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0); 30 Hz (4:4:4)
Connectivity
Video Inputs8 x HDMI Type A female
Video Outputs9 x HDMI Type A female
Audio Output1 x mini stereo jack female
Control Ports1 x RS-232 DB-9 female, 1 x RJ-45 Ethernet
Power & Physical
Power Consumption78.1 W at 230 VAC
Dimensions43.24 x 45.03 x 4.40 cm
Weight7.05 kg
General
Maximum Data Rate10.2 Gbps (3.40 Gbps per lane)
Maximum Pixel Clock340 MHz
HDCPHDCP 2.2 compatible
EDID ModesDefault / Port 1 / Remix / Customized
HousingMetal
Operating Temperature0-50 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN
ATEN VW884 4-Port 4K HDMI Output Board for VW Series
4K UHD
£4,939.13inc. VAT
Out of stock
ATEN

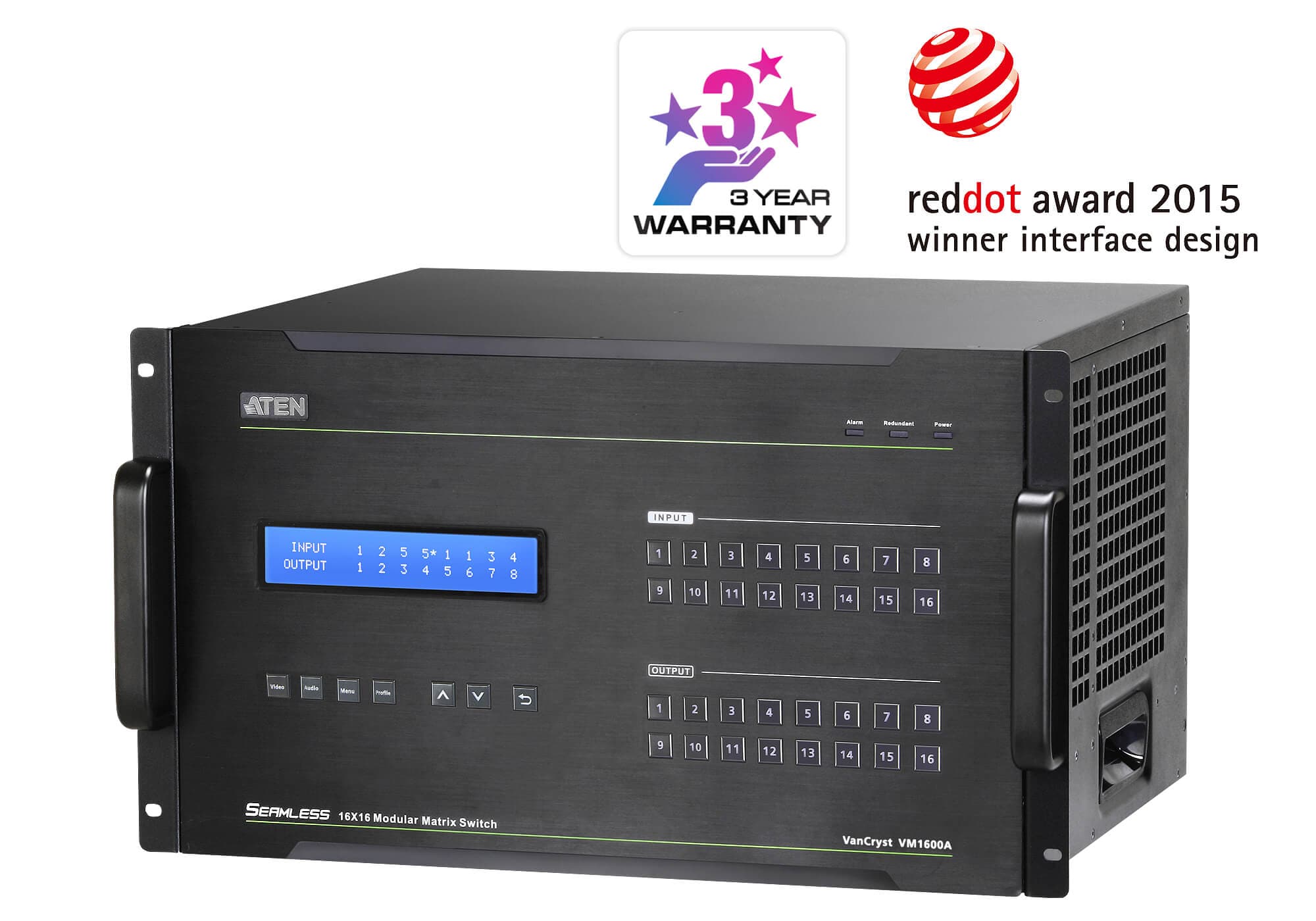

ATEN VM1600A 16 x 16 Modular Matrix Switch
