ATEN
ATEN VW884 4-Port 4K HDMI Output Board for VW Series
£4,804.32inc. VAT
£4,003.60 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Output — Interfaces4 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceUp to 5.0m
Video — Max. Data Rate18.0 Gbps (6.0 Gbps Per Lane)
Video — Max. Pixel Clock600 MHz
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Video — Max. Resolution4096x2160/3840x2160@60Hz (4:4:4)
Power Consumption54.72W:257BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Description
The ATEN VW884 is a four-port output board for VW series video wall processors. The chassis ships empty of I/O; boards like this are what define how many sources and displays the frame handles and which connectors they use, so a system is specified by its board mix rather than by a fixed model number.

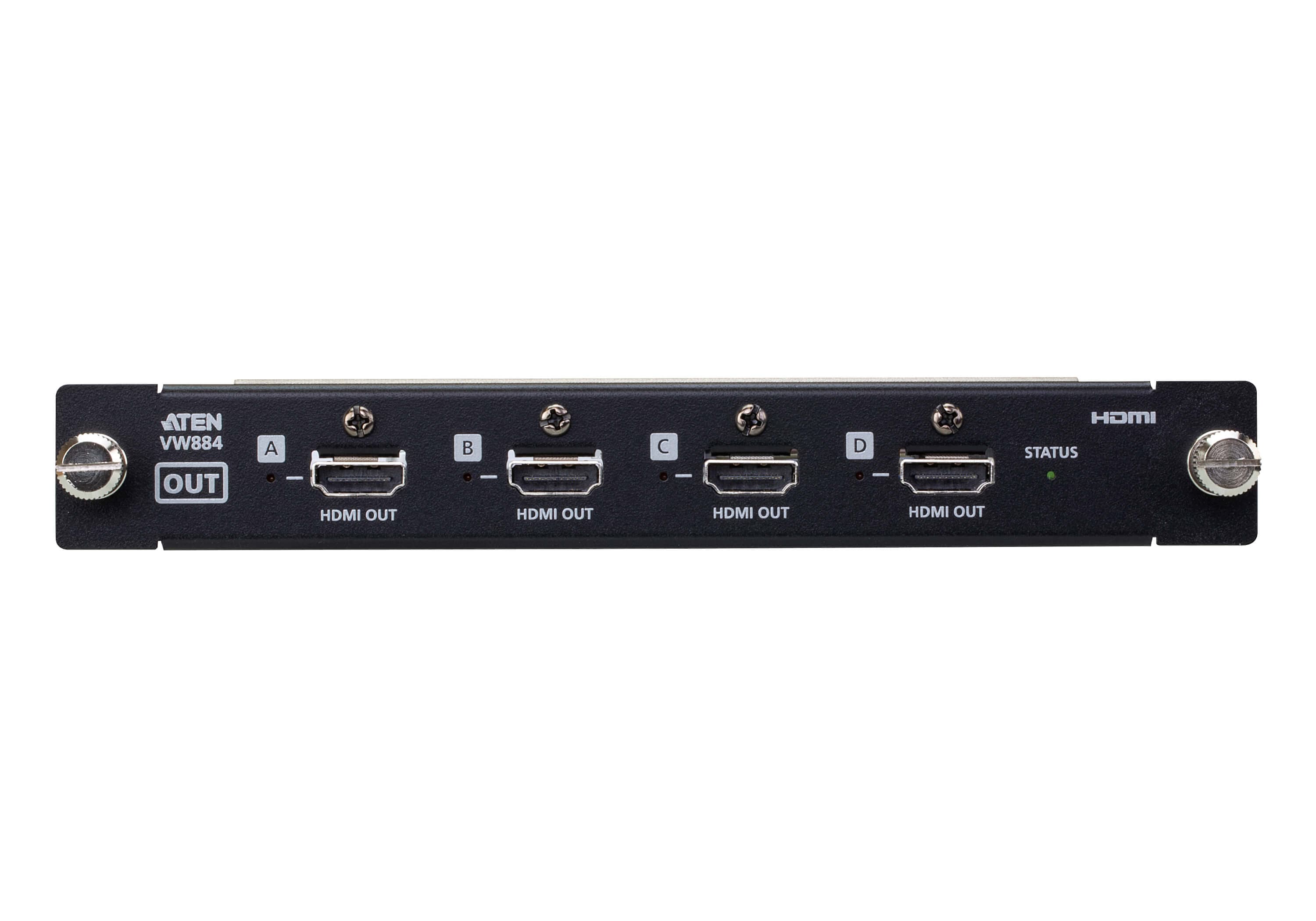

It presents 4 x HDMI Type A Female (Black) on the chassis rear. Boards are hot-swappable, so an installation can start small and grow, or change interface type later, without replacing the frame.
Video is supported to 4096x2160/3840x2160@60Hz (4:4:4). Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
True 4K @ 60 Hz scalability
Supports custom resolutions and enables upscaling of signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens.
Seamless Switch
Unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions.
EDID Expert
Selects optimum EDID settings for smooth power-up and the highest quality display.
Technical specifications
Choose a section to view its specifications.
Display (1)
- Video — Max. Resolution
- 4096x2160/3840x2160@60Hz (4:4:4)
Connectivity (3)
- Video Output — Interfaces
- 4 x HDMI Type A Female (Black)
- Video Output — Impedance
- 100 Ω
- Video Output — Max. Distance
- Up to 5.0m
Power & Physical (3)
- Power Consumption
- 54.72W:257BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Physical Properties — Weight
- 0.92 kg ( 2.03 lb )
- Physical Properties — Dimensions (L x W x H)
- 19.30 x 27.10 x 2.74 cm; (7.6 x 10.67 x 1.08 in.)
Certifications & Warranty (1)
- Video — Compliance
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
General (7)
- Video — Max. Data Rate
- 18.0 Gbps (6.0 Gbps Per Lane)
- Video — Max. Pixel Clock
- 600 MHz
- Environmental — Operating Temperature
- 0 - 40°C
- Environmental — Storage Temperature
- -20 - 60°C
- Environmental — Humidity
- 0 - 80% RH, Non-Condensing
- Physical Properties — Housing
- Metal
- Carton Lot
- 4 pcs
