ATEN
ATEN VW784 4-Port 4K HDMI Input Board for VW Series
£3,760.72inc. VAT
£3,133.93 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Input — Interfaces4 x HDMI Type A Female (Black)
Video Input — Impedance100 Ω
Video Input — Max. DistanceUp to 3m
Video — Max. Data Rate18.0 Gbps (6 Gbps Per Lane)
Video — Max. Pixel Clock600 MHz
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Video — Max. Resolution4096x2160/3840x2160@60Hz (4:4:4)
Power Consumption17.71W:83BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Description

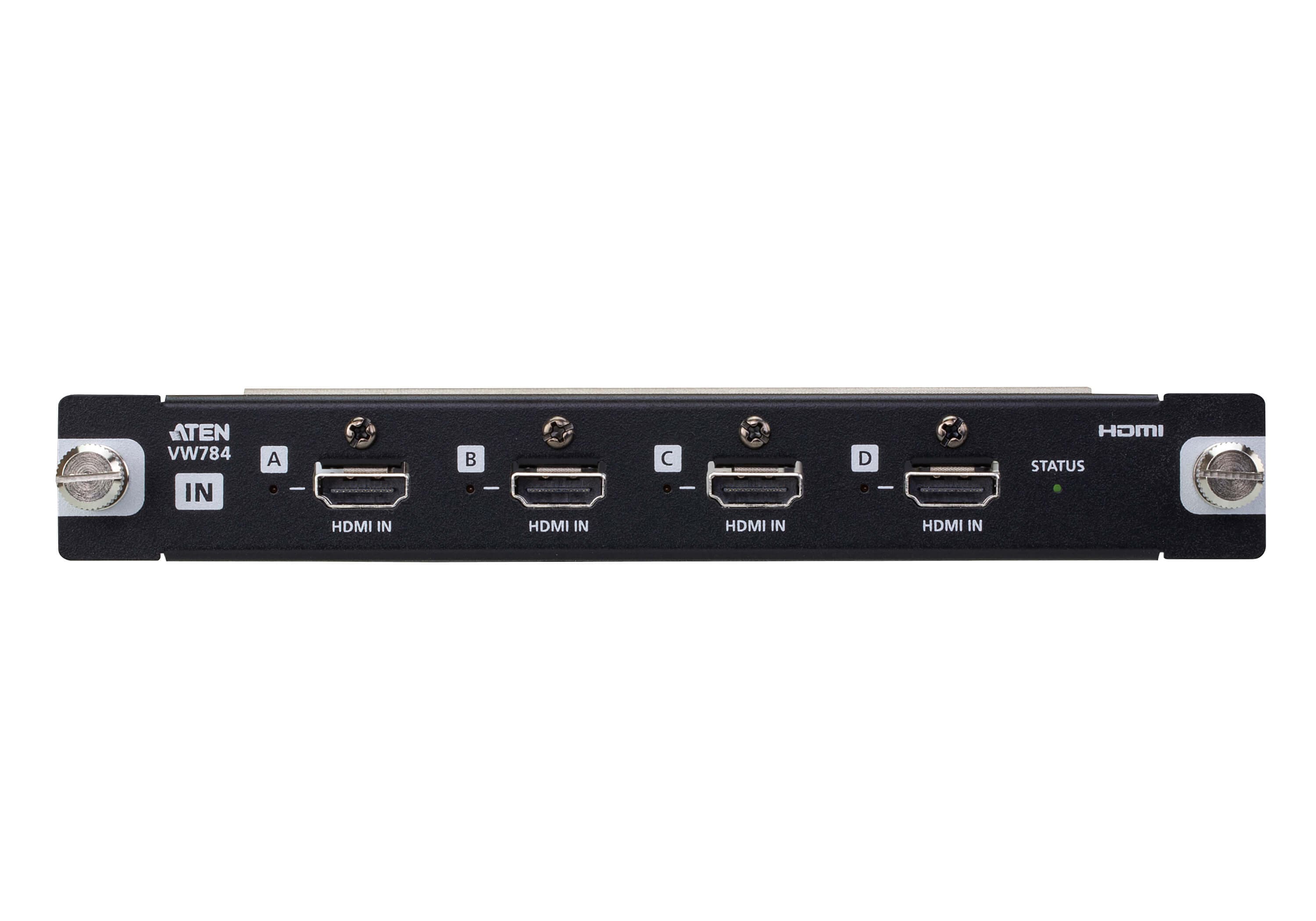

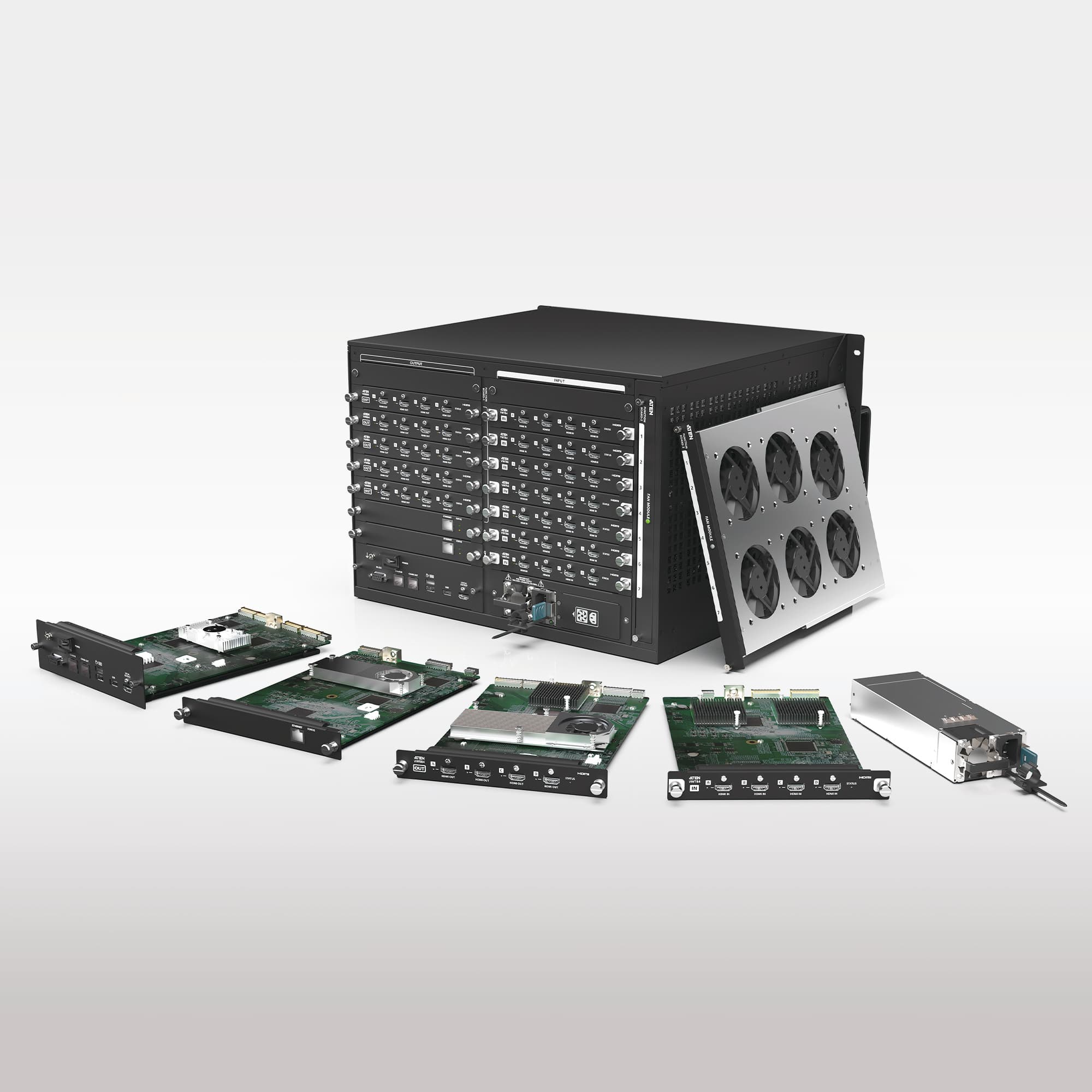

The ATEN VW784 is a four-port input board for VW series video wall processors. The chassis ships empty of I/O; boards like this are what define how many sources and displays the frame handles and which connectors they use, so a system is specified by its board mix rather than by a fixed model number.
It presents 4 x HDMI Type A Female (Black) on the chassis rear. Boards are hot-swappable, so an installation can start small and grow, or change interface type later, without replacing the frame.
Video is supported to 4096x2160/3840x2160@60Hz (4:4:4). Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
Seamless Switch
Unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions.
EDID Expert
Selects optimum EDID settings for smooth power-up and the highest quality display.
Interfaces
4 x HDMI Type A Female (Black).
Technical specifications
Choose a section to view its specifications.
Display (1)
- Video — Max. Resolution
- 4096x2160/3840x2160@60Hz (4:4:4)
Connectivity (3)
- Video Input — Interfaces
- 4 x HDMI Type A Female (Black)
- Video Input — Impedance
- 100 Ω
- Video Input — Max. Distance
- Up to 3m
Power & Physical (3)
- Power Consumption
- 17.71W:83BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Physical Properties — Weight
- 0.73 kg ( 1.61 lb )
- Physical Properties — Dimensions (L x W x H)
- 19.30 x 27.10 x 2.74 cm; (7.6 x 10.67 x 1.08 in.)
Certifications & Warranty (1)
- Video — Compliance
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
General (7)
- Video — Max. Data Rate
- 18.0 Gbps (6 Gbps Per Lane)
- Video — Max. Pixel Clock
- 600 MHz
- Environmental — Operating Temperature
- 0 - 40°C
- Environmental — Storage Temperature
- -20 - 60°C
- Environmental — Humidity
- 0 - 80% RH, Non-Condensing
- Physical Properties — Housing
- Metal
- Carton Lot
- 4 pcs
Documents
