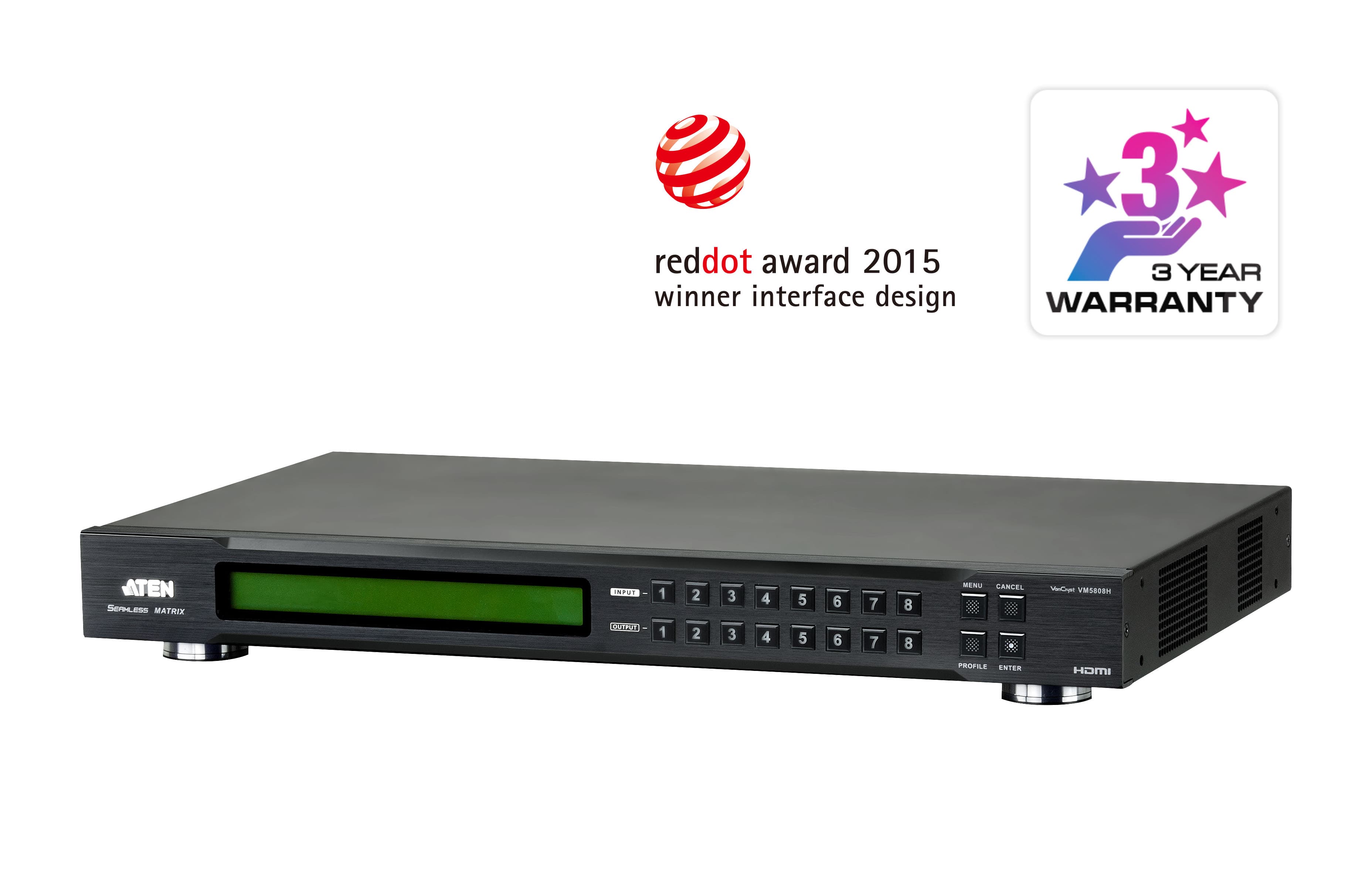

ATEN VM5808HA 8 x 8 HDMI Matrix Switch with Scaler

Name: ATEN VM5808HA 8 x 8 HDMI Matrix Switch with Scaler
Brand: ATEN
SKU: VM5808HA
Price: 4079.82 GBP
Availability: OutOfStock

£4,079.82inc. VAT

£3,399.85 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Video Inputs8 x HDMI Type A female

Video Outputs8 x HDMI Type A female, plus 1 x HDMI array-mode output

Maximum ResolutionUp to 1080p

Maximum Data Rate6.75 Gbps (2.25 Gbps per lane)

Maximum Pixel Clock225 MHz

HDCPHDCP 1.4 compatible

Audio Output1 x mini stereo jack female

Control Ports1 x RS-232 DB-9 female, 1 x RJ-45 Ethernet

All 15 specifications

Description

The VM5808HA routes any of eight HDMI sources to any of eight HDMI outputs, with an additional array-mode output for driving a preview or overflow display. ATEN's FPGA-based Seamless Switch technology unifies the video formats passing through the unit so that switching happens without the black frames and re-sync delays that interrupt a live presentation.

Also in this range:VM5404HA Full specifications Datasheet Compare alternatives

A built-in scaler converts every incoming signal to the native resolution of the display it is sent to, and FrameSync locks the scaler output frame rate to the input frame rate so that video walls stay tear-free. EDID Expert offers Default, Port 1, Remix and Customized modes, so mixed estates of screens can be persuaded to agree on a resolution. Stereo audio from any HDMI input can be de-embedded to the mini-jack output for a local sound system.

Operators can drive the unit from the front-panel pushbuttons, over RS-232, or across the network by Telnet or the built-in web GUI, and the switch can be folded into a wider ATEN Control System installation. The chassis is metal and rack-mountable, drawing around 57 W in normal use.

Call 01342 580255

Key features

Seamless Switch with FrameSync

ATEN's FPGA design unifies video formats for close-to-zero switching time, and FrameSync matches the scaler output frame rate to the input to prevent tearing.

Scaler on every output

The built-in scaler converts each input to the connected display's native resolution, so mismatched screens all show a correctly sized picture.

Audio de-embedding

Digital audio from any HDMI input can be assigned to the mini stereo jack output and fed to a room amplifier.

Four ways to control it

Front-panel pushbuttons, RS-232, Telnet and a web GUI, plus integration with the ATEN Control System platform.

Technical specifications

Display

Maximum ResolutionUp to 1080p

Connectivity

Video Inputs8 x HDMI Type A female

Video Outputs8 x HDMI Type A female, plus 1 x HDMI array-mode output

Audio Output1 x mini stereo jack female

Control Ports1 x RS-232 DB-9 female, 1 x RJ-45 Ethernet

Input Power100-240 VAC, 50-60 Hz, 1.0 A

Power & Physical

Power Consumption56.6 W at 230 VAC

Dimensions43.24 x 37.82 x 4.40 cm

Weight5.54 kg

General

Maximum Data Rate6.75 Gbps (2.25 Gbps per lane)

Maximum Pixel Clock225 MHz

HDCPHDCP 1.4 compatible

EDID ModesDefault / Port 1 / Remix / Customized

HousingMetal

Operating Temperature0-40 degrees C

Call 01342 580255

Documents

ATEN VM5808HA 8 x 8 HDMI Matrix Switch with Scaler datasheet (PDF) - series datasheet covering VM5404HA and VM5808HA
