Home / Matrix Switchers & Splitters / ATEN VM8584K1 4-Port 10G Optical Output Board (Multimode, 300 m)
ATEN

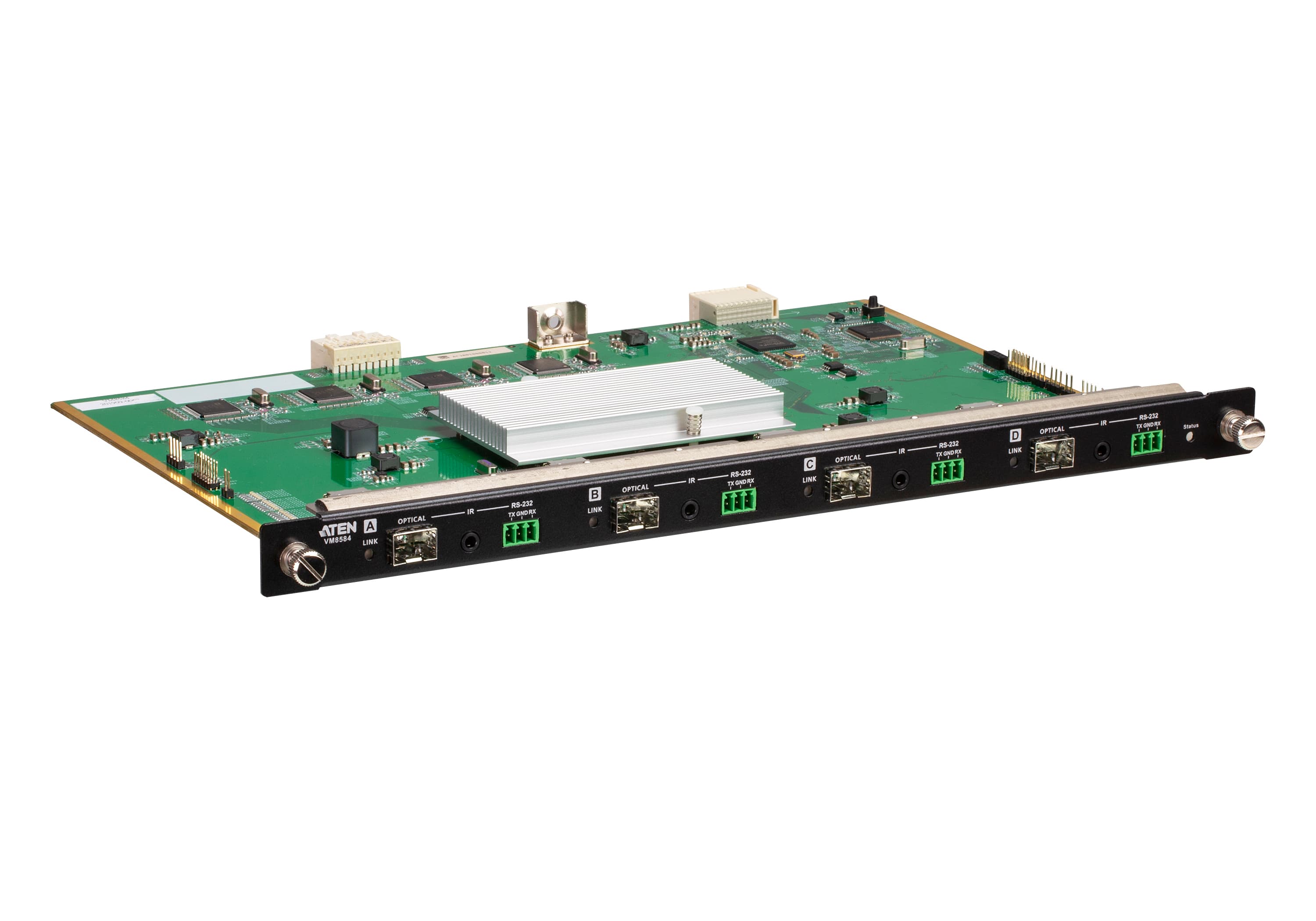

ATEN VM8584K1 4-Port 10G Optical Output Board (Multimode, 300 m)
£3,954.73inc. VAT
£3,295.61 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Fiber Optics — Data Rate10.3 Gbps
Fiber Optics — WavelengthVM8584K1: 850 nm; VM8584K2: 1310 nm
Fiber Optics — Fiber TypeVM8584K1: Multimode(MM), OM3, LC Duplex Type; VM8584K2: Singlemode(SM), LC Duplex Type
Video Output — Interfaces4 x bi-directional SFP+ (LC)
Video — Max. Data Rate10.2 Gbps (3.4 Gbps per lane)
Video — Max. Pixel Clock340 MHz
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP 2.2 compatible; Consumer Electronics Control (CEC)
Video — Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Description
The ATEN VM8584K1 is a four-port output board for ATEN modular matrix switches such as the VM1600A, VM3200 and VM3250. The chassis ships empty of I/O; boards like this are what define how many sources and displays the frame handles and which connectors they use, so a system is specified by its board mix rather than by a fixed model number.

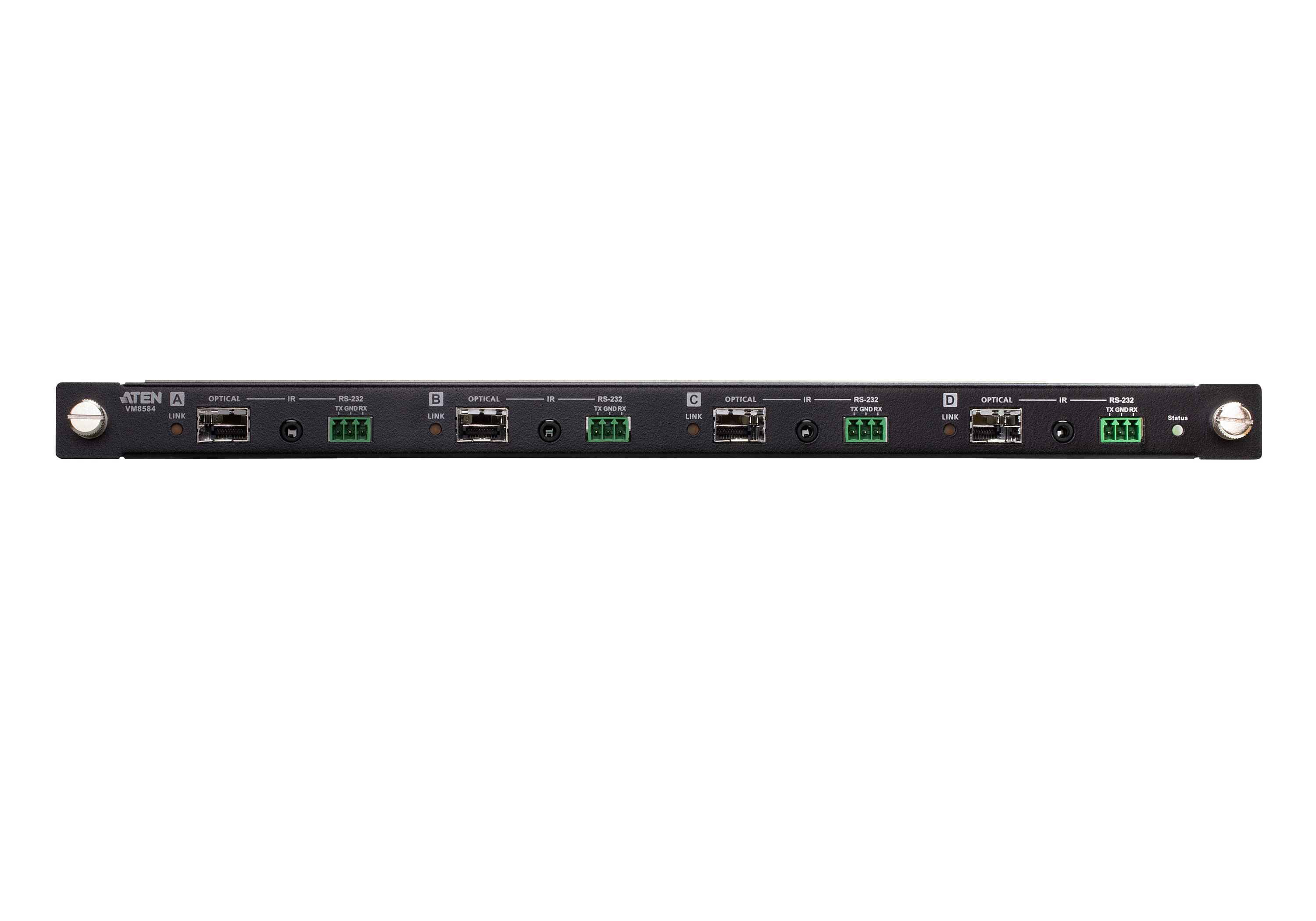

It presents 4 x bi-directional SFP+ (LC) on the chassis rear. Boards are hot-swappable, so an installation can start small and grow, or change interface type later, without replacing the frame.
Video is supported to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0). Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
Superior video quality over long-distance transmission
Up to 4096 x 2160@60Hz (4:2:0), 300m with VM8584K1 over multimode cables or 10km with VM8584K2 over single-mode cables.
Scaler
Features a 4K video scaling function to convert input resolutions to the optimum display resolutions.
Seamless Switch ™
Features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions.
Video Wall
Allows you to create custom video wall layouts via intuitive web GUI.
Technical specifications
Display
Video — Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Connectivity
Video Output — Interfaces4 x bi-directional SFP+ (LC)
Control — IR Channel4 x Mini Stereo Jack Female (Black)
Power & Physical
Power Consumption22.96W:108BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Certifications & Warranty
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP 2.2 compatible; Consumer Electronics Control (CEC)
General
Fiber Optics — Data Rate10.3 Gbps
Fiber Optics — WavelengthVM8584K1: 850 nm; VM8584K2: 1310 nm
Fiber Optics — Fiber TypeVM8584K1: Multimode(MM), OM3, LC Duplex Type; VM8584K2: Singlemode(SM), LC Duplex Type
Video — Max. Data Rate10.2 Gbps (3.4 Gbps per lane)
Video — Max. Pixel Clock340 MHz
Video — Max. DistanceVM8584K1: up to 300m (MM, OM3, Black); VM8584K2: up to 10km (SM, Blue)
Control — RS-232 Channel4 x Captive Screw Connectors, 3 pole
LEDs — Status1 (Green)
LEDs — Link4 (Orange)
Environmental — Operating Temperature0–40°C
