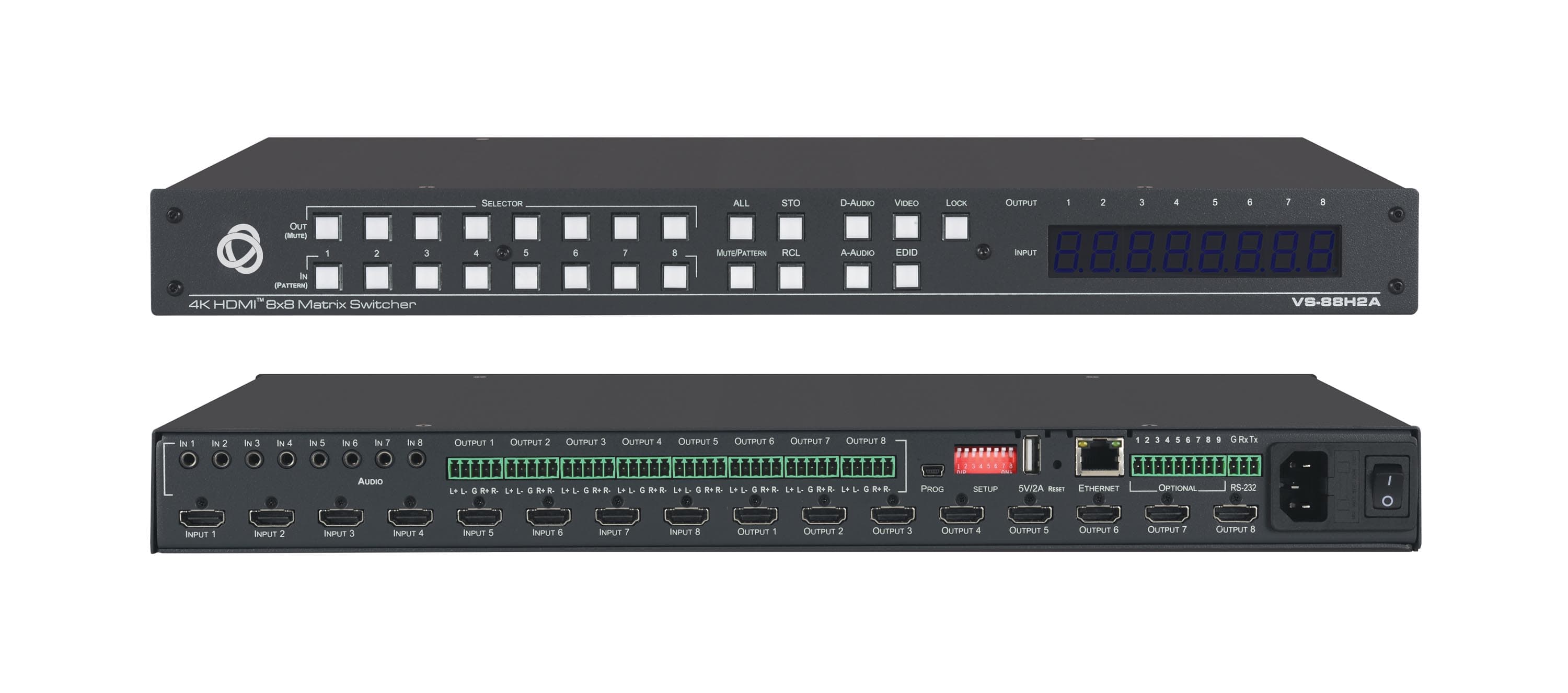

Kramer VS-88H2A 8x8 4K60 HDMI Matrix with Audio Breakaway Routing
4K UHD
£3,902.40inc. VAT
Out of stock
Kramer
Kramer VSM-4X4X 4x4 Matrix Switcher, Videowall & Multiviewer
£4,027.20inc. VAT
£3,356.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
Inputs - 4 HDMIOn female HDMI connectors
Outputs - 4 HDMIOn female HDMI connectors
Ports - 4 Balanced Stereo Line LevelOn 5-pin terminal block connectors
Ports - 1 RS-232On a 3-pin terminal block
Ports - 1 EthernetOn an RJ-45 female connector
Video - Max Bandwidth18Gbps (6Gbps per graphic channel)
Video - Max Resolution4K @60Hz (4:4:4) 24bpp resolution
Video - ComplianceHDMI 2.0 and HDCP 2.2
Description
Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad-viewer, or a 4 picture multi-viewer. The unit allows instantaneous switching between inputs (that is, with a clean, frame-to-frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per-port HDCP and EDID settings, passing of 4 channels of embedded audio, and analog stereo de-embedded audio for each of the 4 outputs. Manufacturer part number VSM-4X4X.
Key features
PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and
PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology.
Matrix Switching Modes - Truly seamless switching mode (zero-time
Matrix Switching Modes - Truly seamless switching mode (zero-time video cuts), or fade-through-black mode (enabling independent output resolutions).
Multiple Aspect Ratio Selections - Full and best fit.
Multiple Aspect Ratio Selections - Full and best fit.
4 Preset Memory Locations - For each operation mode for quick access
4 Preset Memory Locations - For each operation mode for quick access to common IN OUT configurations.
Non-Volatile Memory - Saves final settings.
Non-Volatile Memory - Saves final settings.
Built-in Noise Reduction and Picture Enhancement Features
Built-in Noise Reduction and Picture Enhancement Features
HDMI Support - 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby
HDMI Support - 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in VHDMI 2.0.
Selectable Operation Modes - 4x4 matrix switcher, video wall (2x2 or
Selectable Operation Modes - 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), multi-view display Split, Side-by-Side, PIP, POP, Stacked or Quad display.
Bezel Correction Options - In video wall mode.
Bezel Correction Options - In video wall mode.
Constant Output Sync - For all modes of operation.
Constant Output Sync - For all modes of operation.
Technical specifications
Choose a section to view its specifications.
Display (2)
- Video - Max Resolution
- 4K @60Hz (4:4:4) 24bpp resolution
- Controls - Front Panel
- Output and input selector buttons, system set up buttons (matrix, video wall and multi-view), store and recall buttons, display identify button, reset button and panel lock button
Connectivity (5)
- Inputs - 4 HDMI
- On female HDMI connectors
- Outputs - 4 HDMI
- On female HDMI connectors
- Ports - 4 Balanced Stereo Line Level
- On 5-pin terminal block connectors
- Ports - 1 RS-232
- On a 3-pin terminal block
- Ports - 1 Ethernet
- On an RJ-45 female connector
Audio (7)
- Analog Audio - Max Level
- 4.1Vrms
- Analog Audio - Impedance
- 500Ω
- Analog Audio - Bandwidth
- 20Hz - 20kHz
- Analog Audio - Crosstalk
- -114dB
- Analog Audio - THD + N
- 0.005% @1kHz at nominal level
- Analog Audio - S/N Ratio
- -89dB, 20Hz - 20kHz
- Analog Audio - Coupling
- DC
Power & Physical (2)
- Video - Max Bandwidth
- 18Gbps (6Gbps per graphic channel)
- Enclosure - Size
- 19" 1U
Certifications & Warranty (3)
- Video - Compliance
- HDMI 2.0 and HDCP 2.2
- Regulatory Compliance (Standards Compliance) - Safety
- CE, FCC
- Regulatory Compliance (Standards Compliance) - Environmental
- RoHs, WEEE
General (6)
- Video - Latency
- Up to 20ms
- Power - Consumption
- 100-240V AC, 98VA max.
- Power - Heat Dissipation
- 55W (188BTU/hr)
- Environmental Conditions - Operating Temperature
- 0° to +40°C (32° to 104°F)
- Environmental Conditions - Storage Temperature
- -40° to +70°C (-40° to 158°F)
- Environmental Conditions - Humidity
- 10% to 90%, RHL non-condensing
