Home / Matrix Switchers & Splitters / Kramer VS-1616DN-EM 2x2 to 16x16 Modular 4K60 4:2:0 Multi-Format Managed Digital Matrix Switcher
Kramer
Kramer VS-1616DN-EM 2x2 to 16x16 Modular 4K60 4:2:0 Multi-Format Managed Digital Matrix Switcher
£4,293.60inc. VAT
£3,578.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
INPUTS2 to 16 (in increments of 2) of various inputs
OUTPUTS2 to 16 (in increments of 2) of various outputs
MAX. DATA RATE10.2Gbps (3.4Gbps per graphic channel) depending on the cards used.
MAX RESOLUTION4K@60Hz (4:2:0).
CONTROLSFront panel buttons, infrared remote control transmitter (38kHz-modulated), RS-232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)
SWITCHINGConfirm or At Once for immediate switching.
OPERATING TEMPERATURE0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE-40° to +70°C (-40° to 158°F).
Description
VS-1616DN-EM is a high-performance 2x2 to 16x16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi-format digital switcher, populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS-1616DN-EM supports a wide variety of input and output cards for different AV signals. Manufacturer part number VS-1616DN-EM/STANDALONE.
Key features
Kramer Core™ - FLEXIBLE INFRASTRUCTURE CONVERSION! Copper, Fiber or
Kramer Core™ - FLEXIBLE INFRASTRUCTURE CONVERSION! Copper, Fiber or Twisted Pair - all can be used at the same time, according to input/output module selection. The matrix receives signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receivers. Kramer Core™ solution is the ultimate in versatility!
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) when using
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) when using compatible cards.
Kramer Network Management - Automatic discovery through the network
Kramer Network Management - Automatic discovery through the network, FW upgrade management for matrix and cards, identify card type and location and indicate card status(module ID, actual firmware versions), matrix switching, specified card features configuration (for example, volume levels on audio cards), Store and Recall of predefined switching scenarios, integrated Maestro automation, and more.
HDTV Compatible.
HDTV Compatible.
HDCP Compliant - With DVI (HDCP), HDMI, F670, HDBaseT, HDMI with
HDCP Compliant - With DVI (HDCP), HDMI, F670, HDBaseT, HDMI with audio and DGKat modules.
HDMI Support.
HDMI Support.
Cables - For optimum range and performance, use recommended Kramer
Cables - For optimum range and performance, use recommended Kramer cables.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Optional Fast Switching Support - For fraction of a second switching.
Optional Fast Switching Support - For fraction of a second switching.
Modular & Easily Configurable Platform - Input or output module types
Modular & Easily Configurable Platform - Input or output module types can be mixed and added in increments of 2 from 2x2 up to 16x16.
Technical specifications
Display
MAX RESOLUTION4K@60Hz (4:2:0).
Connectivity
INPUTS2 to 16 (in increments of 2) of various inputs
OUTPUTS2 to 16 (in increments of 2) of various outputs
Power & Physical
POWER CONSUMPTION100-240V AC, 50/60Hz, 135VA.
General
MAX. DATA RATE10.2Gbps (3.4Gbps per graphic channel) depending on the cards used.
CONTROLSFront panel buttons, infrared remote control transmitter (38kHz-modulated), RS-232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)
SWITCHINGConfirm or At Once for immediate switching.
OPERATING TEMPERATURE0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE-40° to +70°C (-40° to 158°F).
HUMIDITY10% to 90%, RHL non-condensing.
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN
ATEN VM5808HA 8 x 8 HDMI Matrix Switch with Scaler
1080p
£4,079.82inc. VAT
Out of stock
Kramer

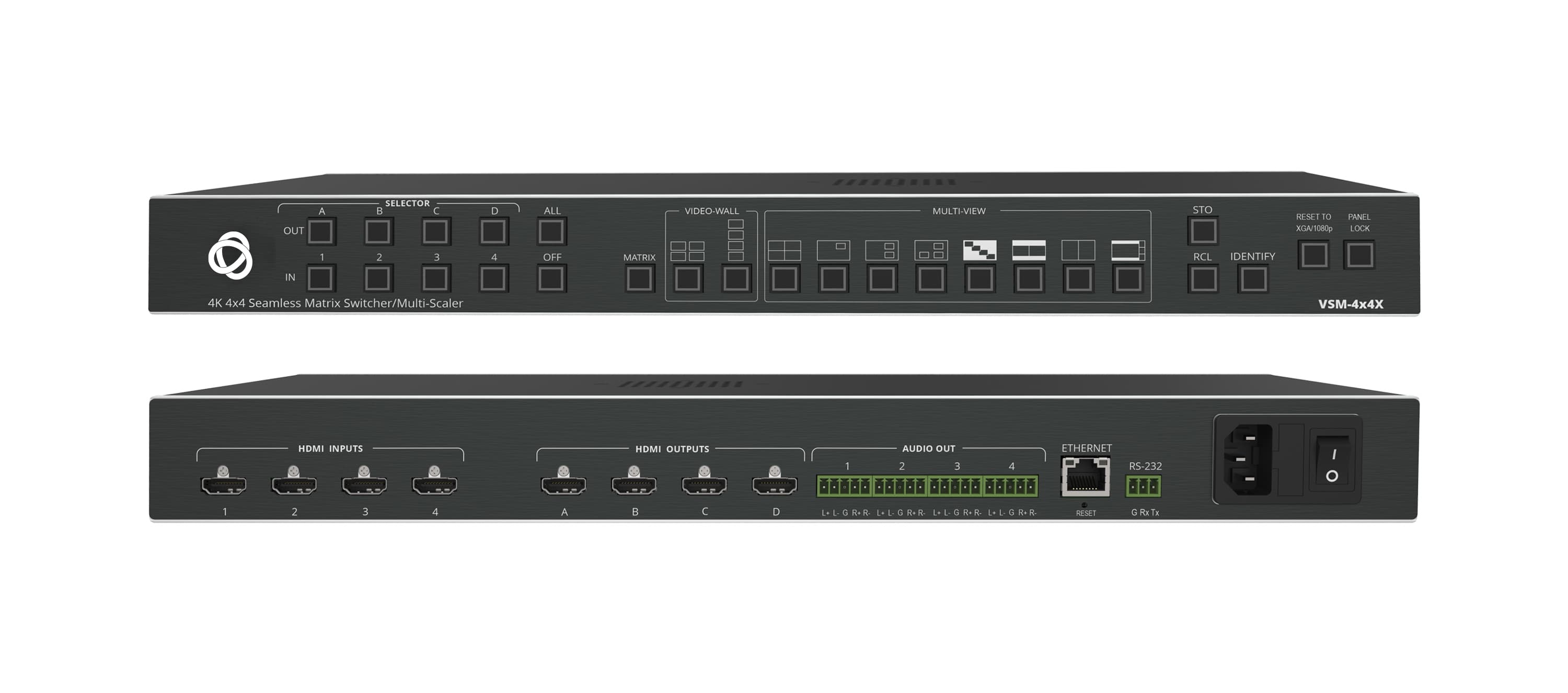

Kramer VSM-4X4X 4x4 Matrix Switcher, Videowall & Multiviewer
