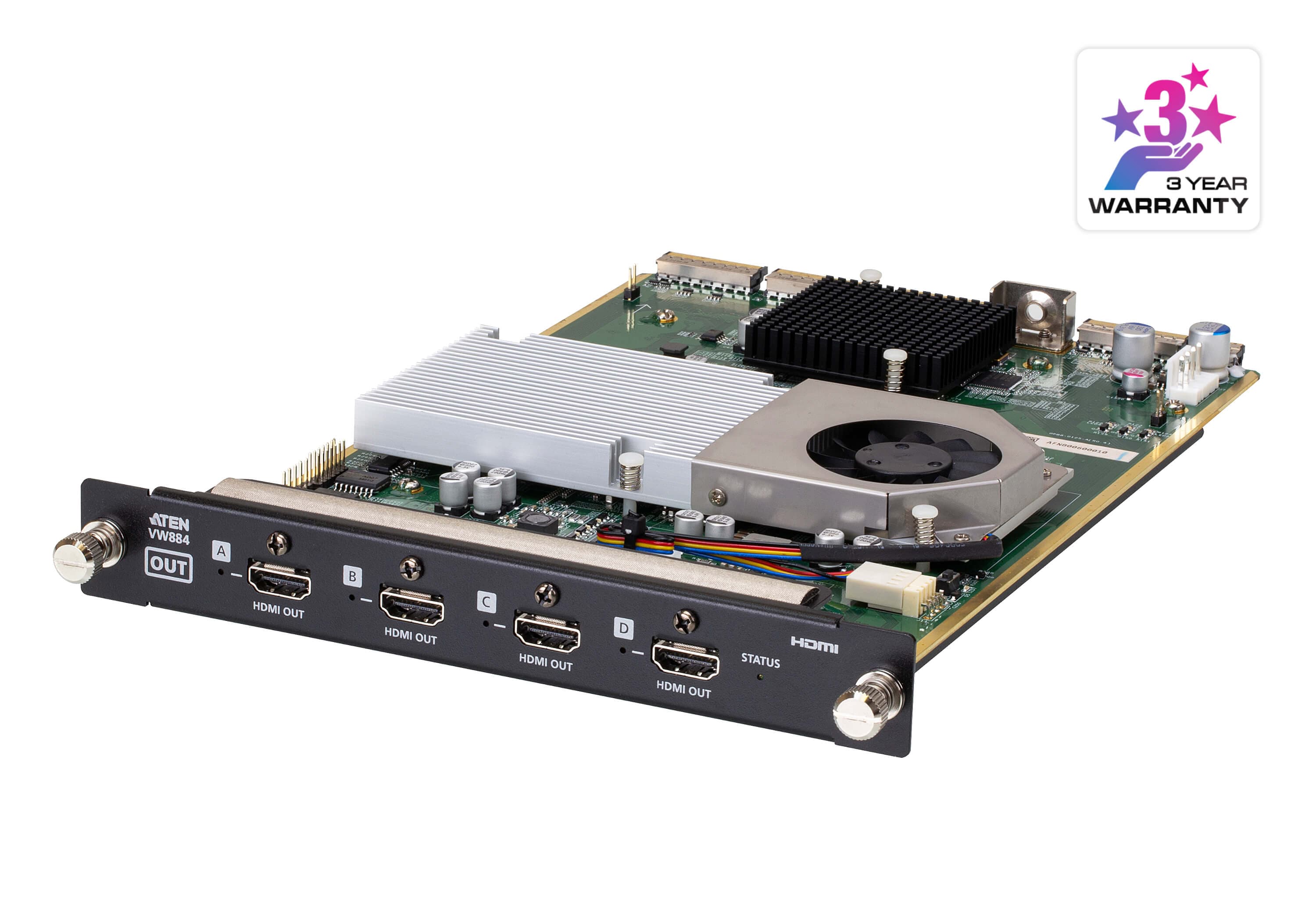

ATEN VW884 4-Port 4K HDMI Output Board for VW Series
4K UHD
£4,939.13inc. VAT
Out of stock
ATEN
ATEN VM1600A 16 x 16 Modular Matrix Switch
£4,748.99inc. VAT
£3,957.49 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Board Slots4 x input slots, 4 x output slots
Maximum Matrix Size16 x 16
Maximum Data Rate15.2 Gbps (3.8 Gbps per lane)
Video InterfacesDetermined by the I/O boards fitted
Serial Control1 x RS-232 DB-9 female; 1 x captive screw 5-pole RS-485/RS-422
Ethernet1 x RJ-45 female
EDID ModesDefault / Port 1 / Remix / Customized
Input Power100-240 VAC, 50/60 Hz, 3/6 A
Description
The VM1600A is a chassis rather than a fixed matrix: four input slots and four output slots take ATEN's hot-swappable modular I/O boards, so the same frame can be built as HDMI, DVI, 3G-SDI, VGA or HDBaseT and rebuilt later as requirements change. Fully populated it switches 16 sources to 16 destinations at up to 15.2 Gbps.
With the appropriate boards it handles 4K resolutions to 3840 x 2160 and 4096 x 2160 at 30 Hz 4:4:4 or 60 Hz 4:2:0, scales inputs to each display's native resolution, and supports Seamless Switch for uninterrupted changes of source. Video wall layouts are built in the web GUI, and calendar-based scheduling can play a stored profile at a set time using the real-time clock.
Configuration is available from the front panel, over RS-232, RS-422 or RS-485, and across Ethernet by web GUI or Telnet, as well as from the ATEN Video Matrix Control app. The frame takes removable fan and redundant power modules and occupies 6U.
Key features
Modular I/O
Four input and four output slots take hot-swappable ATEN matrix boards, so signal types can be mixed and changed later.
Seamless Switch and scaling
With supporting boards the frame offers close-to-zero switching and converts inputs to each display's native resolution.
Calendar scheduling
An onboard real-time clock plays stored profiles to a schedule, useful for signage and lecture timetables.
Serial and network management
RS-232, RS-422 and RS-485 plus Ethernet web GUI, Telnet and the ATEN Video Matrix Control app.
Technical specifications
Connectivity
Ethernet1 x RJ-45 female
Input Power100-240 VAC, 50/60 Hz, 3/6 A
Power & Physical
Maximum Matrix Size16 x 16
Power Consumption460 W
Dimensions48.20 x 41.66 x 26.59 cm
Rack Height6U
Weight15.11 kg
General
Board Slots4 x input slots, 4 x output slots
Maximum Data Rate15.2 Gbps (3.8 Gbps per lane)
Video InterfacesDetermined by the I/O boards fitted
Serial Control1 x RS-232 DB-9 female; 1 x captive screw 5-pole RS-485/RS-422
EDID ModesDefault / Port 1 / Remix / Customized
HousingMetal
Operating Temperature0-40 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN

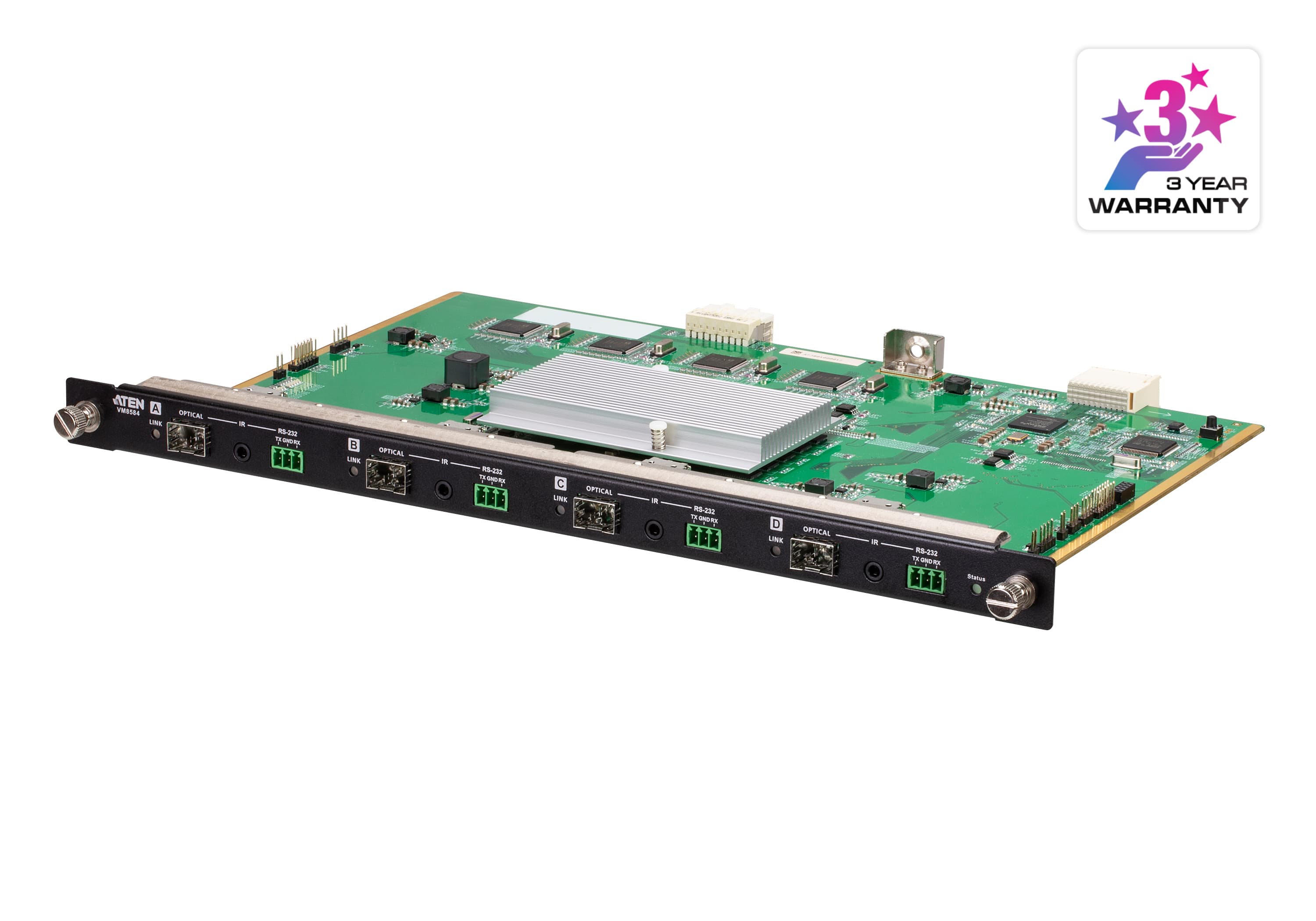

ATEN VM8584K2 4-Port 10G Optical Output Board (Singlemode, 10 km)
4K UHD
£4,494.78inc. VAT
Out of stock
ATEN

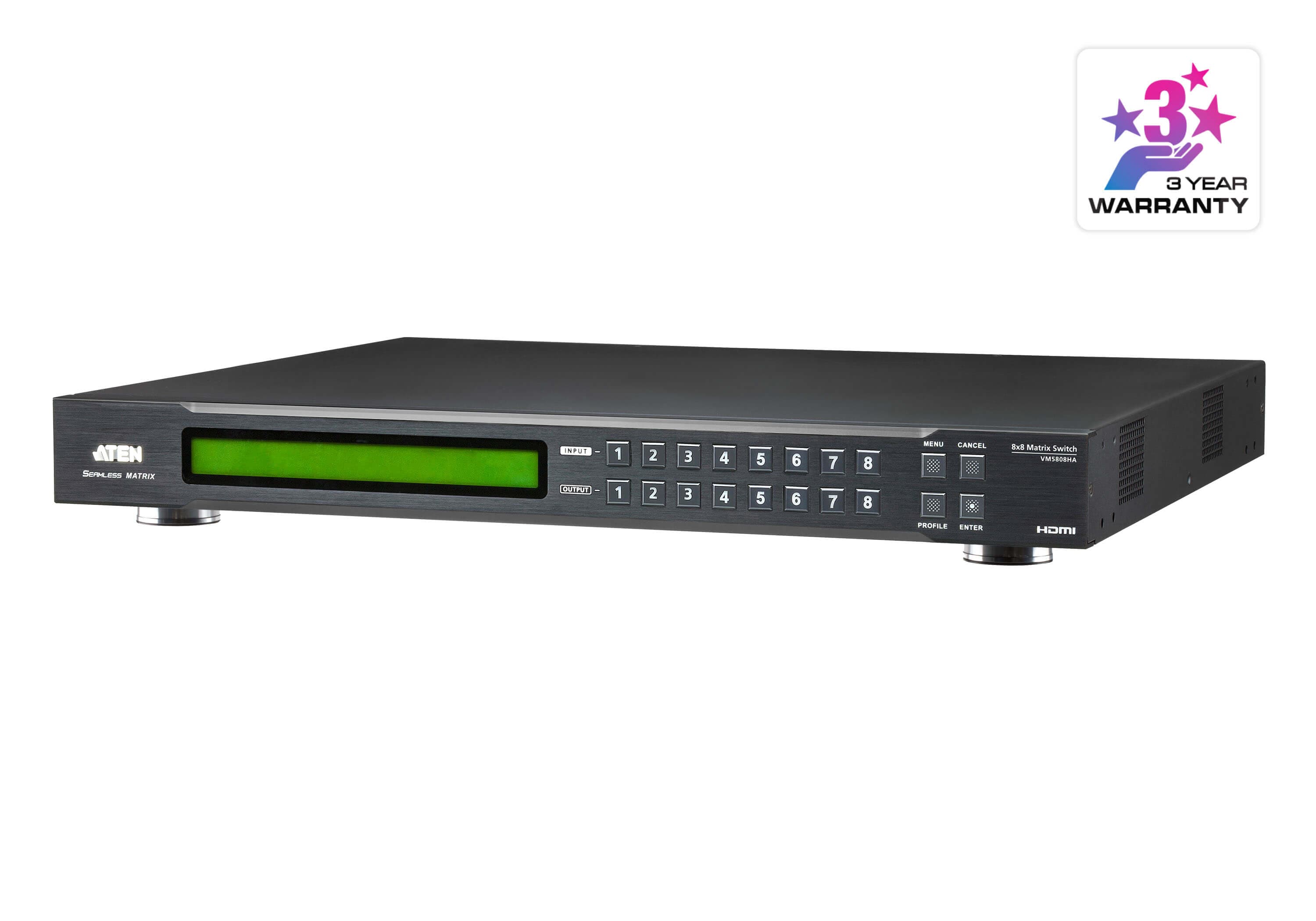

ATEN VM5808HA 8 x 8 HDMI Matrix Switch with Scaler
