ATEN
ATEN VanCryst VM5808H 8 x 8 HDMI Matrix Switch with Scaler
£3,563.05inc. VAT
£2,969.21 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Inputs8 x HDMI Type A female
Video Outputs8 x HDMI Type A female
Maximum ResolutionUp to 1080p
Maximum Data Rate6.75 Gbps (2.25 Gbps per lane)
Maximum Pixel Clock225 MHz
HDCPHDCP 1.4 compatible
Maximum Output DistanceUp to 15 m
Control Ports1 x RS-232 DB-9 female, 1 x IR mini stereo jack, 1 x RJ-45 Ethernet
Description
The VanCryst VM5808H connects any of eight HDMI sources to any of eight HDMI displays and holds the picture steady while it does so. ATEN's FPGA-based Seamless Switch design normalises the video formats crossing the switch, giving continuous streams and real-time switching rather than the blank interval a raw HDMI switch produces.
A scaler on board converts input resolutions to whatever each display prefers, and video wall layouts can be assembled in the web GUI. EDID Expert selects sensible EDID settings so that sources come up at the right resolution on first power-on. Runs of up to 15 m are supported on the output side using 24 AWG cable.
The unit can be driven from front-panel pushbuttons, an IR remote, RS-232, or over Ethernet by Telnet and the web GUI, and it also appears in the ATEN Video Matrix Control app. It is a metal desktop or rack-mount chassis rated for operation up to 50 degrees C.
Key features
Seamless Switch
FPGA-based format unification gives continuous video streams and real-time switching between the eight sources.
Built-in scaler
Input resolutions are converted to the optimum resolution for each connected display.
Long output runs
Supports HDMI cable runs of up to 15 m on the output side with 24 AWG cable.
IR, serial and network control
Front-panel pushbuttons, IR, a bi-directional RS-232 port and Ethernet with Telnet or web GUI.
Technical specifications
Display
Maximum ResolutionUp to 1080p
Connectivity
Video Inputs8 x HDMI Type A female
Video Outputs8 x HDMI Type A female
Maximum Output DistanceUp to 15 m
Control Ports1 x RS-232 DB-9 female, 1 x IR mini stereo jack, 1 x RJ-45 Ethernet
Power & Physical
Power Consumption55.0 W at 230 VAC
Dimensions43.24 x 26.23 x 4.40 cm
Weight4.16 kg
General
Maximum Data Rate6.75 Gbps (2.25 Gbps per lane)
Maximum Pixel Clock225 MHz
HDCPHDCP 1.4 compatible
EDID ModesDefault / Port 1 / Remix / Customized
HousingMetal
Operating Temperature0-50 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN
ATEN VM7584K2 4-Port 10G Optical Input Board (Singlemode, 10 km)
4K UHD
£3,369.65inc. VAT
Out of stock
ATEN

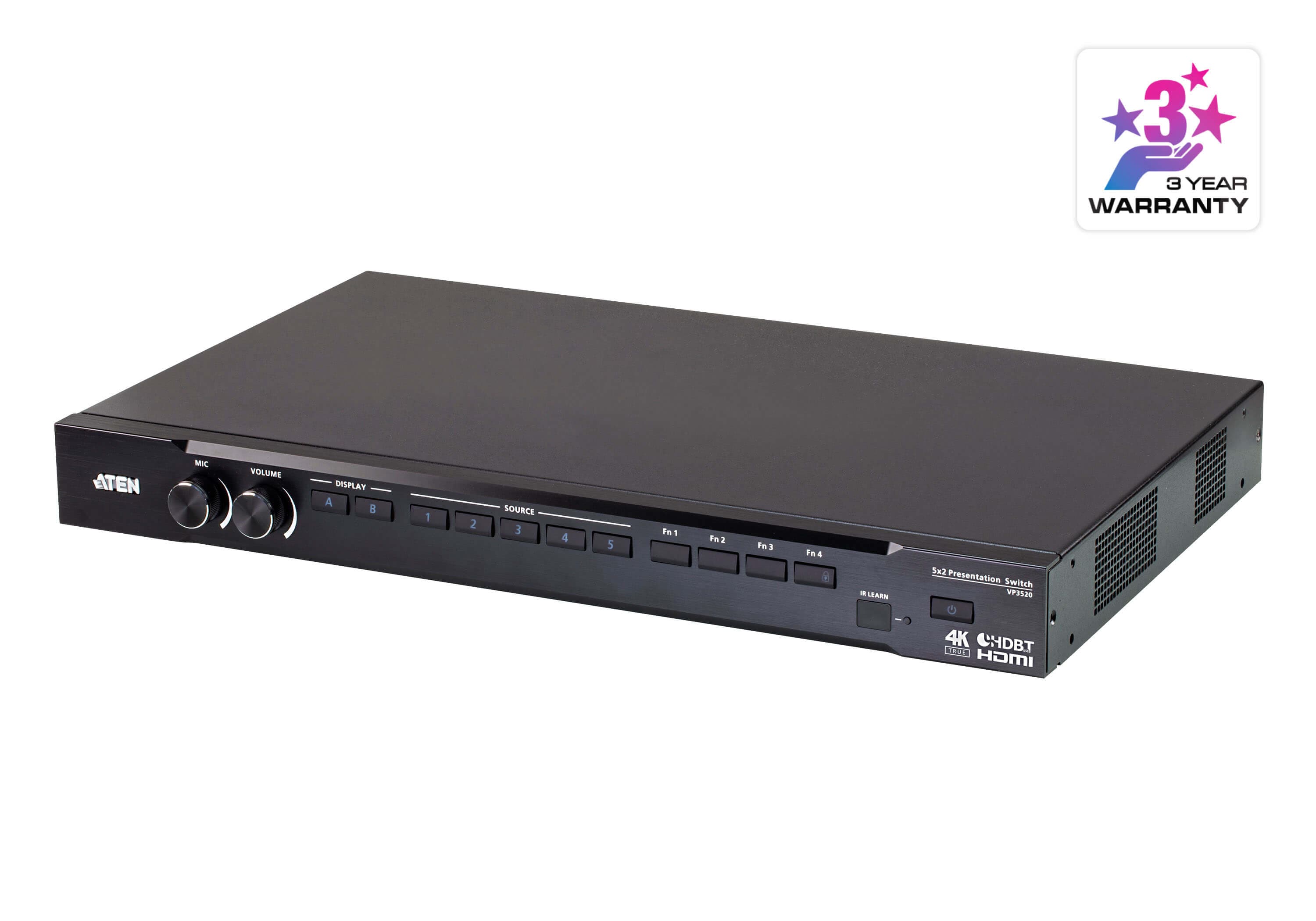

ATEN VP3520 5 x 2 True 4K Seamless Presentation Matrix Switch with Control
4K UHD
£3,369.65inc. VAT
Out of stock
ATEN

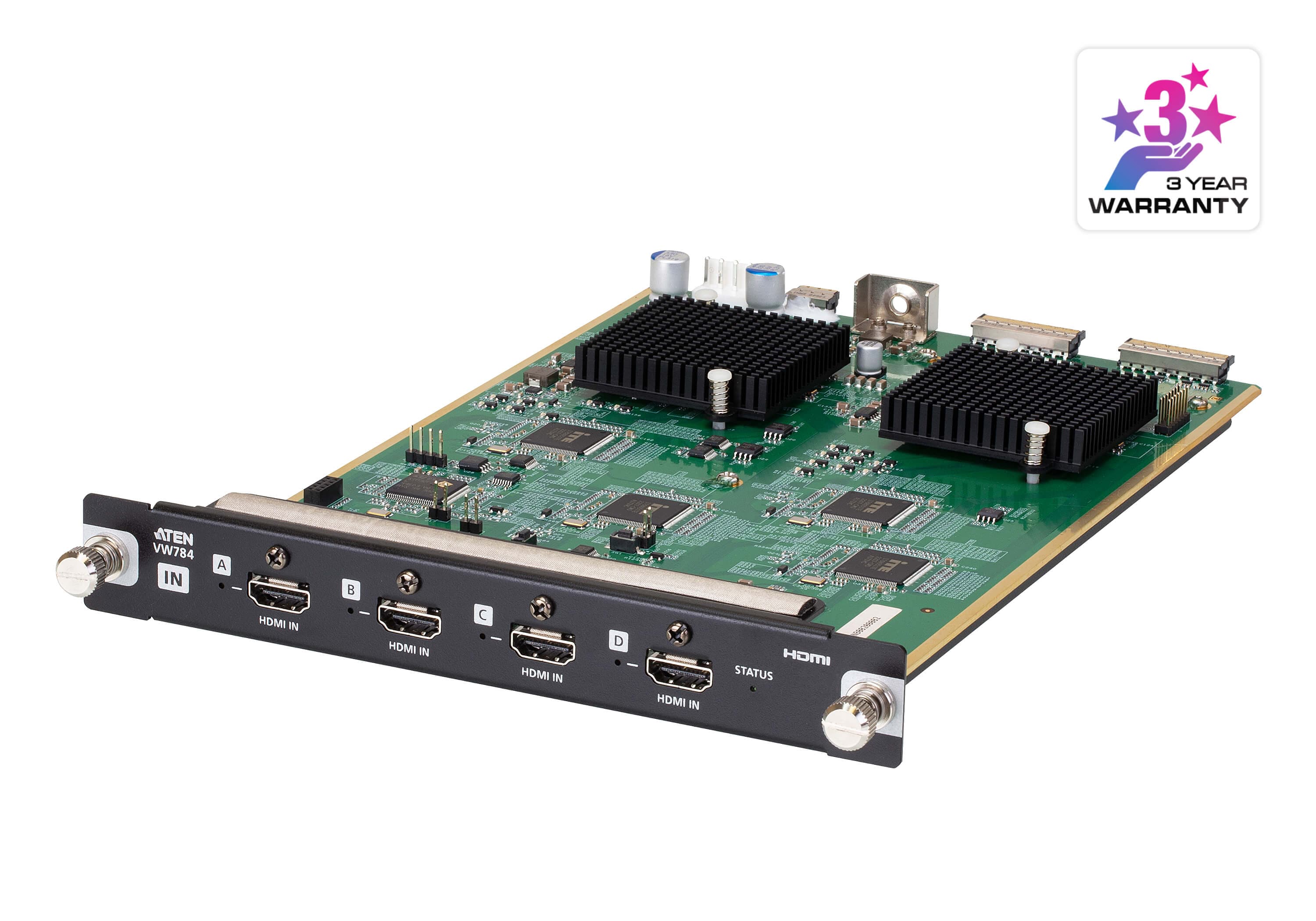

ATEN VW784 4-Port 4K HDMI Input Board for VW Series
