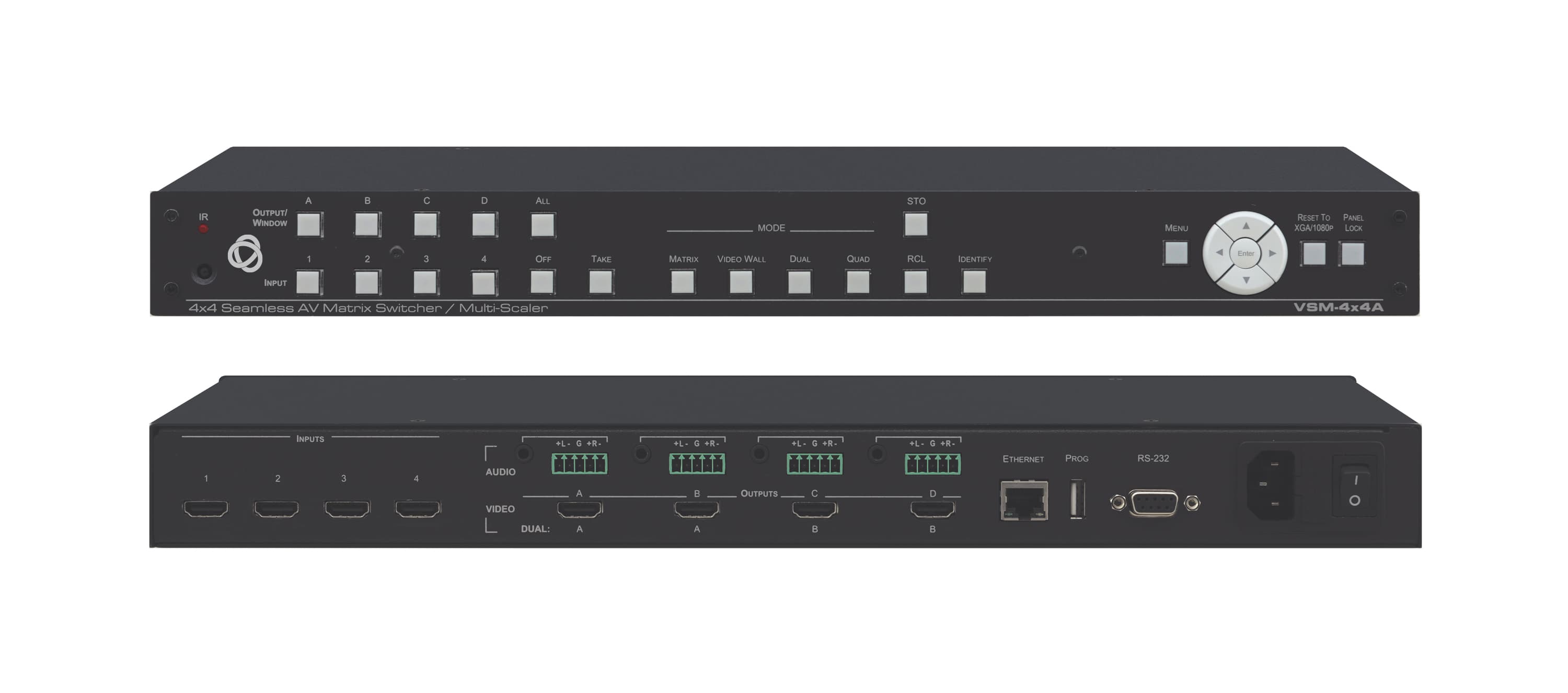

Kramer VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler
WUXGA
£2,865.60inc. VAT
Out of stock
Kramer
Kramer MC3-2R-2H 4K60 HDBT/HDMI 2xIN + 2xOUT Scaling Card
£2,848.80inc. VAT
£2,374.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
Inputs - 2 HDBaseTOn RJ-45 connectors
Outputs - 2 HDMIOn HDMI connectors
Extension Line - ReachUp to 100m (330ft)
Extension Line - Standards ComplianceHDBaseT 3.0
Video - Max Data Rate18Gbps (6G per channel)
Video - Max Resolution4096x2160@60Hz (4:4:4) 24bpp
Video - Resolutions480i@30Hz, 480p@60/72/75/85Hz, 576p@50Hz, 600p@60/72/75/85Hz, 768p@50/60/70/75/85Hz, 800p@60Hz, 864p@75Hz, 900p@60Hz, 640x480p@60/72/75/85Hz, 720x480i@30Hz, 720x480p@60Hz, 720x576p@50Hz, 800x600p@60/7
Video - Max Switching Time between Inputs1.5 seconds
Description
MC3-2R-2H is a high-performance two-port HDBaseT 3.0 input and two-port HDMI output card which is part of the compatible modular matrices multi-signal cards family. MC3-2R-2H can flexibly occupy any of the matrix card slots. Its input signals are independently switched by the modular matrix to any of the matrix output ports, and any matrix input signals are independently switched to its scaling output ports. Manufacturer part number MC3-2R-2H/STANDALONE.
Key features
High Resolution Audio-Visual Experience - Modular matrix card
High Resolution Audio-Visual Experience - Modular matrix card supports high 4K60 4:4:4 HDMI signal distribution from and towards any input and output port of the modular matrix.
Valuable Fast Switching Experience - Fast and clean presentation
Valuable Fast Switching Experience - Fast and clean presentation signal switching, ensures smooth transitions of displayed content, as distributed from multiple matrix input-connected sources.
High-Performance Scaling Presentation - Built-in ProcAmp
High-Performance Scaling Presentation - Built-in ProcAmp high-resolution scaling technology for optimal glitch-free output image display.
High Performance Standard Extender - Professional HDBaseT extender
High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures.
Future-proof, Standard Extender - Matrix card is a standard HDBaseT
Future-proof, Standard Extender - Matrix card is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signal, auto-adapting to the capabilities of its connected extender. This enables it to be connected to any market-available HDBaseT-compliant extension product.
HDMI Signal Extension - HDCP 2.2 and EDID signals are passed through
HDMI Signal Extension - HDCP 2.2 and EDID signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
Multi-channel Audio Transmission - Up to 32 channels of digital
Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Ethernet Extension - Ethernet interface data flows in both
Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control.
Flexible USB 2.0 Extension - An active USB host is connected to the
Flexible USB 2.0 Extension - An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB HID (Human Interface Devices) devices such as mouse or keyboard devices.
Technical specifications
Display
Video - Max Resolution4096x2160@60Hz (4:4:4) 24bpp
Video - Resolutions480i@30Hz, 480p@60/72/75/85Hz, 576p@50Hz, 600p@60/72/75/85Hz, 768p@50/60/70/75/85Hz, 800p@60Hz, 864p@75Hz, 900p@60Hz, 640x480p@60/72/75/85Hz, 720x480i@30Hz, 720x480p@60Hz, 720x576p@50Hz, 800x600p@60/7
Connectivity
Inputs - 2 HDBaseTOn RJ-45 connectors
Outputs - 2 HDMIOn HDMI connectors
Video - Max Switching Time between Inputs1.5 seconds
Video - Output Transition on SwitchingSmooth cut-thru
Video - HDMI Compliance4K, HDR10 as specified in HDMI 2.0b
Extended USB - Data RateUp to 480Mbps
Extended USB - ThroughputUp to 12Mbps
Extended USB - Device TypeHID
Extended USB - Standards Compliance1.1 and 2.0 USB
Extended Ethernet - Max Data Rate1 Gbps
Certifications & Warranty
Extension Line - Standards ComplianceHDBaseT 3.0
General
Extension Line - ReachUp to 100m (330ft)
Video - Max Data Rate18Gbps (6G per channel)
Video - Video Latency1-2 frames
Video - Content ProtectionHDCP 2.2
