Key specifications
Video Output — Interfaces4 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceUp to 5.0m
Video — Max. Data Rate18.0 Gbps (6.0 Gbps Per Lane)
Video — Max. Pixel Clock600 MHz
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Video — Max. Resolution4096x2160/3840x2160@60Hz (4:4:4)
Audio — Output4 x Captive Screw Connector, 5 pole
Description

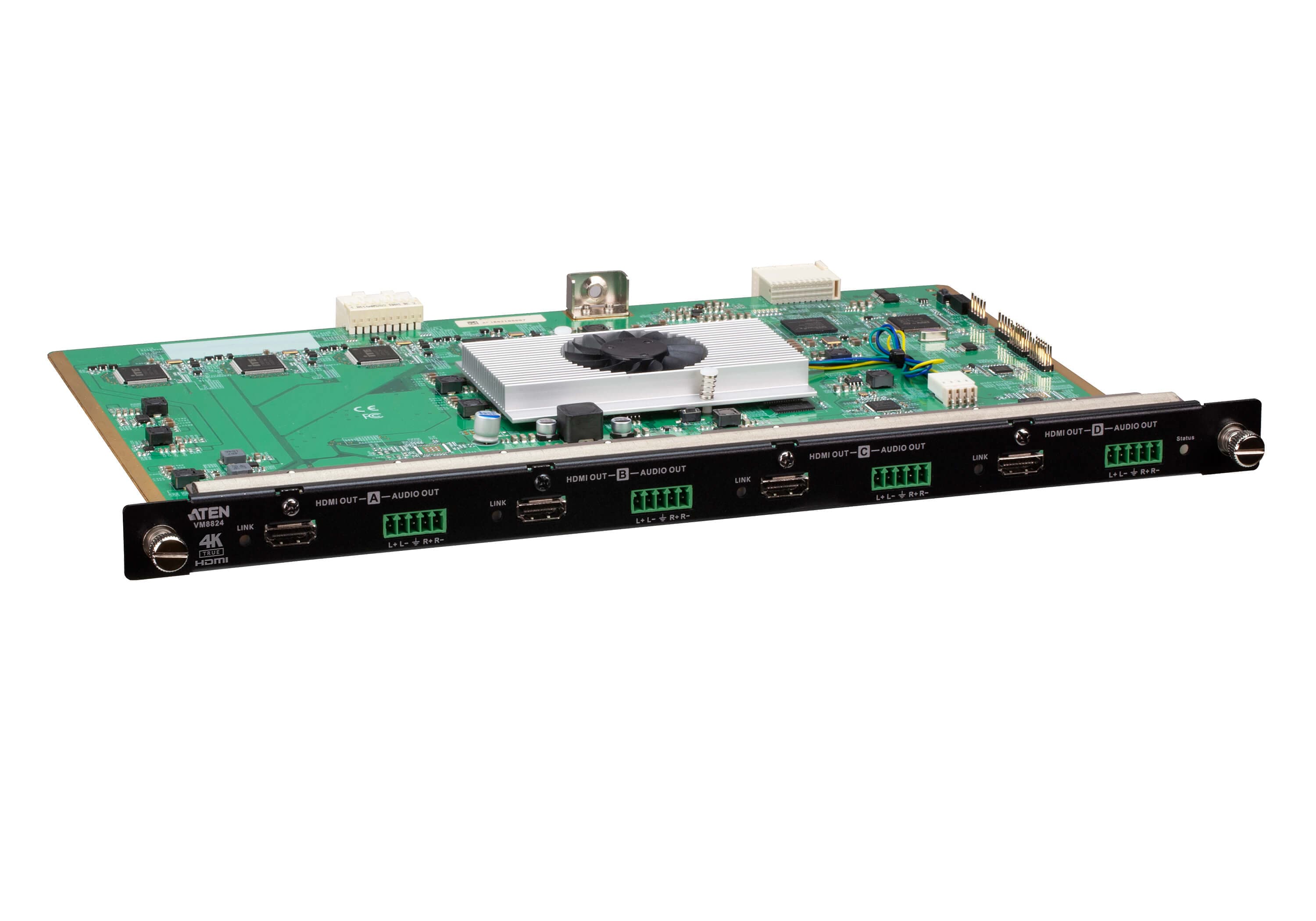

The ATEN VM8824 is a four-port output board for ATEN modular matrix switches such as the VM1600A, VM3200 and VM3250. The chassis ships empty of I/O; boards like this are what define how many sources and displays the frame handles and which connectors they use, so a system is specified by its board mix rather than by a fixed model number.

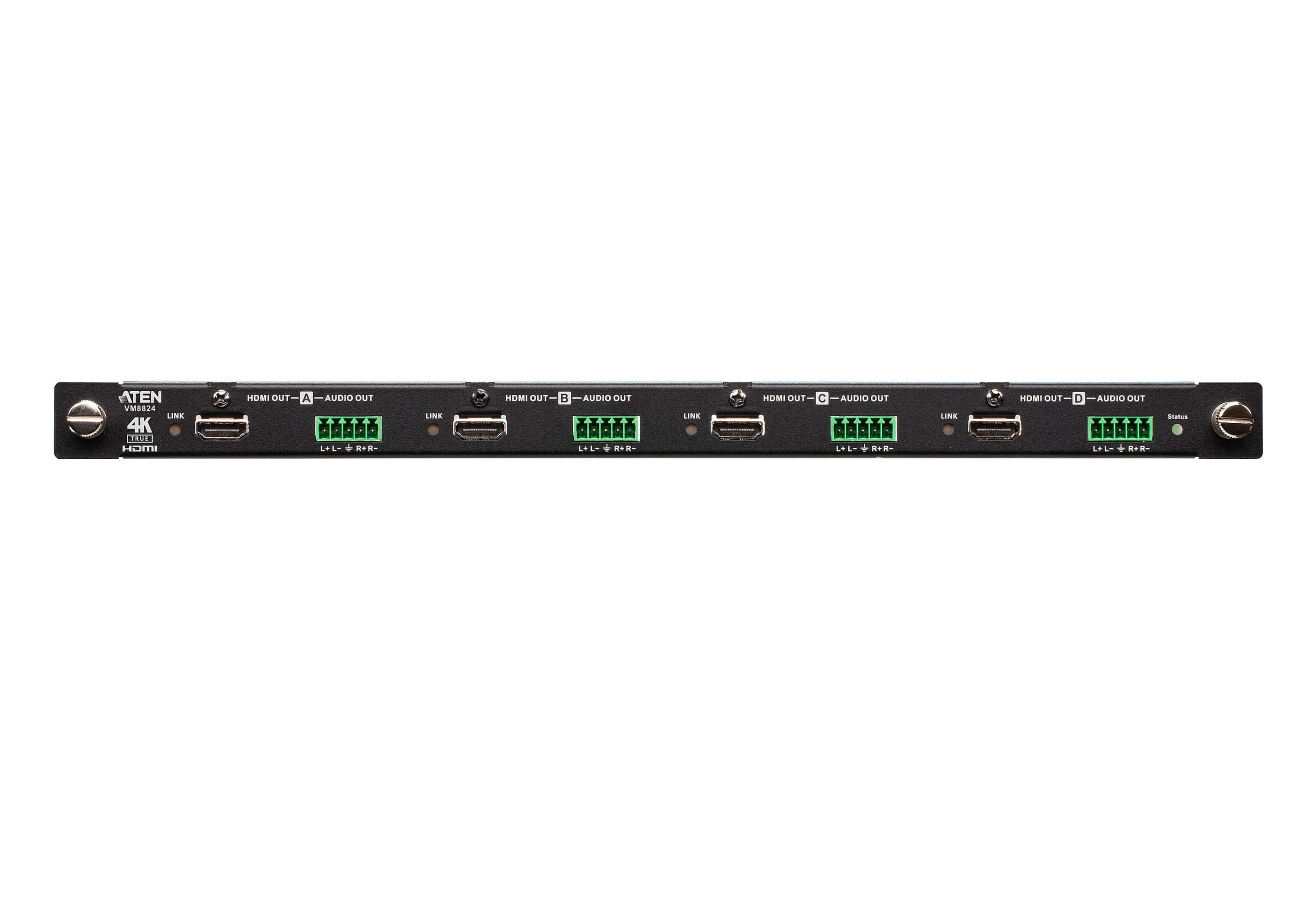

It presents 4 x HDMI Type A Female (Black) on the chassis rear. Boards are hot-swappable, so an installation can start small and grow, or change interface type later, without replacing the frame.
It scales each output to the connected display, which prevents resolution mismatches between mixed sources and mixed screens. Video is supported to 4096x2160/3840x2160@60Hz (4:4:4). Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
True 4K Resolutions
Handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4).
4K Scaler
Features a video scaling function to integrate a video wall seamlessly with various output video resolutions.
Seamless Switch™
Features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions.
Video Wall
Allows you to create custom video wall layouts via intuitive web GUI.
Technical specifications
Display
Video — Max. Resolution4096x2160/3840x2160@60Hz (4:4:4)
Connectivity
Video Output — Interfaces4 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceUp to 5.0m
Audio — Output4 x Captive Screw Connector, 5 pole
Power & Physical
Power Consumption44.83W:210BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Physical Properties — Weight0.65 kg ( 1.43 lb )
Physical Properties — Dimensions (L x W x H)35.20 x 23.80 x 2.33 cm; (13.86 x 9.37 x 0.92 in.)
Certifications & Warranty
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
General
Video — Max. Data Rate18.0 Gbps (6.0 Gbps Per Lane)
Video — Max. Pixel Clock600 MHz
Environmental — Operating Temperature0 - 40°C
Environmental — Storage Temperature-20 - 60°C
Environmental — Humidity0 - 80% RH, Non-Condensing
Physical Properties — HousingMetal
