ATEN
ATEN VW1608 16 × 8 Modular Video Wall Processor
£13,462.80inc. VAT
Out of stock
ATEN
ATEN VM3250 32 x 32 Modular Matrix Switch Gen. 2
£13,461.54inc. VAT
£11,217.95 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Board Slots8 x input slots, 8 x output slots
Maximum Matrix Size32 x 32
Maximum Data Rate22.5 Gbps
Video InterfacesDetermined by the I/O boards fitted
Serial Control1 x RS-232 DB-9 female; 1 x captive screw 5-pole RS-485/RS-422
Ethernet1 x RJ-45 female
EDID ModesDefault / Port 1 / Remix / Customized
Input Power100-240 VAC, 50-60 Hz, 10 A
Description
The VM3250 is the second-generation version of ATEN's 32 x 32 modular frame, raising the internal data rate to 22.5 Gbps so that the fitted boards can carry uncompressed True 4K at 4096 x 2160 or 3840 x 2160 at 60 Hz with 4:4:4 chroma. Eight input and eight output slots take hot-swappable matrix boards.
Alongside the scaler, Seamless Switch and web GUI video wall tools inherited from the first generation, the Gen. 2 frame adds single-source live streaming through the web GUI, so an engineer can confirm what a given output is actually showing without walking to the screen, and thumbnail content and layout previews.
Management runs from the front panel, over RS-232, RS-485 or RS-422, and across Ethernet by web GUI or Telnet, with the ATEN Video Matrix Control app available for tablet operation. The frame occupies 9U.
Key features
22.5 Gbps backplane
Enough bandwidth for uncompressed True 4K at 60 Hz with 4:4:4 chroma across the fitted boards.
Live streaming preview
A single source can be streamed through the web GUI so output can be checked remotely.
Seamless Switch and scaling
Close-to-zero switching plus conversion of inputs to the optimum display resolution, with supporting boards.
Eight-plus-eight modular slots
Up to 32 x 32 switching from hot-swappable input and output boards in one 9U frame.
Technical specifications
Connectivity
Ethernet1 x RJ-45 female
Input Power100-240 VAC, 50-60 Hz, 10 A
Power & Physical
Maximum Matrix Size32 x 32
Power Consumption800 W
Dimensions48.20 x 47.19 x 39.90 cm
Rack Height9U
Weight18.20 kg
General
Board Slots8 x input slots, 8 x output slots
Maximum Data Rate22.5 Gbps
Video InterfacesDetermined by the I/O boards fitted
Serial Control1 x RS-232 DB-9 female; 1 x captive screw 5-pole RS-485/RS-422
EDID ModesDefault / Port 1 / Remix / Customized
HousingMetal
Operating Temperature0-40 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN
ATEN RCM416VA 1-Local/4-Remote Shared Access 16-Port Multi-Interface Cat 5 KVM over IP Switch
£12,728.21inc. VAT
Out of stock
ATEN

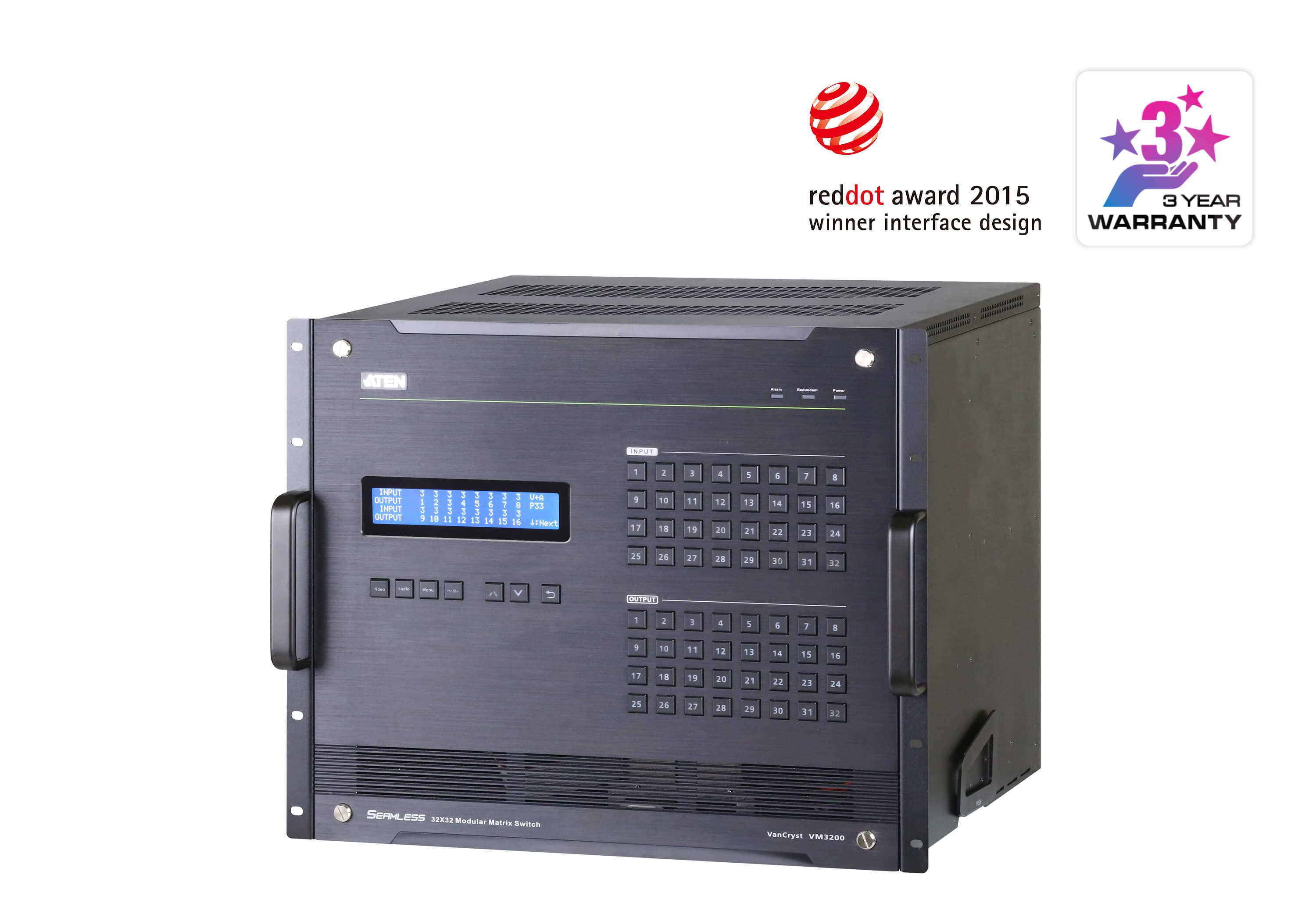

ATEN VM3200 32 x 32 Modular Matrix Switch
