ATEN VM3200 32 x 32 Modular Matrix Switch
£12,004.01inc. VAT
£10,003.34 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Board Slots8 x input slots, 8 x output slots
Maximum Matrix Size32 x 32
Maximum Data Rate15.2 Gbps (3.8 Gbps per lane)
Video InterfacesDetermined by the I/O boards fitted
Serial Control1 x RS-232 DB-9 female; 1 x captive screw 5-pole RS-485/RS-422
Ethernet1 x RJ-45 female
EDID ModesDefault / Port 1 / Remix / Customized
Input Power100-240 VAC, 50-60 Hz, 10 A
Description
The VM3200 is ATEN's larger modular matrix frame, with eight input slots and eight output slots that take hot-swappable I/O boards. Fully populated it provides 32 x 32 switching of whatever signal types the fitted boards support, at a data rate of up to 15.2 Gbps.
Because the interfaces come from the boards rather than the chassis, one frame can serve a mixed installation of HDMI, DVI, SDI and HDBaseT endpoints and be reconfigured later without replacing the switch. EDID handling covers Default, Port 1, Remix and Customized modes with a wizard.
The frame is managed from front-panel pushbuttons, over RS-232, RS-422 or RS-485, and across Ethernet by web GUI or Telnet. It occupies 9U of rack space and draws up to 800 W with a full complement of boards.
Key features
Eight-plus-eight modular slots
Eight input and eight output slots accept hot-swappable ATEN matrix boards for up to 32 x 32 switching.
Mixed signal types in one frame
Interfaces are determined by the boards fitted, so HDMI, DVI, SDI and HDBaseT can share a chassis.
Serial and IP control
RS-232, RS-485/RS-422 captive screw and Ethernet with web GUI and Telnet.
EDID Expert with wizard
Default, Port 1, Remix and Customized EDID modes to keep large mixed display estates negotiating correctly.
Technical specifications
Connectivity
Ethernet1 x RJ-45 female
Input Power100-240 VAC, 50-60 Hz, 10 A
Power & Physical
Maximum Matrix Size32 x 32
Power Consumption800 W
Dimensions48.20 x 47.19 x 39.90 cm
Rack Height9U
Weight18.20 kg
General
Board Slots8 x input slots, 8 x output slots
Maximum Data Rate15.2 Gbps (3.8 Gbps per lane)
Video InterfacesDetermined by the I/O boards fitted
Serial Control1 x RS-232 DB-9 female; 1 x captive screw 5-pole RS-485/RS-422
EDID ModesDefault / Port 1 / Remix / Customized
HousingMetal
Operating Temperature0-40 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN

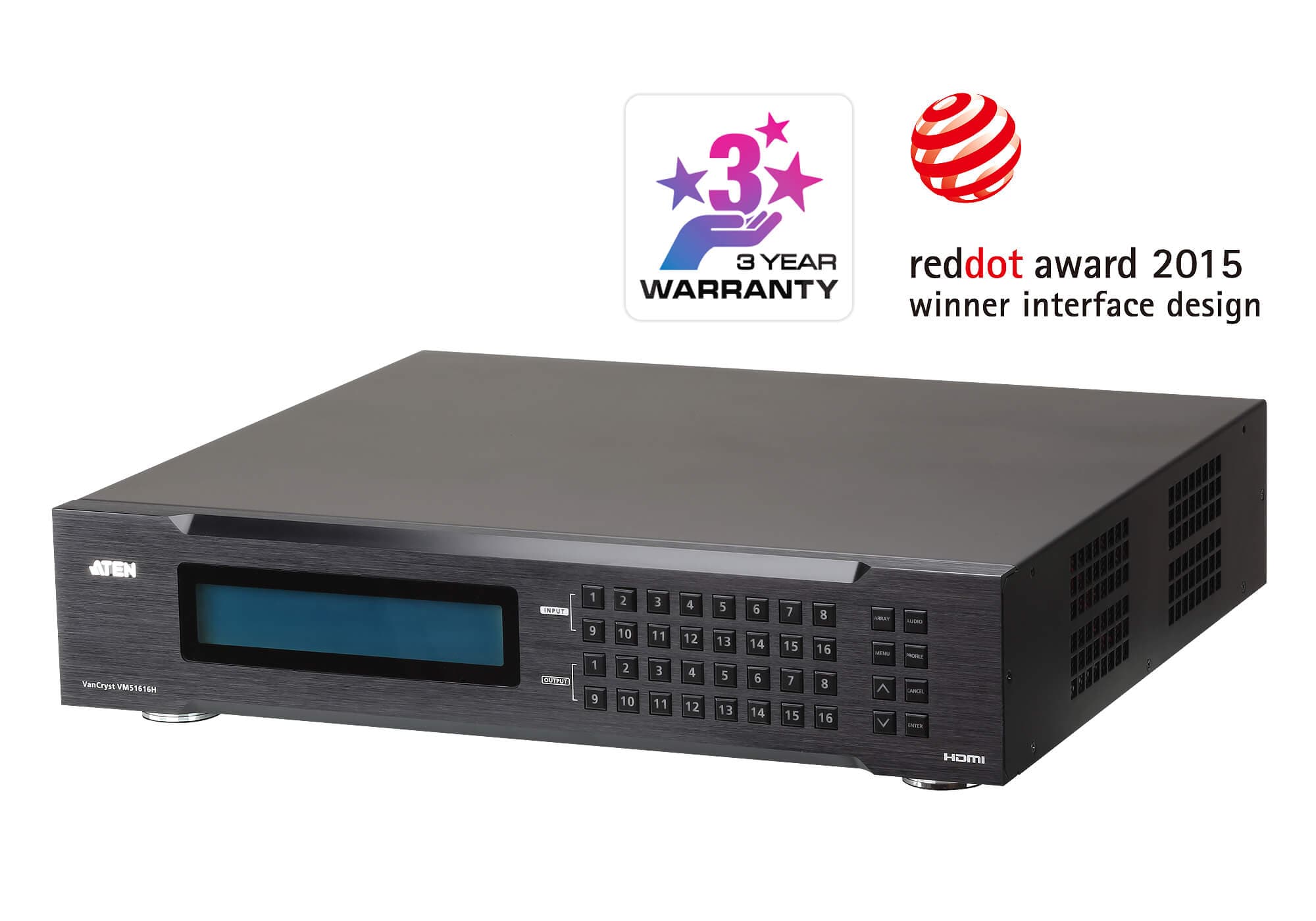

ATEN VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1080p
£11,262.14inc. VAT
Out of stock
ATEN

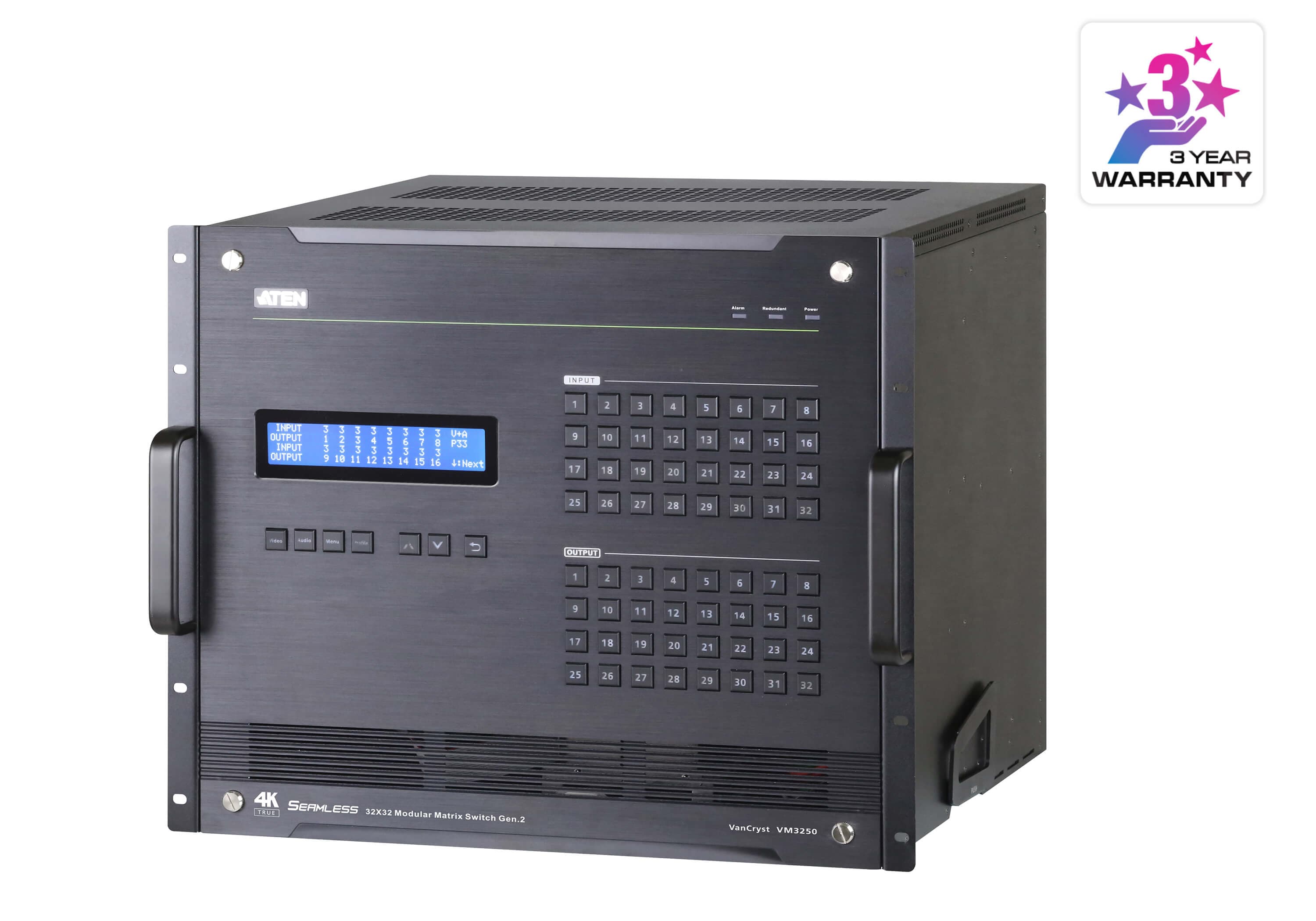

ATEN VM3250 32 x 32 Modular Matrix Switch Gen. 2
£13,461.54inc. VAT
Out of stock
ATEN

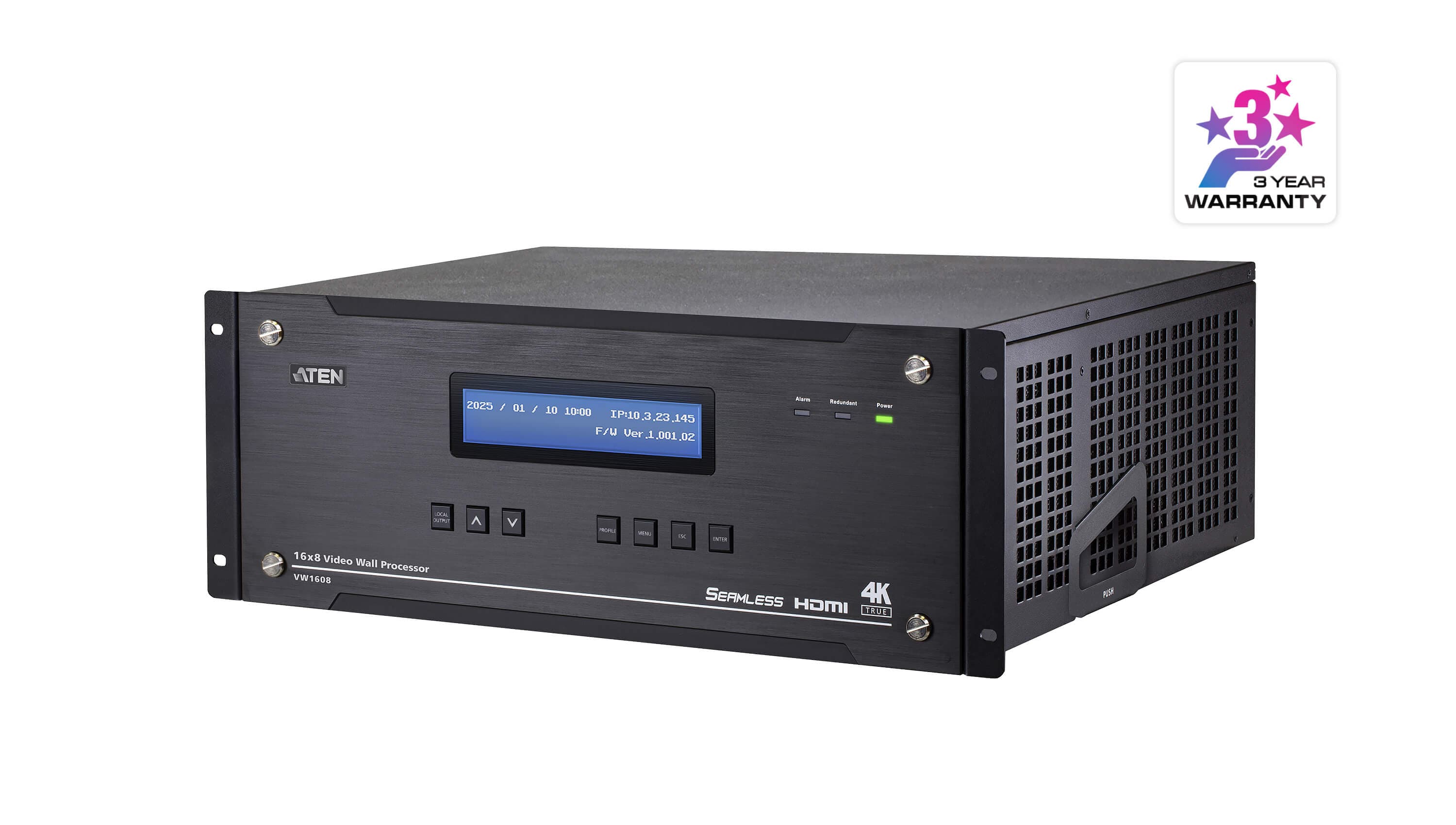

ATEN VW1608 16 × 8 Modular Video Wall Processor
