ViewSonic
ViewSonic LD-SCB-025 Rack-Mount All-in-One LED System Control Box
£6,698.05inc. VAT
Out of stock
ViewSonic
ViewSonic LDC031-120 31.5" P1.25 Direct View LED Cabinet
£6,707.80inc. VAT
£5,589.83 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
Screen Size31.5"
Panel TechnologyDirect view LED
LED Package TypeIMD 2 in 1 (GOB)
Pixel Pitch (mm)1.25
Brightness (max.)600 nits (100 levels adjustable)
Contrast Ratio (typ.)6500:1
Color Temperature3000K -10000K
Viewing Angles (typ.)H = 170, V = 170
Description

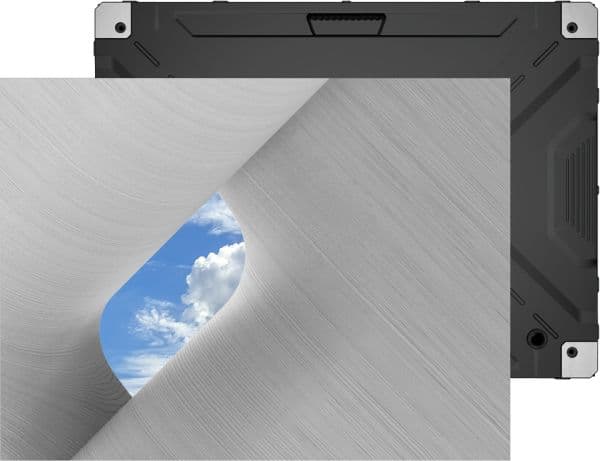

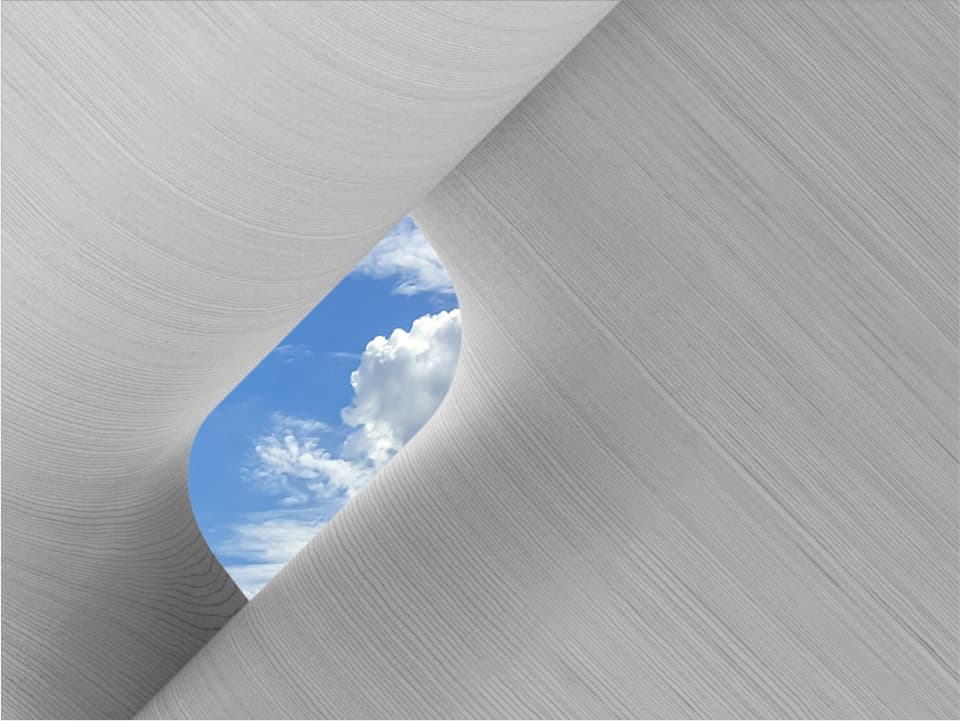

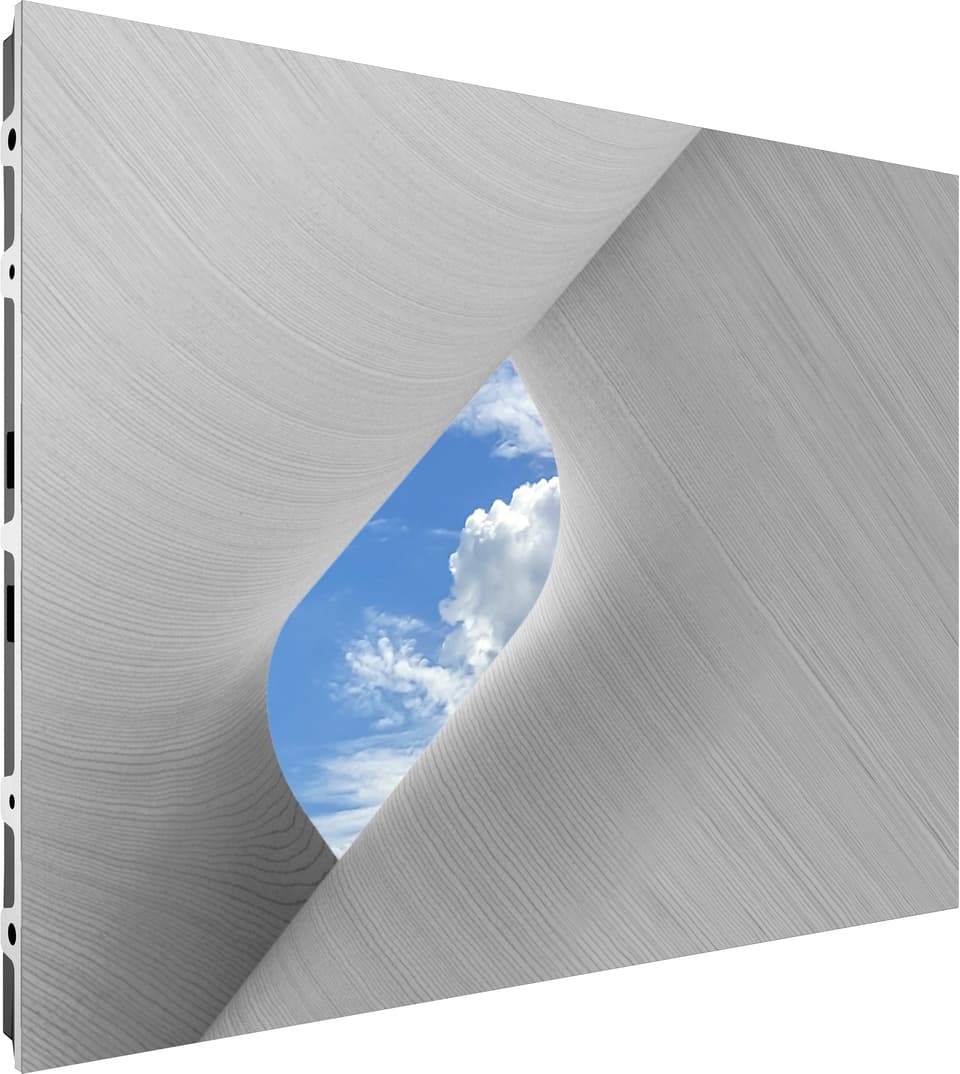

The ViewSonic LDC031-120 is a single 31.5" cabinet from the LDC configurable Direct View LED range. Cabinets tile together to build a video wall at whatever size and aspect ratio a site needs, rather than forcing the design around a fixed panel. At a 1.25mm pixel pitch it resolves fine detail at close viewing distances, and ViewSonic quotes 600 nits peak brightness with a 6500:1 typical contrast ratio.
Also in this range:LDC031-150 LDC031-180 LDC031-250 LDC027-180 Full specifications Datasheet Compare alternatives
Each cabinet carries 6 IMD 2 in 1 LED modules finished with Glue-on-Board surface treatment, giving an IP54(Front) ingress rating and IK06(Front) impact rating across the viewing surface. That matters in lobbies, retail floors and transport hubs where the wall is within reach of the public. Modules are serviced from the front, so a faulty tile can be swapped without pulling the array off the wall.
The all-in-one architecture keeps power, control, image stitching and configuration inside the system rather than in a separate processing rack, and the control box can be sited away from the wall to keep the installed depth slim. Typical draw is 48W per cabinet (typ) and the array is managed over LAN. Content plays back from the built-in Android 9.0 platform.
Key features
Configurable wall size
Tile 31.5" cabinets in any grid to reach the exact width, height and aspect ratio the space calls for.
P1.25 pixel pitch
A 1.25mm pitch keeps text and detail legible at short viewing distances typical of indoor installations.
GOB protected surface
Glue-on-Board treatment gives IP54(Front) and IK06(Front) protection against knocks, dust and moisture.
Front-serviceable modules
LED modules are removed and replaced from the front of the wall, so maintenance does not require rear access or dismantling.
Technical specifications
Choose a section to view its specifications.
Display (6)
- Screen Size
- 31.5"
- Panel Technology
- Direct view LED
- Brightness (max.)
- 600 nits (100 levels adjustable)
- Contrast Ratio (typ.)
- 6500:1
- Viewing Angles (typ.)
- H = 170, V = 170
- Resolution Support
- VGA(640 x 480) to 4K(3840 x 2160@60hz)
Power & Physical (1)
- Weight
- 6.3 kg
General (9)
- LED Package Type
- IMD 2 in 1 (GOB)
- Pixel Pitch (mm)
- 1.25
- Color Temperature
- 3000K -10000K
- LED Lifetime (typ.)
- 100,000 Hours
- Embedded OS
- Android 9.0
- Local Storage
- Total 32GB
- Total LED Module Quantity
- 6 per cabinet
- Ingress Protection Rating
- IP54(Front)
- Impact Protection Rating
- IK06(Front)
