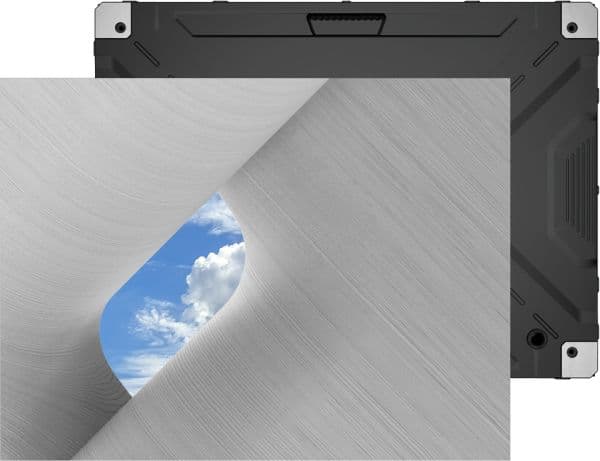

ViewSonic LDC031-120 31.5" P1.25 Direct View LED Cabinet
4K UHD600 cd/m²31.5"
£7,164.71inc. VAT
Out of stock
ViewSonic
ViewSonic LD-SCB-025 Rack-Mount All-in-One LED System Control Box
£7,954.21inc. VAT
£6,628.51 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
Pixel count (max.)3,900,000
Max widest.10,240pixels
Max highest8,192 pixels
ProcessorVX600 Pro
Control box19x1.97x11.90 inches
Power module22.24x1.54x16.85 inches
Power Consumption41W
Output Power Consumption13.2kW@220V
Description
The ViewSonic LD-SCB-025 is the system control box for ViewSonic LDC configurable direct view LED walls. It takes the video sources, does the scaling and image stitching across the cabinet array, and distributes power and data out to the tiles — the work that would otherwise need a separate sending card, processor and power distribution in a signal rack.
It drives up to 3,900,000 pixels, with a maximum canvas of 10,240pixels wide by 8,192 pixels high, using a VX600 Pro processor. Video comes in over 3 HDMI inputs with USB and dual gigabit Ethernet alongside, and 6 Ethernet ports feed the cabinet array.
'Because the box mounts in a rack rather than behind the wall, the LED array itself can be installed close to flush with the wall surface, and the electronics stay reachable for service without touching the screen. Control is over TCP/IP or RS232, and the box supports 24/7 operation with PIP and PBP across its HDMI inputs.
Key features
Drives the whole wall
One box handles scaling, image stitching, power distribution and control for a configurable LDC array.
Up to 3.9 million pixels
Supports canvases up to 10,240pixels wide or 8,192 pixels high within a 3,900,000 pixel budget.
Rack mounted
A 19-inch rack-mount chassis keeps the electronics accessible and lets the LED wall sit close to flush.
24/7 operation with PIP/PBP
Rated for continuous operation, with picture-in-picture and picture-by-picture across the HDMI inputs.
Technical specifications
Pixel count (max.)3,900,000
Max widest.10,240pixels
Max highest8,192 pixels
ProcessorVX600 Pro
Control box19x1.97x11.90 inches
Power module22.24x1.54x16.85 inches
Power Consumption41W
Output Power Consumption13.2kW@220V
HDMI3
USB Type A2
RJ45 (Internet)2
Ethernet ports to Cabinet6
RJ45 (LAN control)2
RS232 (DB 9-pin female)1(3 pin)
LAN Control●(TCP/IP)
Complete your setup
Optional extras that fit this product. Tick anything you need and it joins the same basket — or add this product on its own from the buy box above.
Choose a Mount
Video Conferencing
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Your Configuration
ViewSonic LD-SCB-025 Rack-Mount All-in-One LED System Control Box × 1£7,954.21
Total£7,954.21
inc. VAT
1
This item is currently out of stock. Please check back soon or contact us.
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ViewSonic

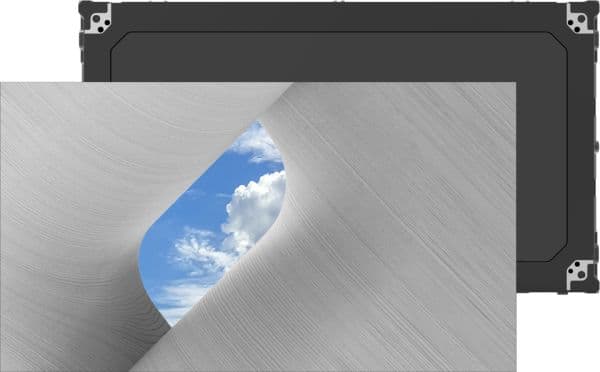

ViewSonic LDC027G-071C 27" P0.78 Direct View LED Cabinet
4K UHD600 cd/m²27"
£9,857.78inc. VAT
Out of stock
Samsung
Samsung IW008C 0.84mm The Wall IWC MicroLED Cabinet
600 cd/m²
£10,000.01inc. VAT
Out of stock
Sony

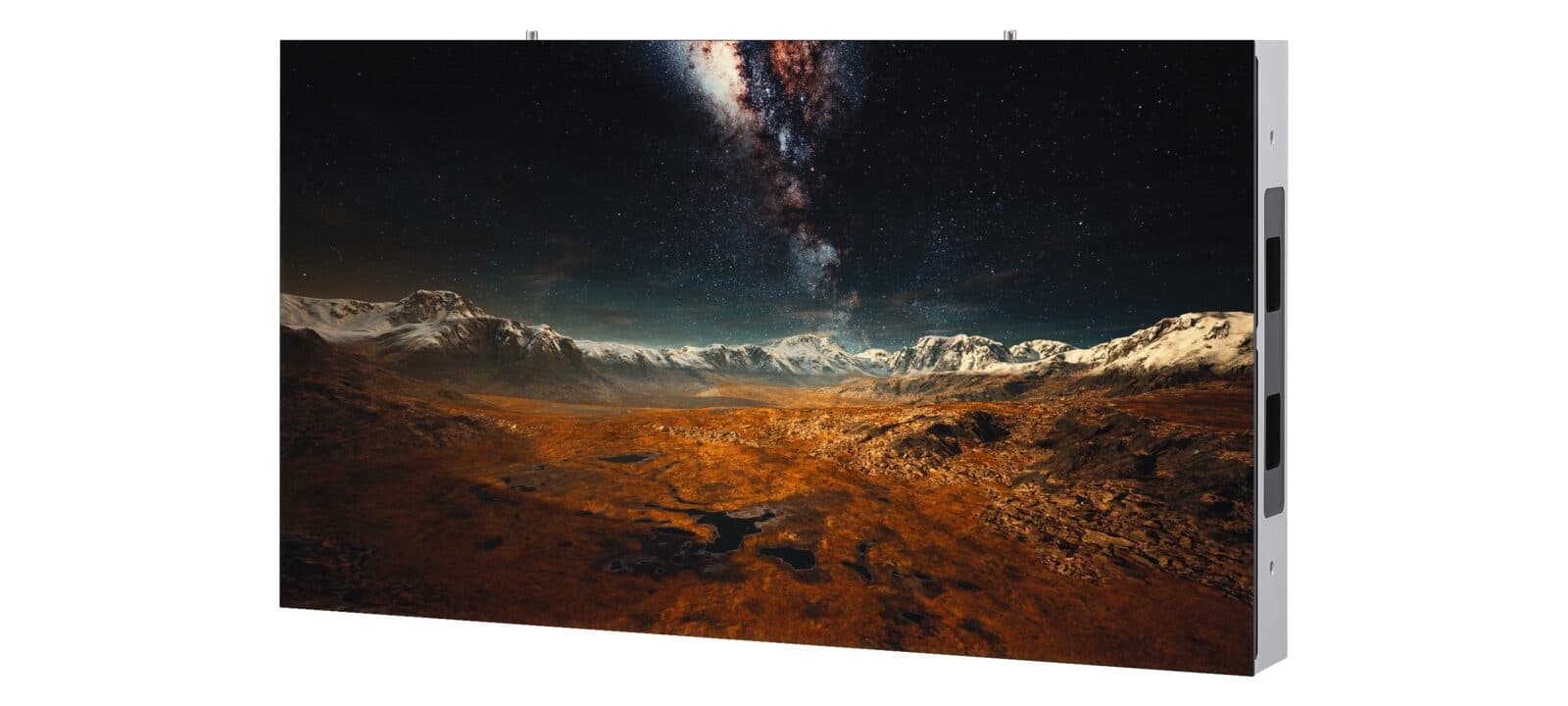

Sony ZRD-CH12D Crystal LED CH Series 1.27 mm Video Wall Cabinet
