Home / CCTV & Security / Synology VisualStation VS600HD 50-Channel Surveillance Monitoring Station
Synology

Synology VisualStation VS600HD 50-Channel Surveillance Monitoring Station

£804.38inc. VAT
£670.32 ex. VAT
Out of stock
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £268.13 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
Installation services availablePurchase orders: education customers only
3 Years Warranty Included
Key specifications
Device typeSurveillance monitoring station (Surveillance Station client)
Maximum IP cameras50
Video codecsH.264, H.265
Video outputs2 x HDMI
Maximum output resolution3840 x 2160 / 30 Hz; 1920 x 1080 / 60 Hz
USB2 x USB 3.0
Network interface1 x 1GbE LAN
Audio3.5 mm audio in and audio out
All 15 specifications

Description

The VisualStation VS600HD gives a control room or reception desk a live camera wall without a PC. It connects to a Synology NAS running Surveillance Station and renders the video itself, so there is no Windows machine to patch, licence or reboot behind the counter.

Full specifications Datasheet Compare alternatives

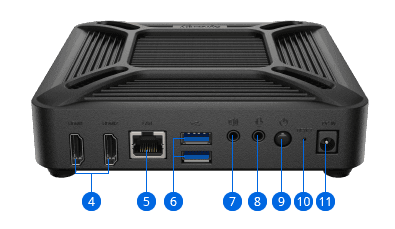

It handles up to 50 IP camera channels in H.264 and H.265 and drives two HDMI outputs at 3840 x 2160 at 30 Hz or 1920 x 1080 at 60 Hz. Two USB 3.0 ports take a keyboard and mouse for PTZ and layout control, and 3.5 mm audio in and out jacks carry two-way audio to and from cameras that support it.

The unit measures 41.84 x 150 x 150 mm and weighs 0.36 kg, with MIS-D 75 and MIS-D 100 VESA mounting so it can be fixed behind the monitor itself. A 36 W adapter supplies it; consumption is 5.85 W at idle and 15.49 W at a 50-channel full load. Synology covers it with a three-year warranty. Note that it is a client for Surveillance Station, not a recorder, and requires a Synology NAS.

Key features

Live wall without a PC

Renders up to 50 camera channels directly, removing the Windows client machine from a reception or control desk.

Dual 4K HDMI outputs

Two HDMI ports at 3840 x 2160 / 30 Hz or 1920 x 1080 / 60 Hz for a two-screen layout.

Low power draw

5.85 W at idle and 15.49 W at 50-channel full load from a 36 W adapter.

VESA mountable

MIS-D 75 and MIS-D 100 patterns let the 0.36 kg unit be fixed to the back of the monitor it drives.

Technical specifications

Display
Maximum output resolution3840 x 2160 / 30 Hz; 1920 x 1080 / 60 Hz
Connectivity
Video outputs2 x HDMI
USB2 x USB 3.0
Network interface1 x 1GbE LAN
Audio
Audio3.5 mm audio in and audio out
Power & Physical
VESA mountingMIS-D 75, MIS-D 100
Power consumption5.85 W idle, 15.49 W at 50-channel full load
Dimensions41.84 x 150 x 150 mm
Weight0.36 kg
Certifications & Warranty
Warranty3 years
General
Device typeSurveillance monitoring station (Surveillance Station client)
Maximum IP cameras50
Video codecsH.264, H.265
Power supply36 W adapter, 100-240 V AC 50/60 Hz
RequiresSynology NAS running Surveillance Station

Documents

Synology VisualStation VS600HD datasheet (PDF)
