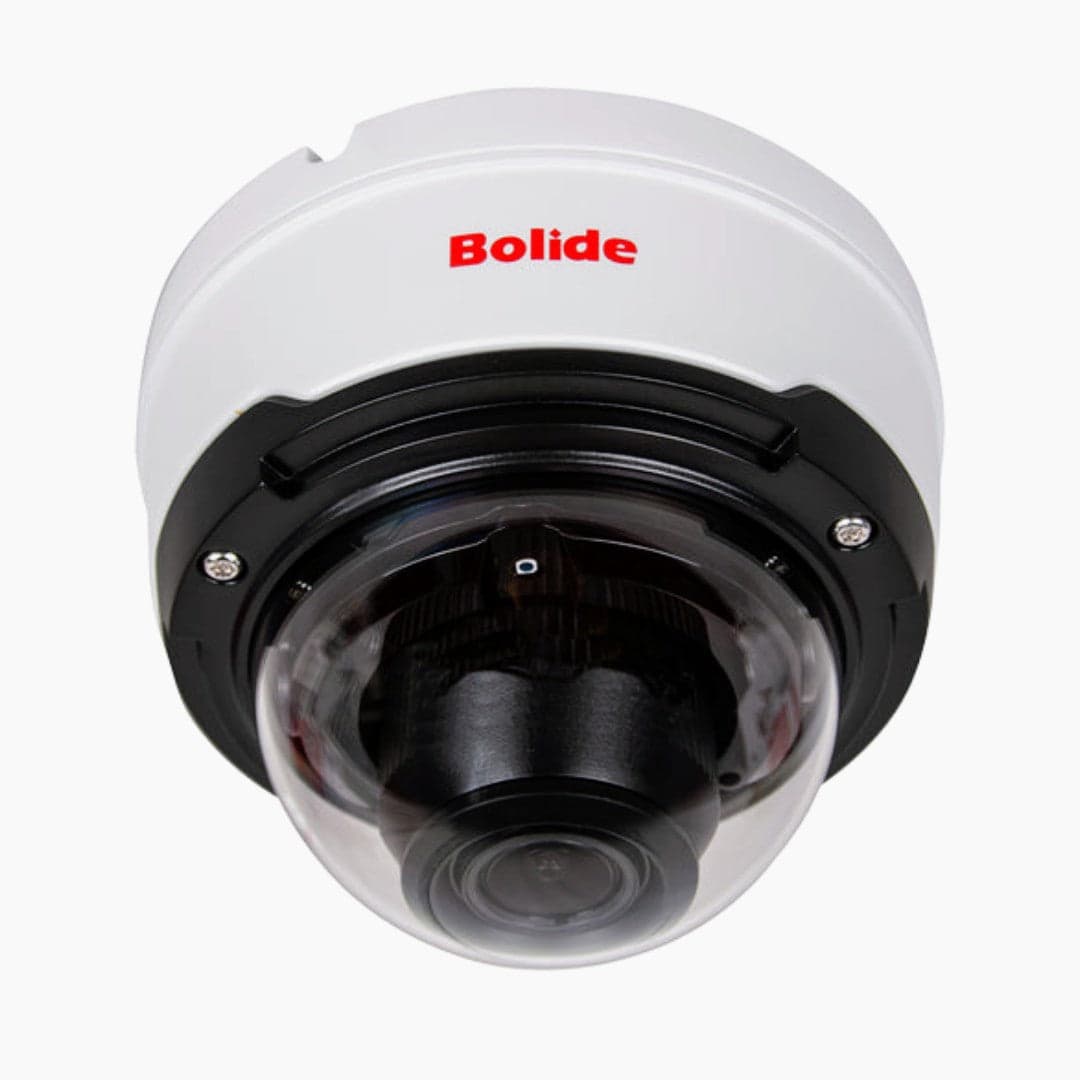

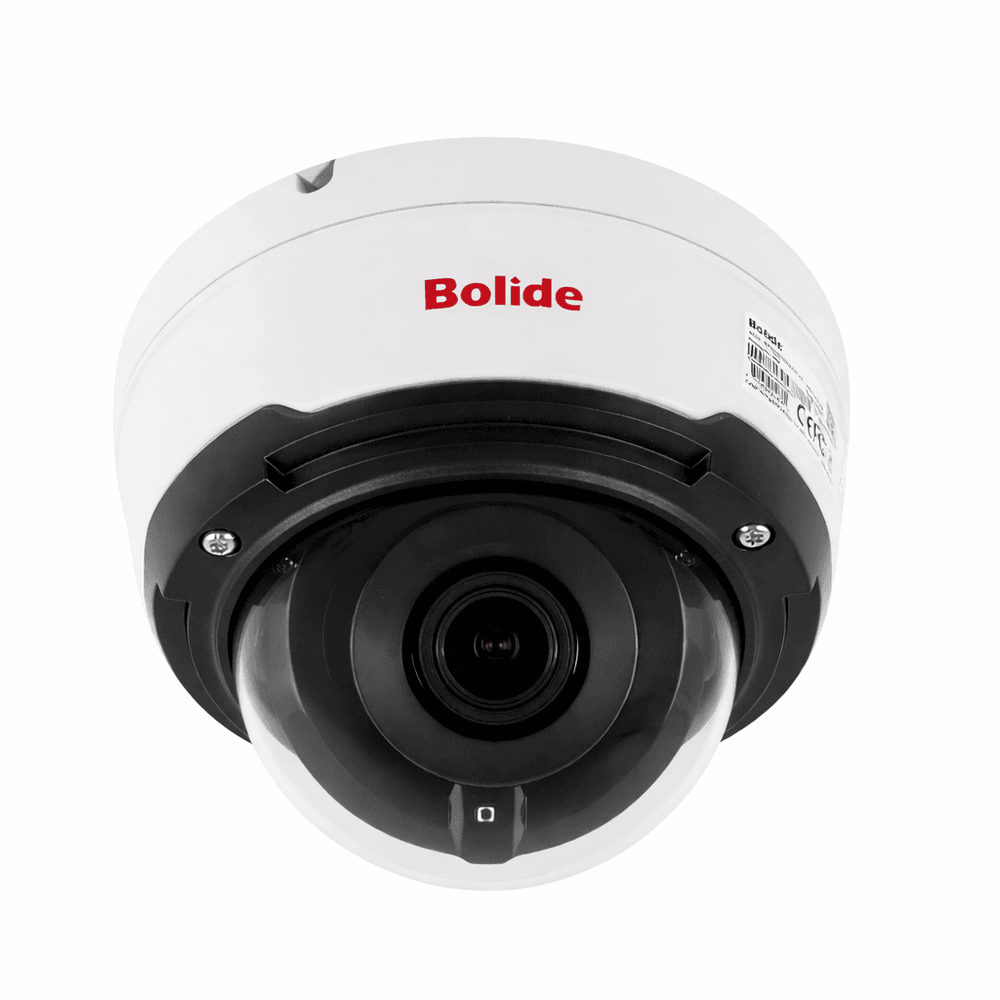

Bolide BN9029AVAIRAI/NDAA 8MP Motorised Varifocal Outdoor Dome Camera with AI

The BN9029AVAIRAI/NDAA is the 4K analytics dome in Bolide's iPac NX range. A 1/2.8-inch progressive-scan CMOS sensor records 3840 x 2160 at 30 fps through a motorised 2.7-13.5 mm lens with 5x zoom, giving a horizontal field of view adjustable from 111 degrees down to 33 degrees.

Its distinguishing feature is the breadth of on-camera analytics. Bolide lists face detection and recognition, licence plate detection and recognition, pedestrian and vehicle classification, perimeter intrusion, line crossing, object detection, cross counting, heat map, crowd density, queue length, rare sound detection, region entrance and exiting, video tampering and sound detection. DORI figures are quoted at 2.7 mm as detect 52.8 m, observe 21.1 m, recognise 10.6 m and identify 5.3 m, extending at 13.5 mm to detect 259.3 m and identify 25.9 m.

Minimum illumination is 0.002 lux in colour with automatic gain control and 0 lux with infrared, with 120 dB wide dynamic range. The metal housing is IP67 rated and runs from -40 to 60 degrees C. Power is 12 V DC at up to 6.9 W or 802.3af PoE at up to 8.7 W, and there is a microSD slot taking cards up to 1 TB. The camera is NDAA compliant and supports ONVIF Profiles S, G, T and M.
