Bolide BN600AI 5MP Pinhole ATM Network Camera with PoE

Name: Bolide BN600AI 5MP Pinhole ATM Network Camera with PoE
Brand: Bolide
SKU: BN600AI
Price: 349.50 GBP
Availability: OutOfStock

£349.50inc. VAT

£291.25 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £116.50 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

3 Years Warranty Included

Key specifications

Camera typePinhole / ATM

Image sensor1/2.8" progressive CMOS

Resolution5MP 2560 (H) x 1920 (V)

Lens2.1 mm, F2.1 +/-5%

Field of view141 deg horizontal

Minimum illuminationColour 0.1 lux @ F1.2 (AGC on); B/W 0 lux with IR on

Wide dynamic range120 dB true WDR

Shutter1/5 - 1/20000 s

All 18 specifications

Description

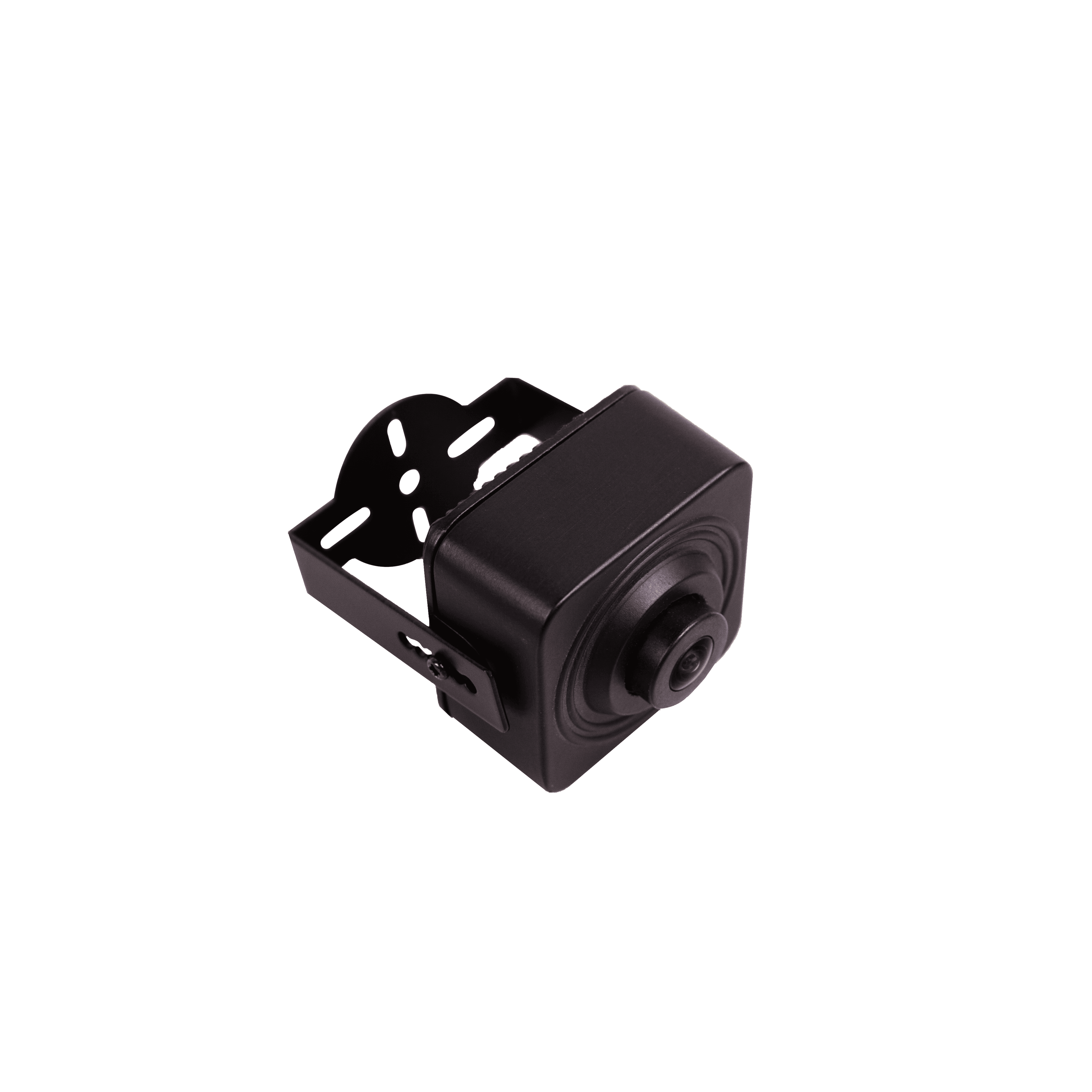

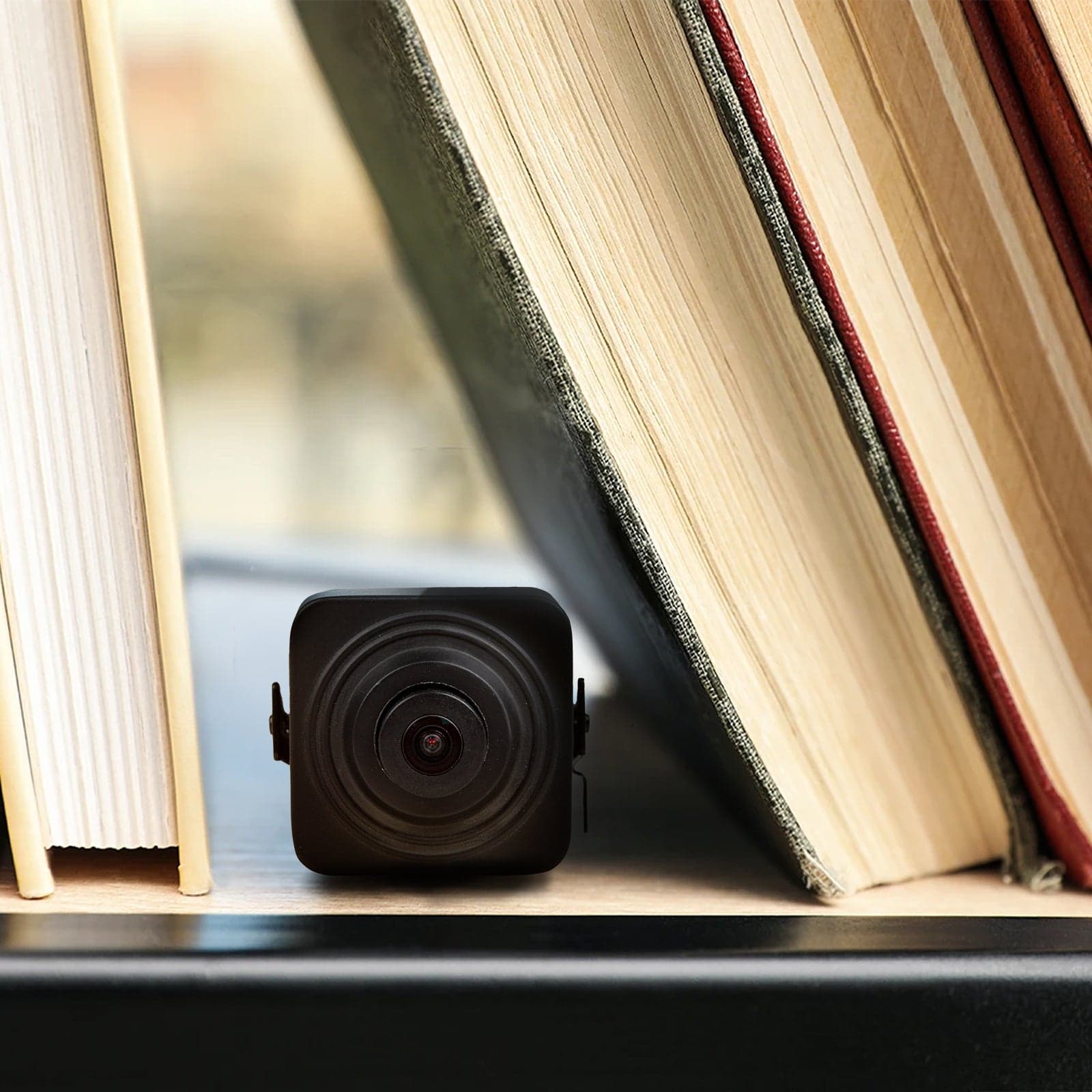

The BN600AI is a pinhole camera designed for ATM fascias, tills and other positions where the camera has to be near-invisible and very close to the subject. The body measures roughly 31 x 31 mm, small enough to sit behind a panel aperture.

Full specifications Datasheet Compare alternatives

A 1/2.8-inch progressive-scan CMOS sensor records 2560 x 1920 through a 2.1 mm F2.1 lens with a 141-degree horizontal field of view, which at ATM distances covers the whole of a user's upper body and face. True wide dynamic range of more than 120 dB is the specification that matters here: an ATM user is almost always backlit by daylight from the street.

The camera carries Bolide's iPac AI facial recognition system along with perimeter intrusion, line crossing, stationary object and pedestrian detection. Connectivity includes two alarm inputs and one alarm output, one audio in and one audio out, and ONVIF support for third-party recorders. Power is 12 V DC or PoE, with H.265 and H.264 compression at 8 Kbps to 8 Mbps and triple streaming.

Key features

Pinhole form factor

A body of roughly 31 x 31 mm that fits behind an ATM fascia or panel aperture.

141-degree lens for close work

A 2.1 mm F2.1 lens covers a user's head and shoulders at ATM distances where a standard lens would crop.

True WDR above 120 dB

Holds facial detail against the daylight backlighting typical of a street-facing cash machine.

Facial recognition and analytics

iPac AI facial recognition plus perimeter intrusion, line crossing, stationary object and pedestrian detection.

Technical specifications

Choose a section to view its specifications.

Display (1)

Resolution: 5MP 2560 (H) x 1920 (V)

Audio (2)

Wide dynamic range: 120 dB true WDR
Audio: 1 channel in, 1 channel out

Power & Physical (1)

Body dimensions: 31.2 x 31.2 mm

General (14)

Camera type: Pinhole / ATM
Image sensor: 1/2.8" progressive CMOS
Lens: 2.1 mm, F2.1 +/-5%
Field of view: 141 deg horizontal
Minimum illumination: Colour 0.1 lux @ F1.2 (AGC on); B/W 0 lux with IR on
Shutter: 1/5 - 1/20000 s
Video compression: H.265 / H.264
Video bitrate: 8 Kbps - 8 Mbps
Streams: Triple stream (main, sub, mobile)
Frame rate: 1-30 fps selectable at 2560 x 1920
Analytics: Facial recognition, perimeter intrusion, line crossing, stationary object detection, pedestrian detection
Alarm I/O: 2 channels in, 1 channel out
Power: 12 V DC / PoE
Protocol: ONVIF

Documents

Bolide BN600AI data sheet (PDF) - this is the file Bolide links as the BN600AI data sheet; the document itself is written in Spanish, the only edition Bolide publishes for this model
