APC NetBotz Camera Pod 165 HD Surveillance Camera

Name: APC NetBotz Camera Pod 165 HD Surveillance Camera
Brand: APC
SKU: NBPD0165
Price: 394.03 GBP
Availability: OutOfStock

£394.03inc. VAT

£328.36 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £131.35 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

VideoHigh definition

Device typeNetwork surveillance camera pod

Image sensor1/3" progressive scan CMOS

Effective pixels2688 (H) x 1520 (V)

Lens2.8 mm fixed

Field of view100 deg

Minimum illumination0.1 lux colour; 0.01 lux black and white

Day/nightDay/Night ICR switching filter

All 26 specifications

Description

The NetBotz Camera Pod 165 is a surveillance camera for data centre and comms room monitoring rather than a general-purpose CCTV camera. It attaches to an APC NetBotz Rack Monitor 750 or 755 appliance and sends image data through it, so it forms part of the environmental monitoring system rather than a separate video installation.

Full specifications Datasheet Compare alternatives

That distinction matters in practice: the pod can be triggered by the appliance in response to an environmental alarm such as a temperature spike or a door contact opening, capturing the moment something changed rather than relying on continuous recording. It also provides constant surveillance of a room or entrance when that is what is wanted.

Motion detection zones are configurable, so alerts can be limited to the areas of a hall that matter and ignore movement elsewhere. The pod supports Power over Ethernet or a DC power supply, and mounts on a rack, a wall or a ceiling. It requires a NetBotz 750 or 755 appliance to operate.

Key features

Triggered by environmental alarms

The NetBotz appliance can trigger image capture on a temperature excursion or a door contact, tying video to the event that caused it.

Configurable motion zones

Motion detection areas can be tailored so alerts cover the critical parts of a hall and ignore routine movement elsewhere.

PoE or DC powered

Power over Ethernet or a separate DC supply, with rack, wall and ceiling mounting options.

Part of the NetBotz system

Works with NetBotz Rack Monitor 750 and 755 appliances rather than as a standalone IP camera.

Technical specifications

Choose a section to view its specifications.

Connectivity (1)

Network interface: RJ-45 10/100M Ethernet with Power over Ethernet

Audio (1)

Audio: Embedded microphone and speaker

Power & Physical (4)

Maximum power consumption: 5.24 W over PoE
Dimensions: 97 x 56 x 38 mm (H x W x D)
Weight: 0.12 kg
Mounting: Rack, wall or ceiling; T-bar plate, ball-joint adjuster arms and extender arms supplied

General (20)

Video: High definition
Device type: Network surveillance camera pod
Image sensor: 1/3" progressive scan CMOS
Effective pixels: 2688 (H) x 1520 (V)
Lens: 2.8 mm fixed
Field of view: 100 deg
Minimum illumination: 0.1 lux colour; 0.01 lux black and white
Day/night: Day/Night ICR switching filter
Shutter speed: 1 - 1/10000 s
Motion detection: Yes, on/off/masking, configured in the NetBotz 750 interface

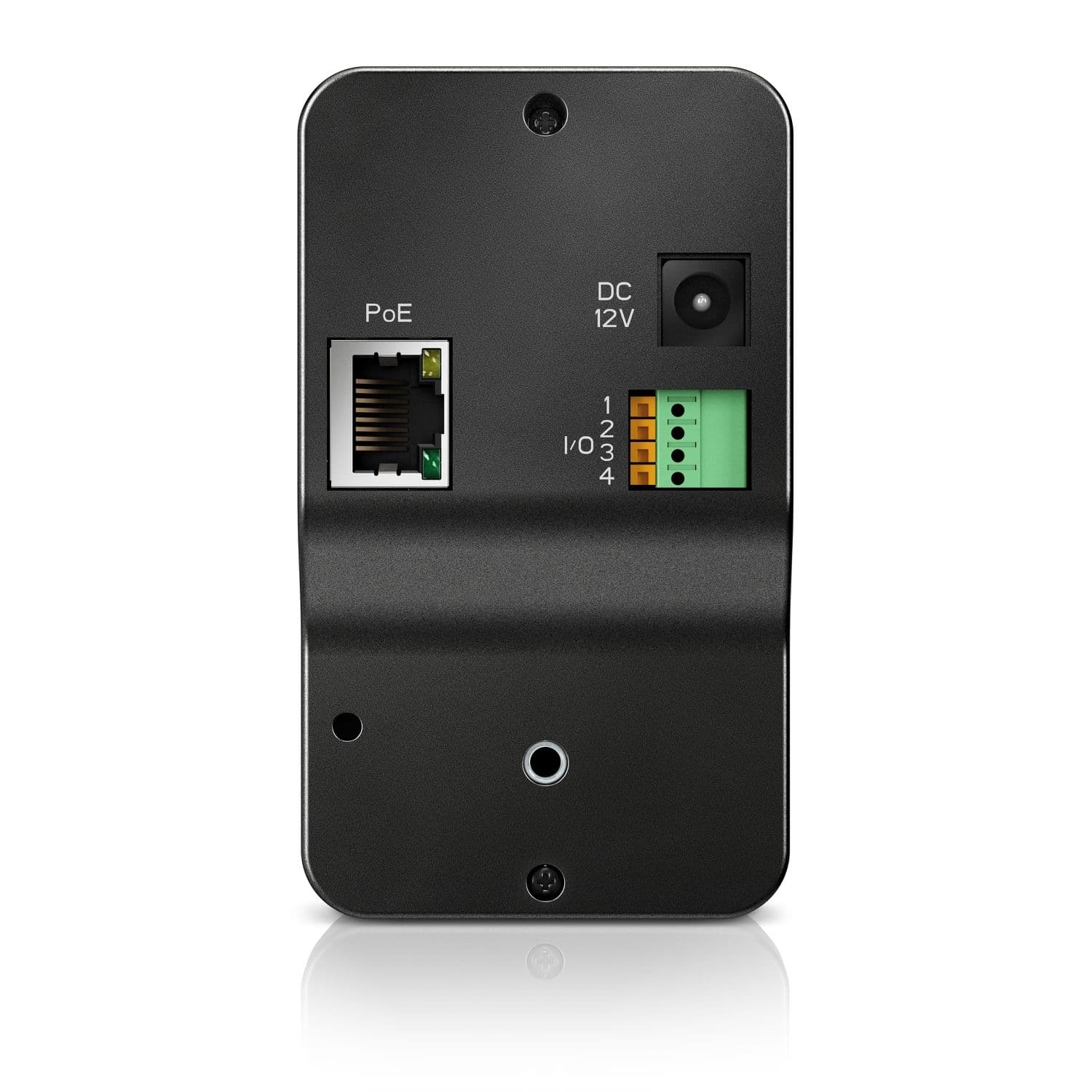

Power: Power over Ethernet; the 12 V DC jack, alarm in/out terminal and microSD slot are marked reserved for future use in the installation guide
Operating temperature: 0 to 45 deg C
Operating humidity: 10-90% RH, non-condensing
Operating altitude: 0 to 3000 m above mean sea level
Storage temperature: -15 to 65 deg C
Environment: Indoor use only; not designed for corrosive or caustic environments
Management interface: NetBotz Rack Monitor 750
Compatible appliances: APC NetBotz Rack Monitor 750, NetBotz Rack Monitor 755
Requires: NetBotz Rack Monitor 750 or 755 appliance
Trigger sources: Environmental alarms and events from the host appliance, e.g. temperature or door contact

Documents

APC NetBotz Camera Pod 165 Specifications Sheet (PDF, Schneider Electric document SBRN-B7GRWM) - the manufacturer datasheet for NBPD0165
